Model # AV-32D500A Official JVC color television

Here are the diagrams and repair parts for Official JVC AV-32D500A color television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Television Speaker 46-1713897-3
#4

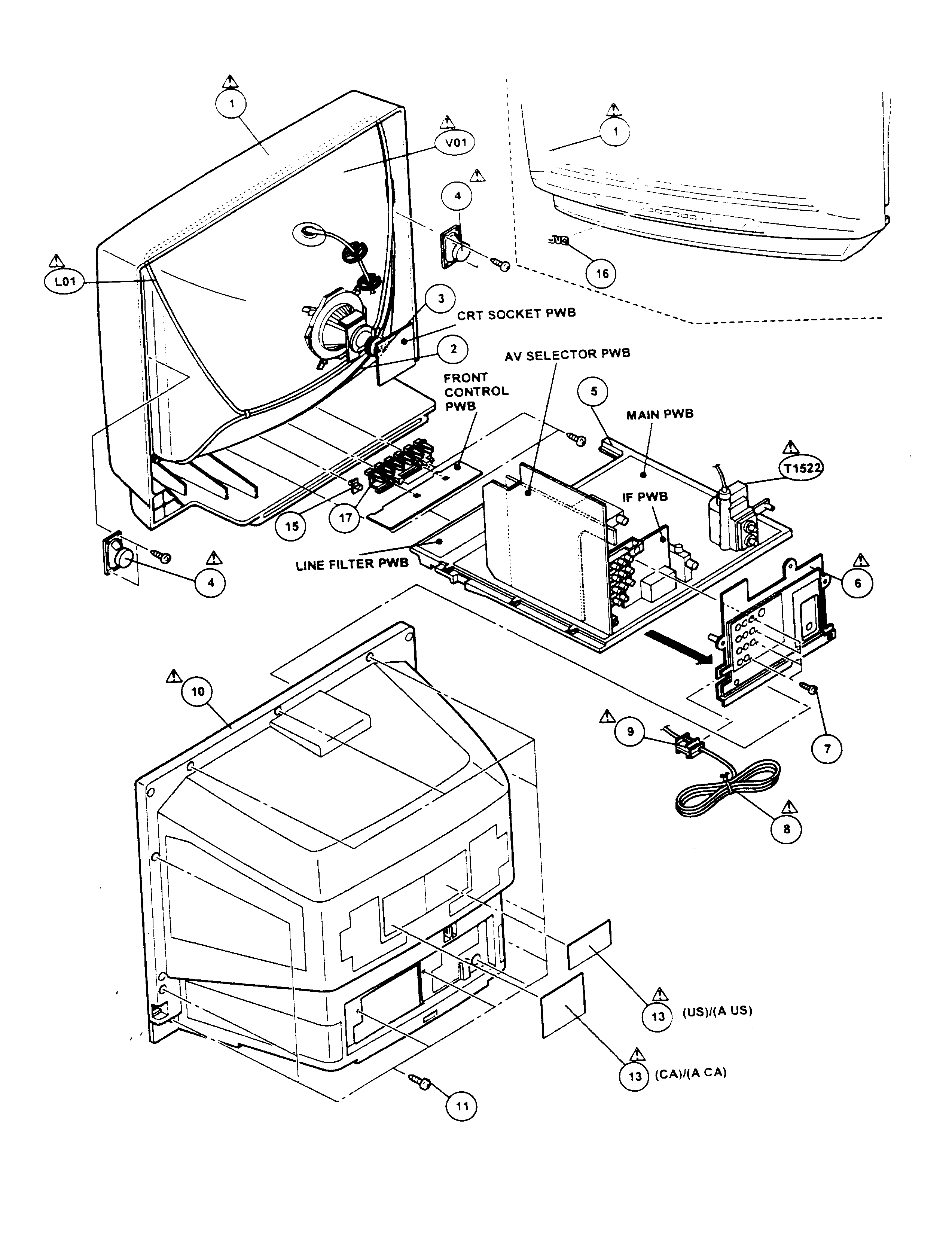

Cabinet parts diagram

Television speaker

Part #46-1713897-3

The manufacturer no longer makes this part, and there's no substitute part

Service Manual 51515
#NI

Cabinet parts diagram

Service manual

Part #51515

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord QMPD200200JC
#5

Cabinet parts diagram

Ac cord

Part #QMPD200200JC

The manufacturer no longer makes this part, and there's no substitute part

Transformer CETS124001J8
#NI

Cabinet parts diagram

Transformer

Part #CETS124001J8

The manufacturer no longer makes this part, and there's no substitute part

Itc Tube M80JUA061X06
#NI

Cabinet parts diagram

Itc tube

Part #M80JUA061X06

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual IB-AV32D800
#NI

Cabinet parts diagram

Owner's manual

Part #IB-AV32D800

The manufacturer no longer makes this part, and there's no substitute part

Loc-1.1:front Cabinet LC10307001CA
#1

Cabinet parts diagram

Loc-1.1:front cabinet

Part #LC10307001CA

The manufacturer no longer makes this part, and there's no substitute part

Remote RM-C343-1A
#NI

Cabinet parts diagram

Remote

Part #RM-C343-1A

The manufacturer no longer makes this part, and there's no substitute part

Relay QSK0101-001
#NI

Cabinet parts diagram

Relay

Part #QSK0101-001

The manufacturer no longer makes this part, and there's no substitute part

Transformer QQH0051-001
#NI

Cabinet parts diagram

Transformer

Part #QQH0051-001

The manufacturer no longer makes this part, and there's no substitute part
