Model # 11183523910 Official Kenmore microwave/hood combo

Here are the diagrams and repair parts for Official Kenmore 11183523910 microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

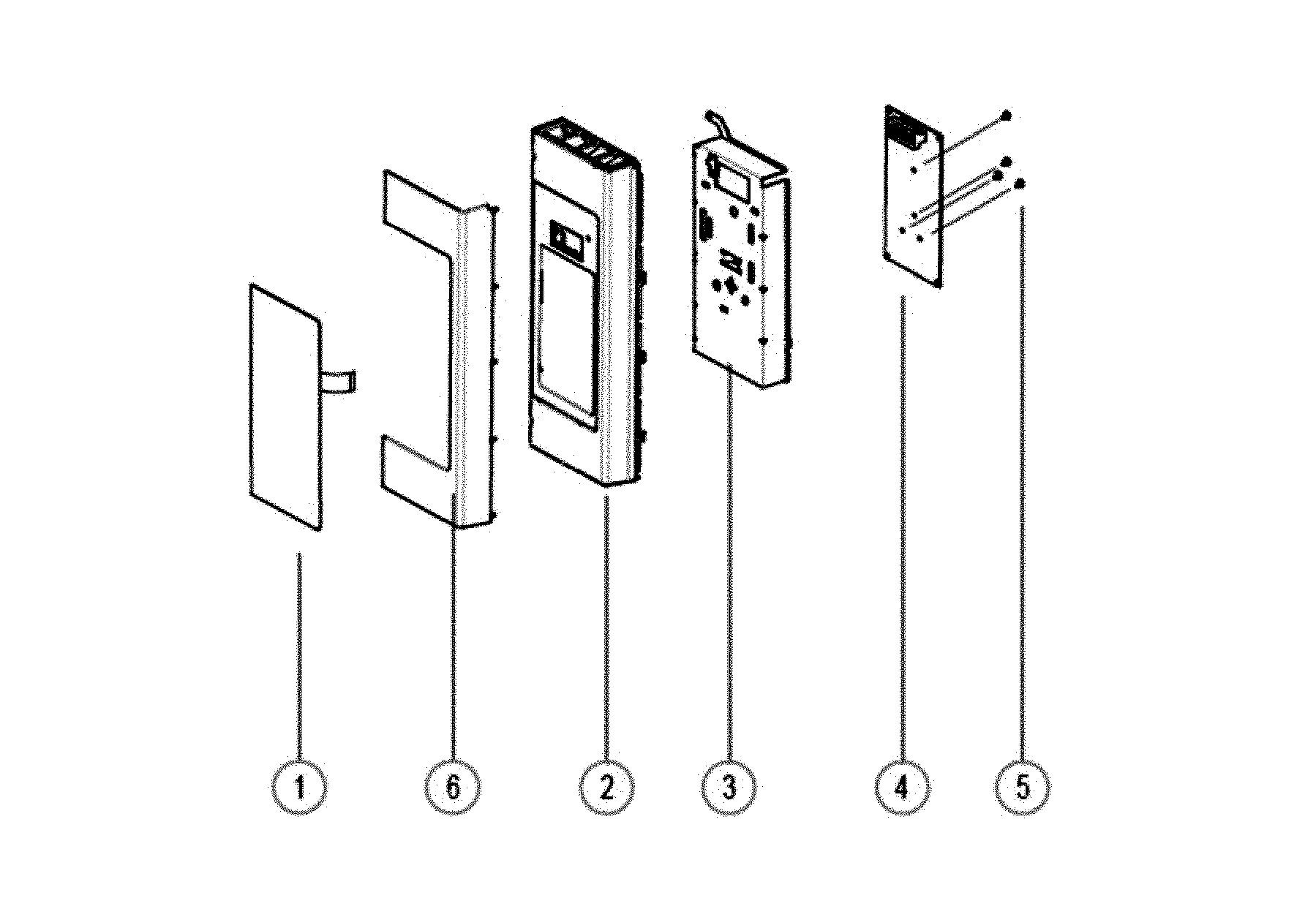

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Microwave Turntable Tray Support 3512517500
#F76

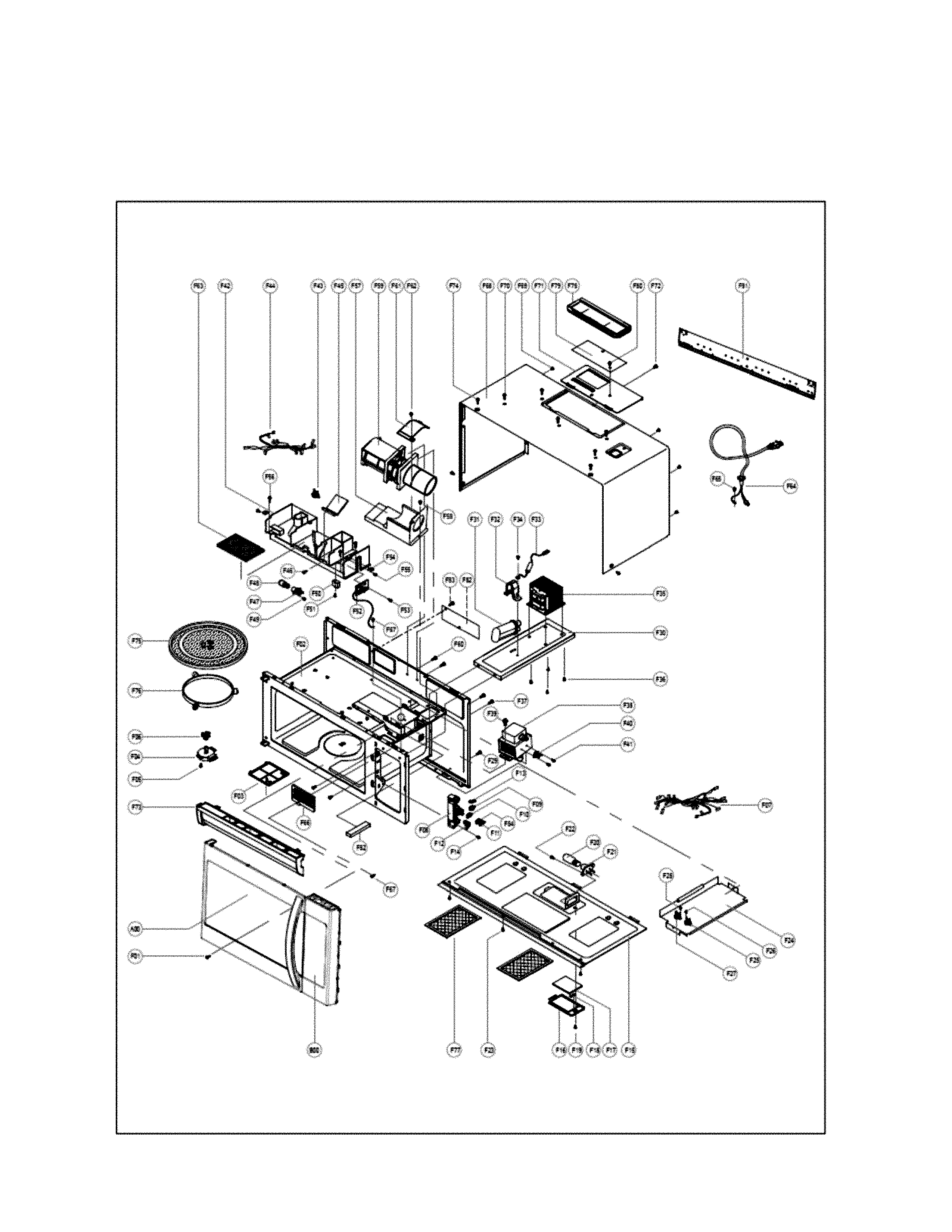

Total assembly diagram

Microwave turntable tray support

Part #3512517500

$41.04
In Stock
Microwave Door Latch 3513101200
#A07

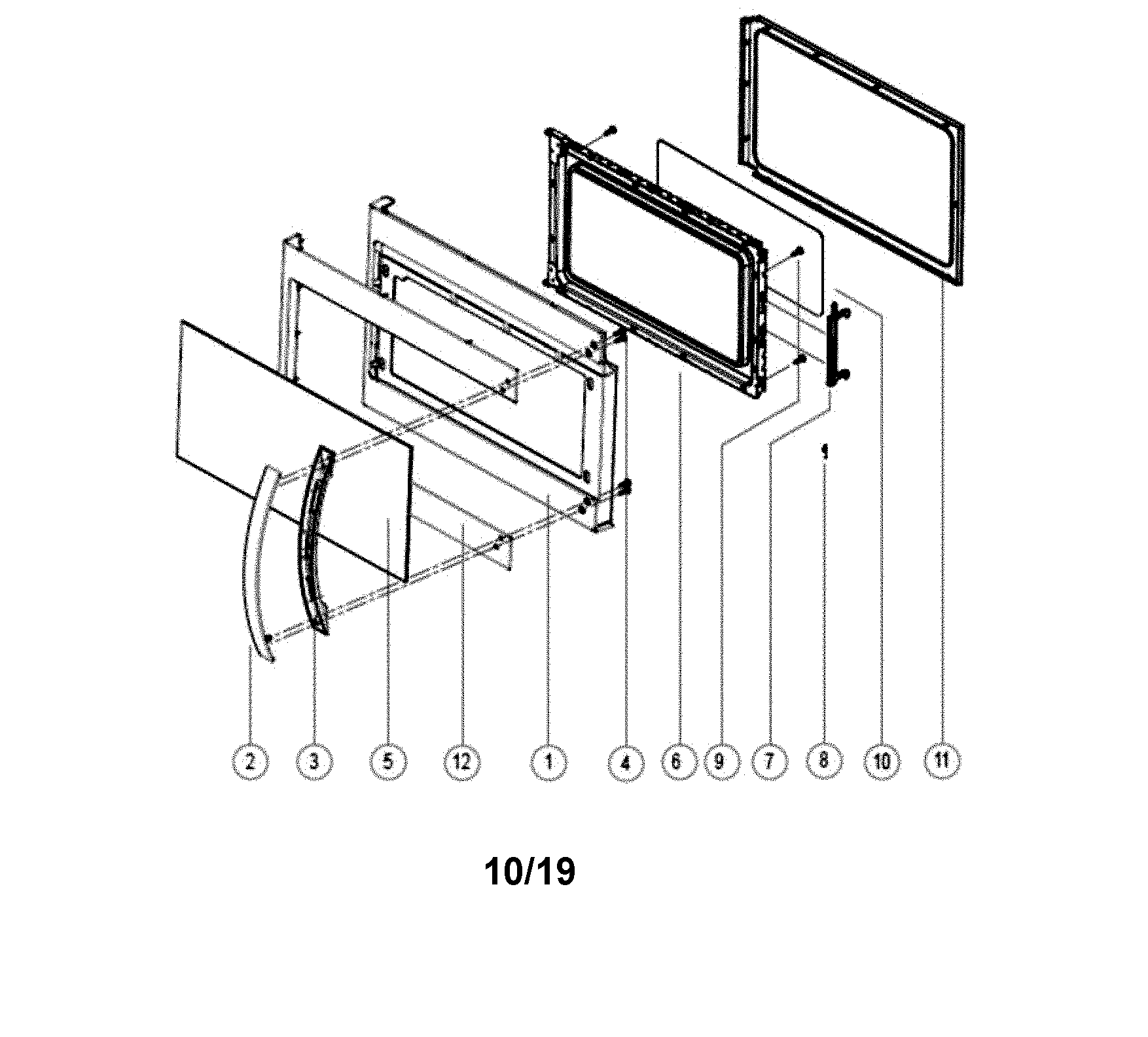

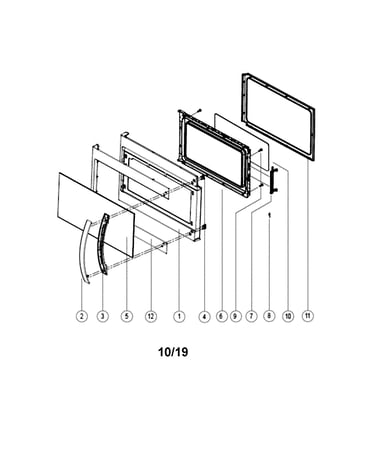

Door assembly diagram

Microwave door latch

Part #3513101200

This item is not returnable
$2.86 |
26% OFF Phone Price : $3.86
In Stock
Microwave Turntable Tray (replaces 3517203500) 3517203510
#F75

Total assembly diagram

Microwave turntable tray (replaces 3517203500)

Part #3517203510

The manufacturer no longer makes this part, and there's no substitute part

Microwave Grease Filter 3511900800
#F77

Total assembly diagram

Microwave grease filter

Part #3511900800

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Hook 3515101800
#A08

Door assembly diagram

Microwave door latch hook

Part #3515101800

This item is not returnable
$2.86 |
26% OFF Phone Price : $3.86
In Stock
Case Fan-t 3511101200
#F61

Total assembly diagram

Case fan-t

Part #3511101200

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Inner Frame 3512302100
#A11

Door assembly diagram

Microwave door inner frame

Part #3512302100

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Refrigerator Screw 7122401211
Refrigerator screw

Part #7122401211

The manufacturer no longer makes this part, and there's no substitute part

Microwave Light Lens Bracket 3511412300
#F17

Total assembly diagram

Microwave light lens bracket

Part #3511412300

This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Hlder Lamp 3513003000
Hlder lamp

Part #3513003000

The manufacturer no longer makes this part, and there's no substitute part
