Model # 0622-20 Official Milwaukee 1/2" 18-v lok-tor drill/driver

Here are the diagrams and repair parts for Official Milwaukee 0622-20 1/2" 18-v lok-tor drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Sleeve 45-22-0560
#404

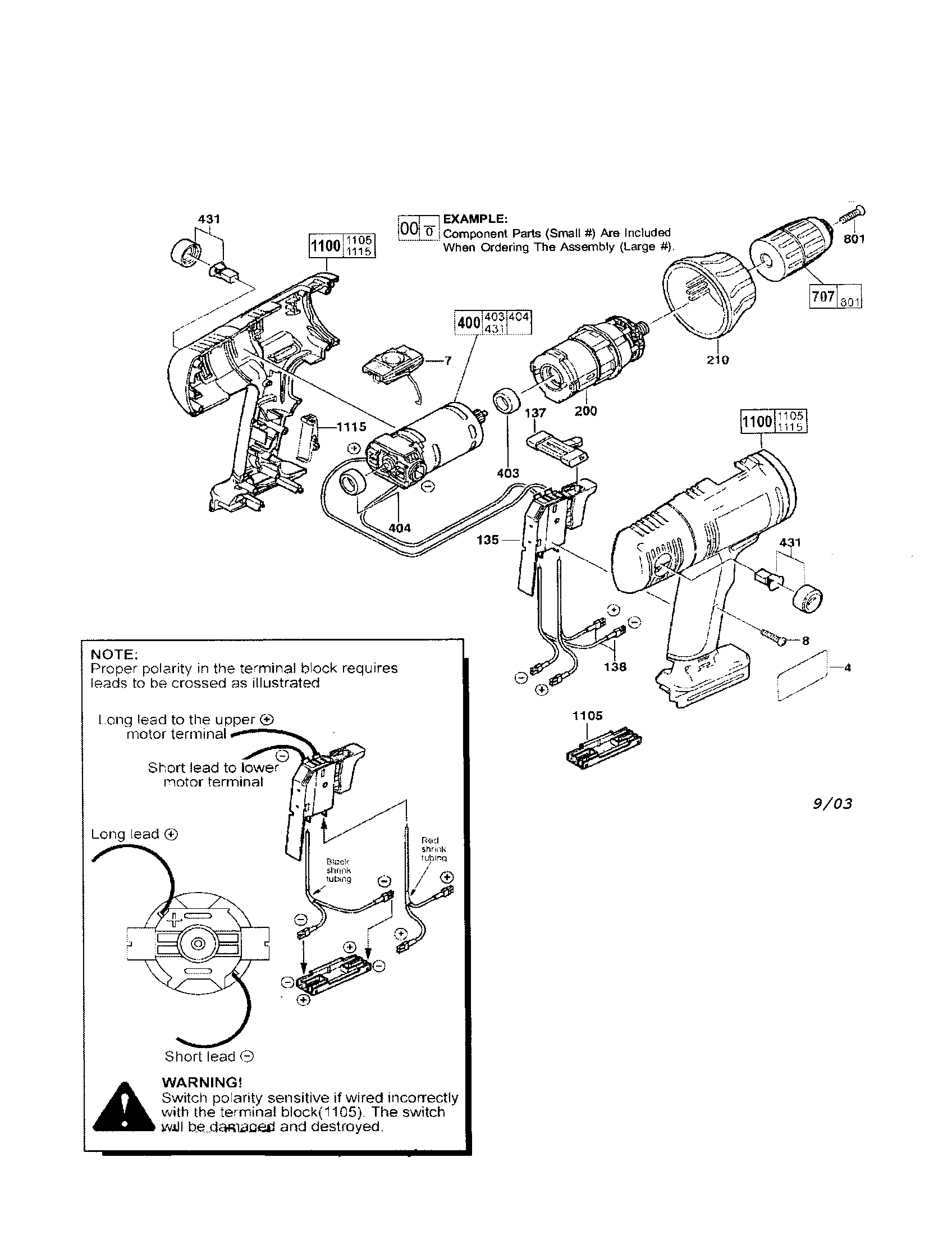

18 volt 1/2" lok-tok driver drill diagram

Sleeve

Part #45-22-0560

The manufacturer no longer makes this part, and there's no substitute part

1-1/4 Oz. Type "g" Grease No. 49-08-4140, In Grease Cavity. 1-1/2 Oz. Type 'b" Grease, No. 49-08-0600, To Build Up Wall Of Grease Around Grease Cavity. N/P

#NI01

All parts diagram

1-1/4 oz. type "g" grease no. 49-08-4140, in grease cavity. 1-1/2 oz. type 'b" grease, no. 49-08-0600, to build up wall of grease around grease cavity.

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Handle Kit 31-50-1646
#1100

18 volt 1/2" lok-tok driver drill diagram

Handle kit

Part #31-50-1646

The manufacturer no longer makes this part, and there's no substitute part

Chuck Screw 05-80-0450
#801

18 volt 1/2" lok-tok driver drill diagram

Chuck screw

Part #05-80-0450

The manufacturer no longer makes this part, and there's no substitute part

Side Handle 49-15-0400
#1

18 volt 1/2" lok-tok driver drill diagram

Side handle

Part #49-15-0400

The manufacturer no longer makes this part, and there's no substitute part

Lead Wire 23-94-3630
#138

18 volt 1/2" lok-tok driver drill diagram

Lead wire

Part #23-94-3630

The manufacturer no longer makes this part, and there's no substitute part

Trigger Switch 23-66-0605
#135

18 volt 1/2" lok-tok driver drill diagram

Trigger switch

Part #23-66-0605

The manufacturer no longer makes this part, and there's no substitute part

Connector 22-56-0200
#1105

18 volt 1/2" lok-tok driver drill diagram

Connector

Part #22-56-0200

The manufacturer no longer makes this part, and there's no substitute part

Clutch Ring 43-76-0710
#210

18 volt 1/2" lok-tok driver drill diagram

Clutch ring

Part #43-76-0710

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-82-7236
#8

18 volt 1/2" lok-tok driver drill diagram

Screw

Part #06-82-7236

The manufacturer no longer makes this part, and there's no substitute part
