Kenmore
Electric Range

Model # 91146564011 Official Kenmore 30" electric slide-in range

Here are the diagrams and repair parts for Official Kenmore 91146564011 30" electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
G.e. Range Bake Element (replaces 325883, 340521, 8029,e) WB44K5012
#251

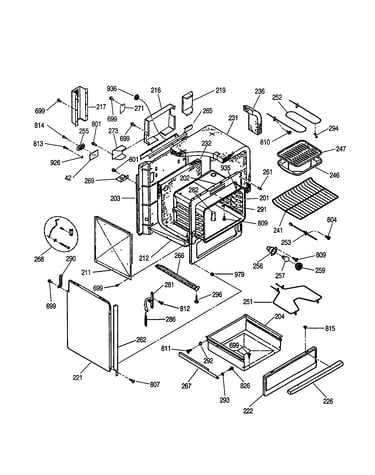

Body diagram

G.e. range bake element (replaces 325883, 340521, 8029,e)

Part #WB44K5012

BEST SELLER
$43.25 |
12% OFF Phone Price : $49.25
In Stock
Terminal Block WB17T10001
#82

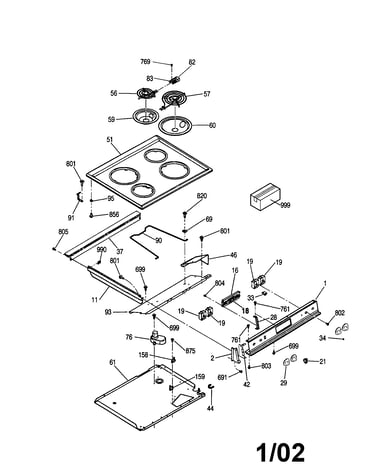

Main top diagram

Terminal block

Part #WB17T10001

Replaced by #WB17T10006

?
Manufacturer substitution
This part replaces WB17T10001. Substitute parts can look different from the original.
BEST SELLER
$26.40 |
19% OFF Phone Price : $32.40
In Stock
Sensor WB21X5347
#253

Body diagram

Sensor

Part #WB21X5347

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB21X5347. Substitute parts can look different from the original.
BEST SELLER
$147.17 |
8% OFF Phone Price : $159.17
In Stock
Range Drip Pan (replaces Wb32t10008, Wb32x10015) WB31T10010
#59

Main top diagram

Range drip pan (replaces wb32t10008, wb32x10015)

Part #WB31T10010

BEST SELLER
$18.17 |
10% OFF Phone Price : $20.17
In Stock
Broil Support WB02X9719
#294

Body diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broilunt 240 WB44X0232
#252

Body diagram

Broilunt 240

Part #WB44X0232

Replaced by #WB44X232

?
Manufacturer substitution
This part replaces WB44X0232. Substitute parts can look different from the original.
BEST SELLER
$58.44 |
9% OFF Phone Price : $64.44
In Stock
Hinge WB14X0103
#281

Body diagram

Hinge

Part #WB14X0103

Replaced by #WB14X103

?
Manufacturer substitution
This part replaces WB14X0103. Substitute parts can look different from the original.
BEST SELLER
$38.22 |
14% OFF Phone Price : $44.22
In Stock
Screw WB01X1293
#856

Main top diagram

Screw

Part #WB01X1293

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01X1293. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Coil Surface Element, 8-in WB30T10029
#57

Main top diagram

Range coil surface element, 8-in

Part #WB30T10029

Replaced by #WB03T10167

?
Manufacturer substitution
This part replaces WB30T10029. Substitute parts can look different from the original.
$80.37 |
7% OFF Phone Price : $86.37
In Stock
Screw WB01K5062
#761

Main top diagram

Screw

Part #WB01K5062

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB01K5062. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
