Ryobi
Drill/Driver

Model # CTH1442K Official Ryobi 14.4-v center handle drill

Here are the diagrams and repair parts for Official Ryobi CTH1442K 14.4-v center handle drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Heat Sink 1320026
#19

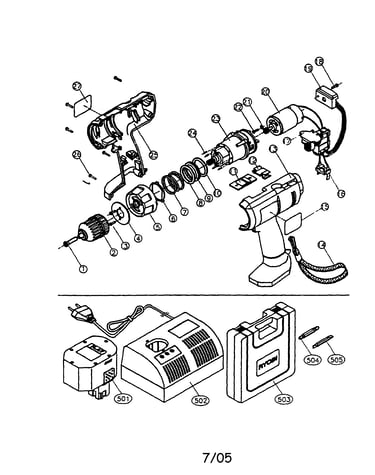

Drill 14.4v ctr handle diagram

Heat sink

Part #1320026

The manufacturer no longer makes this part, and there's no substitute part

Double Bit 1740141
#505

Drill 14.4v ctr handle diagram

Double bit

Part #1740141

The manufacturer no longer makes this part, and there's no substitute part

Terminal 1580005
#16

Drill 14.4v ctr handle diagram

Terminal

Part #1580005

The manufacturer no longer makes this part, and there's no substitute part

Gear Box 1080075
#23

Drill 14.4v ctr handle diagram

Gear box

Part #1080075

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130047
#22

Drill 14.4v ctr handle diagram

Screw

Part #1130047

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130302
#3

Drill 14.4v ctr handle diagram

Screw

Part #1130302

The manufacturer no longer makes this part, and there's no substitute part

3/8" Keyless Chuck 974430001
#2

Drill 14.4v ctr handle diagram

3/8" keyless chuck

Part #974430001

The manufacturer no longer makes this part, and there's no substitute part

Holder 1150003
#6

Drill 14.4v ctr handle diagram

Holder

Part #1150003

The manufacturer no longer makes this part, and there's no substitute part

Metal Plate 1150136
#4

Drill 14.4v ctr handle diagram

Metal plate

Part #1150136

The manufacturer no longer makes this part, and there's no substitute part

Screw 1130050
#18

Drill 14.4v ctr handle diagram

Screw

Part #1130050

The manufacturer no longer makes this part, and there's no substitute part
