Model # PSCS5RGDBFSS Official GE refrigerator

Here are the diagrams and repair parts for Official GE PSCS5RGDBFSS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

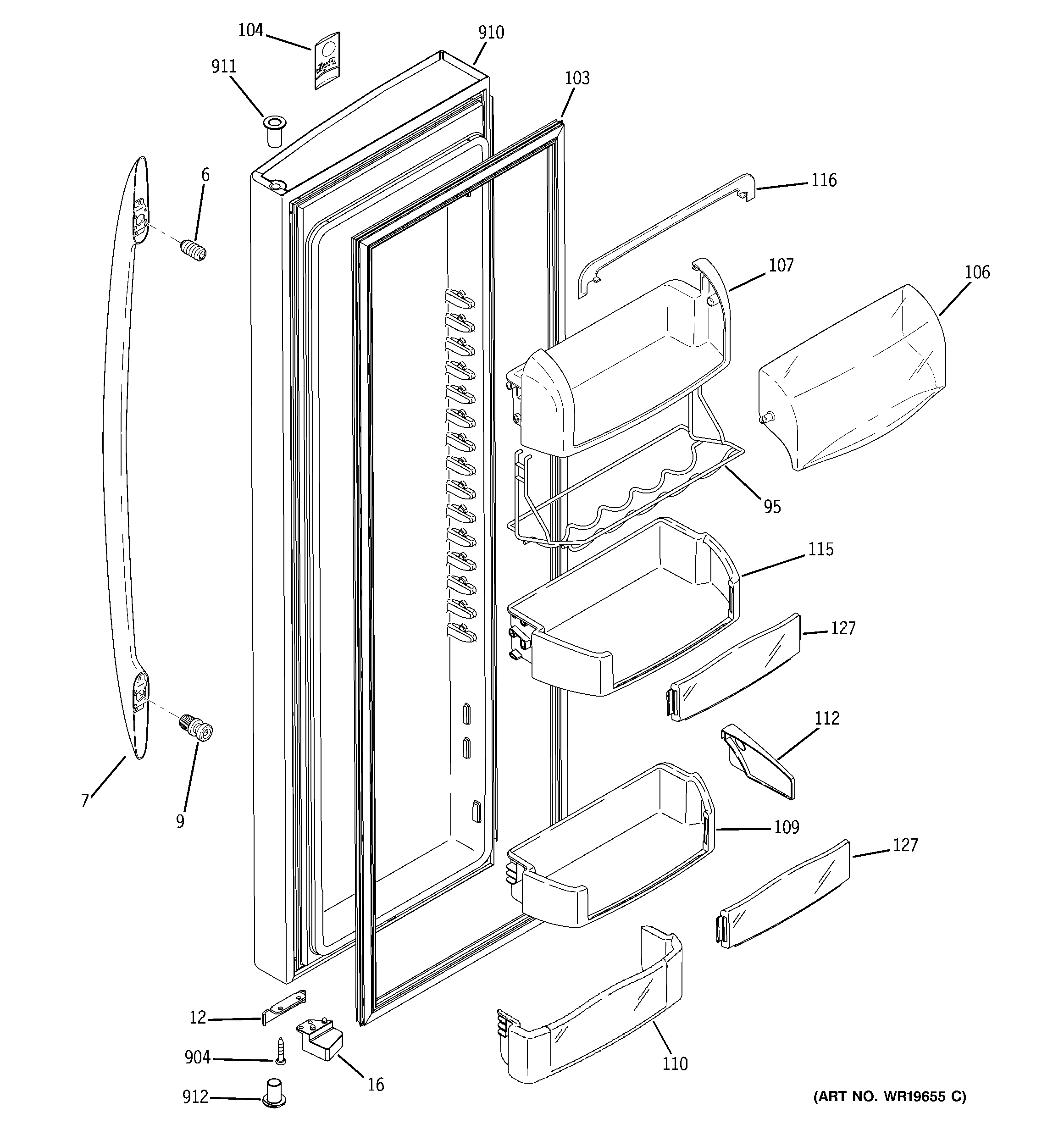

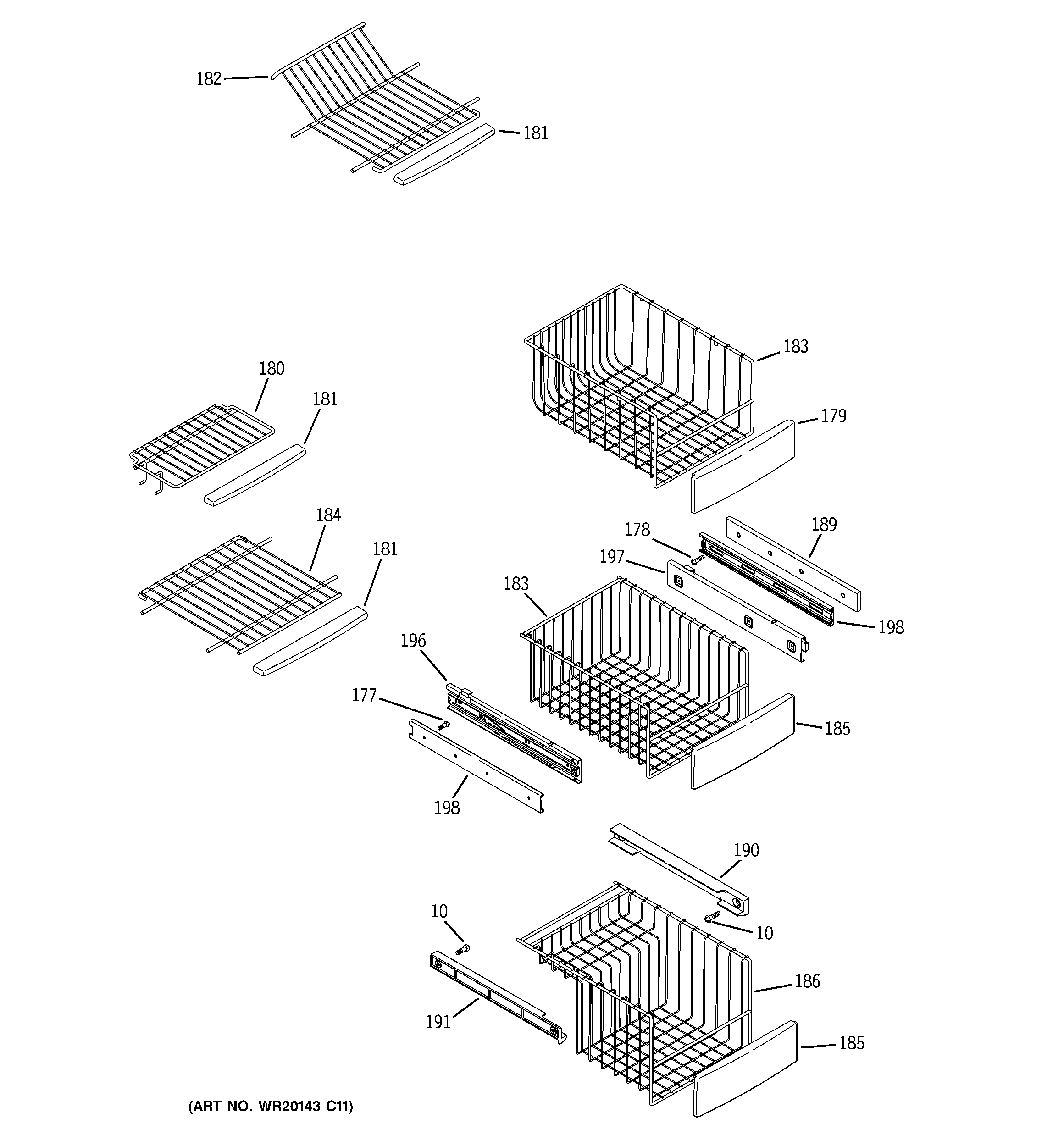

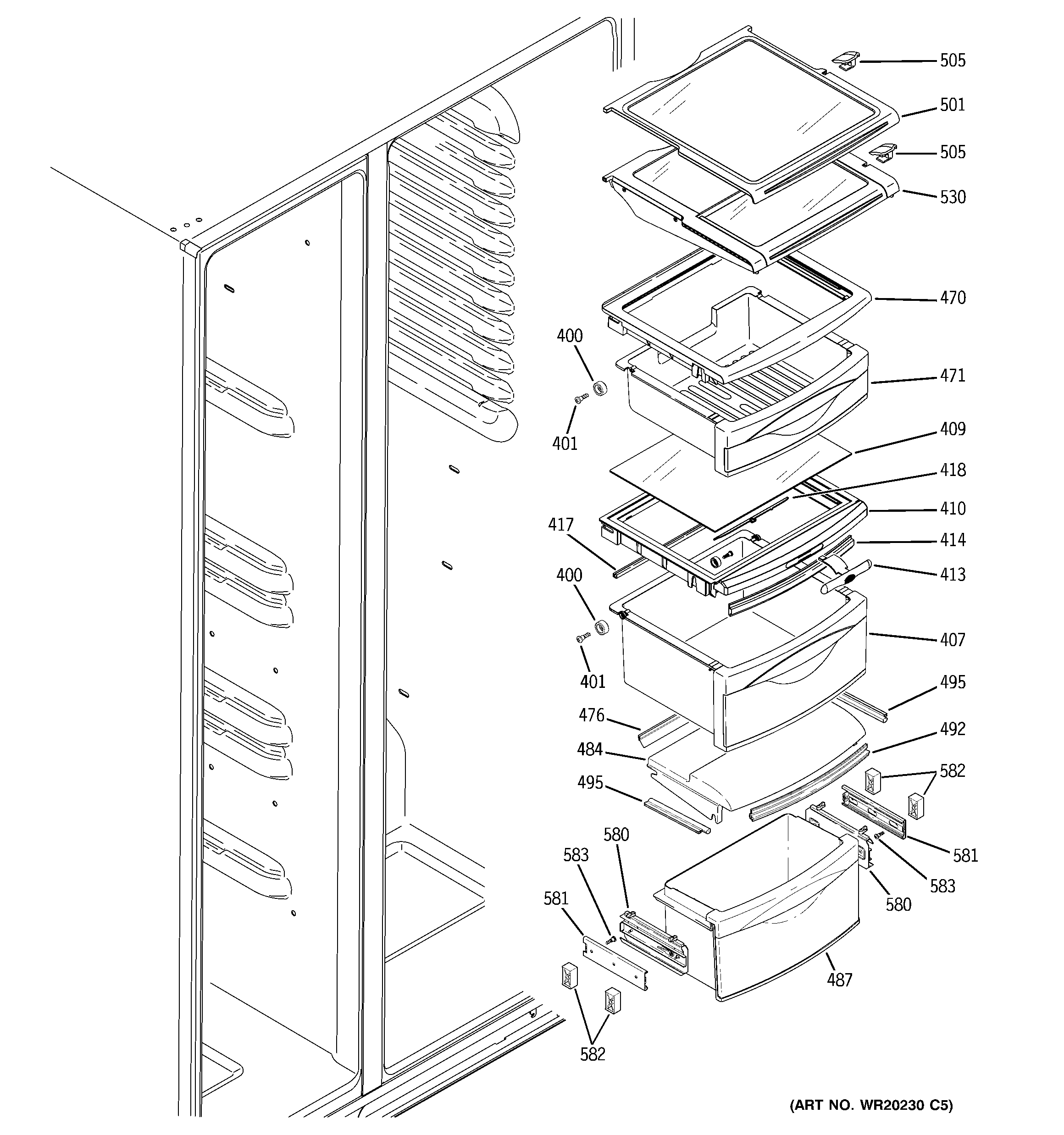

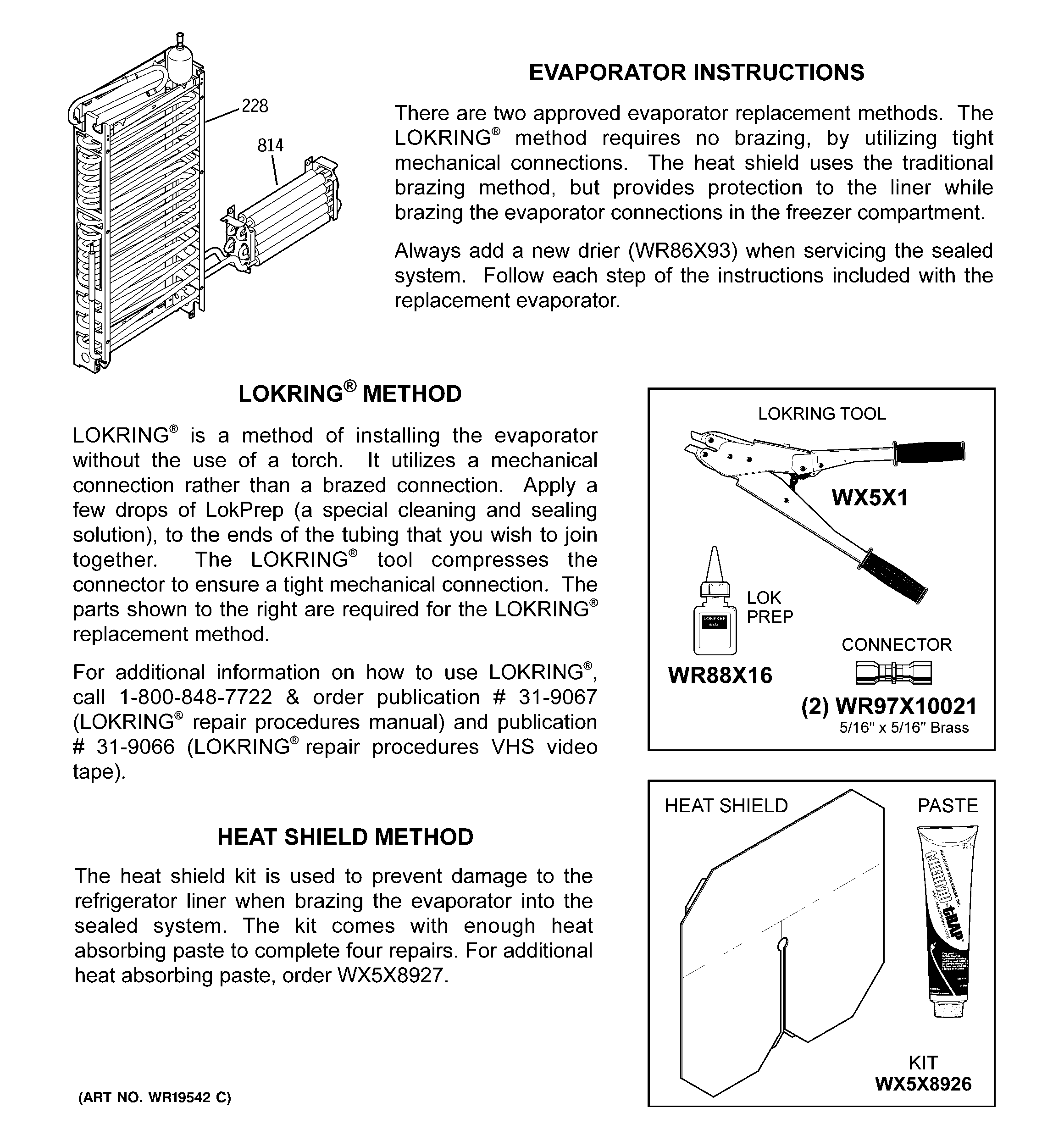

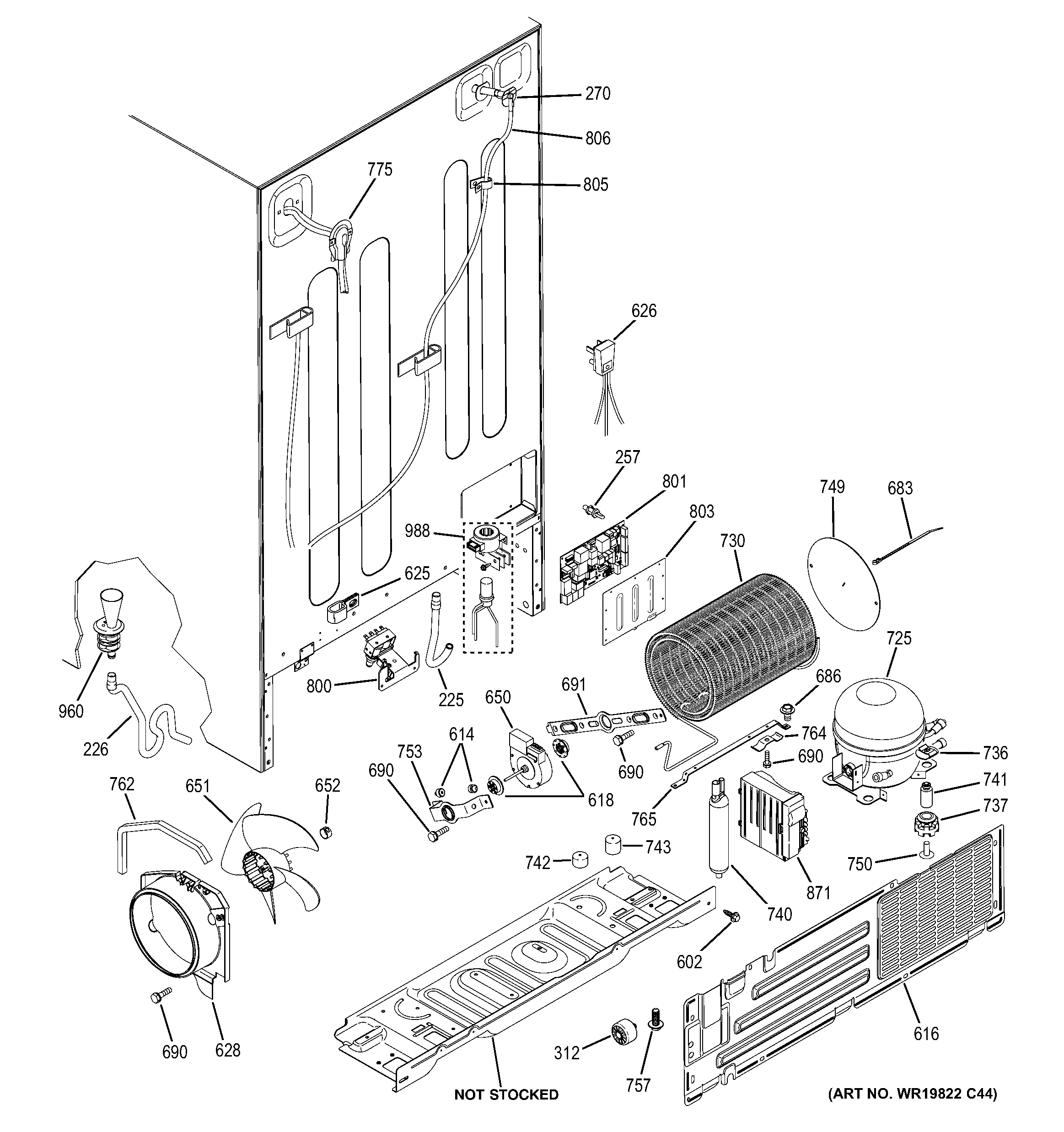

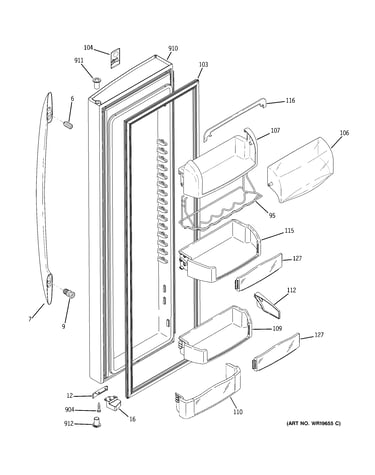

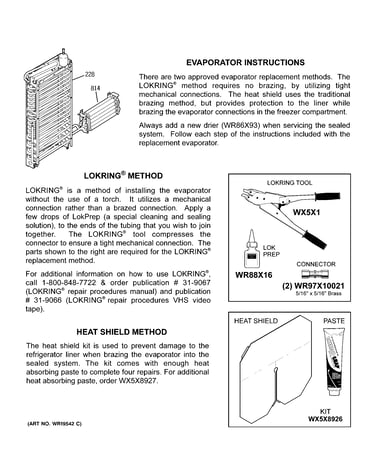

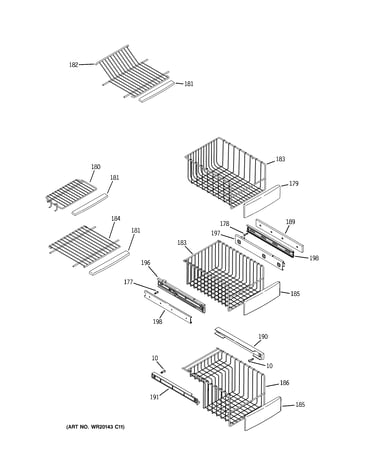

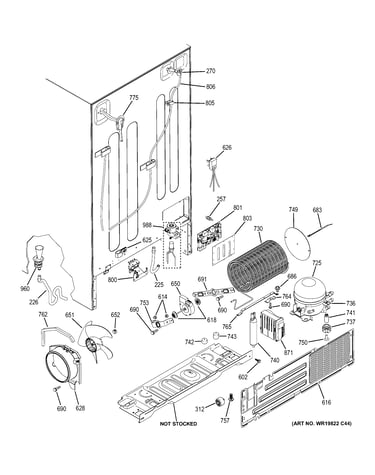

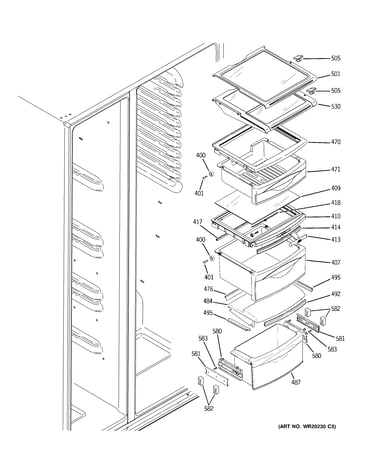

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 249 parts  |
Ge Profile Refrigerator Temperature Sensor WR55X10025
#241

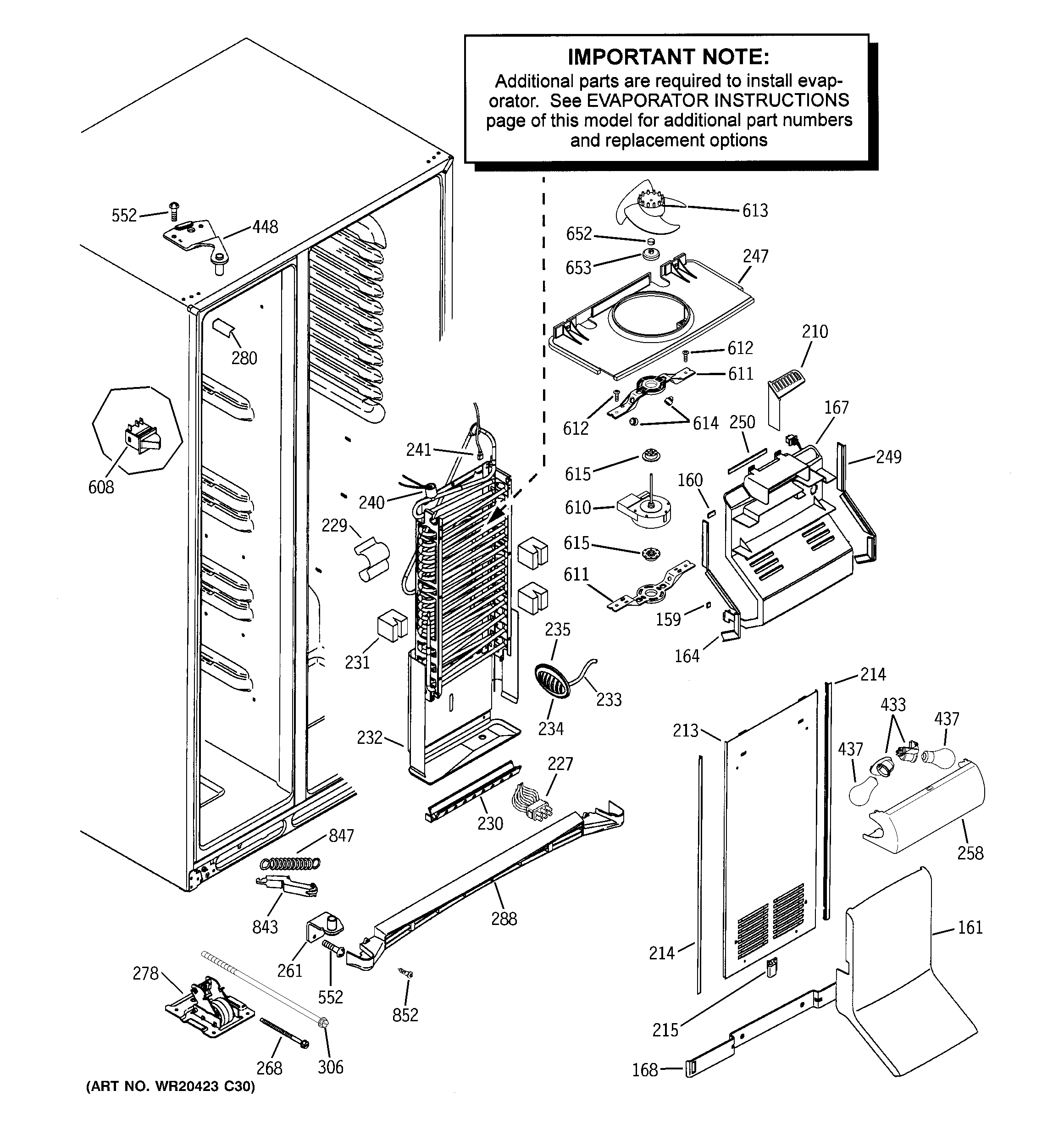

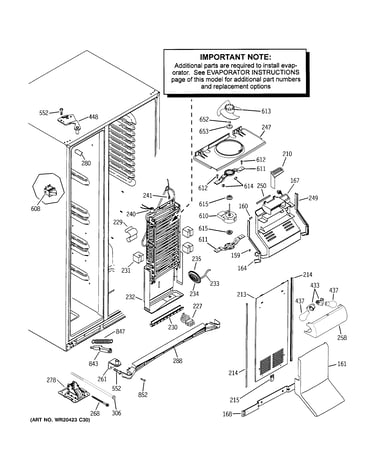

Freezer section diagram

Ge profile refrigerator temperature sensor

Part #WR55X10025

BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Temperature Sensor WR55X10939
#236

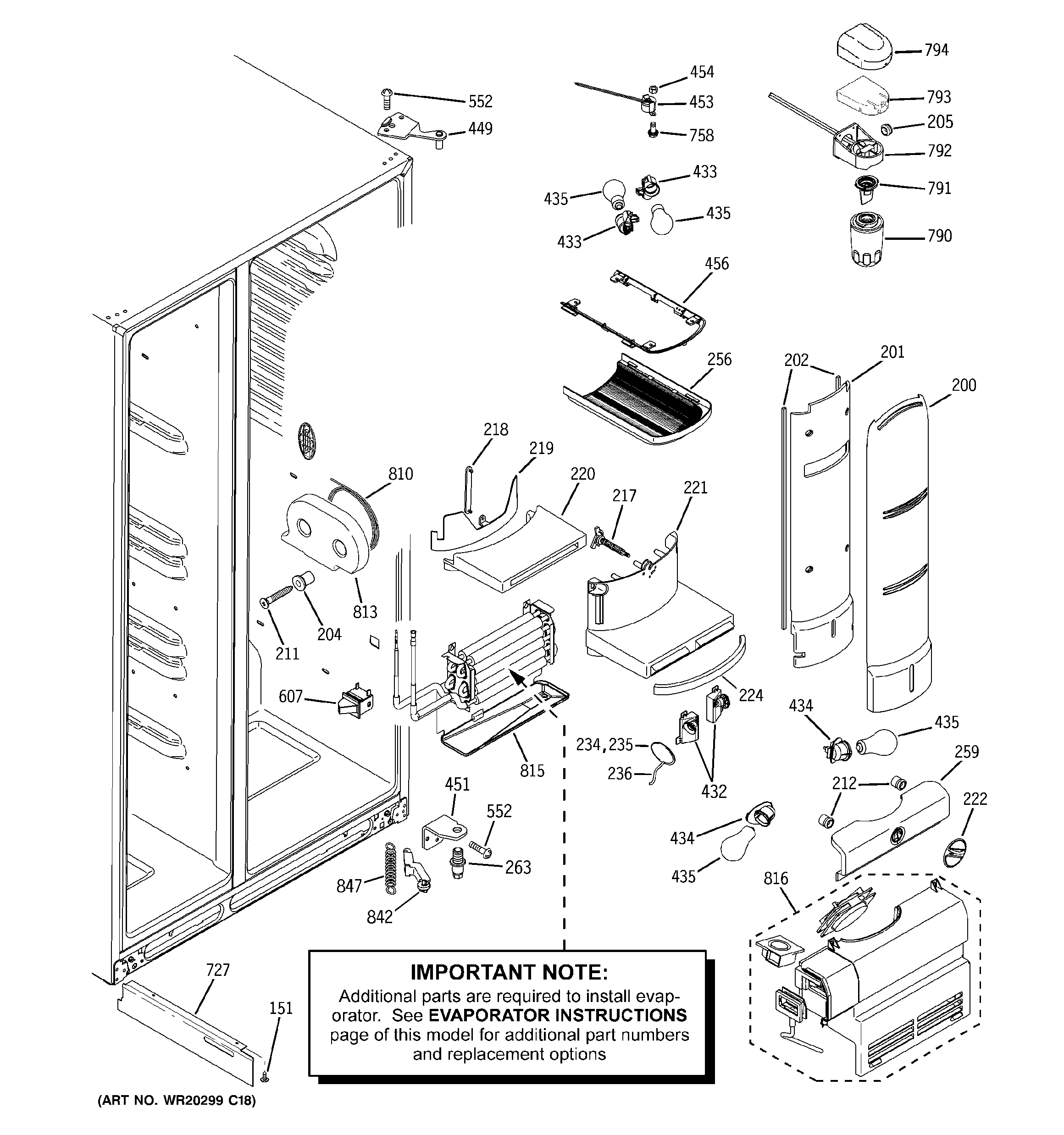

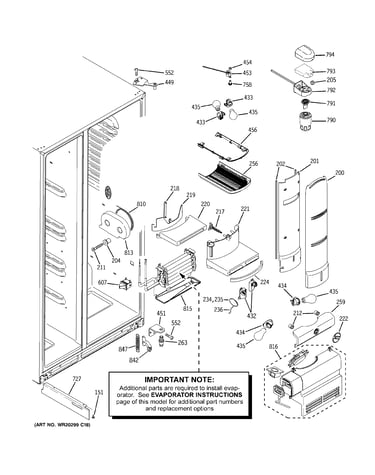

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X10939

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10939. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Temperature Sensor WR55X10938
#233

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10938

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10938. Substitute parts can look different from the original.
BEST SELLER
$19.08 |
9% OFF Phone Price : $21.08
In Stock
Refrigerator Defrost Heater (replaces Wr51x10030) WR51X10055
#230

Freezer section diagram

Refrigerator defrost heater (replaces wr51x10030)

Part #WR51X10055

BEST SELLER
$96.63 |
11% OFF Phone Price : $108.63
In Stock
G.e. Refrigerator Ice Maker Kit (replaces Wr29x10001, Wr29x10002, Wr29x10080, Wr29x157, Wr29x158, Wr29x160, Wr29x185, Wr29x27993, Wr29x5181, Wr30x10043, Wr30x10109, Wr30x28702, Wr30x30972) WR30X10093
#820

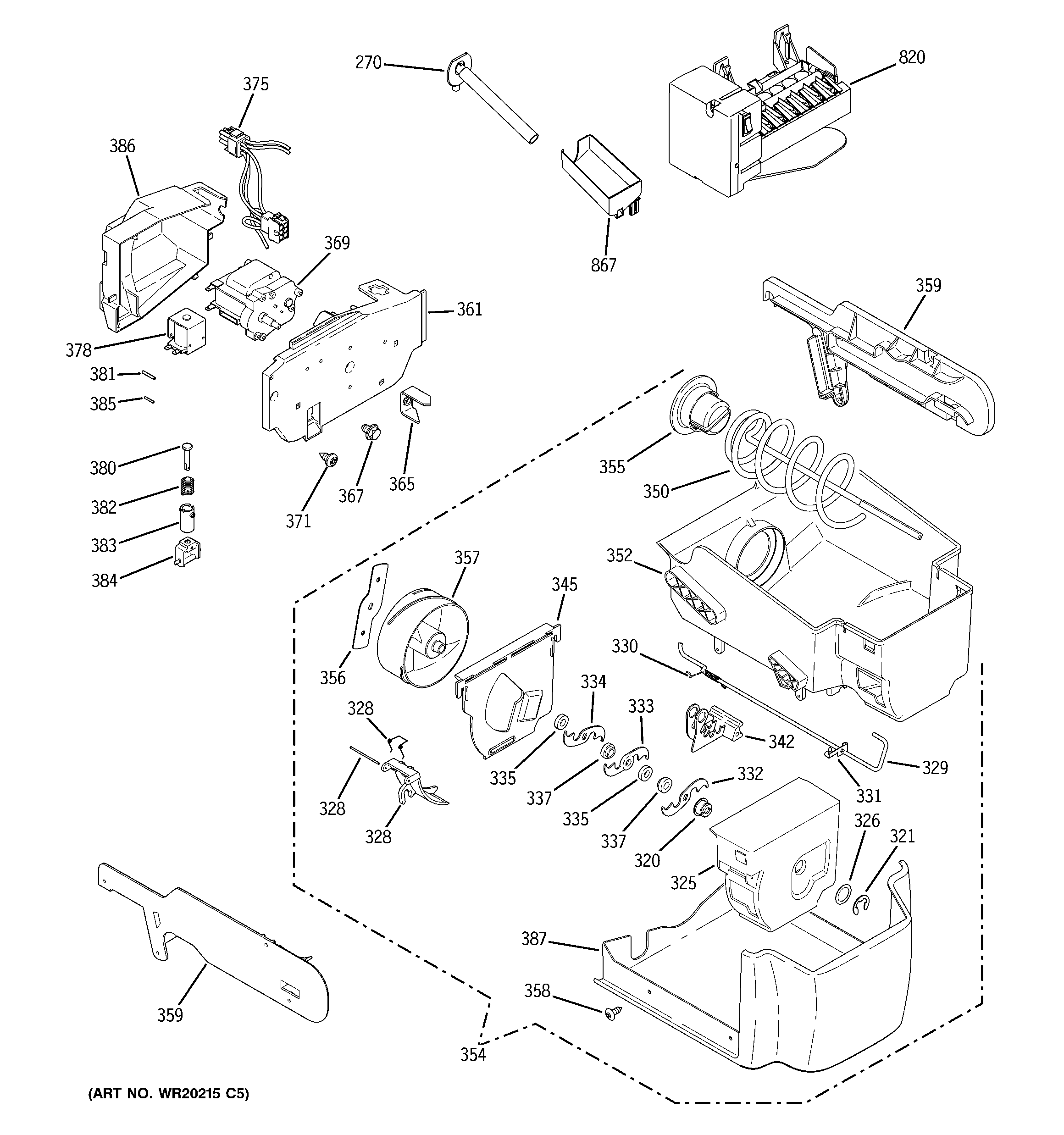

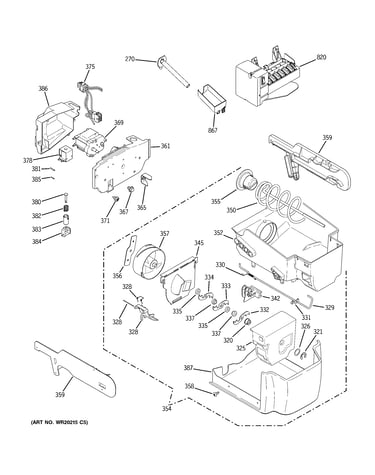

Ice maker & dispenser diagram

G.e. refrigerator ice maker kit (replaces wr29x10001, wr29x10002, wr29x10080, wr29x157, wr29x158, wr29x160, wr29x185, wr29x27993, wr29x5181, wr30x10043, wr30x10109, wr30x28702, wr30x30972)

Part #WR30X10093

BEST SELLER
$180.85 |
6% OFF Phone Price : $192.85
In Stock
Refrigerator Lamp WR02X12328
#437

Freezer section diagram

Refrigerator lamp

Part #WR02X12328

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12328. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Lamp WR02X12327
#435

Fresh food section diagram

Refrigerator lamp

Part #WR02X12327

Replaced by #40A15

?
Manufacturer substitution
This part replaces WR02X12327. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Dispenser Ice Chute Door Kit (replaces Wr17x3093) WR17X11653
#62

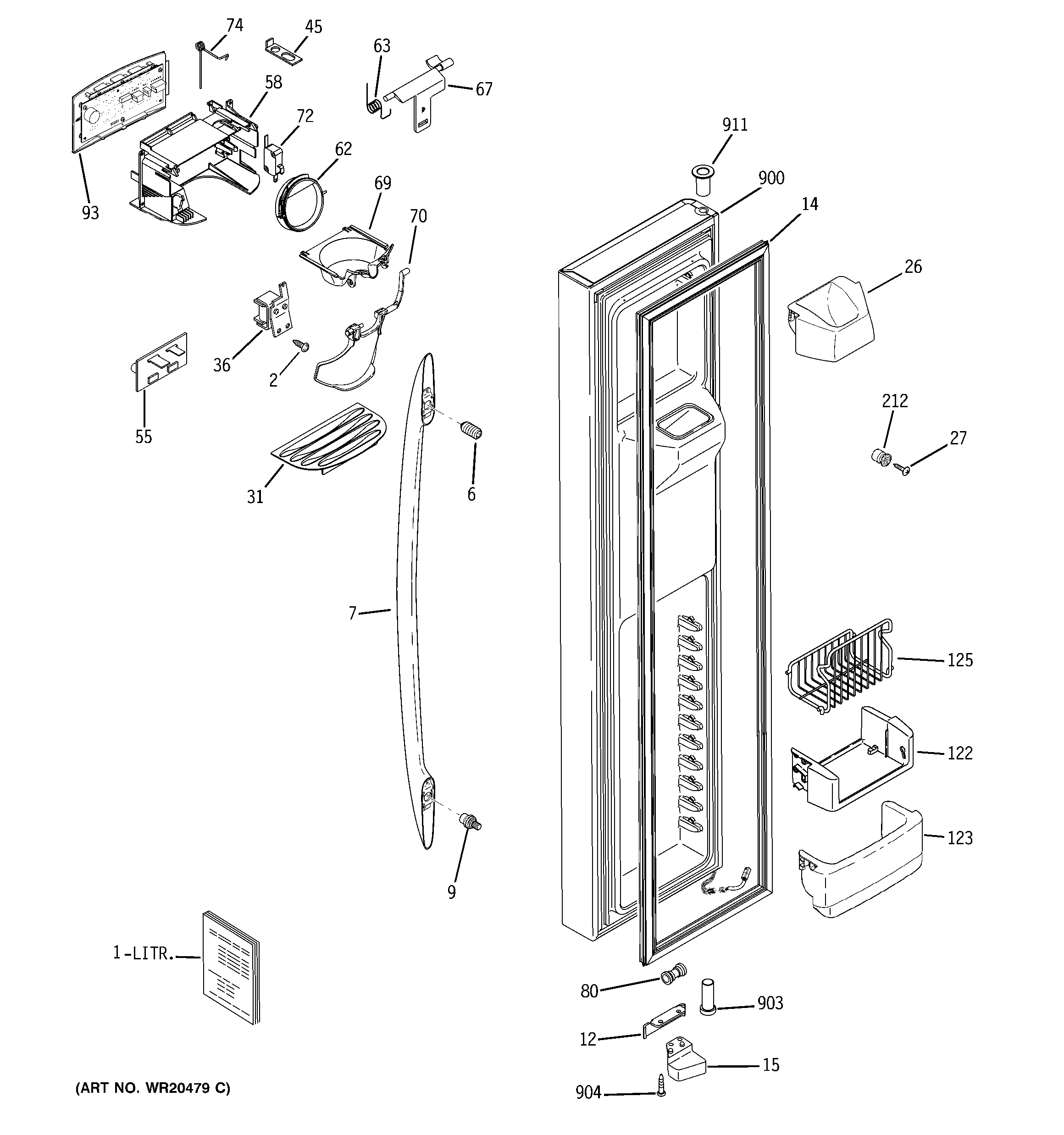

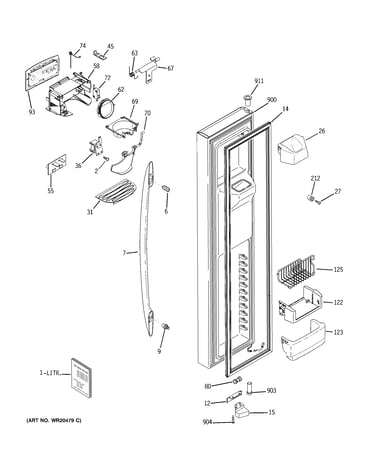

Freezer door diagram

Refrigerator dispenser ice chute door kit (replaces wr17x3093)

Part #WR17X11653

BEST SELLER
$12.76 |
14% OFF Phone Price : $14.76
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Ge Profile Refrigerator Dispenser Ice Chute Door Crank WR17X10706
#67

Freezer door diagram

Ge profile refrigerator dispenser ice chute door crank

Part #WR17X10706

BEST SELLER
This item is not returnable
$6.86 |
13% OFF Phone Price : $7.86
In Stock
