White-Westinghouse
Electric Range

Model # KF560GDD2 Official White-Westinghouse electric stove with self-cleaning oven - l2811057

Here are the diagrams and repair parts for Official White-Westinghouse KF560GDD2 electric stove with self-cleaning oven - l2811057, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

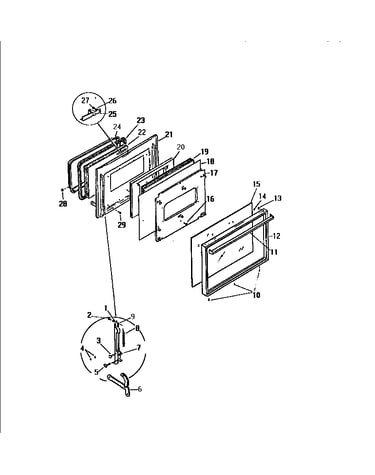

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 174 parts  |
Surface Element K1323560
#11

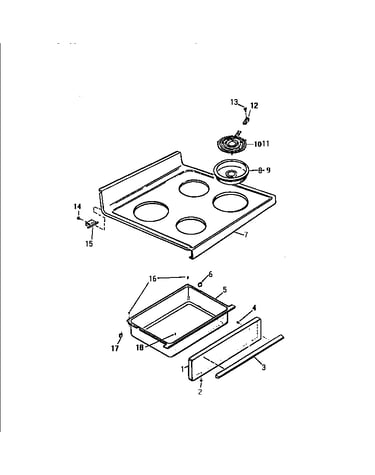

Top, drawer diagram

Surface element

Part #K1323560

Replaced by #316442301

?
Manufacturer substitution
This part replaces K1323560. Substitute parts can look different from the original.
BEST SELLER
$23.22 |
21% OFF Phone Price : $29.22
In Stock
Surface Element K1323559
#10

Top, drawer diagram

Surface element

Part #K1323559

Replaced by #318372211

?
Manufacturer substitution
This part replaces K1323559. Substitute parts can look different from the original.
BEST SELLER
$36.79 |
14% OFF Phone Price : $42.79
In Stock
Light Socket K1325527
#23

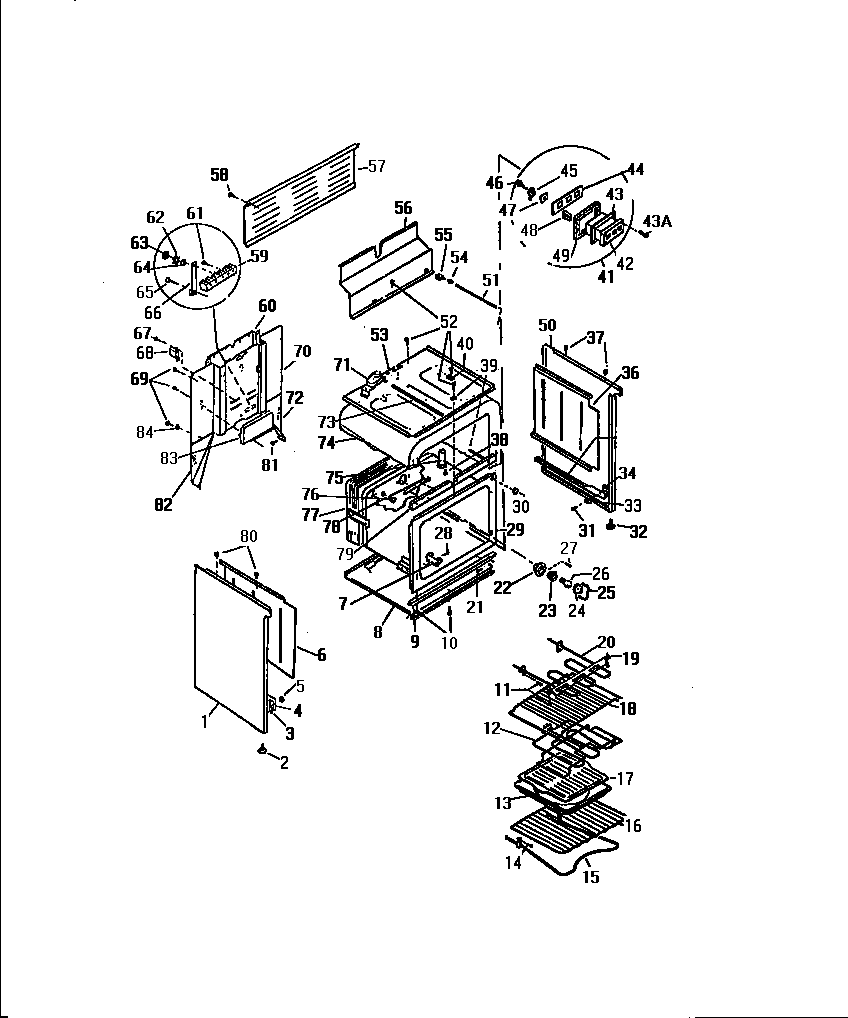

Body, side panels diagram

Light socket

Part #K1325527

Replaced by #316116400

?
Manufacturer substitution
This part replaces K1325527. Substitute parts can look different from the original.
BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Screw K5126601
Screw

Part #K5126601

Replaced by #5308014215

?
Manufacturer substitution
This part replaces K5126601. Substitute parts can look different from the original.
This item is not returnable
$2.49
In Stock
Indicator Light K1167858
#24

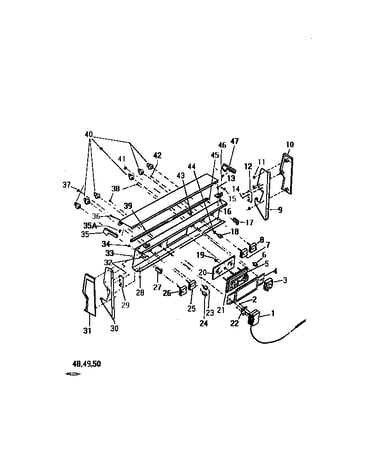

Backguard diagram

Indicator light

Part #K1167858

Replaced by #5301167858

?
Manufacturer substitution
This part replaces K1167858. Substitute parts can look different from the original.
$99.78
In Stock
Pan K1317972
#17

Body, side panels diagram

Pan

Part #K1317972

Replaced by #5304442087

?
Manufacturer substitution
This part replaces K1317972. Substitute parts can look different from the original.
$77.99 |
7% OFF Phone Price : $83.99
In Stock
Base 500411
#62

Body, side panels diagram

Base

Part #500411

Replaced by #3281107

?
Manufacturer substitution
This part replaces 500411. Substitute parts can look different from the original.
$14.14
In Stock
Pan K5039501
#8

Top, drawer diagram

Pan

Part #K5039501

Replaced by #316048414

?
Manufacturer substitution
This part replaces K5039501. Substitute parts can look different from the original.
This item is not returnable
$5.38 |
16% OFF Phone Price : $6.38
In Stock
Lens-light/l K1325528
#24

Body, side panels diagram

Lens-light/l

Part #K1325528

Replaced by #5304524341

?
Manufacturer substitution
This part replaces K1325528. Substitute parts can look different from the original.
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Screw K1164477
Screw

Part #K1164477

Replaced by #08002868

?
Manufacturer substitution
This part replaces K1164477. Substitute parts can look different from the original.
$15.66 |
11% OFF Phone Price : $17.66
In Stock
