Model # 7626BTH Official Eureka upright vacuum
Here are the diagrams and repair parts for Official Eureka 7626BTH upright vacuum, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for7626BTH Vacuum Cleaners
- #8

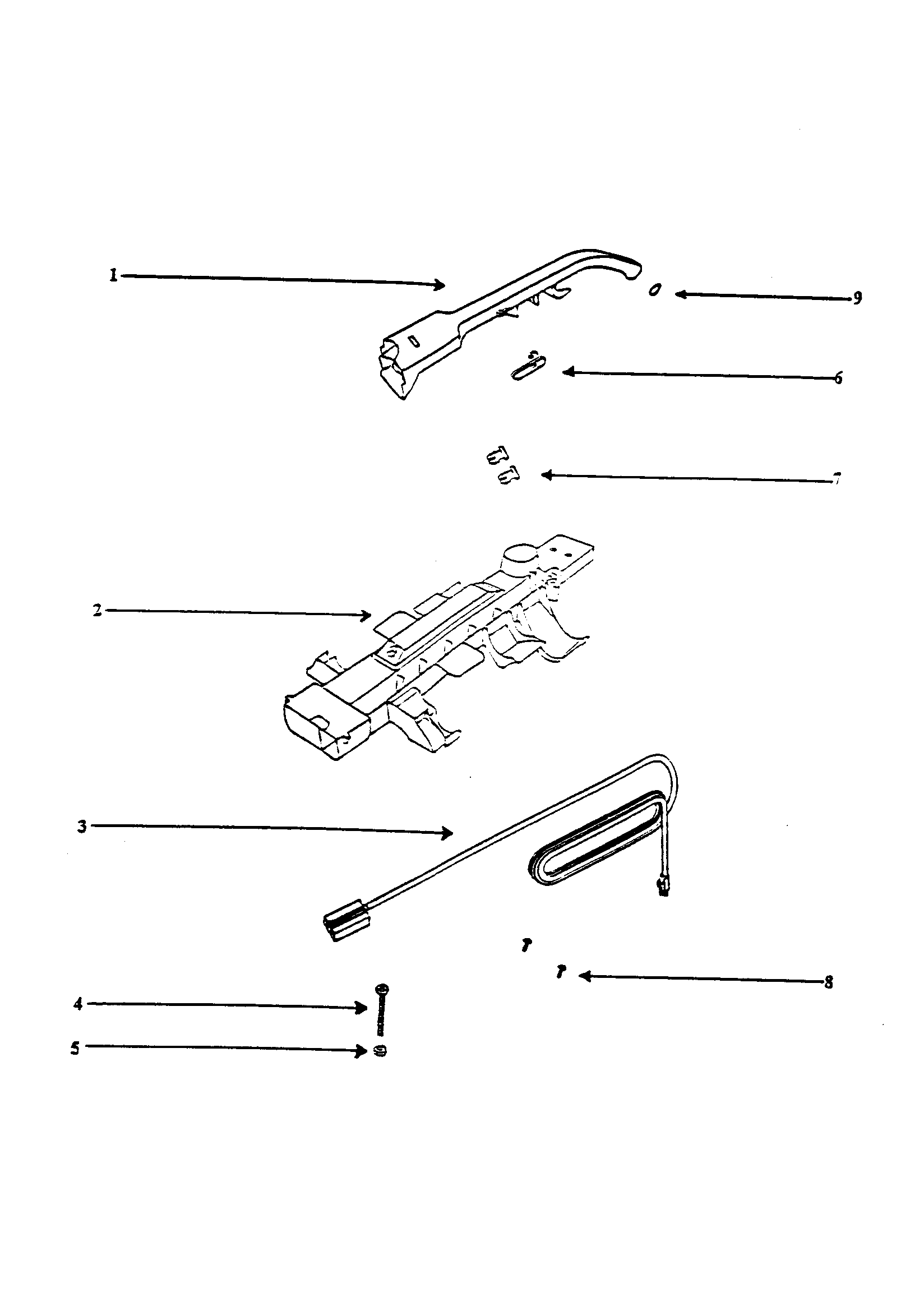

Handle diagram
Vacuum screw, 10-packPart #53238-13
The manufacturer no longer makes this part, and there's no substitute part
- #6
Handle diagram
ReleasePart #28013-119N
The manufacturer no longer makes this part, and there's no substitute part
- #4

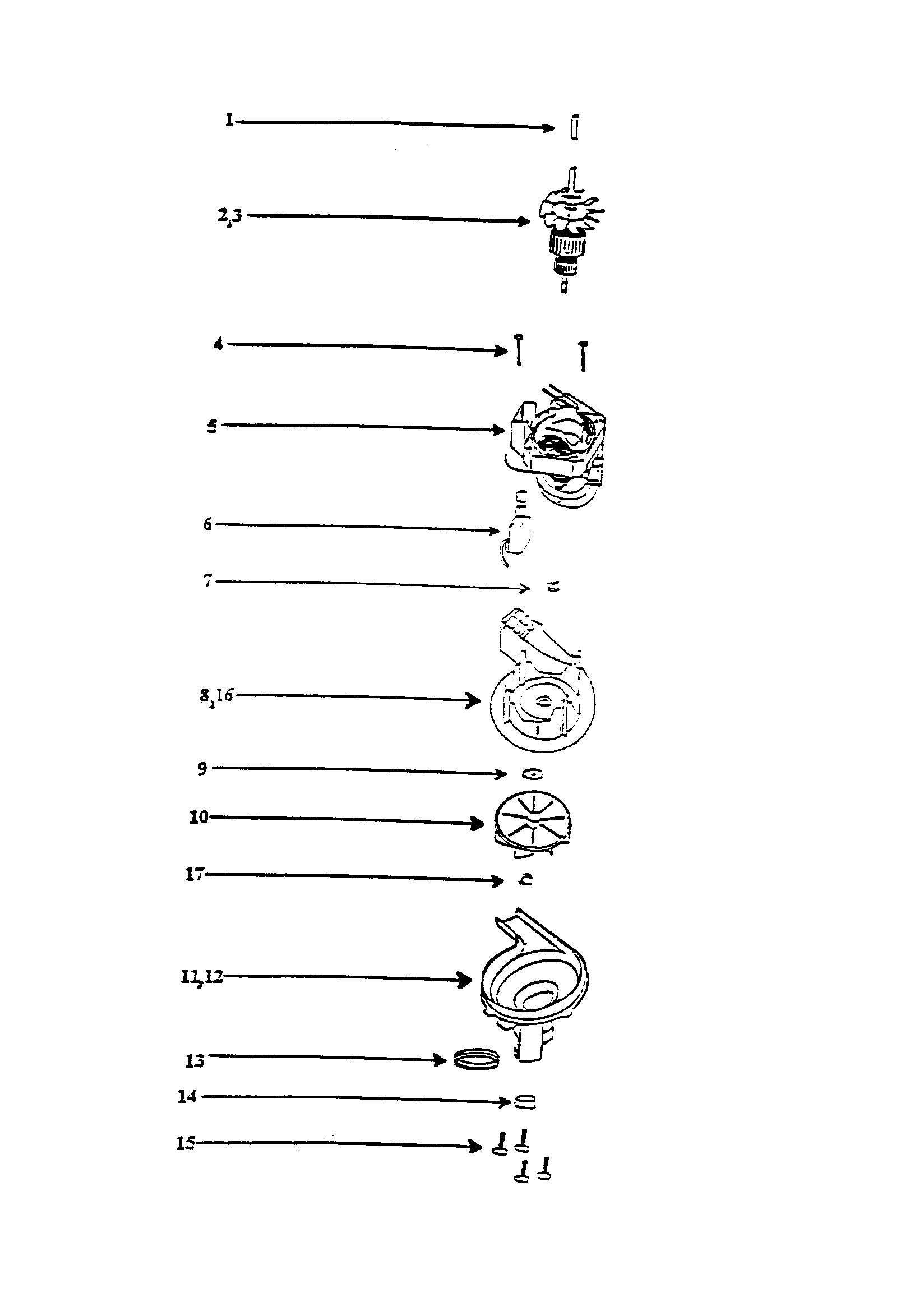

Motor assembly diagram
Vacuum screw, 10-packPart #53238-18
The manufacturer no longer makes this part, and there's no substitute part
- #15

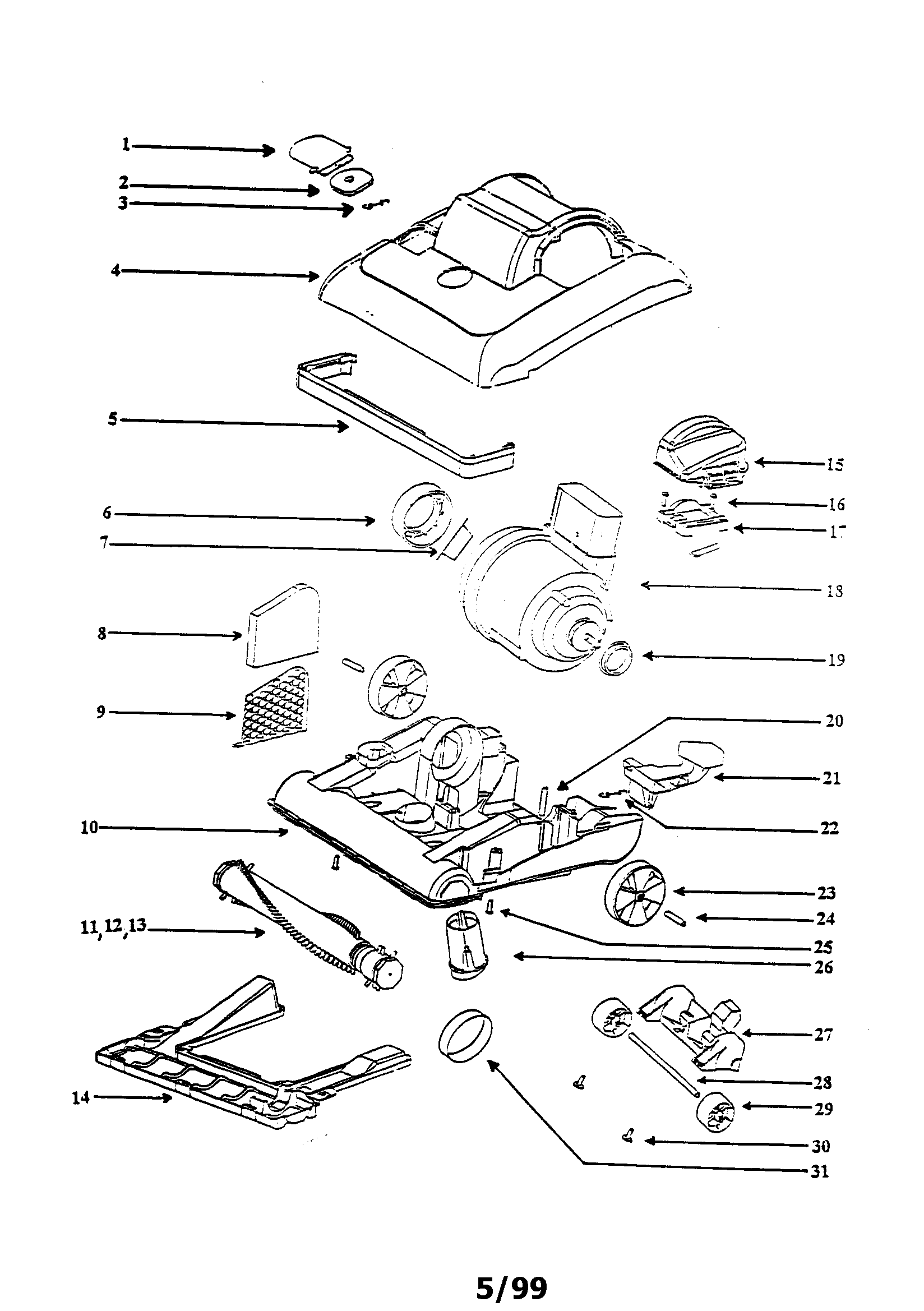

Base diagram
PedalPart #27796-288N
The manufacturer no longer makes this part, and there's no substitute part
- Axle
Part #58814
The manufacturer no longer makes this part, and there's no substitute part
- #14
Motor assembly diagram
NutPart #54413
The manufacturer no longer makes this part, and there's no substitute part
- #11
Base diagram
Vacuum beater barPart #60279-1
The manufacturer no longer makes this part, and there's no substitute part
- #2

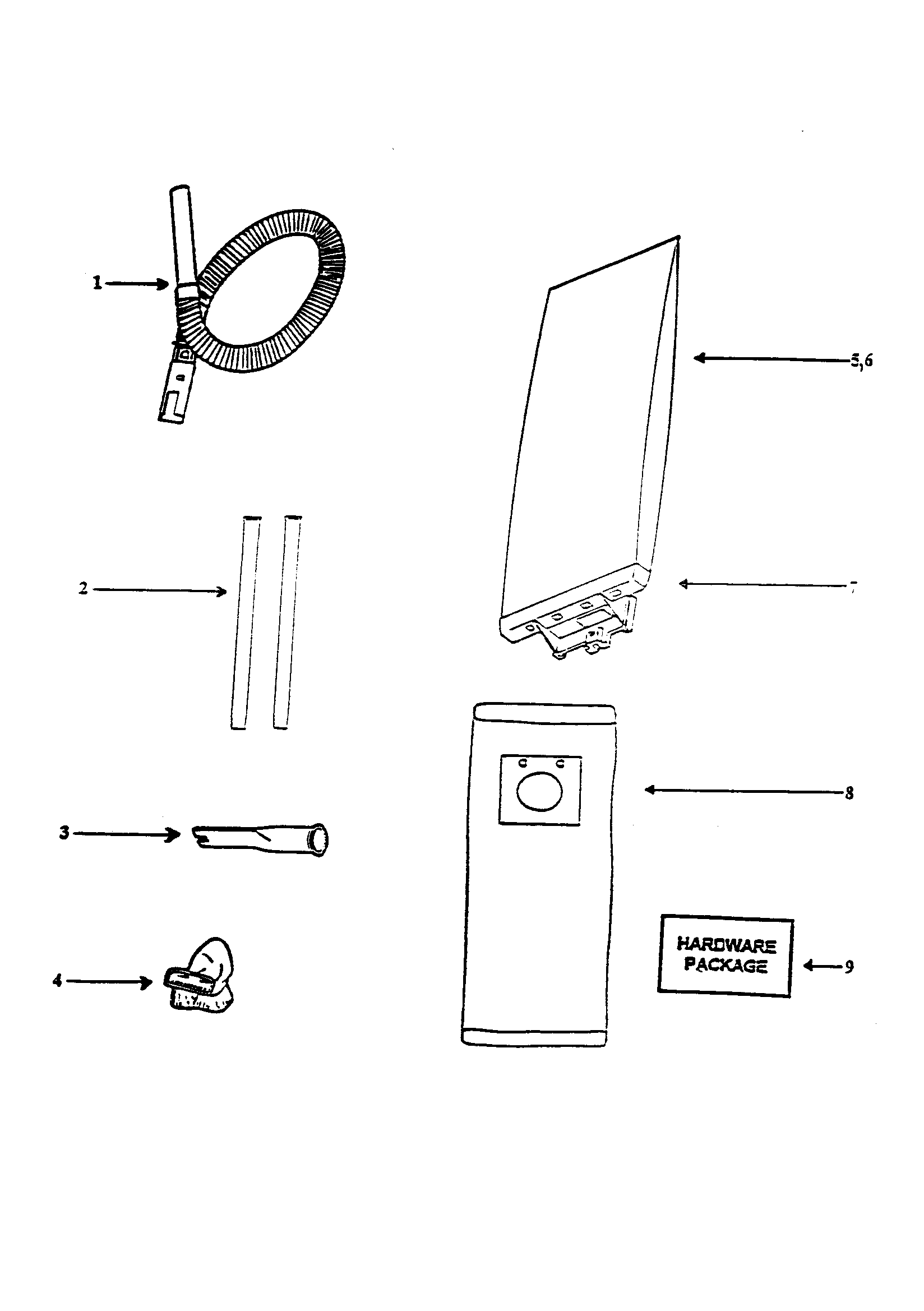

Bag and attachments diagram
Vacuum wandPart #14070-3
The manufacturer no longer makes this part, and there's no substitute part
- #30
Base diagram
Electrolux screwPart #60160
The manufacturer no longer makes this part, and there's no substitute part
- Spring axle
Part #53076-2
The manufacturer no longer makes this part, and there's no substitute part
