Amana
Wall Oven/Microwave Combo

Model # RCC-3-C1/P72771-2MC Official Amana cooking center with optional vent hood - rcc series

Here are the diagrams and repair parts for Official Amana RCC-3-C1-P72771-2MC cooking center with optional vent hood - rcc series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

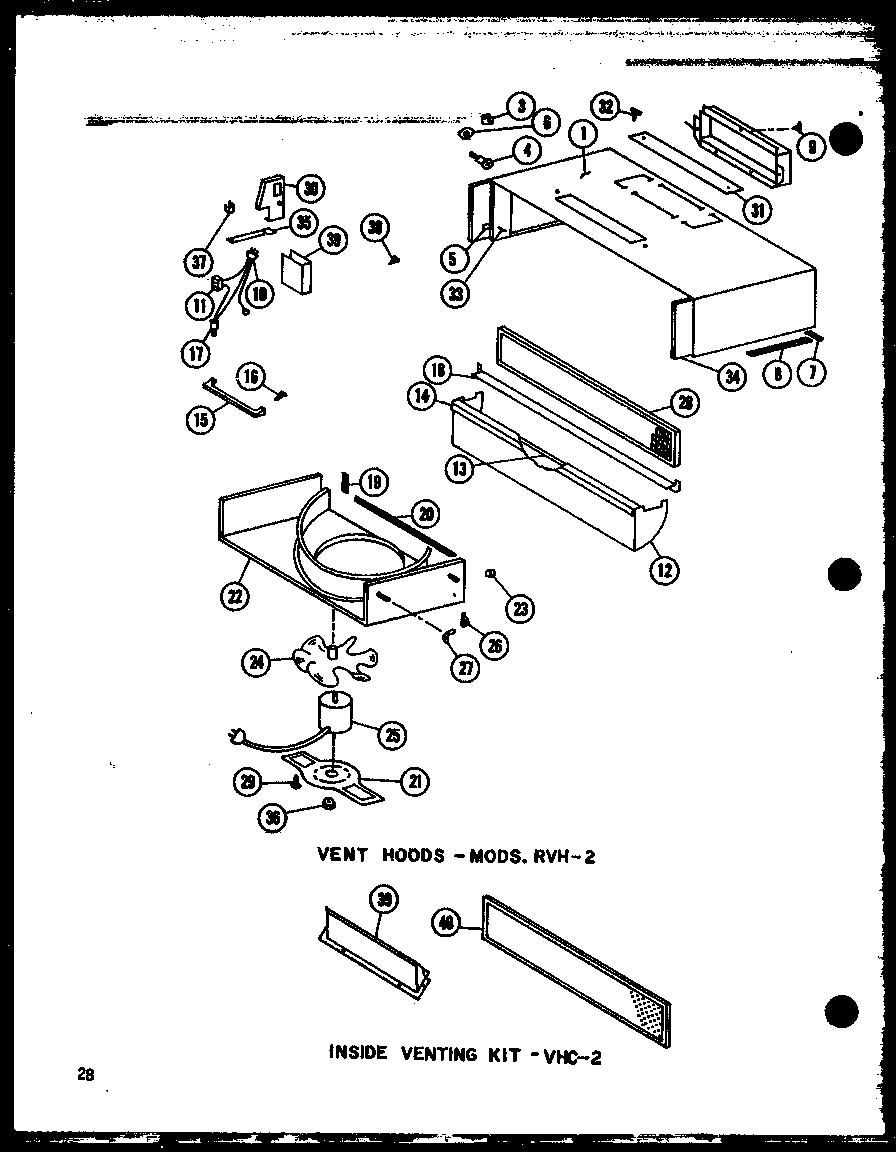

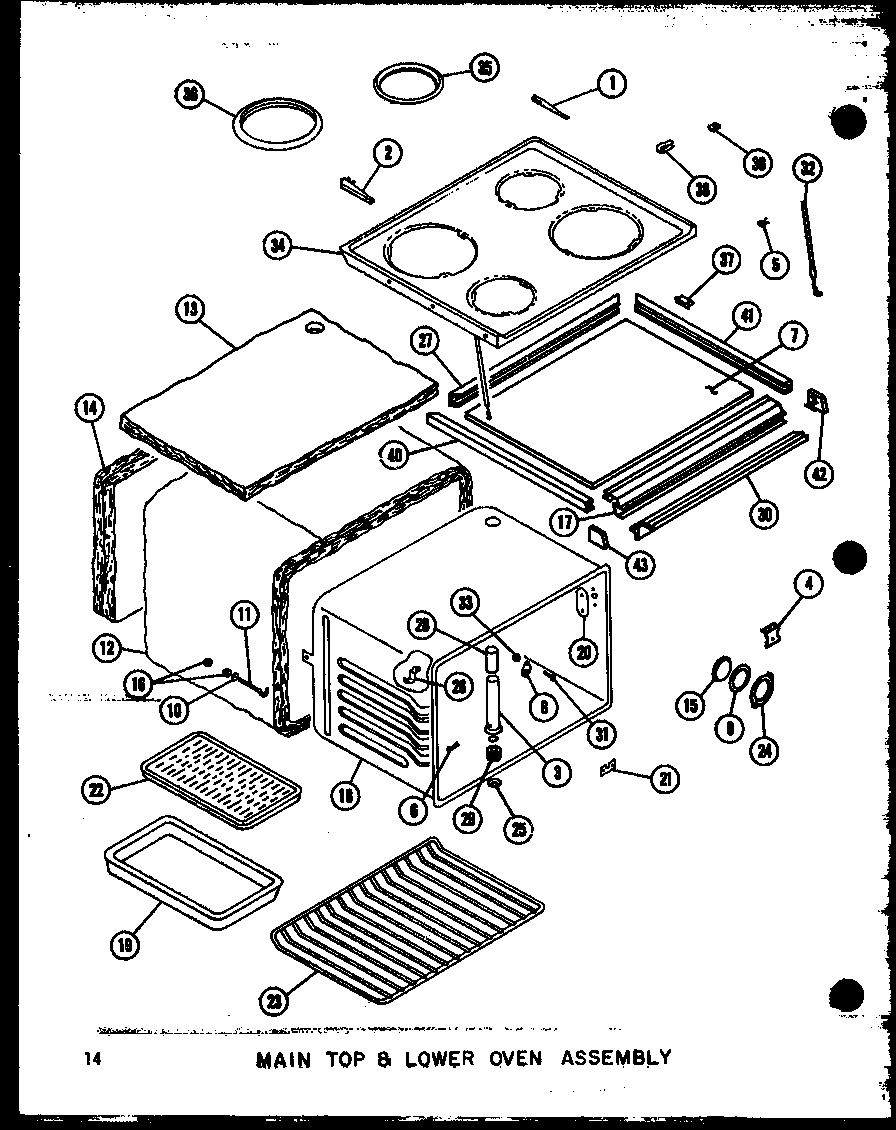

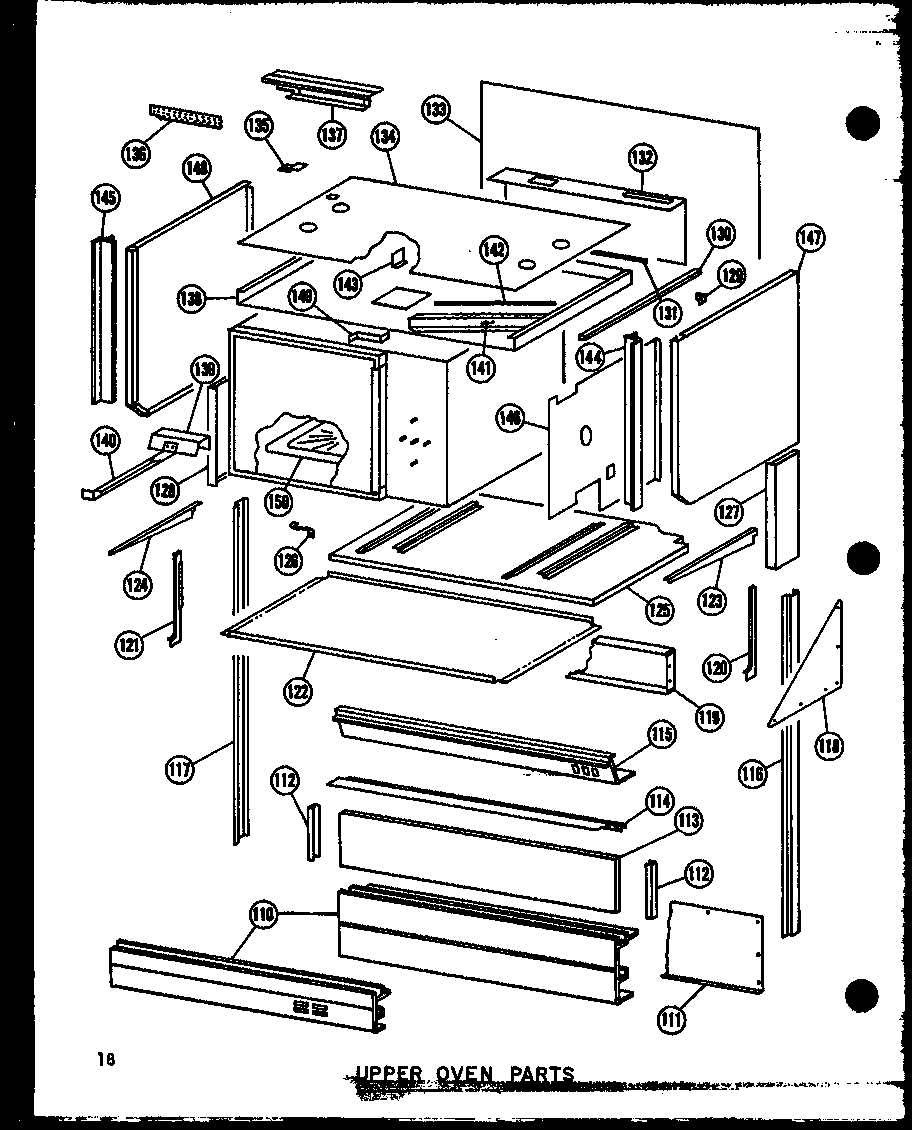

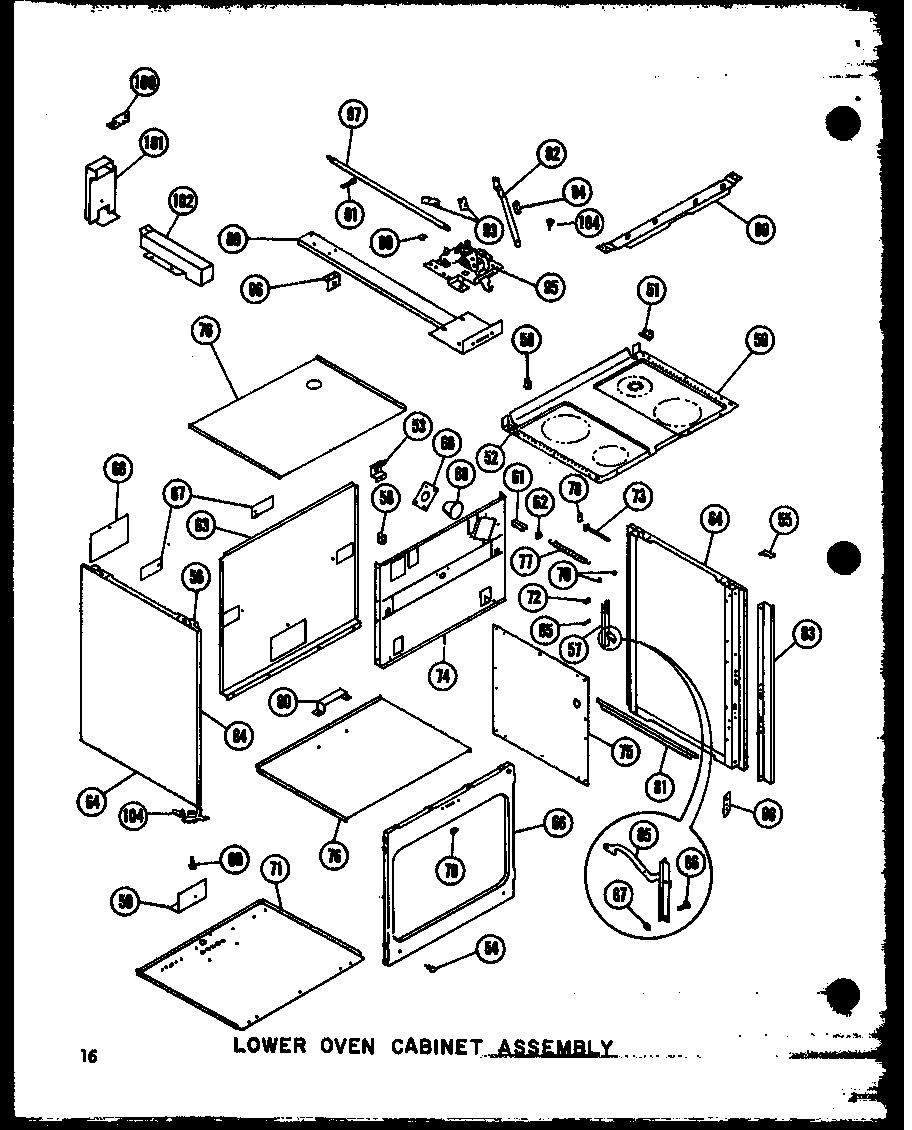

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 477 parts  |
Block R0167091
#224

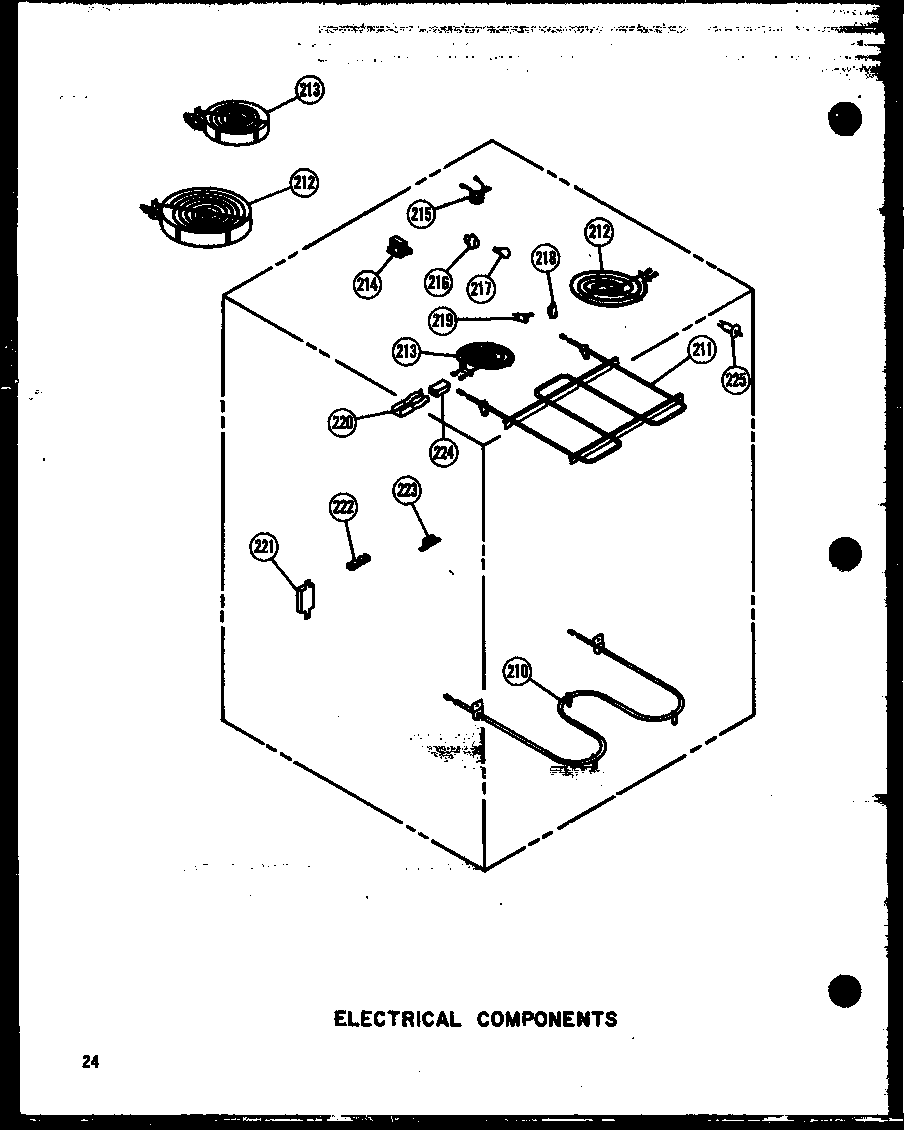

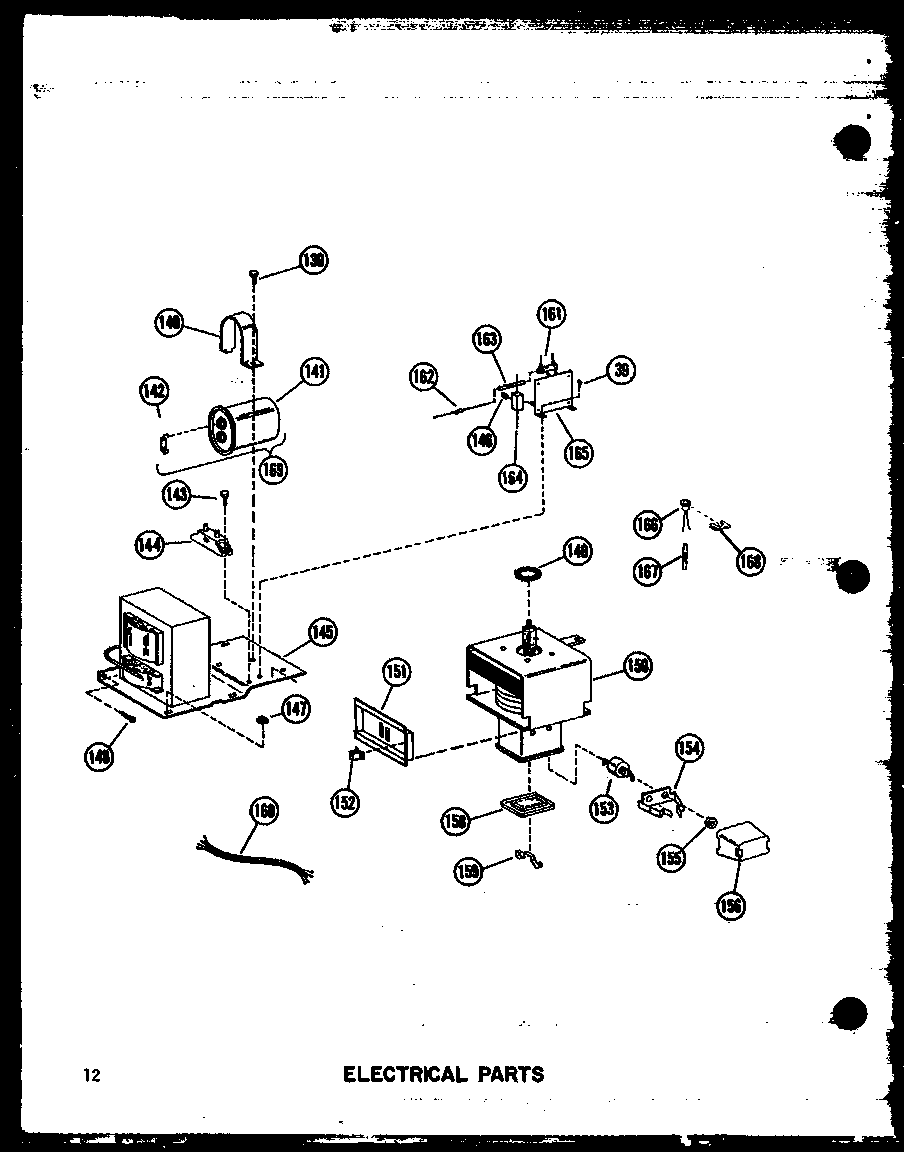

Electrical components (rcc-3/p72771-1m) (rcc-3-c/p72771-1mc) (rcc-3-ag/p72771-1mg) (rcc-3-a/p72771-1ma) (rcc-3/p72771-2m) (rcc-3-l1/p72771-2ml) (rcc-3-c1/p72771-2mc) (rcc-3-a1/p72771-2ma) (rcc-3-ag1/p72771-2mg) (rcc-4-c/p72778-1mc) (rcc-4-a/p72778-1ma) (r diagram

Block

Part #R0167091

Replaced by #330031

?
Manufacturer substitution
This part replaces R0167091. Substitute parts can look different from the original.
BEST SELLER
$10.32 |
16% OFF Phone Price : $12.32
In Stock
Nut M0282005
Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Torx Screw M0216616
Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Fuse M0850507
#66

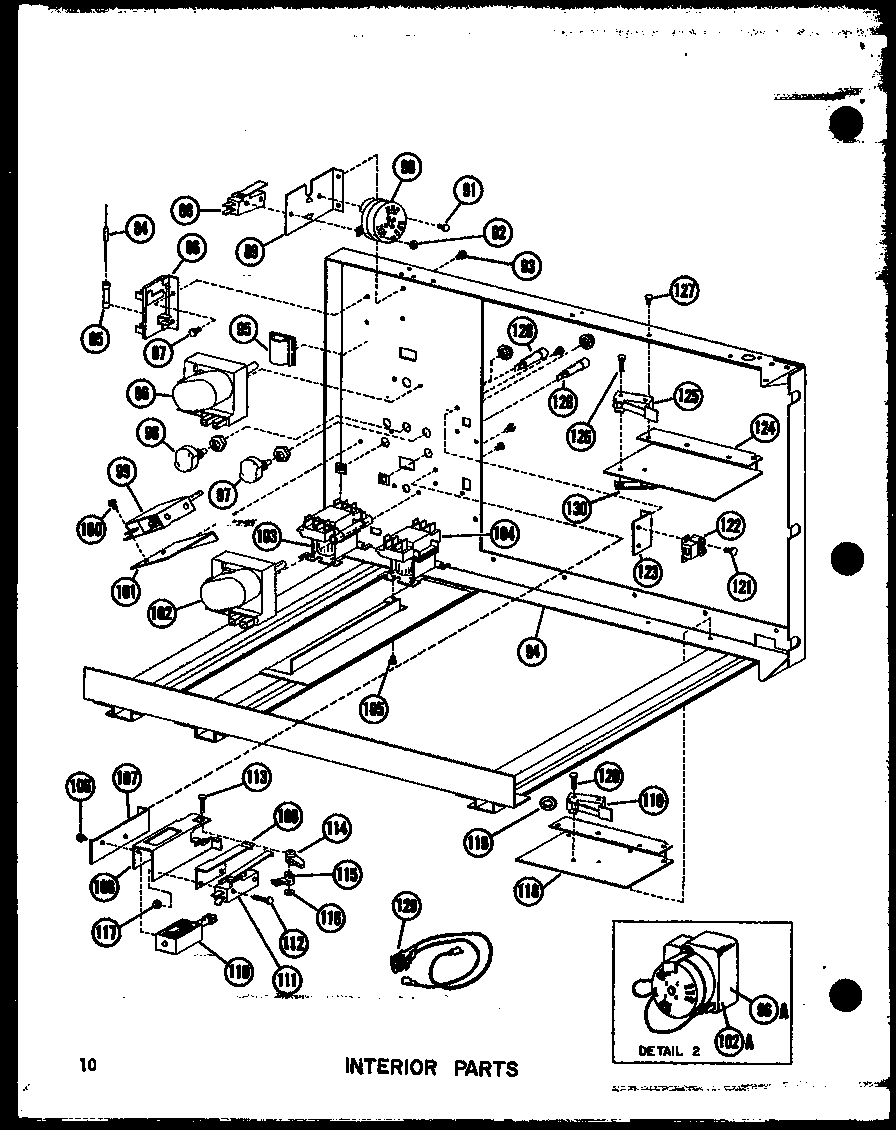

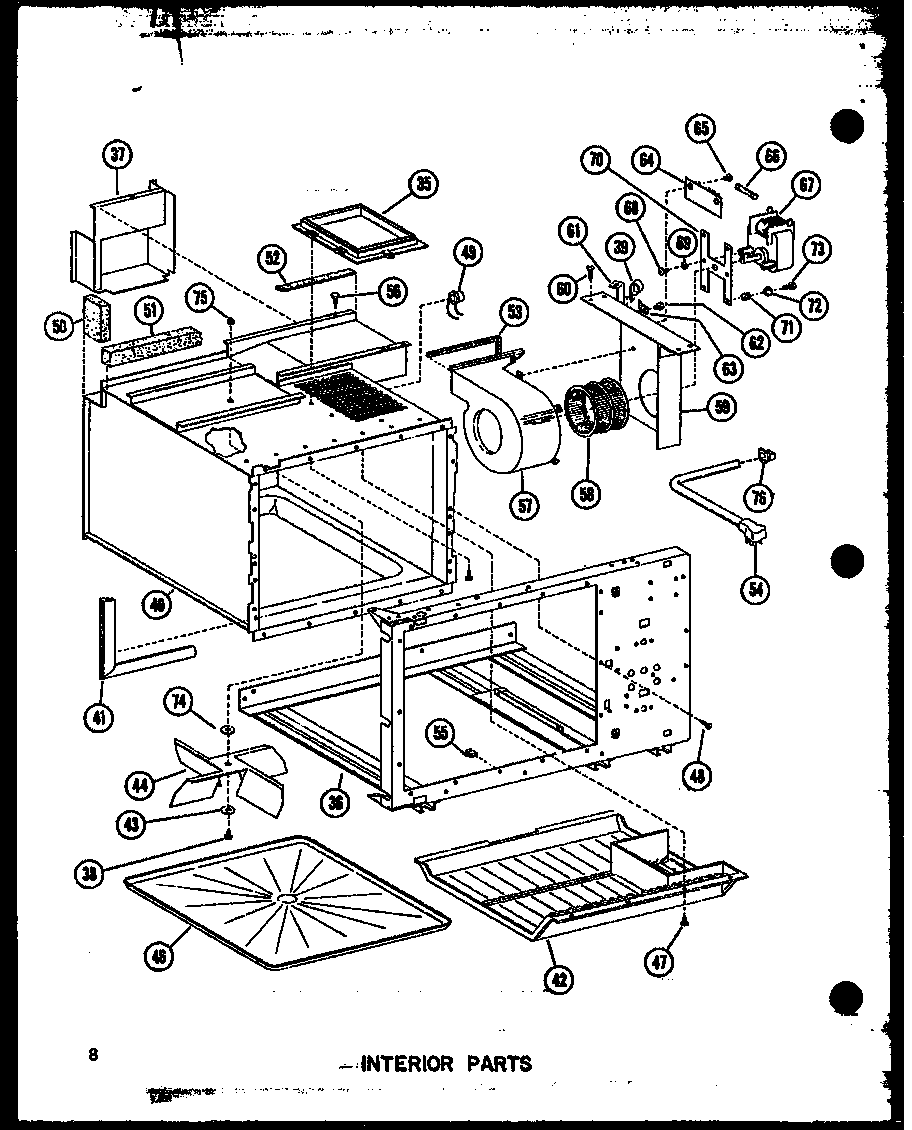

Interior parts (rcc-3/p72771-1m) (rcc-3-c/p72771-1mc) (rcc-3-ag/p72771-1mg) (rcc-3-a/p72771-1ma) (rcc-3/p72771-2m) (rcc-3-l1/p72771-2ml) (rcc-3-c1/p72771-2mc) (rcc-3-a1/p72771-2ma) (rcc-3-ag1/p72771-2mg) (rcc-4-c/p72778-1mc) (rcc-4-a/p72778-1ma) (rcc-4/p7 diagram

Fuse

Part #M0850507

The manufacturer no longer makes this part, and there's no substitute part

Bake Element R0167081
#210

Electrical components (rcc-3/p72771-1m) (rcc-3-c/p72771-1mc) (rcc-3-ag/p72771-1mg) (rcc-3-a/p72771-1ma) (rcc-3/p72771-2m) (rcc-3-l1/p72771-2ml) (rcc-3-c1/p72771-2mc) (rcc-3-a1/p72771-2ma) (rcc-3-ag1/p72771-2mg) (rcc-4-c/p72778-1mc) (rcc-4-a/p72778-1ma) (r diagram

Bake element

Part #R0167081

The manufacturer no longer makes this part, and there's no substitute part

Switch, Extended Plunger R0163024
#225B

Electrical components (rcc-3/p72771-1m) (rcc-3-c/p72771-1mc) (rcc-3-ag/p72771-1mg) (rcc-3-a/p72771-1ma) (rcc-3/p72771-2m) (rcc-3-l1/p72771-2ml) (rcc-3-c1/p72771-2mc) (rcc-3-a1/p72771-2ma) (rcc-3-ag1/p72771-2mg) (rcc-4-c/p72778-1mc) (rcc-4-a/p72778-1ma) (r diagram

Switch, extended plunger

Part #R0163024

The manufacturer no longer makes this part, and there's no substitute part

Door Latch B5710801
#12

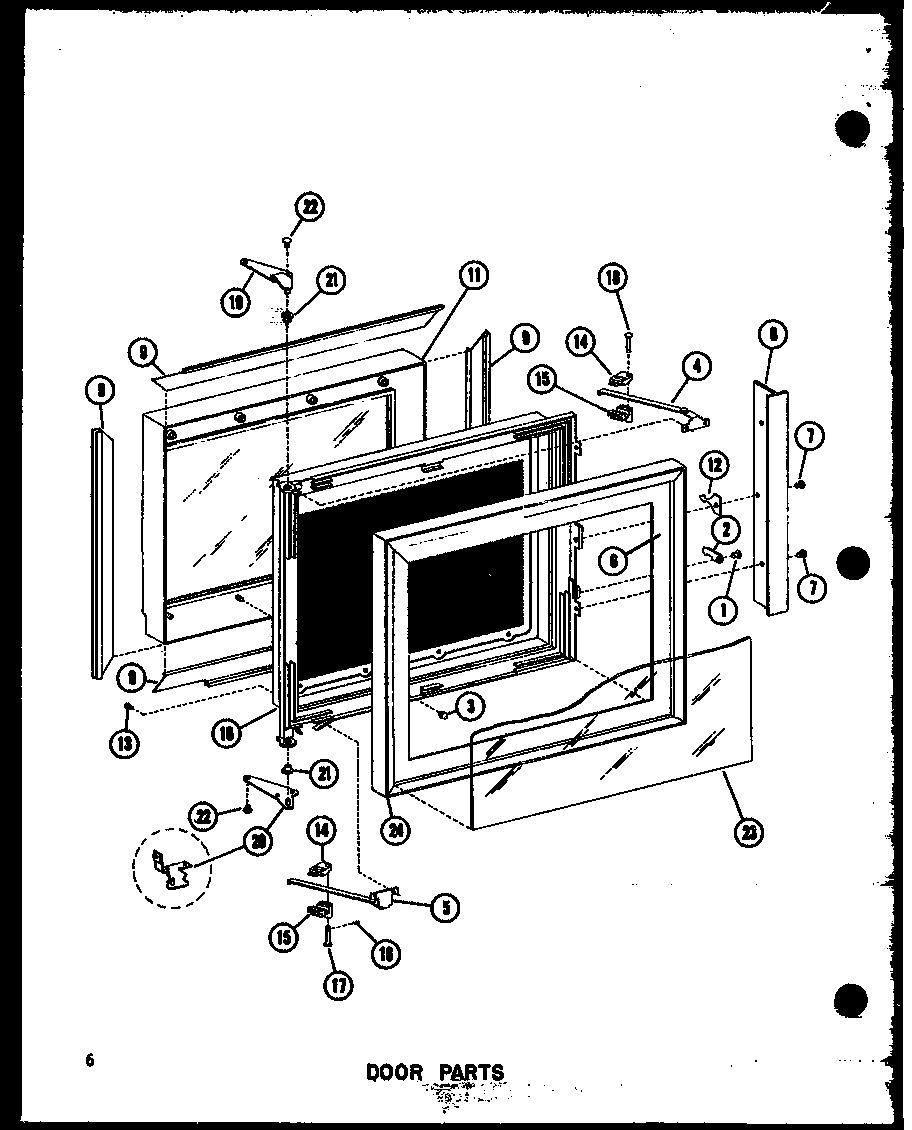

Door parts (rcc-3/p72771-1m) (rcc-3-c/p72771-1mc) (rcc-3-ag/p72771-1mg) (rcc-3-a/p72771-1ma) (rcc-3/p72771-2m) (rcc-3-l1/p72771-2ml) (rcc-3-c1/p72771-2mc) (rcc-3-a1/p72771-2ma) (rcc-3-ag1/p72771-2mg) (rcc-4-c/p72778-1mc) (rcc-4-a/p72778-1ma) (rcc-4/p72778 diagram

Door latch

Part #B5710801

The manufacturer no longer makes this part, and there's no substitute part

Door Handle Screw M0234117
#87

Interior parts (rcc-3/p72771-1m) (rcc-3-c/p72771-1mc) (rcc-3-ag/p72771-1mg) (rcc-3-a/p72771-1ma) (rcc-3/p72771-2m) (rcc-3-l1/p72771-2ml) (rcc-3-c1/p72771-2mc) (rcc-3-a1/p72771-2ma) (rcc-3-ag1/p72771-2mg) (rcc-4-c/p72778-1mc) (rcc-4-a/p72778-1ma) (rcc-4/p7 diagram

Door handle screw

Part #M0234117

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Panel, White R0178872
#185H

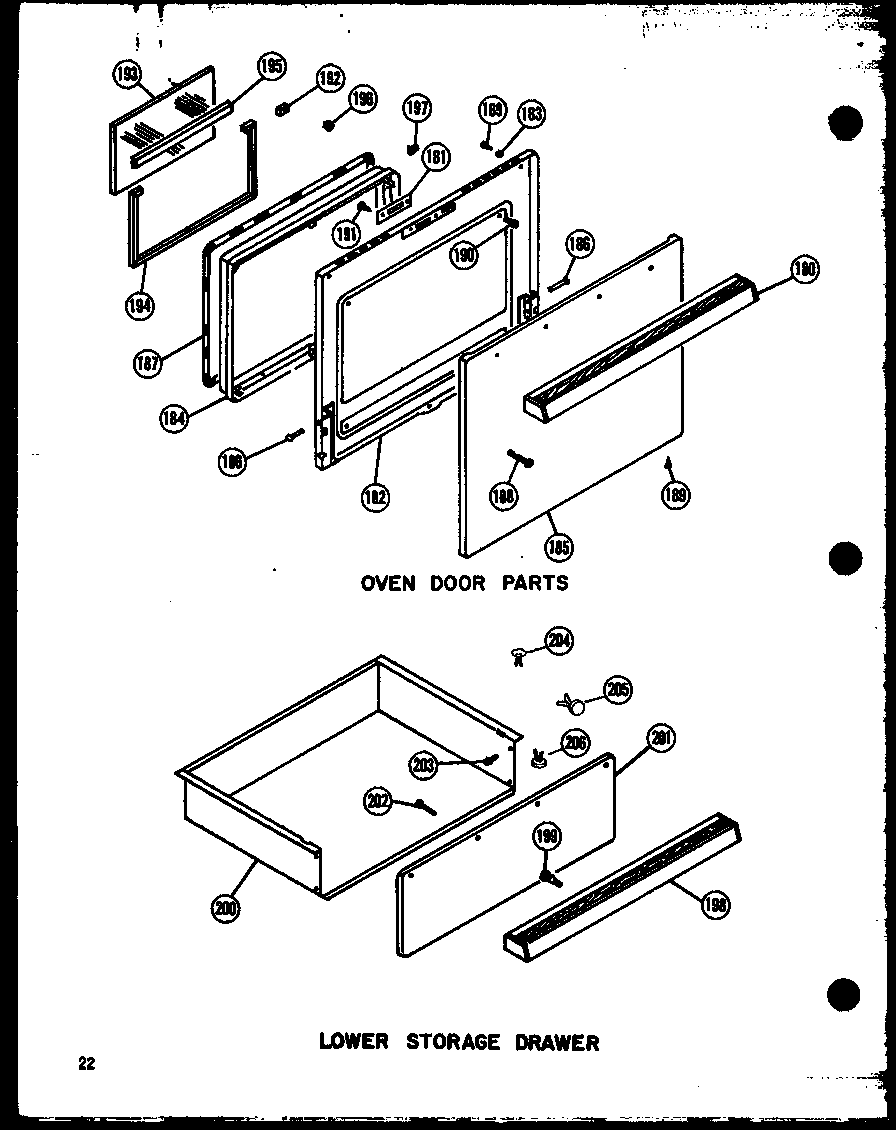

Oven door parts (rcc-3/p72771-1m) (rcc-3-c/p72771-1mc) (rcc-3-ag/p72771-1mg) (rcc-3-a/p72771-1ma) (rcc-3/p72771-2m) (rcc-3-l1/p72771-2ml) (rcc-3-c1/p72771-2mc) (rcc-3-a1/p72771-2ma) (rcc-3-ag1/p72771-2mg) (rcc-4-c/p72778-1mc) (rcc-4-a/p72778-1ma) (rcc-4/p diagram

Oven door panel, white

Part #R0178872

The manufacturer no longer makes this part, and there's no substitute part

Oven Door Panel, Autumn Gold R0178871
#185E

Oven door parts (rcc-3/p72771-1m) (rcc-3-c/p72771-1mc) (rcc-3-ag/p72771-1mg) (rcc-3-a/p72771-1ma) (rcc-3/p72771-2m) (rcc-3-l1/p72771-2ml) (rcc-3-c1/p72771-2mc) (rcc-3-a1/p72771-2ma) (rcc-3-ag1/p72771-2mg) (rcc-4-c/p72778-1mc) (rcc-4-a/p72778-1ma) (rcc-4/p diagram

Oven door panel, autumn gold

Part #R0178871

The manufacturer no longer makes this part, and there's no substitute part
