Model # MUHM-18CN Official Mitsubishi air conditioner heat pump

Here are the diagrams and repair parts for Official Mitsubishi MUHM-18CN air conditioner heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |
Mitsubishi Trmnl Bed T2W501375
#2

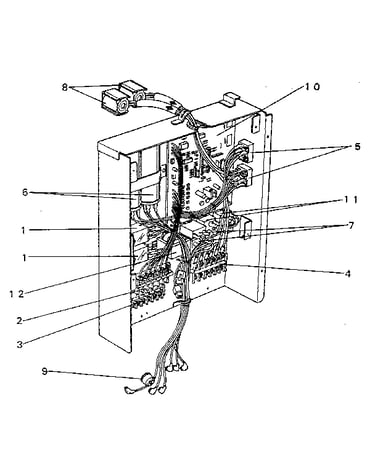

Outdoor unit-electrical diagram

Mitsubishi trmnl bed

Part #T2W501375

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Servl Pnl T2W500245
#4

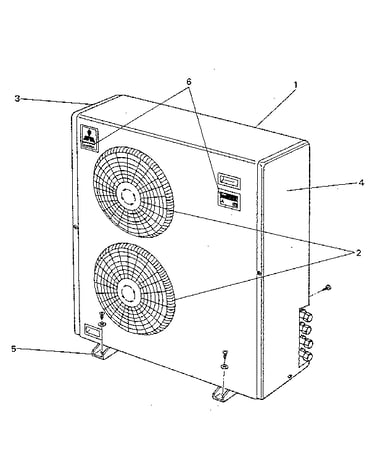

Outdoor unit (muhm-18cn-u1) structural diagram

Mitsubishi servl pnl

Part #T2W500245

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Fan Motor T2W500301
#2

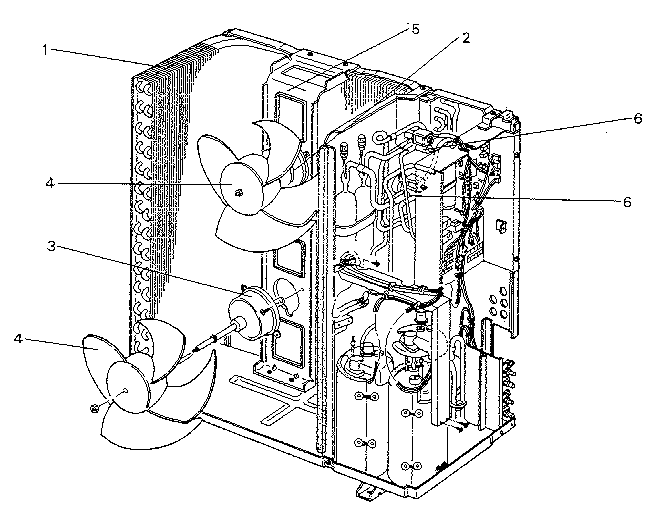

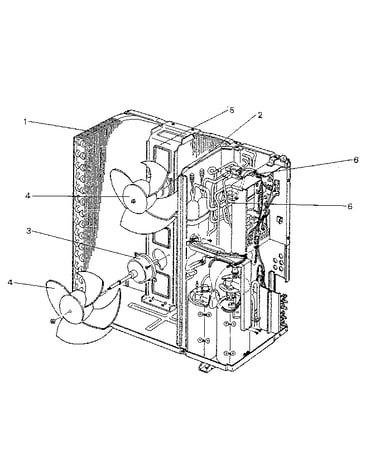

Functional diagram

Mitsubishi fan motor

Part #T2W500301

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Transformer T2W500339
#12

Outdoor unit-electrical diagram

Mitsubishi transformer

Part #T2W500339

The manufacturer no longer makes this part, and there's no substitute part

Chrge Plug T2W457641
#5

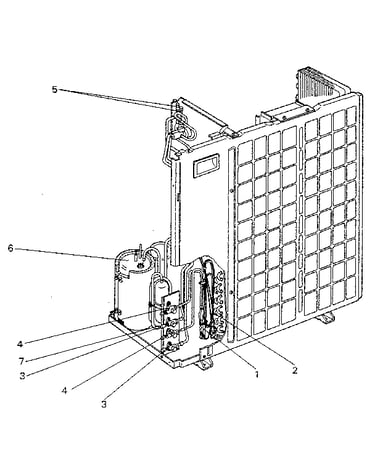

Functional diagram

Chrge plug

Part #T2W457641

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Relay - Aux T2W500342
#1

Outdoor unit-electrical diagram

Mitsubishi relay - aux

Part #T2W500342

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Trmnl Bed T2W500376
#3

Outdoor unit-electrical diagram

Mitsubishi trmnl bed

Part #T2W500376

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Heat Exchanger T2W500630
#1

Functional diagram

Mitsubishi heat exchanger

Part #T2W500630

The manufacturer no longer makes this part, and there's no substitute part

Mitsubishi Base T2W500290
#5

Outdoor unit (muhm-18cn-u1) structural diagram

Mitsubishi base

Part #T2W500290

The manufacturer no longer makes this part, and there's no substitute part

Cme Cpctr R01566255
#7

Outdoor unit-electrical diagram

Cme cpctr

Part #R01566255

The manufacturer no longer makes this part, and there's no substitute part
