Gas Walk-Behind Mower

Model # 917388550 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388550 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 200 parts  |
Bagger 188812
#50

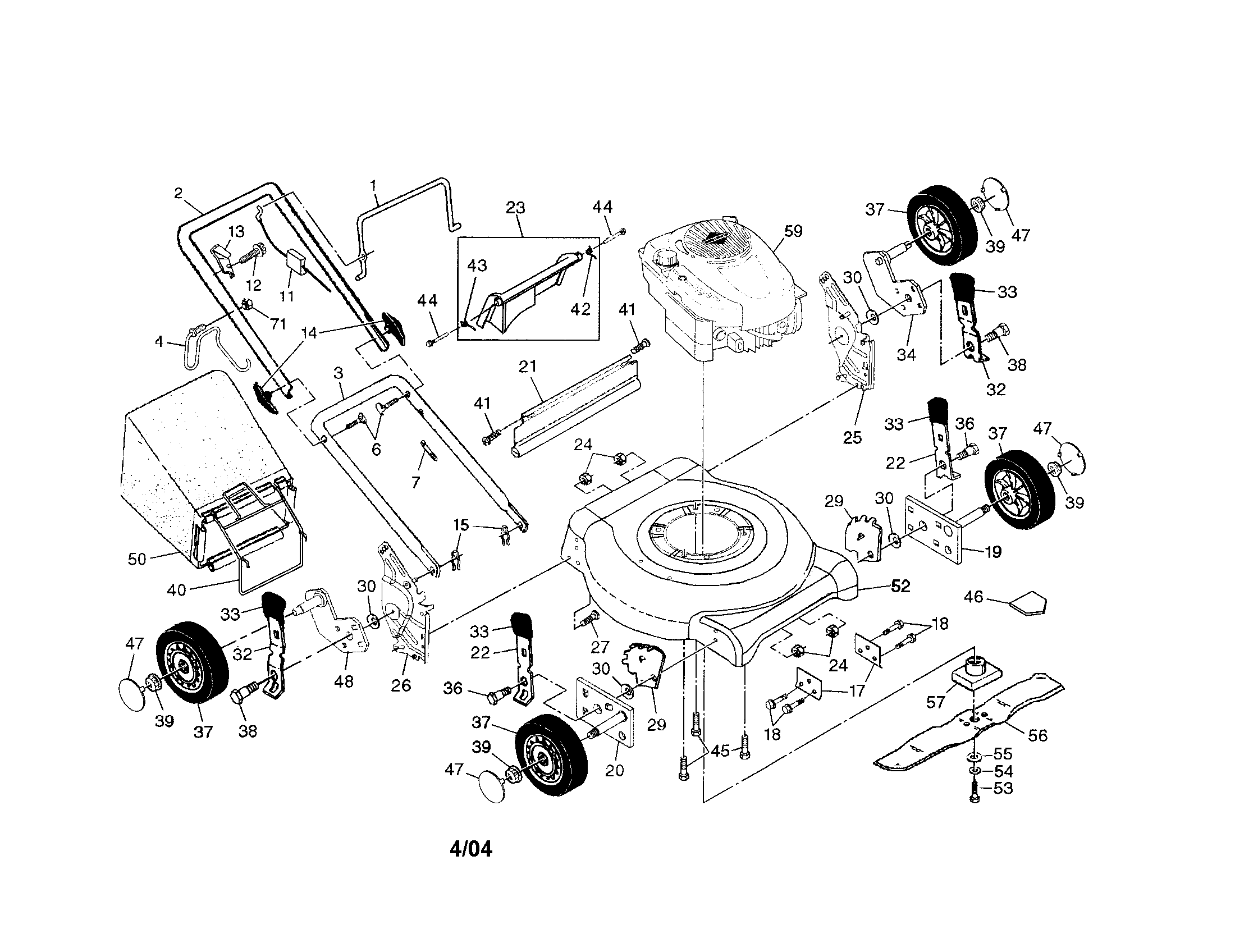

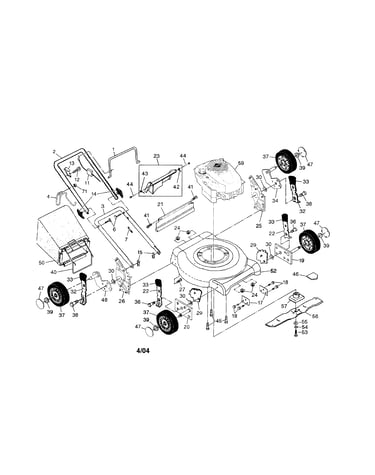

Engine/housing/wheels/handle/bag diagram

Bagger

Part #188812

Replaced by #532410666

?
Manufacturer substitution
This part replaces 188812. Substitute parts can look different from the original.
BEST SELLER
$68.54 |
8% OFF Phone Price : $74.54
In Stock
Nut 132004
#71

Engine/housing/wheels/handle/bag diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/housing/wheels/handle/bag diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
American Yard Products Lawn Mower Anti-fold Bracket 186079
#4

Engine/housing/wheels/handle/bag diagram

American yard products lawn mower anti-fold bracket

Part #186079

Replaced by #586122501

?
Manufacturer substitution
This part replaces 186079. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#33

Engine/housing/wheels/handle/bag diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Cable Bracket 86899X004
#13

Engine/housing/wheels/handle/bag diagram

Lawn mower cable bracket

Part #86899X004

Replaced by #532430034

?
Manufacturer substitution
This part replaces 86899X004. Substitute parts can look different from the original.
$10.26
In Stock
Handle Bolt 131959
#6

Engine/housing/wheels/handle/bag diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Self-tapping Screw (replaces 532081276, 532750634, 81276) 750634
#12

Engine/housing/wheels/handle/bag diagram

Lawn & garden equipment self-tapping screw (replaces 532081276, 532750634, 81276)

Part #750634

Replaced by #532750634

?
Manufacturer substitution
This part replaces 750634. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#55

Engine/housing/wheels/handle/bag diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Kit.hsg.21rd 189309
#52

Engine/housing/wheels/handle/bag diagram

Kit.hsg.21rd

Part #189309

Replaced by #583568901

?
Manufacturer substitution
This part replaces 189309. Substitute parts can look different from the original.
$179.96
In Stock
