GE
Electric Wall Oven

Model # JTP30SP2SS Official GE electric oven

Here are the diagrams and repair parts for Official GE JTP30SP2SS electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Appliance Light Bulb, 40-watt 40A15
#257

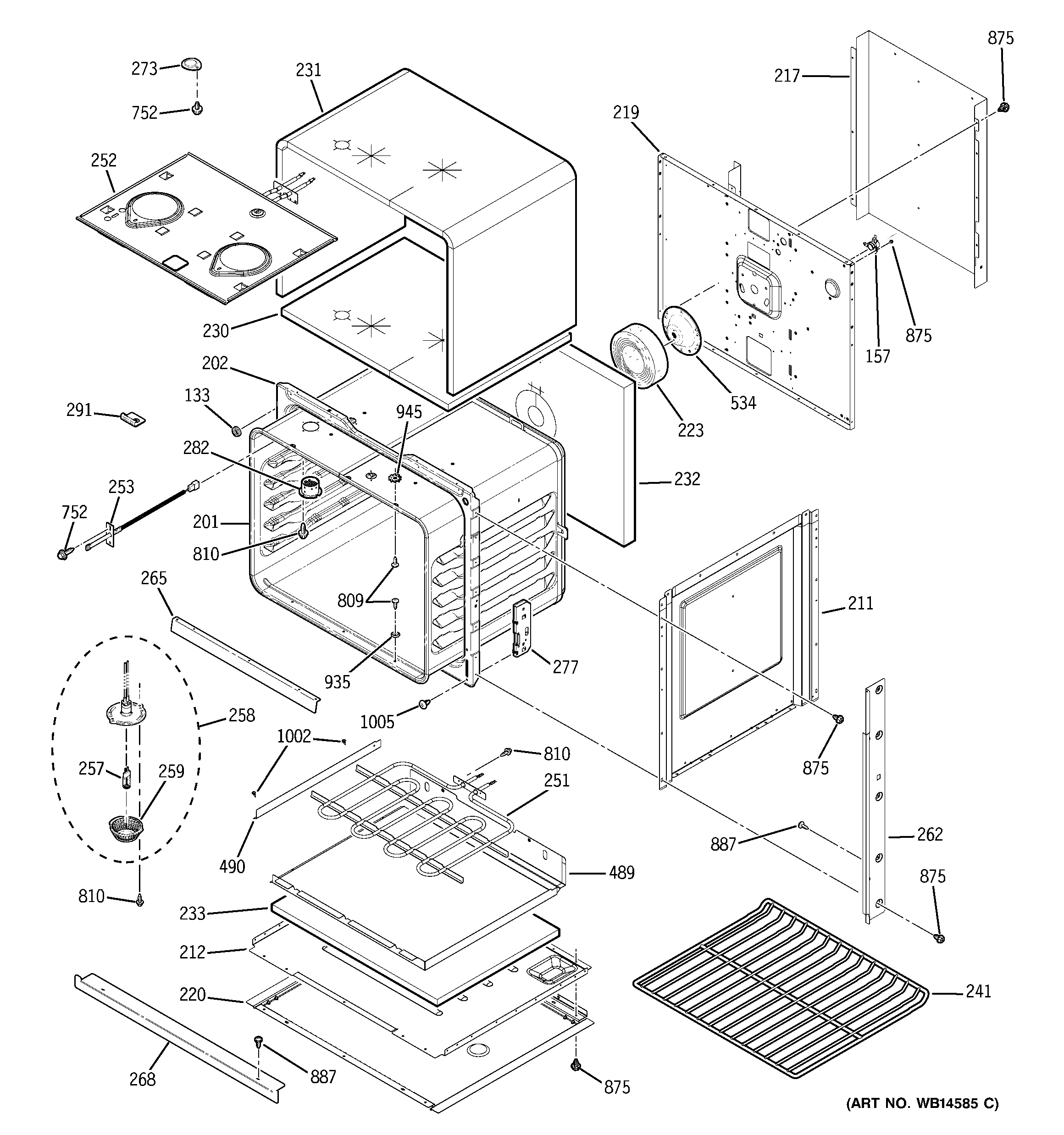

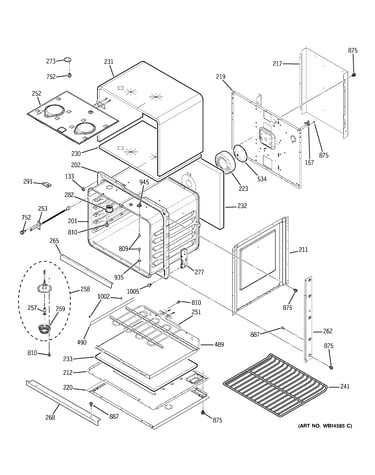

Body parts diagram

Appliance light bulb, 40-watt

Part #40A15

Replaced by #40A15

?
Manufacturer substitution
This part replaces 40A15. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Oven Door Middle Glass (replaces Wb55t10191) WB56T10105
#338

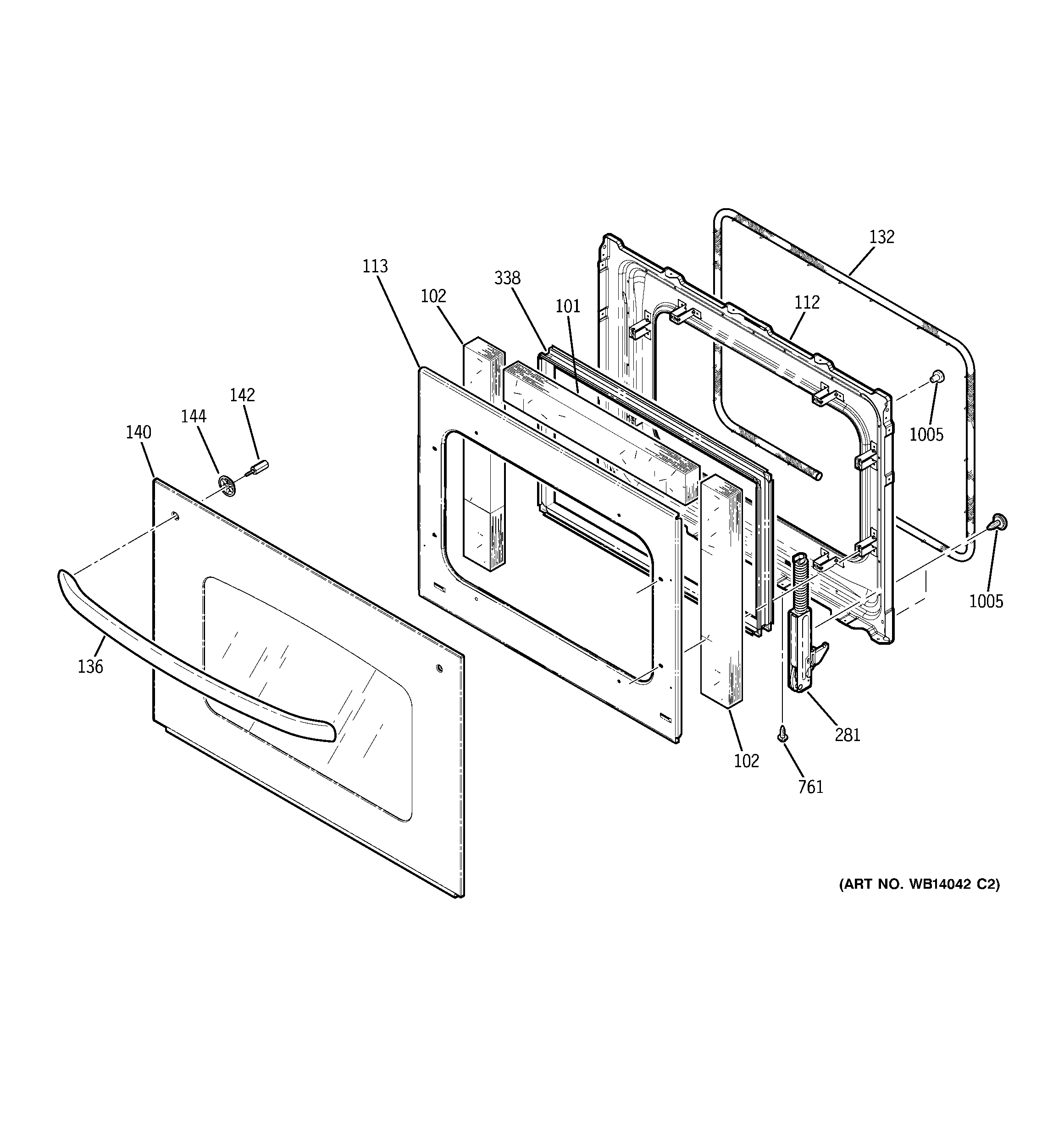

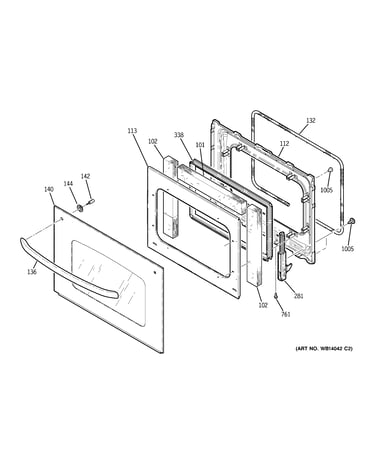

Door diagram

Range oven door middle glass (replaces wb55t10191)

Part #WB56T10105

BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Wall Oven Safety Thermostat (replaces Wb24t10066) WB24T10060
#159

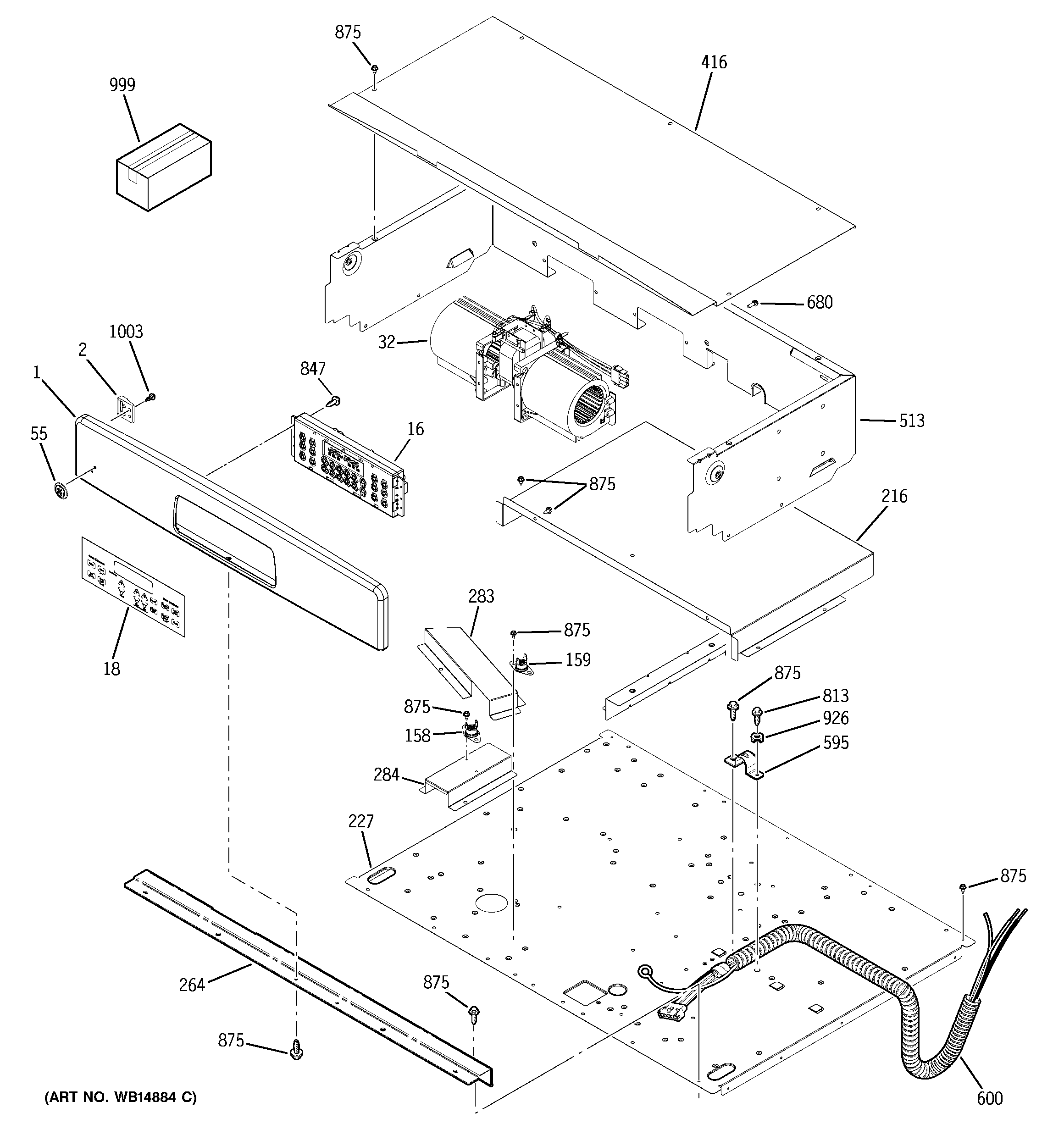

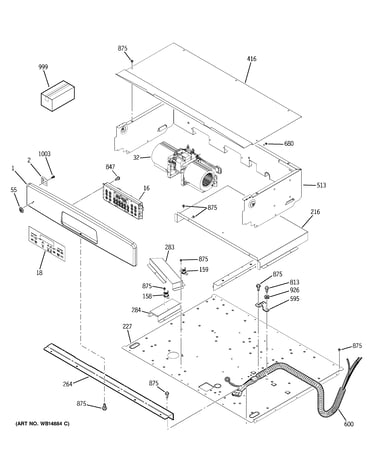

Control panel diagram

Wall oven safety thermostat (replaces wb24t10066)

Part #WB24T10060

BEST SELLER
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven High-limit Thermostat WB24T10081
#157

Body parts diagram

Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Sensor Assembly WB21T10018
#253

Body parts diagram

Sensor assembly

Part #WB21T10018

This item is not returnable
$23.58 |
20% OFF Phone Price : $29.58
In Stock
Wall Oven Door Lock Assembly WB14T10082
#150

Door lock diagram

Wall oven door lock assembly

Part #WB14T10082

$112.06 |
10% OFF Phone Price : $124.06
In Stock
Range Oven Rack WB48T10050
#241

Body parts diagram

Range oven rack

Part #WB48T10050

$64.46 |
9% OFF Phone Price : $70.46
Back Order
Range Bake Element WB44T10110
#251

Body parts diagram

Range bake element

Part #WB44T10110

$81.99 |
7% OFF Phone Price : $87.99
In Stock
Screw WB01X1137
#809

Body parts diagram

Screw

Part #WB01X1137

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces WB01X1137. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Control Board WB27T11407
#16

Control panel diagram

Wall oven control board

Part #WB27T11407

Replaced by #WB27T11434

?
Manufacturer substitution
This part replaces WB27T11407. Substitute parts can look different from the original.
This item is not returnable
$261.06 |
$12.00 OFF Phone Price : $273.06
In Stock
