Refrigerator

Model # D9504W Official Danby refrigerator

Here are the diagrams and repair parts for Official Danby D9504W refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Danby Refrigerator Door Handle 597275
#461

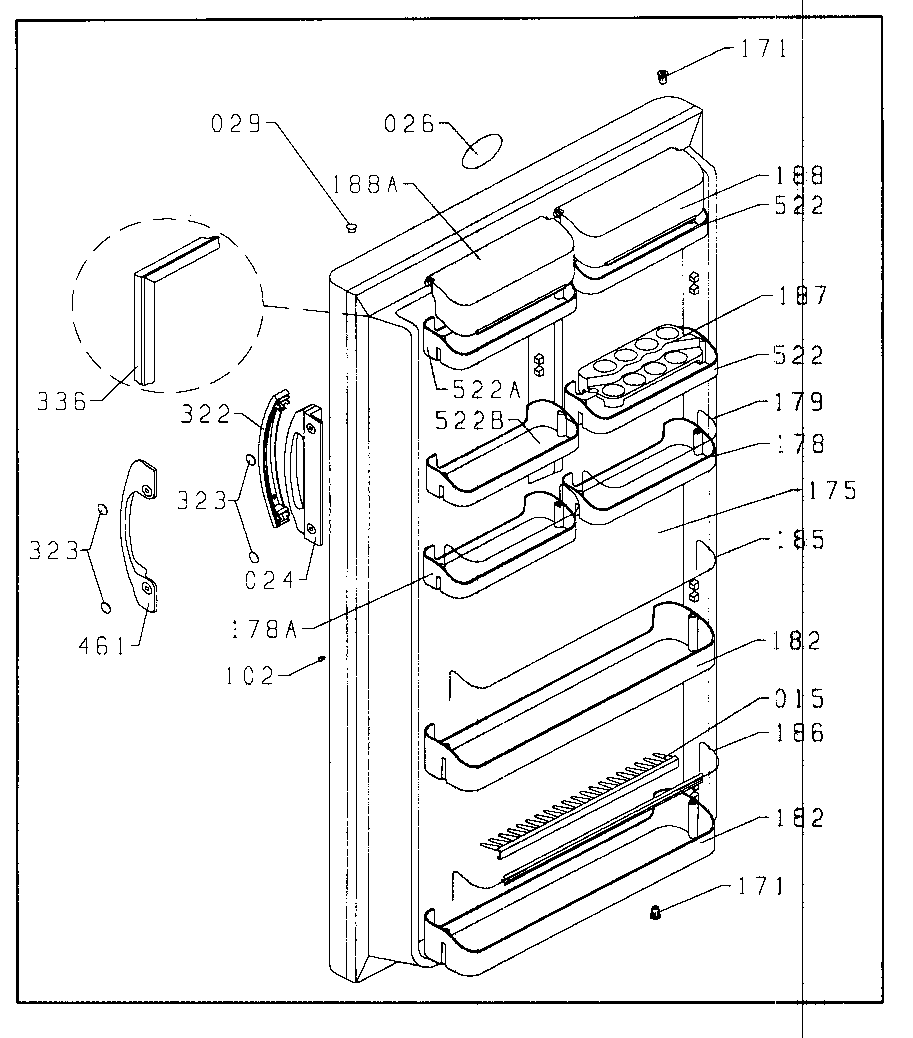

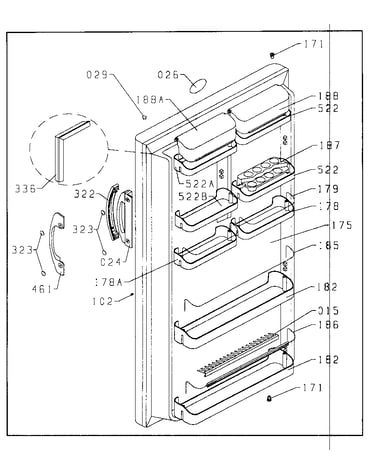

Door assy diagram

Danby refrigerator door handle

Part #597275

$23.04 |
21% OFF Phone Price : $29.04
In Stock
Danby Refrigerator Hinge 631658
#168

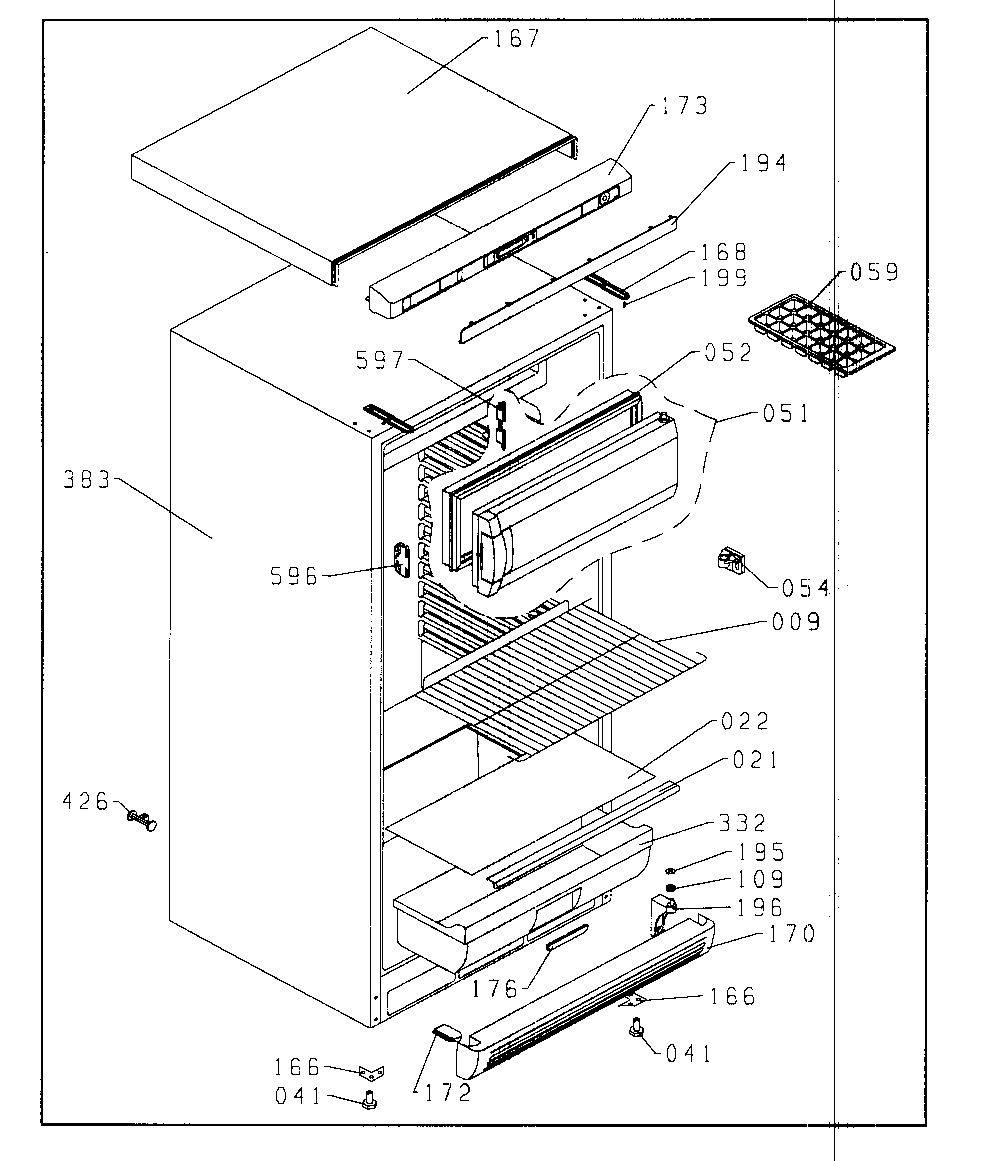

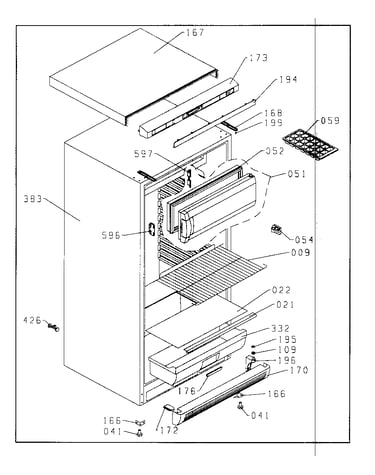

Cabinet parts diagram

Danby refrigerator hinge

Part #631658

$9.51
In Stock
Danby Refrigerator Evaporator Door Gasket 544287
#52

Cabinet parts diagram

Danby refrigerator evaporator door gasket

Part #544287

$31.32
In Stock
Danby Refrigerator Handle Hole Plug 528212
#323

Door assy diagram

Danby refrigerator handle hole plug

Part #528212

$7.13 |
12% OFF Phone Price : $8.13
In Stock
Refrigerator Bottle Retainer 542172
#186

Door assy diagram

Refrigerator bottle retainer

Part #542172

$20.19
In Stock
Refrigerator Thermostat 596215
#32

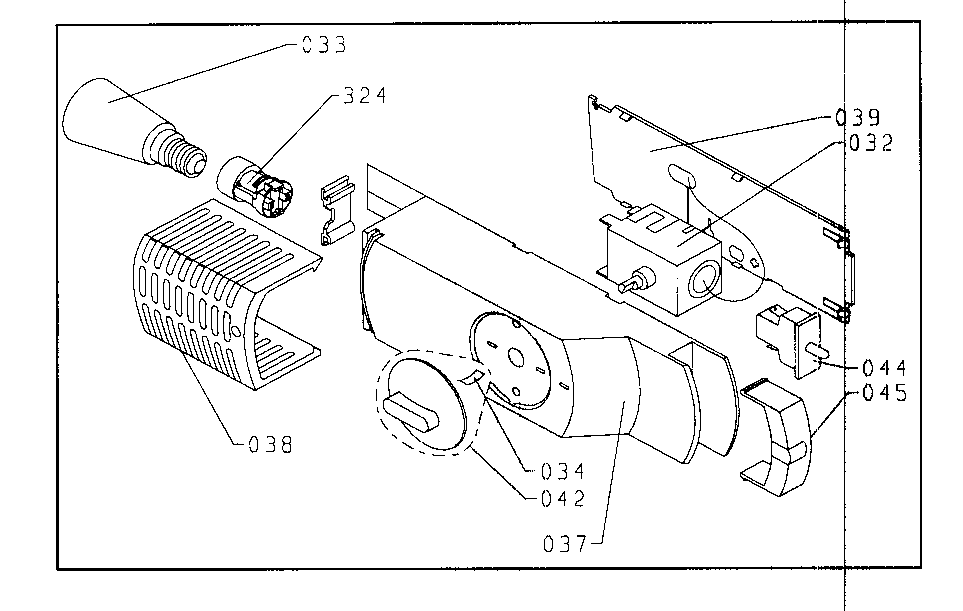

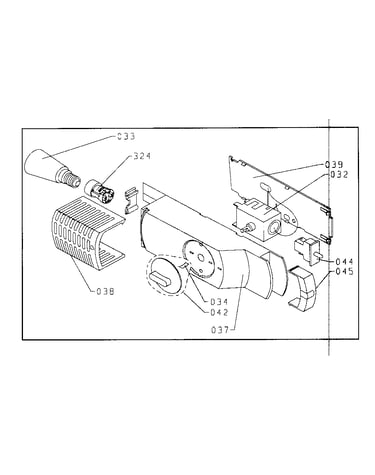

Control assy diagram

Refrigerator thermostat

Part #596215

$25.60
In Stock
Refrigerator Door 543128
#175

Door assy diagram

Refrigerator door

Part #543128

The manufacturer no longer makes this part, and there's no substitute part

Thermostat Knob 613810
#42

Control assy diagram

Thermostat knob

Part #613810

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Capacitor 542350
#165

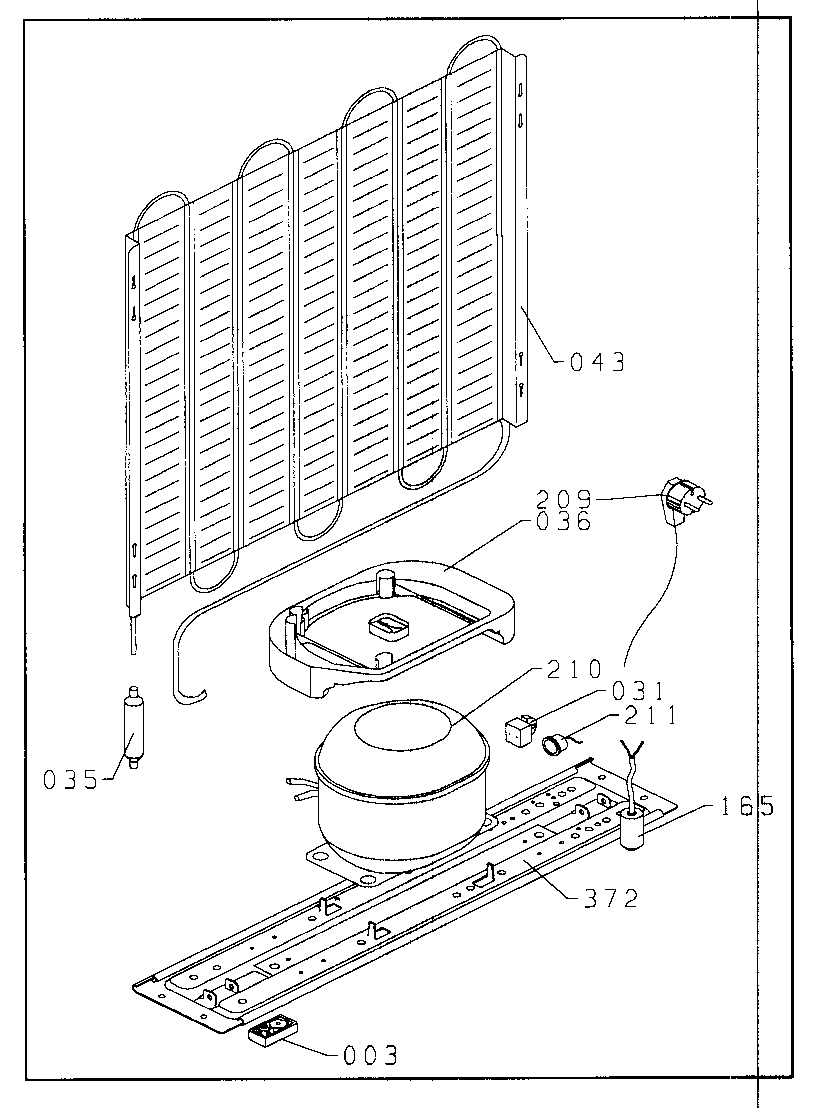

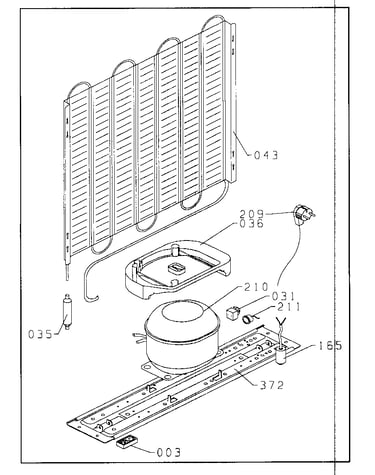

Compressor diagram

Refrigerator capacitor

Part #542350

The manufacturer no longer makes this part, and there's no substitute part

Compressor Support 597241
#372

Compressor diagram

Compressor support

Part #597241

The manufacturer no longer makes this part, and there's no substitute part
