Electrolux
Wine & Beverage Cooler

Model # EI24BC65GS1 Official Electrolux beverage center

Here are the diagrams and repair parts for Official Electrolux EI24BC65GS1 beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

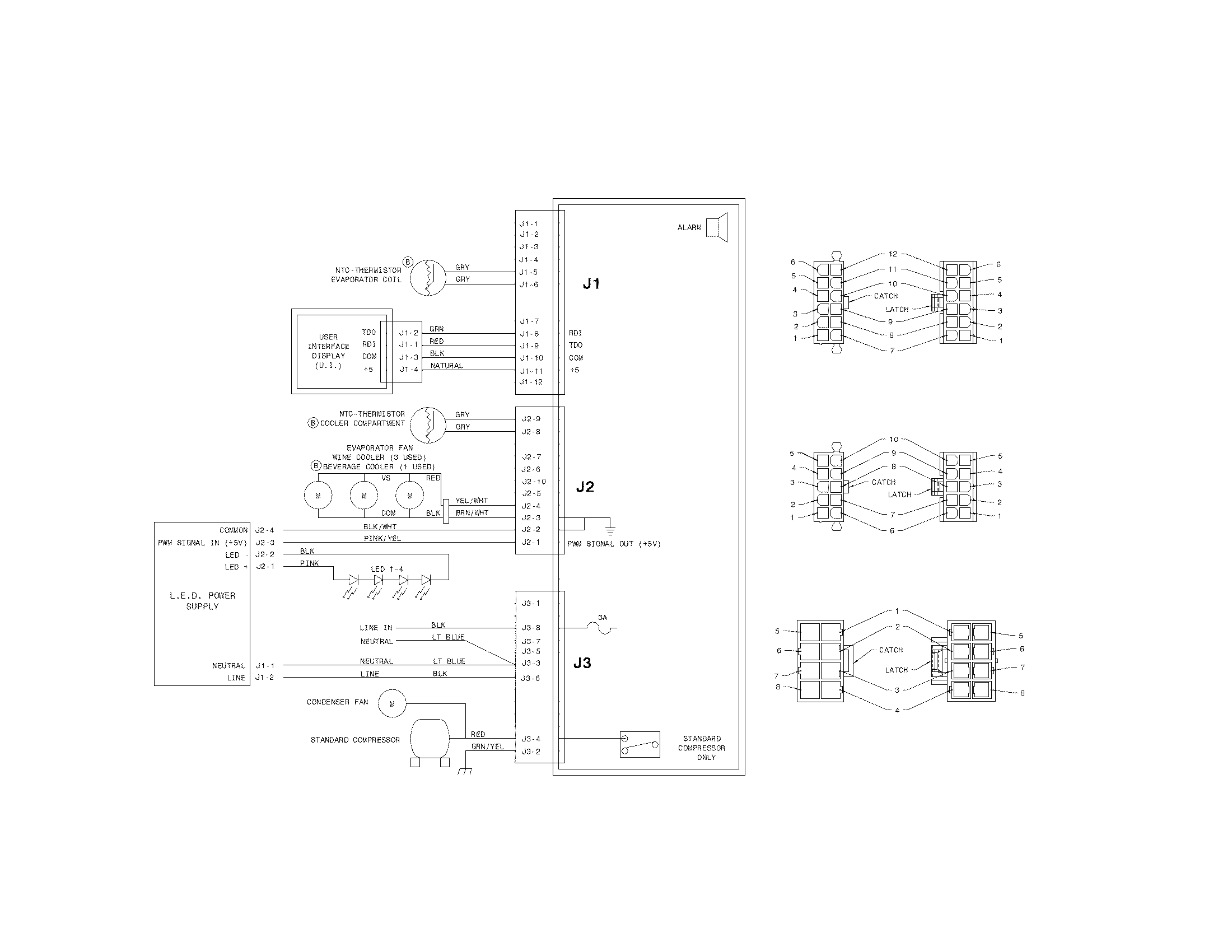

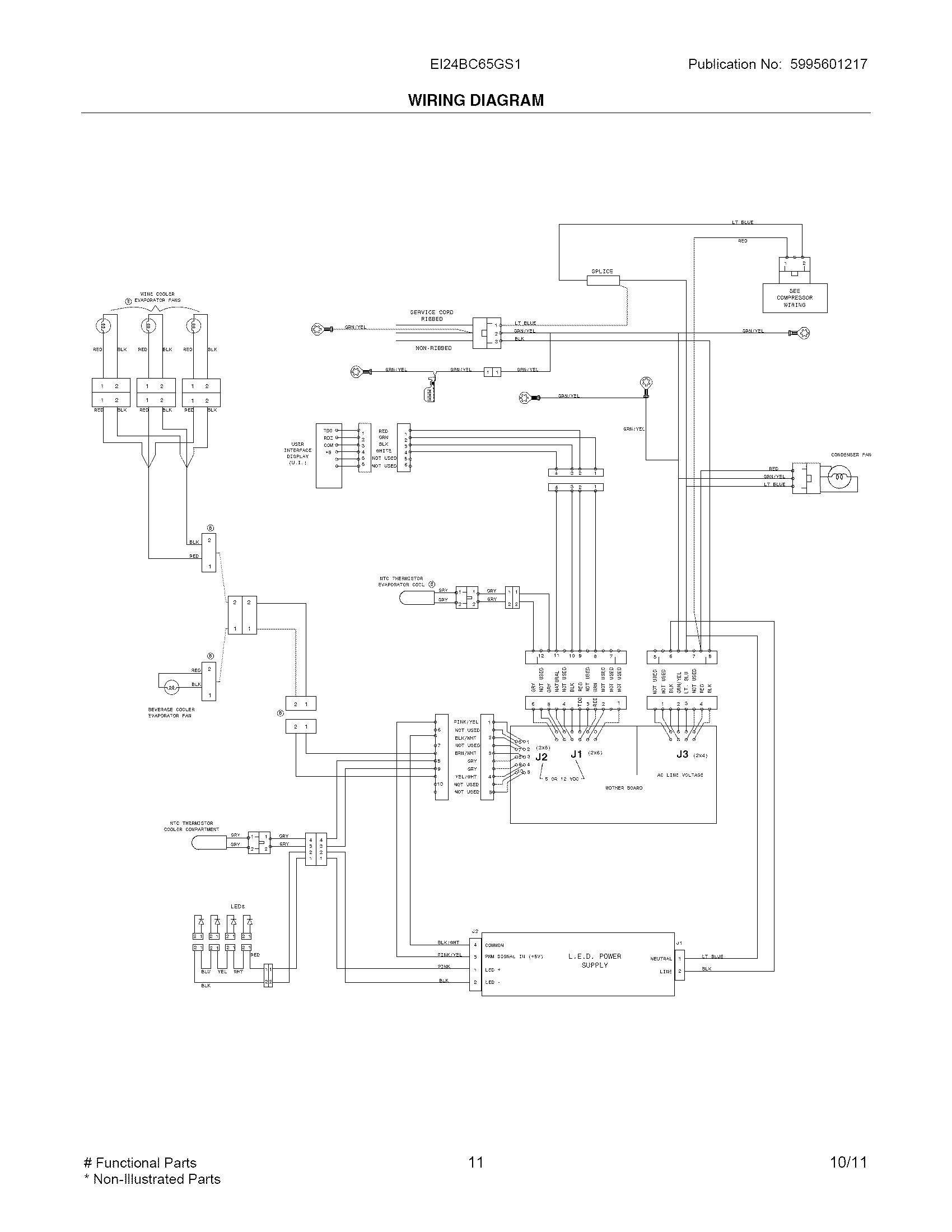

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Air Filter 241754001
#95

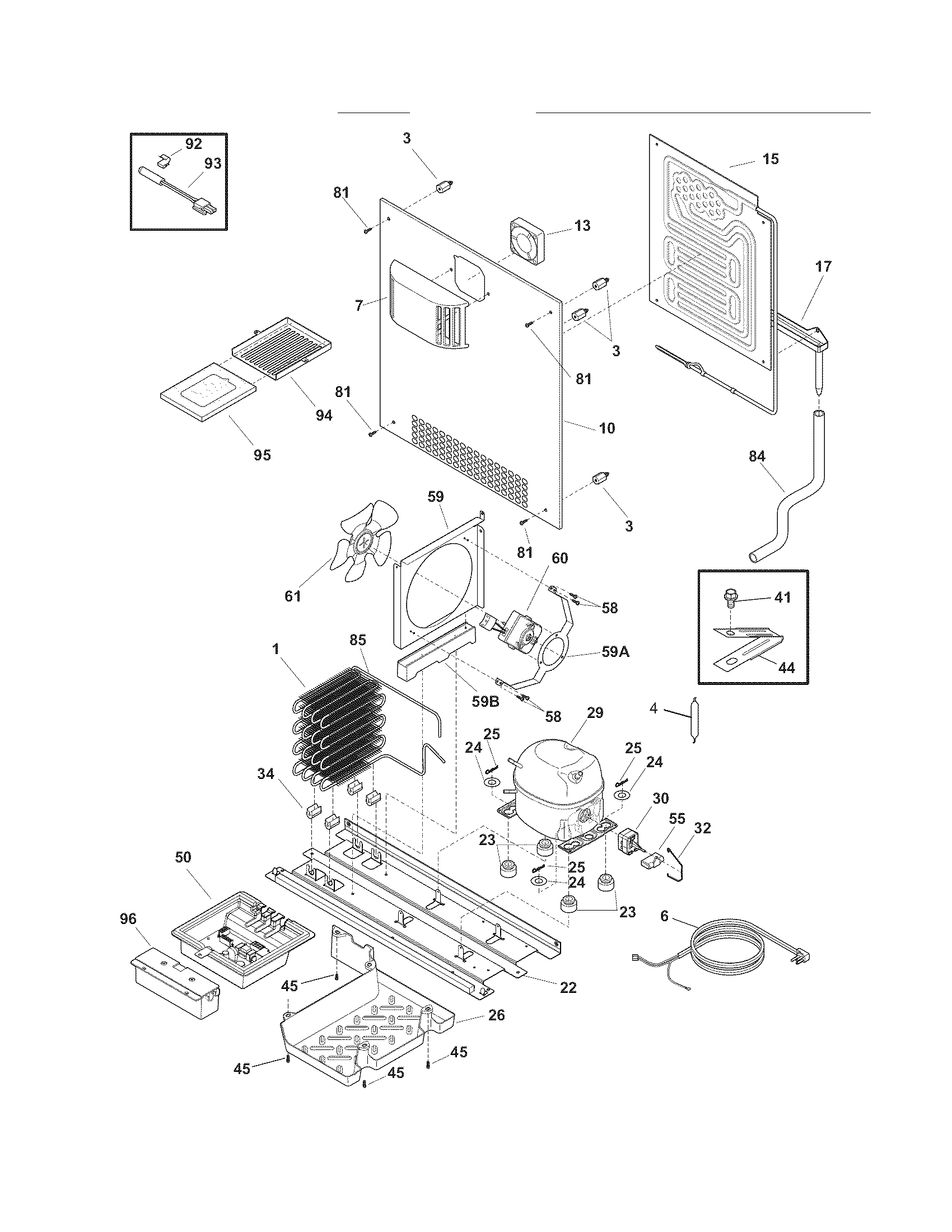

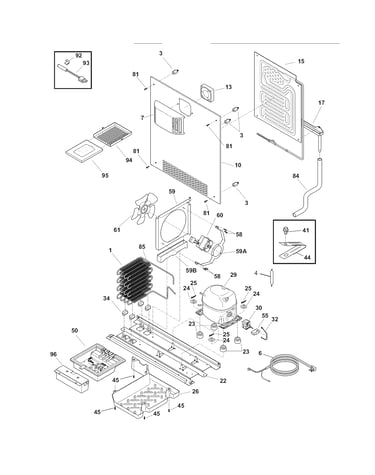

System diagram

Air filter

Part #241754001

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 241754001. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39 |
18% OFF Phone Price : $33.39
In Stock
Filter Drier 218944002
#4

System diagram

Filter drier

Part #218944002

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944002. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
#93

System diagram

Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$41.65 |
13% OFF Phone Price : $47.65
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Chest Freezer Run Capacitor 218909913
#55

System diagram

Chest freezer run capacitor

Part #218909913

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909913. Substitute parts can look different from the original.
BEST SELLER
$45.87 |
12% OFF Phone Price : $51.87
In Stock
Refrigerator Screw (replaces 216850900, 241951701, 5303001479, 7241710601) 241710601
#42

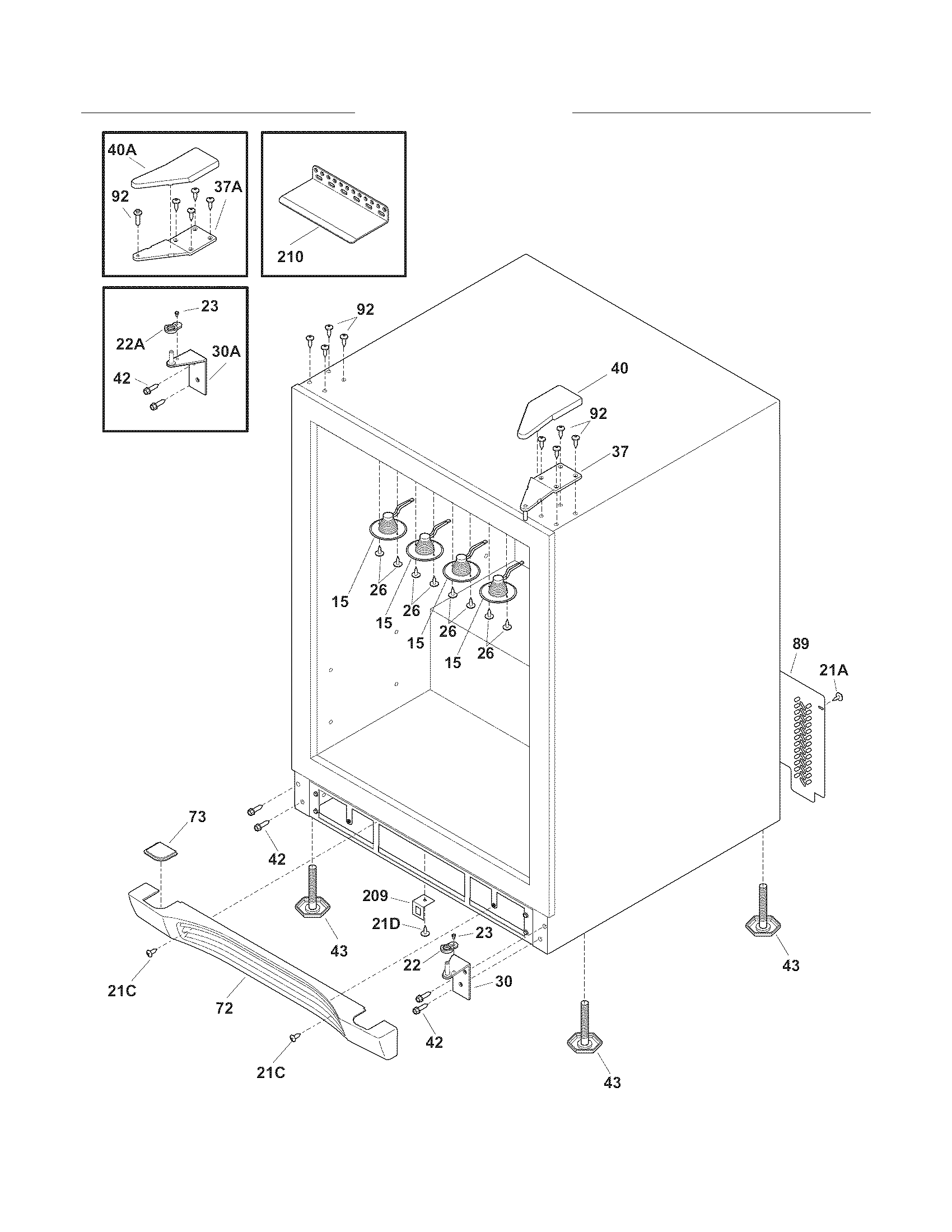

Cabinet diagram

Refrigerator screw (replaces 216850900, 241951701, 5303001479, 7241710601)

Part #241710601

This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Screw 241951701
#21

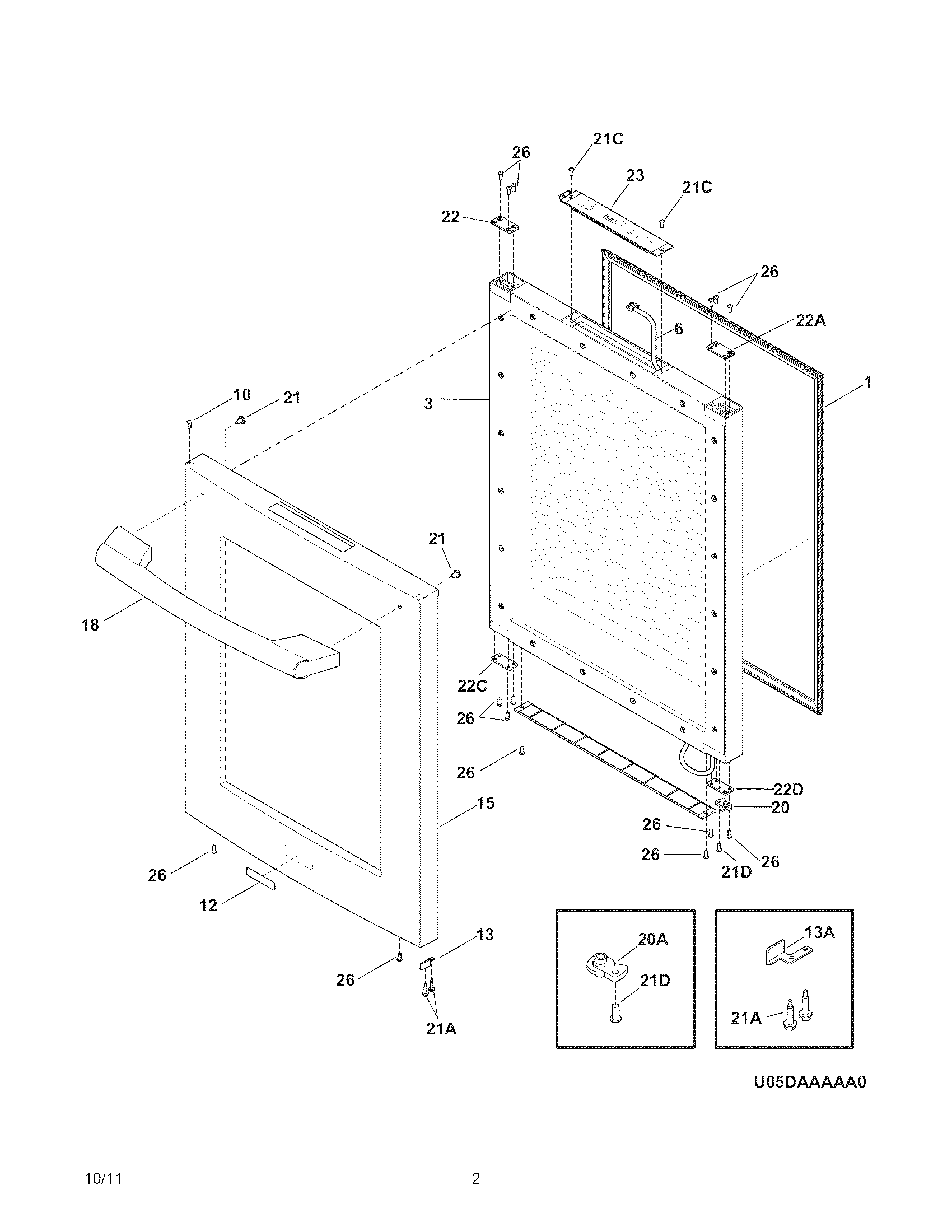

Door diagram

Screw

Part #241951701

Replaced by #241710601

?
Manufacturer substitution
This part replaces 241951701. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Refrigerator Compressor Grommet 218513300
#23

System diagram

Refrigerator compressor grommet

Part #218513300

$36.56 |
14% OFF Phone Price : $42.56
In Stock
Refrigerator Display Control Board Screw 241918201
#21C

Door diagram

Refrigerator display control board screw

Part #241918201

This item is not returnable
$5.89
In Stock
Hinge 241882302
#37A

Cabinet diagram

Hinge

Part #241882302

$41.67
In Stock
