Model # KSB755CA0 Official KitchenAid 5-speed architect blender

Here are the diagrams and repair parts for Official KitchenAid KSB755CA0 5-speed architect blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Seal W10292571
#3

Attachment parts diagram

Seal

Part #W10292571

Replaced by #WPW10686132

?
Manufacturer substitution
This part replaces W10292571. Substitute parts can look different from the original.
This item is not returnable
$4.58 |
18% OFF Phone Price : $5.58
In Stock
Blender Collar With Blade W10279518
#4

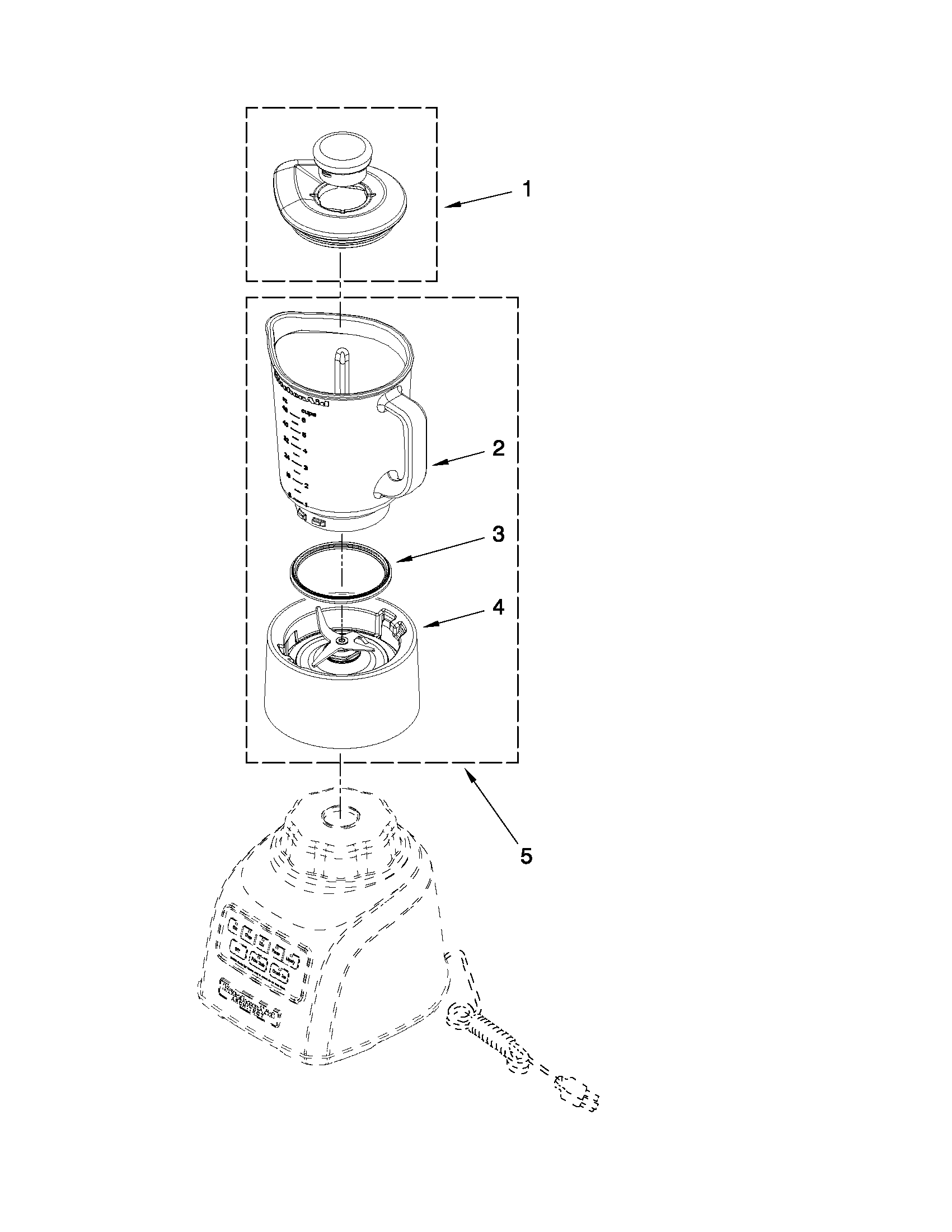

Attachment parts diagram

Blender collar with blade

Part #W10279518

Replaced by #WPW10500387

?
Manufacturer substitution
This part replaces W10279518. Substitute parts can look different from the original.
$64.89 |
8% OFF Phone Price : $70.89
In Stock
Jar W10221782
#2

Attachment parts diagram

Jar

Part #W10221782

Replaced by #WPW10221782

?
Manufacturer substitution
This part replaces W10221782. Substitute parts can look different from the original.
$100.50 |
11% OFF Phone Price : $112.50
In Stock
Housing W10236587
#5A

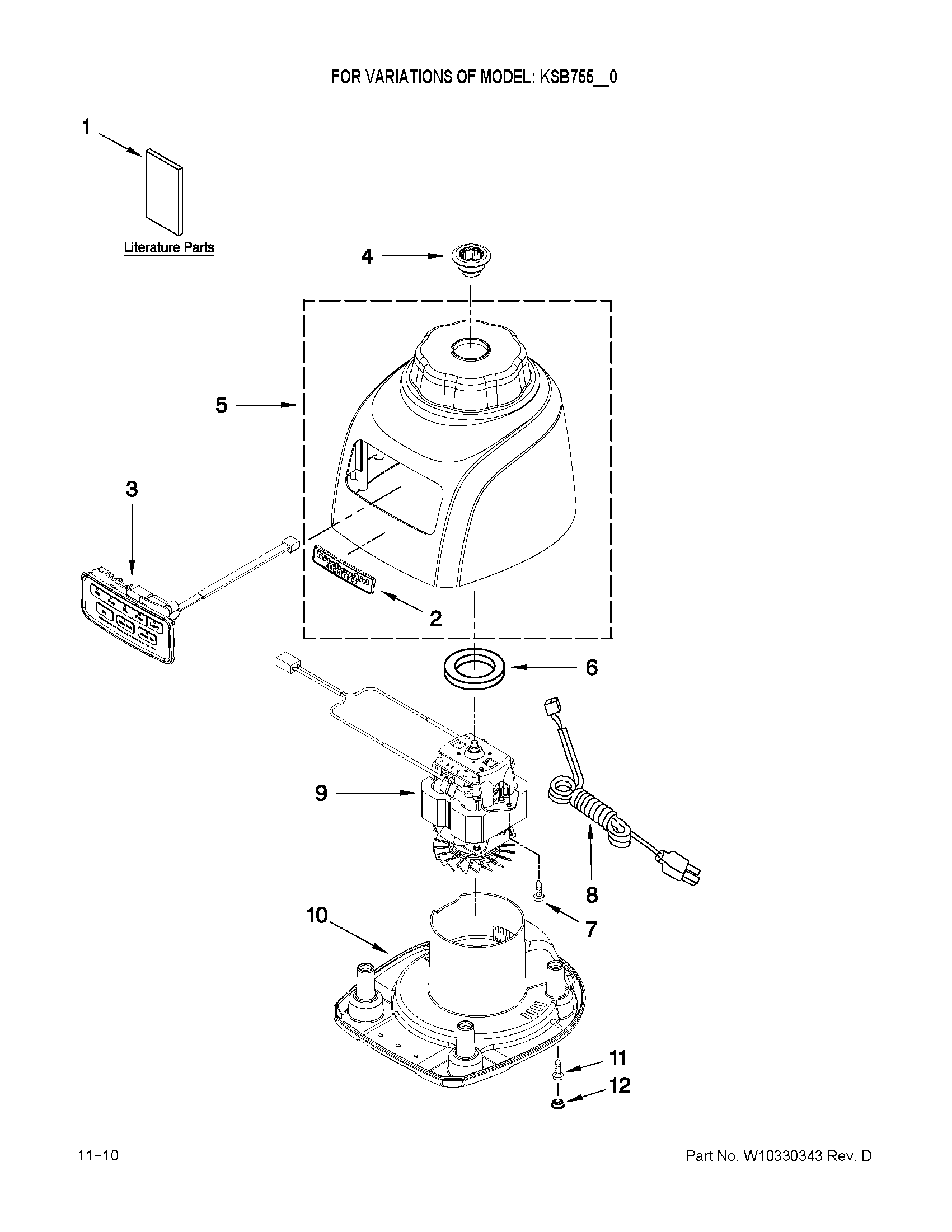

Unit parts diagram

Housing

Part #W10236587

$56.22
In Stock
Housing W10321432
#5B

Unit parts diagram

Housing

Part #W10321432

$66.69 |
8% OFF Phone Price : $72.69
In Stock
Nameplate W10254136
#2A

Unit parts diagram

Nameplate

Part #W10254136

$27.49
In Stock
Power Cord 9708928
#8

Unit parts diagram

Power cord

Part #9708928

$35.56
In Stock
Base W10243482
#10

Unit parts diagram

Base

Part #W10243482

$47.20
In Stock
Blender Jar Assembly W10254145
#NI

Attachment parts diagram

Blender jar assembly

Part #W10254145

Replaced by #W11731722

?
Manufacturer substitution
This part replaces W10254145. Substitute parts can look different from the original.
$65.56
In Stock
Seal 9709366
#6

Unit parts diagram

Seal

Part #9709366

Replaced by #WP9709366

?
Manufacturer substitution
This part replaces 9709366. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
