Model # 4019 Official IBM printer

Here are the diagrams and repair parts for Official IBM 4019 printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

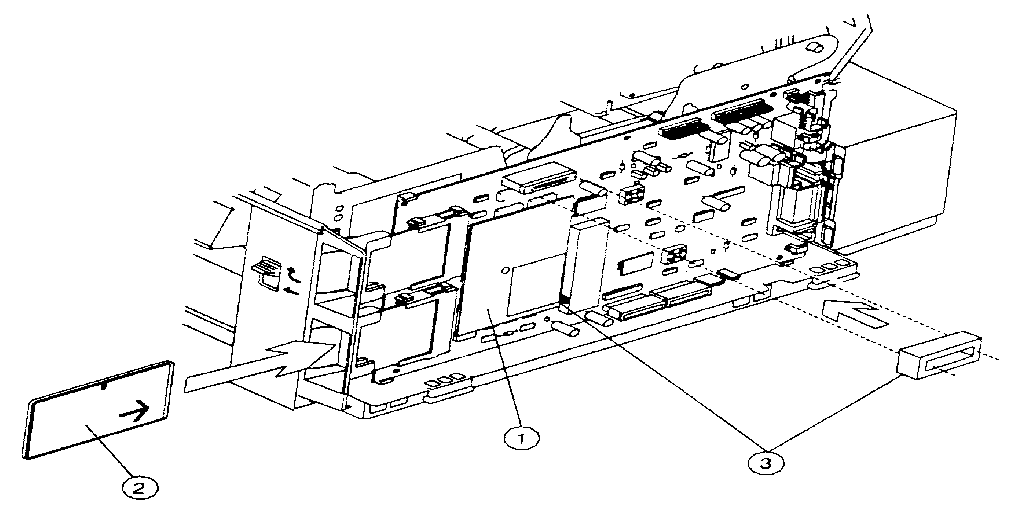

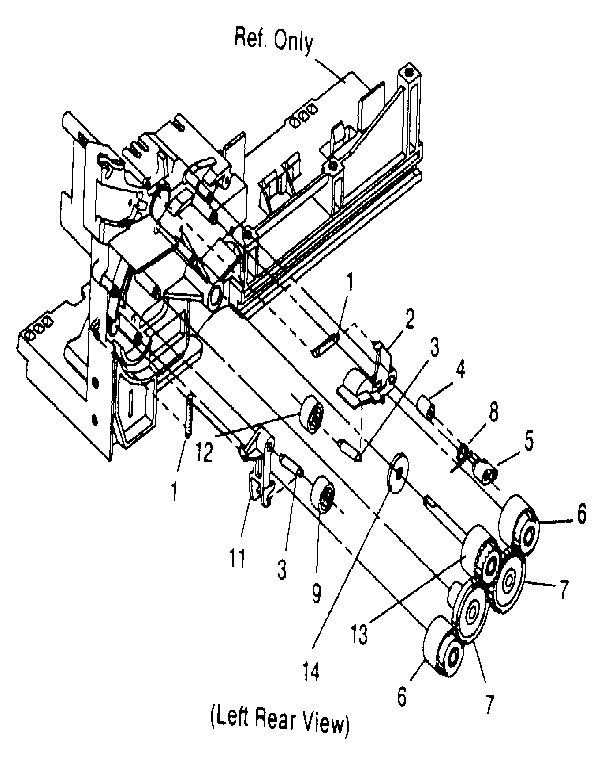

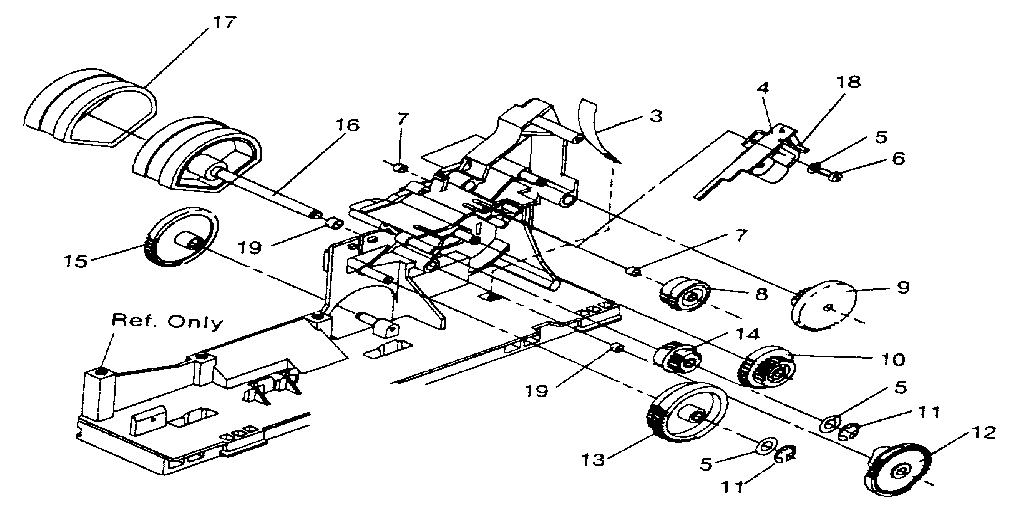

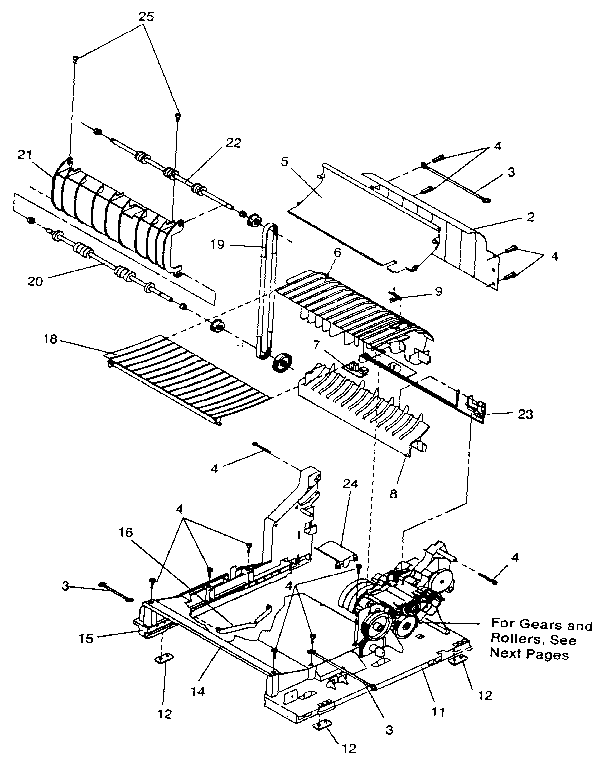

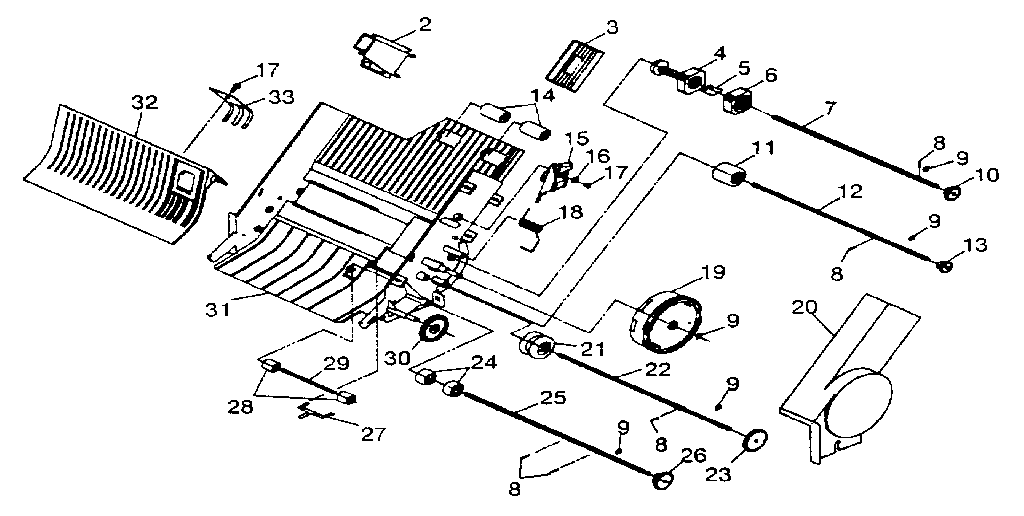

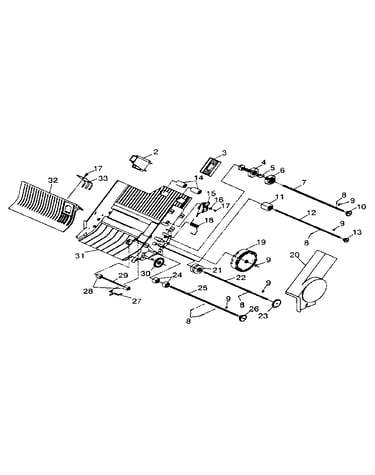

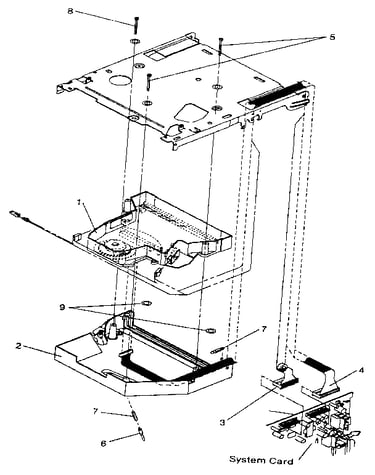

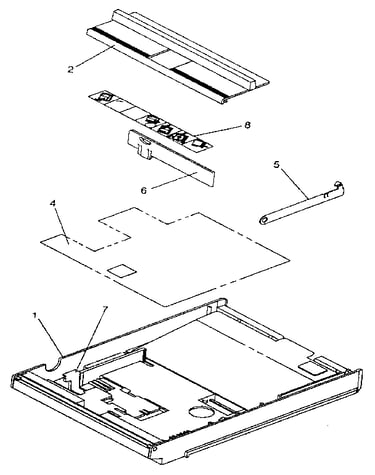

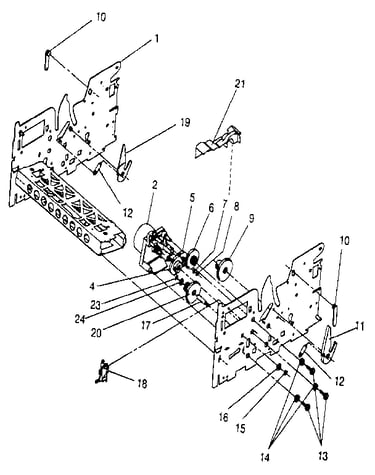

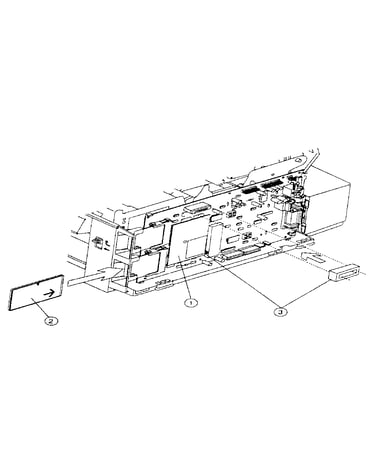

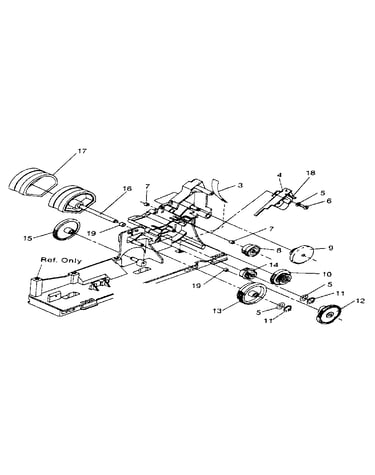

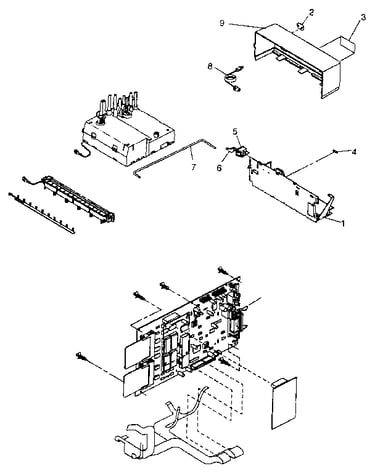

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Fuser Lamp 110 V 1383311
#5

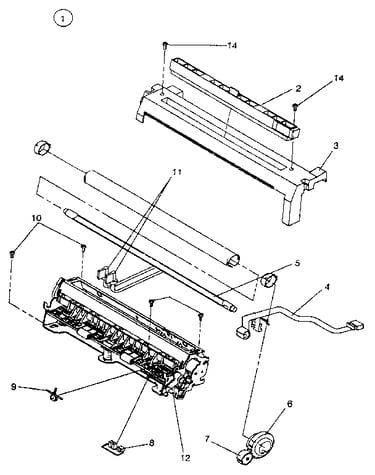

Assembly 11: fuser diagram

Fuser lamp 110 v

Part #1383311

The manufacturer no longer makes this part, and there's no substitute part

Rh Torsion Spring 1039377
#6

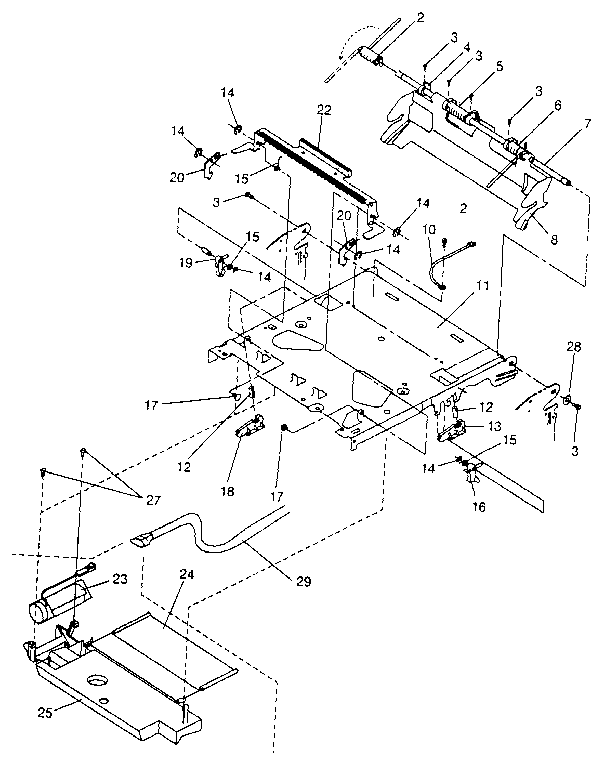

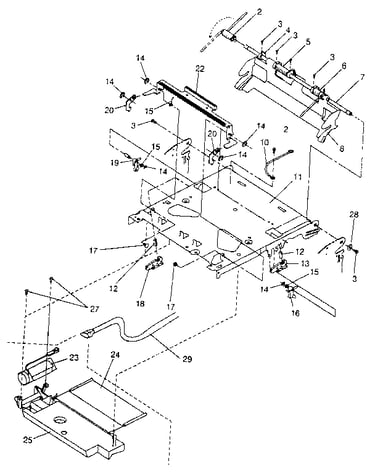

Assembly 4: upper frame diagram

Rh torsion spring

Part #1039377

The manufacturer no longer makes this part, and there's no substitute part

Retainer 1038193
#17

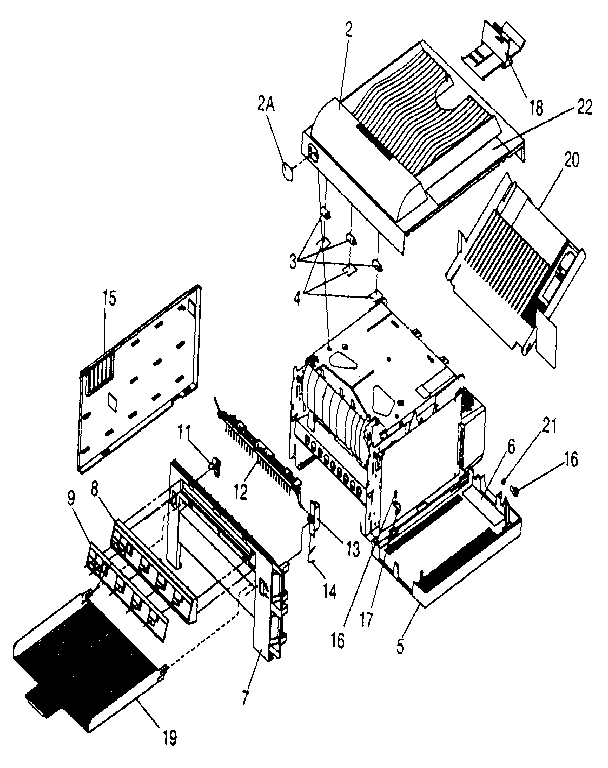

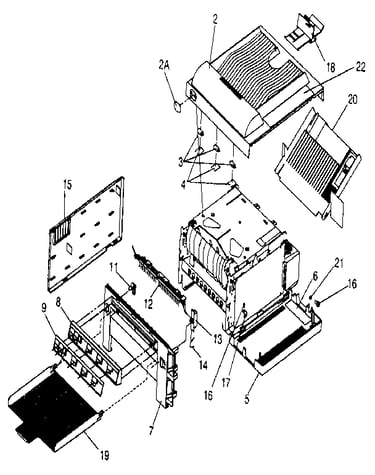

Assembly 1: covers diagram

Retainer

Part #1038193

The manufacturer no longer makes this part, and there's no substitute part

Bottom Cover 14 In. 1039601
#21A

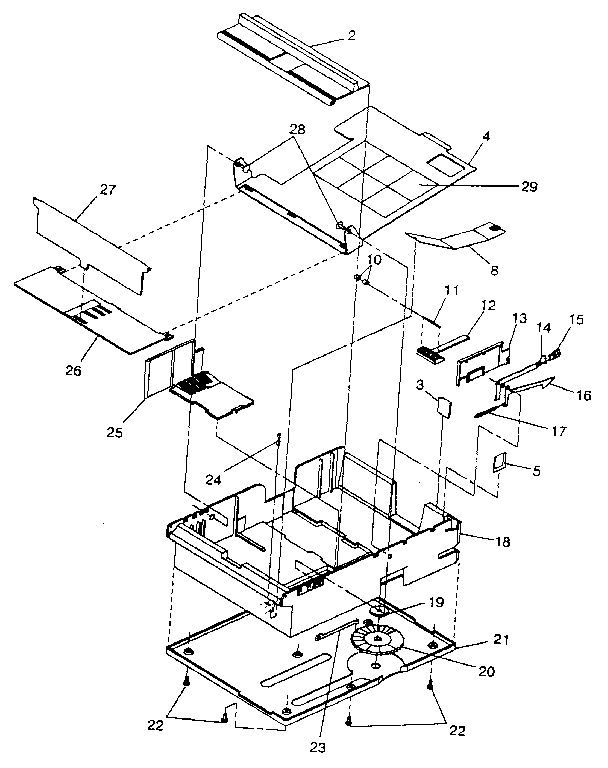

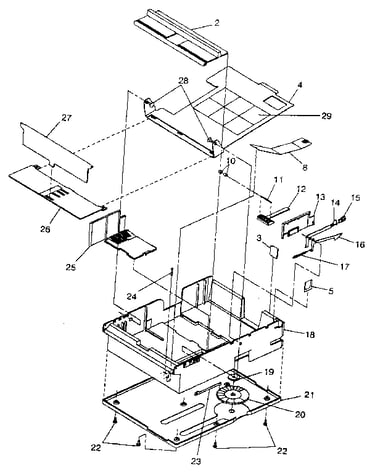

Assembly 9: optional paper module (500-sheet) diagram

Bottom cover 14 in.

Part #1039601

The manufacturer no longer makes this part, and there's no substitute part

Front Logo, 4019 World Trade 1039299
#2C

Assembly 1: covers diagram

Front logo, 4019 world trade

Part #1039299

The manufacturer no longer makes this part, and there's no substitute part

System Cable 1 1039487
#18

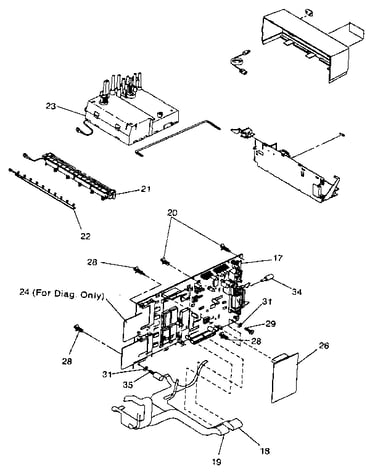

Assembly 13: electronics diagram

System cable 1

Part #1039487

The manufacturer no longer makes this part, and there's no substitute part

Frame Assembly 1058904
#26

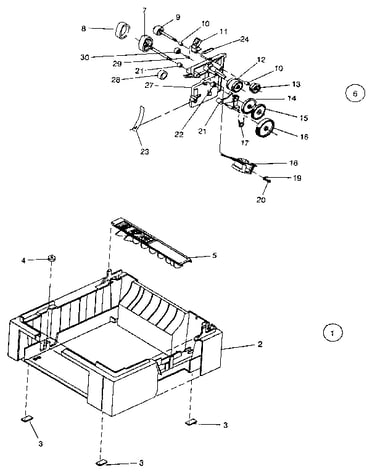

Assembly 10: optional paper drive diagram

Frame assembly

Part #1058904

The manufacturer no longer makes this part, and there's no substitute part

Fuser Cover 1039315
#3

Assembly 11: fuser diagram

Fuser cover

Part #1039315

The manufacturer no longer makes this part, and there's no substitute part

Aux Dr Bellcrank 1383320
Aux dr bellcrank

Part #1383320

The manufacturer no longer makes this part, and there's no substitute part

Clip, Connector 1383314
Clip, connector

Part #1383314

The manufacturer no longer makes this part, and there's no substitute part
