Model # CMT227WC Official Thermador oven

Here are the diagrams and repair parts for Official Thermador CMT227WC oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Bracket 14-34-880-03
#4

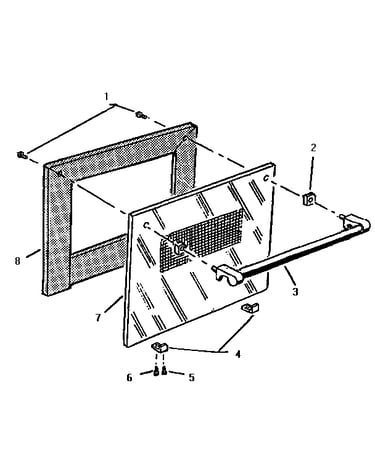

Front cosmetics diagram

Bracket

Part #14-34-880-03

This item is not returnable
In Stock
Deflector 14-39-619
#13

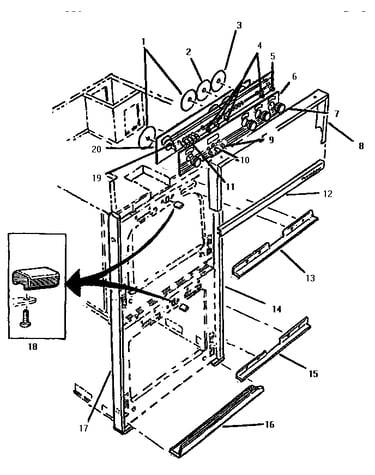

Trim, deflectors & control panel diagram

Deflector

Part #14-39-619

In Stock
Knob 14-32-552
#18

Trim, deflectors & control panel diagram

Knob

Part #14-32-552

In Stock
Clock Pushbutton (2) 14-39-609
#9

Trim, deflectors & control panel diagram

Clock pushbutton (2)

Part #14-39-609

The manufacturer no longer makes this part, and there's no substitute part

Center Trim Screw 14-91-012
#6

Front cosmetics diagram

Center trim screw

Part #14-91-012

The manufacturer no longer makes this part, and there's no substitute part

Panel Glass 14-37-169-06
#6

Trim, deflectors & control panel diagram

Panel glass

Part #14-37-169-06

The manufacturer no longer makes this part, and there's no substitute part

Panel Frame 14-39-299
#8

Trim, deflectors & control panel diagram

Panel frame

Part #14-39-299

The manufacturer no longer makes this part, and there's no substitute part

Front Trim Assembly, Left 14-37-078-02
#17

Trim, deflectors & control panel diagram

Front trim assembly, left

Part #14-37-078-02

The manufacturer no longer makes this part, and there's no substitute part

Deflector 14-39-620
#15

Trim, deflectors & control panel diagram

Deflector

Part #14-39-620

The manufacturer no longer makes this part, and there's no substitute part

Timer Dial 14-39-616
#3

Trim, deflectors & control panel diagram

Timer dial

Part #14-39-616

The manufacturer no longer makes this part, and there's no substitute part
