Model # AJEH12DCAM1 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AJEH12DCAM1 zoneline air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Room Air Conditioner Heater High-limit Thermostat WP28X10005
#1232

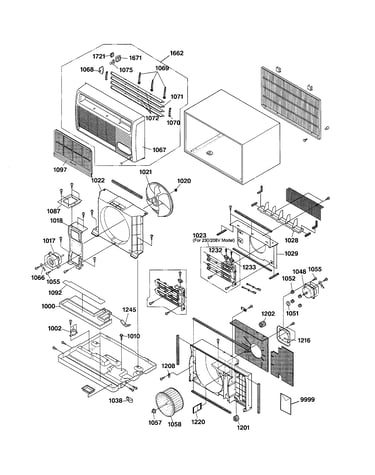

Cabinet components diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10005

$35.76 |
14% OFF Phone Price : $41.76
In Stock
Room Air Conditioner Fan Blade Nut WJ01X10041
#1020

Cabinet components diagram

Room air conditioner fan blade nut

Part #WJ01X10041

This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
J-line Contr 49-7397
#9999

Cabinet components diagram

J-line contr

Part #49-7397

$8.49
In Stock
Room Air Conditioner Heater High-limit Thermostat WP28X10007
#1233

Cabinet components diagram

Room air conditioner heater high-limit thermostat

Part #WP28X10007

Replaced by #WP28X10013

?
Manufacturer substitution
This part replaces WP28X10007. Substitute parts can look different from the original.
$52.16 |
10% OFF Phone Price : $58.16
In Stock
Power Supply WJ35X10004
#1042

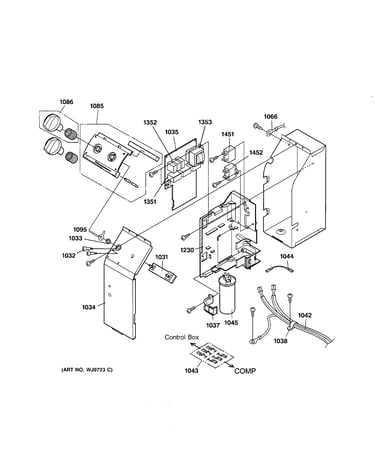

Control parts diagram

Power supply

Part #WJ35X10004

Replaced by #WJ35X10142

?
Manufacturer substitution
This part replaces WJ35X10004. Substitute parts can look different from the original.
$124.48 |
9% OFF Phone Price : $136.48
In Stock
Drain Tray S WJ70X10024
#1245

Cabinet components diagram

Drain tray s

Part #WJ70X10024

The manufacturer no longer makes this part, and there's no substitute part

Thermistor WP27X10021
#1046

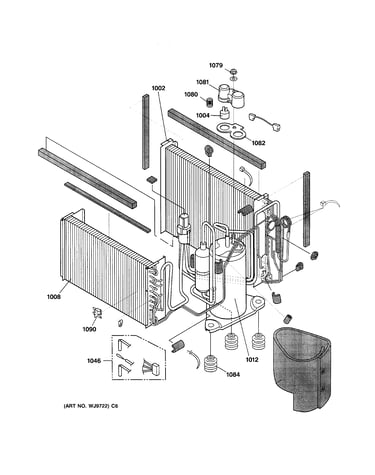

Sealed system components diagram

Thermistor

Part #WP27X10021

The manufacturer no longer makes this part, and there's no substitute part

Motor Angle WJ65X10035
#1216

Cabinet components diagram

Motor angle

Part #WJ65X10035

The manufacturer no longer makes this part, and there's no substitute part

Heater Assembly WJ70X10020
#1023

Cabinet components diagram

Heater assembly

Part #WJ70X10020

The manufacturer no longer makes this part, and there's no substitute part
