Model # E48WV12EPS Official Electrolux range hood

Here are the diagrams and repair parts for Official Electrolux E48WV12EPS range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

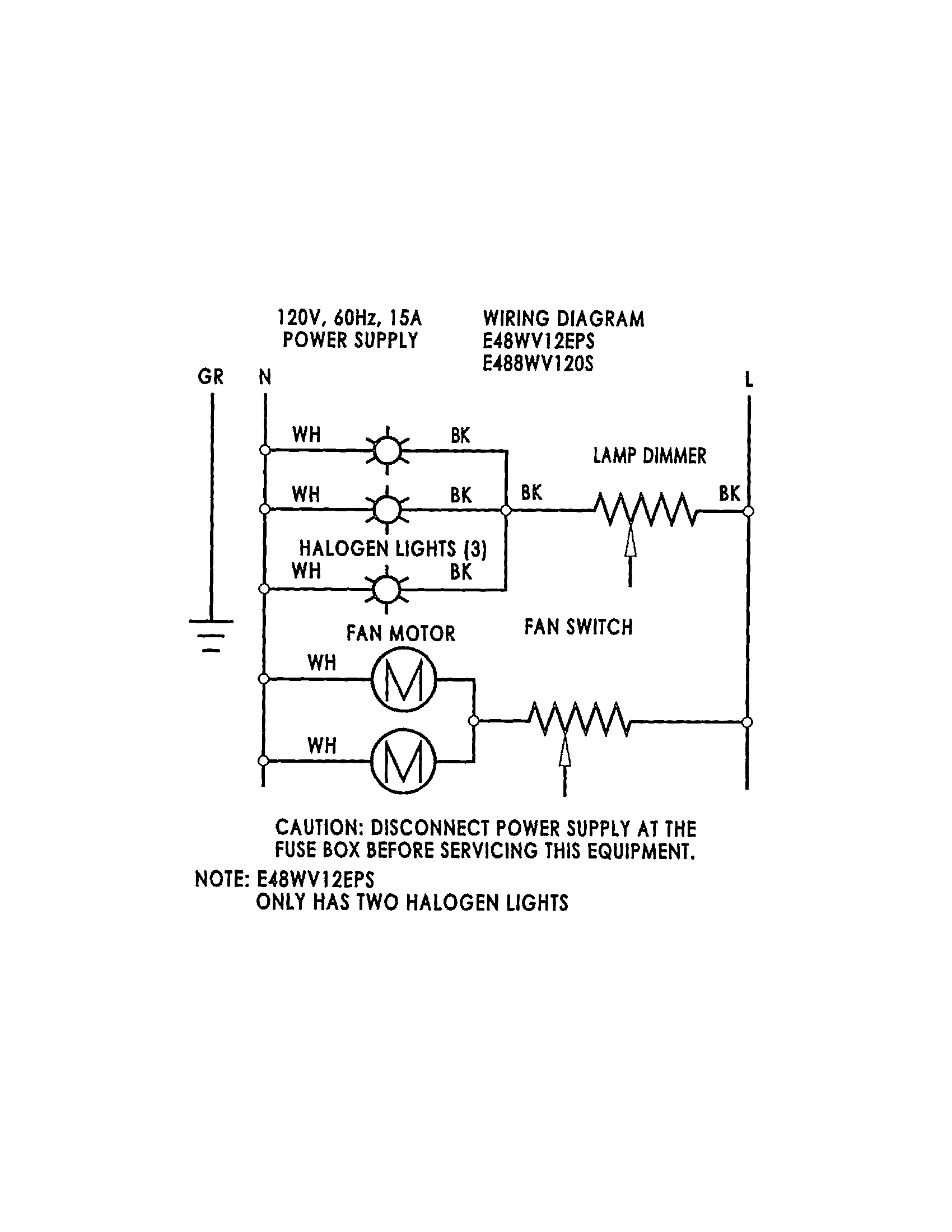

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Range Hood Light Switch 5304452425
#12

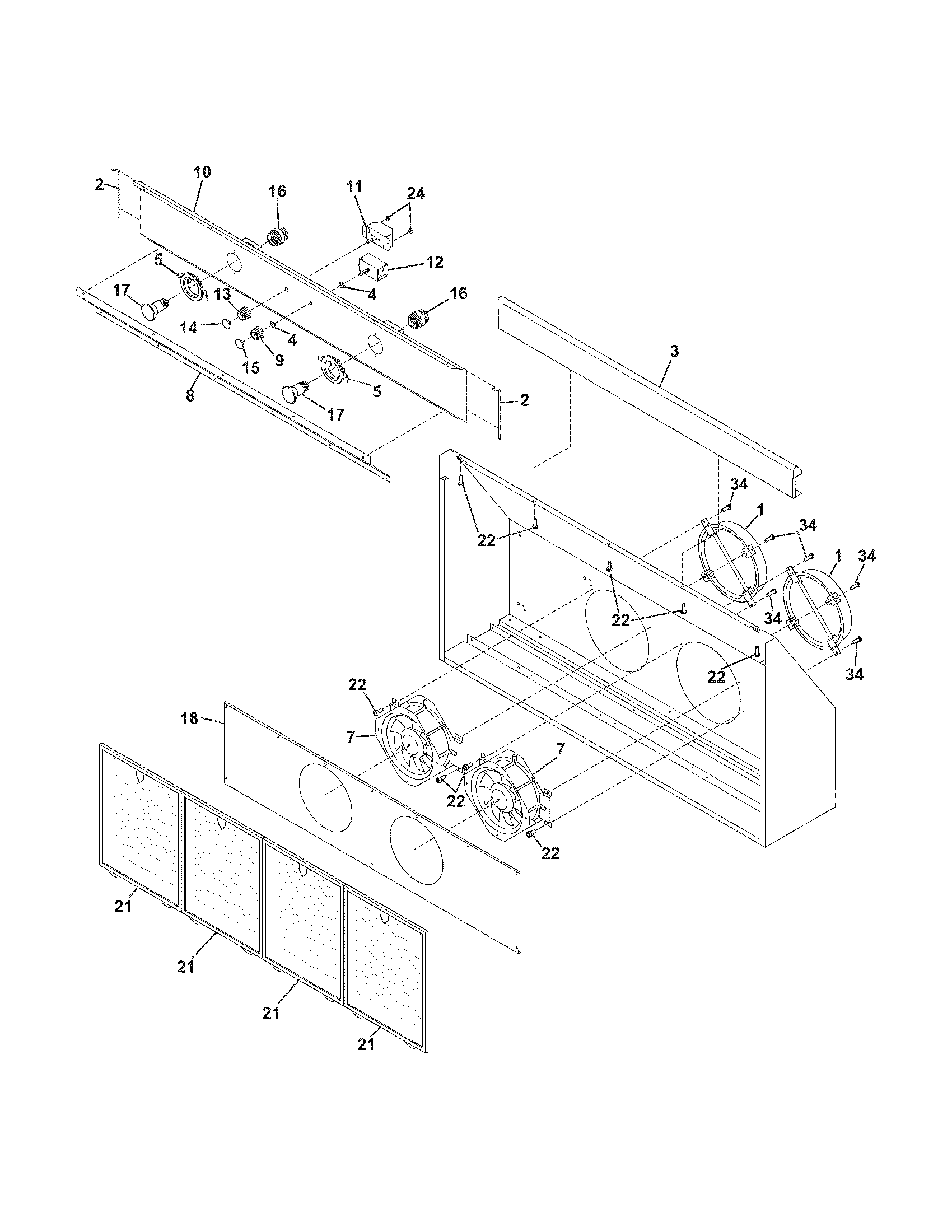

Replacement parts diagram

Range hood light switch

Part #5304452425

$346.78
In Stock
Trim 5304453500
#2

Replacement parts diagram

Trim

Part #5304453500

The manufacturer no longer makes this part, and there's no substitute part
