Countertop Microwave

Model # 72162002200 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72162002200 microwave, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
72162002200 Microwaves
Microwave High-voltage Diode 6021W3B001N
#5013

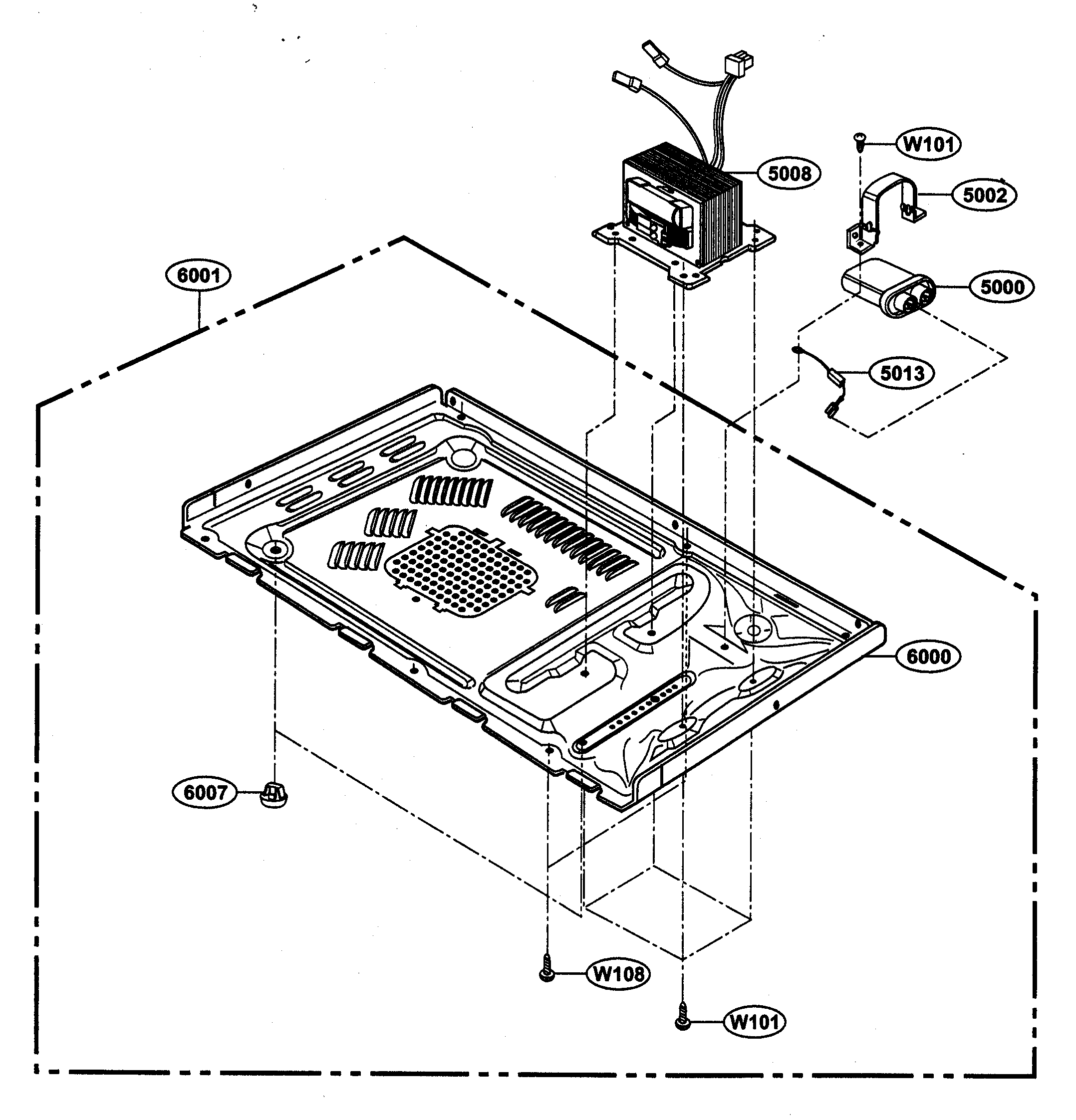

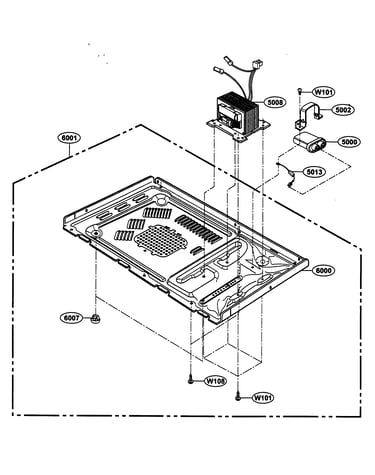

Base plate diagram

Microwave high-voltage diode

Part #6021W3B001N

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001N. Substitute parts can look different from the original.
BEST SELLER
$10.84
16% OFF Phone Price : $12.84
In Stock
Microwave Door Interlock Switch 6600W1K003D
#4002

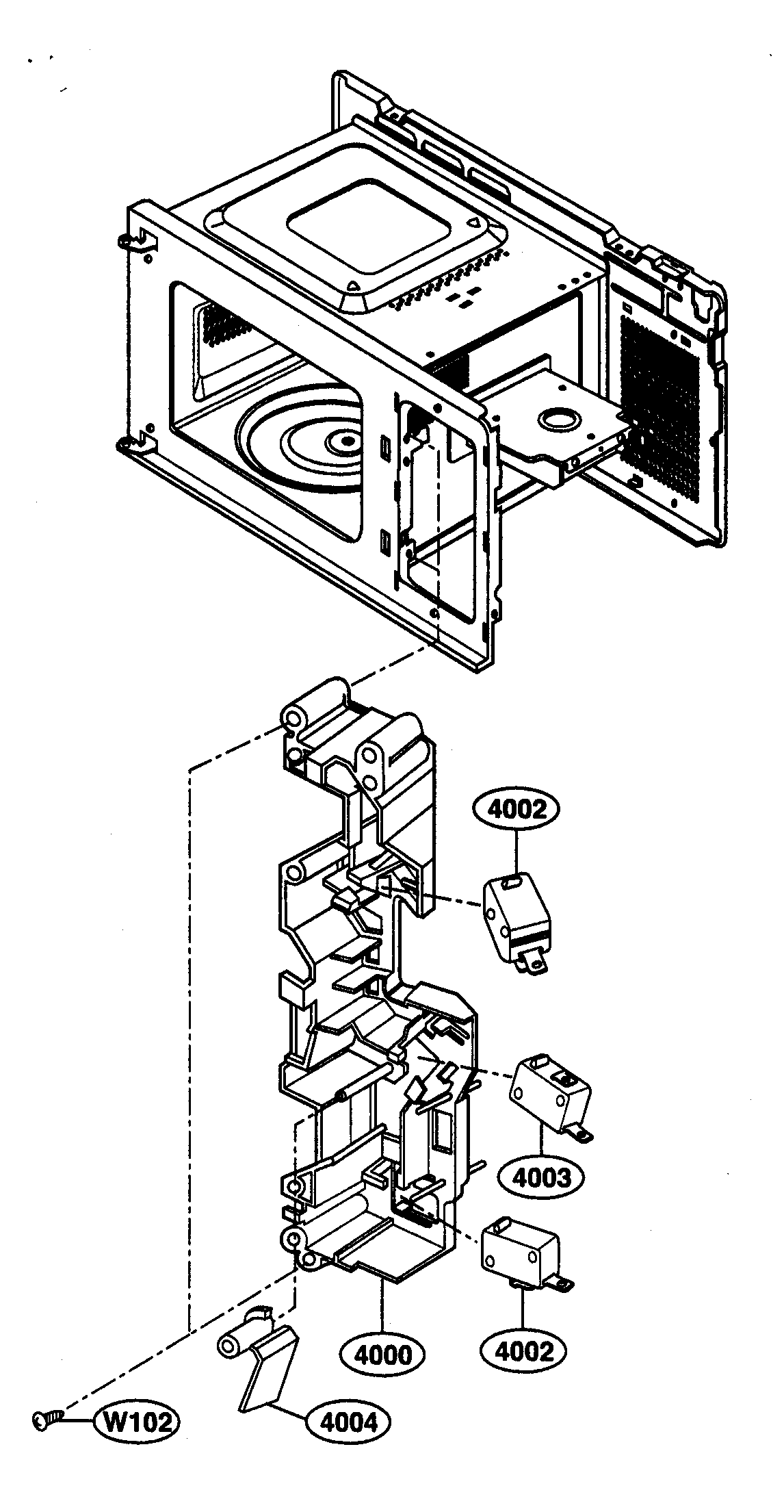

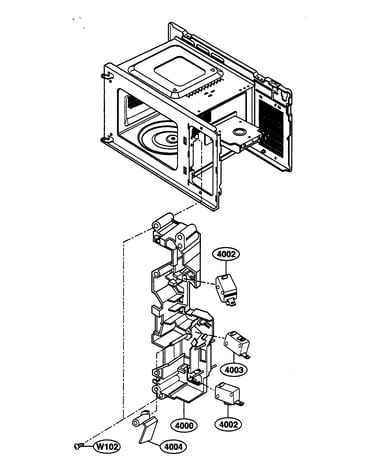

Suction guide diagram

Microwave door interlock switch

Part #6600W1K003D

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K003D. Substitute parts can look different from the original.
BEST SELLER
$12.76
14% OFF Phone Price : $14.76
In Stock
Microwave Turntable Motor (replaces 6549w1s011c, 6549w1s017a) 6549W1S011B
#3009

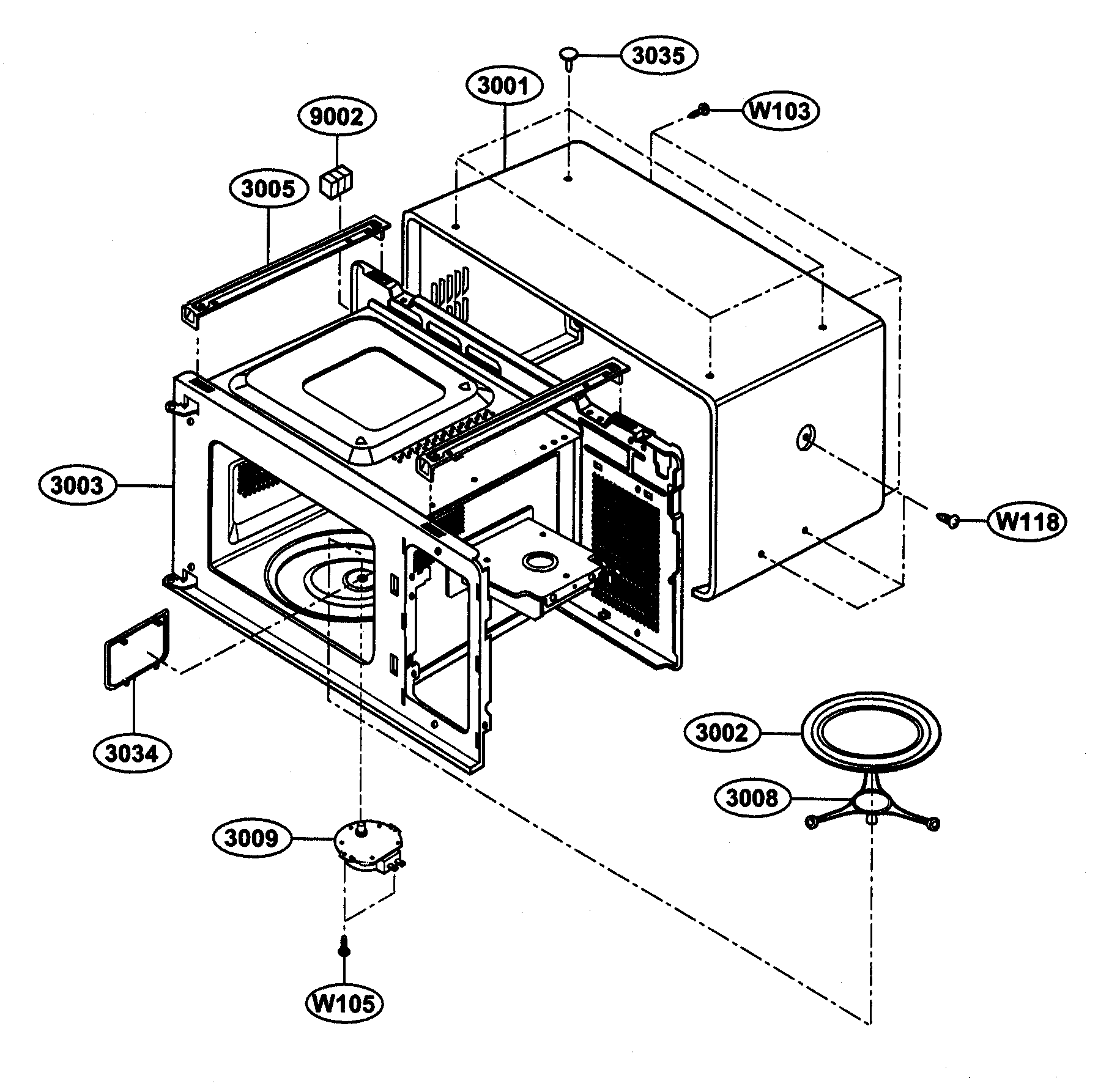

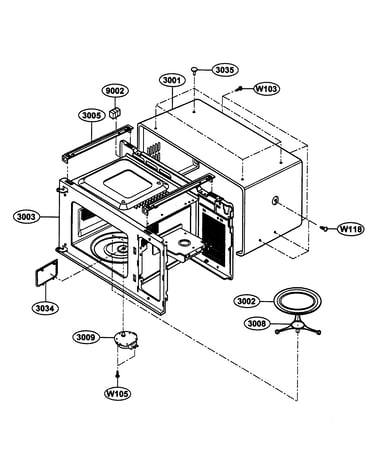

Oven cavity diagram

Microwave turntable motor (replaces 6549w1s011c, 6549w1s017a)

Part #6549W1S011B

BEST SELLER
This item is not returnable
$26.33
19% OFF Phone Price : $32.33
In Stock
Microwave Waveguide Cover (replaces 3052wra002a) 3052W1A002A
#3034

Oven cavity diagram

Microwave waveguide cover (replaces 3052wra002a)

Part #3052W1A002A

This item is not returnable
$8.00
11% OFF Phone Price : $9.00
In Stock
Us Pressed Steel Microwave Screw 1TTG0402422
#W118

Oven cavity diagram

Us pressed steel microwave screw

Part #1TTG0402422

This item is not returnable
$8.00
11% OFF Phone Price : $9.00
In Stock
Microwave Screw 1SBF0402418
#W101

Base plate diagram

Microwave screw

Part #1SBF0402418

This item is not returnable
$8.00
11% OFF Phone Price : $9.00
In Stock
Screw 1TTL0402418
#W108

Oven cavity diagram

Screw

Part #1TTL0402418

Replaced by #1TTG0402422

?
Manufacturer substitution
This part replaces 1TTL0402418. Substitute parts can look different from the original.
This item is not returnable
$8.00
11% OFF Phone Price : $9.00
In Stock
Microwave Thermostat (replaces 6930wrt002f) 6930W1A003A
#5016

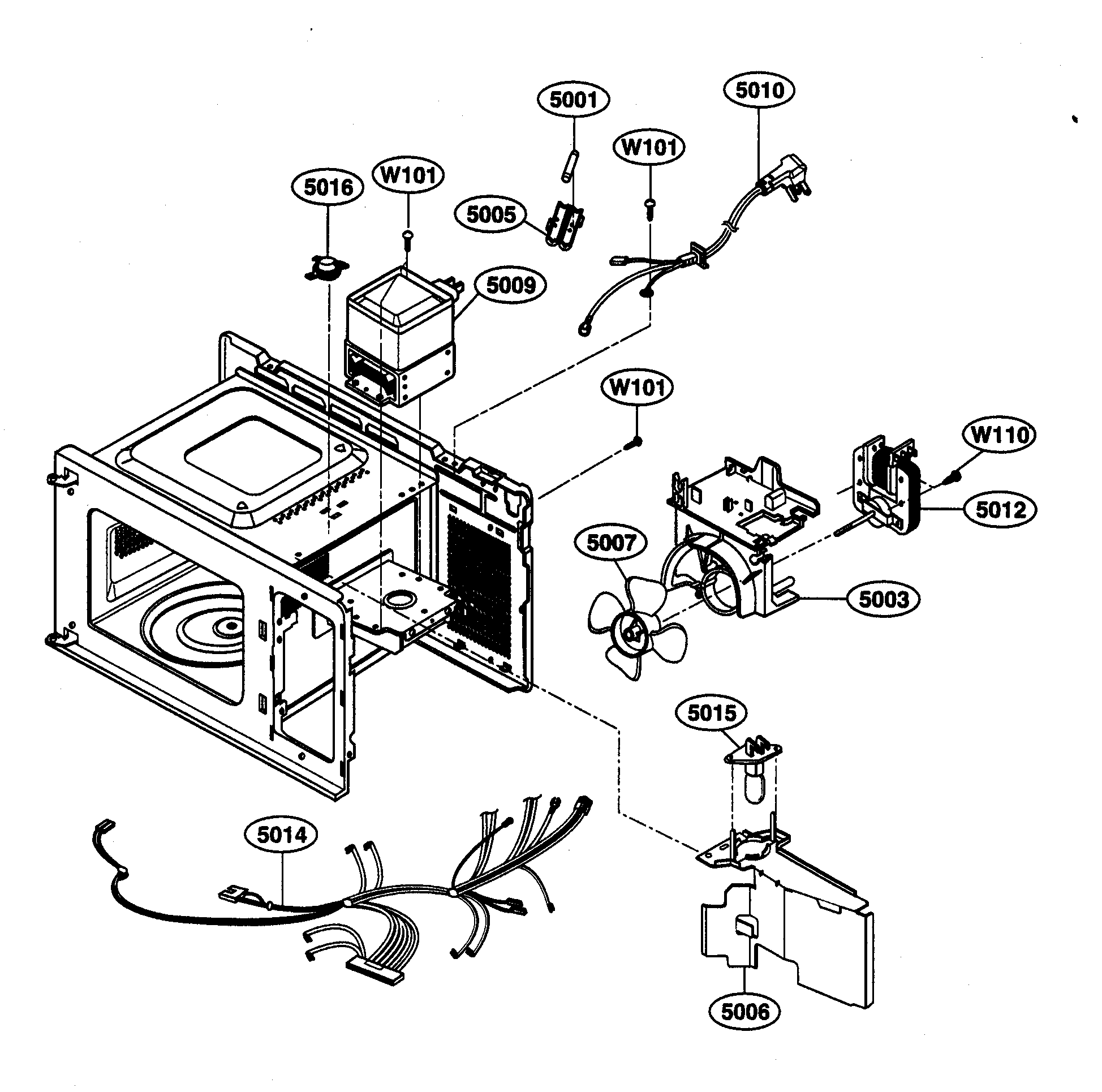

Oven interior diagram

Microwave thermostat (replaces 6930wrt002f)

Part #6930W1A003A

This item is not returnable
$12.76
14% OFF Phone Price : $14.76
In Stock
Magnetron 6324W1A004B
#5009

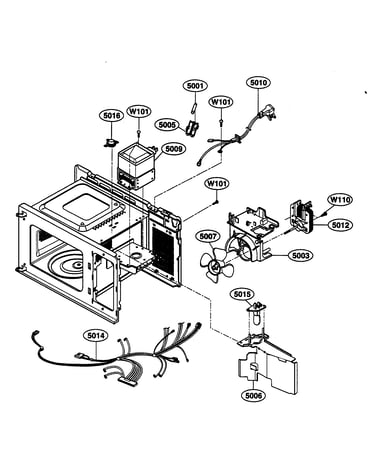

Oven interior diagram

Magnetron

Part #6324W1A004B

In Stock
Microwave Light Bulb 6912W3B002K
#5015

Oven interior diagram

Microwave light bulb

Part #6912W3B002K

This item is not returnable
$12.76
14% OFF Phone Price : $14.76
In Stock
