Model # ASL06LAM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE ASL06LAM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Installation 30-7761

#LITR

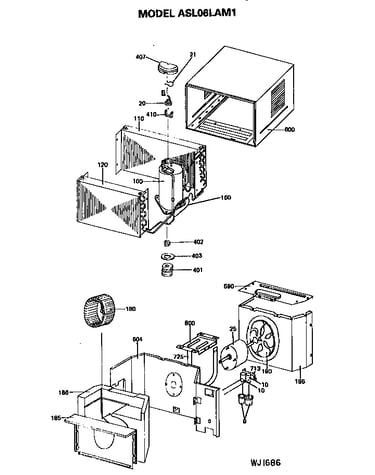

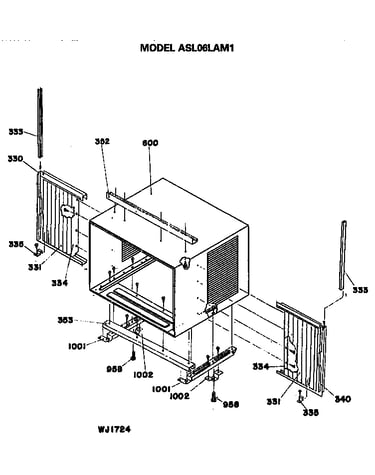

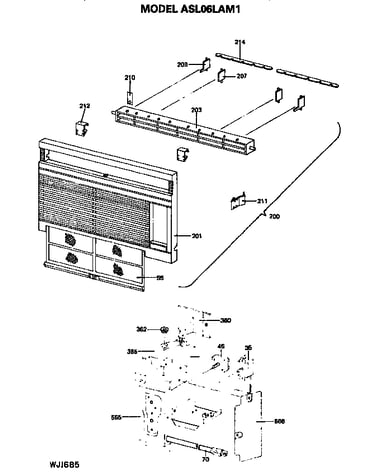

All parts diagram

Installation

Part #30-7761

The manufacturer no longer makes this part, and there's no substitute part

Condenser Cover WJ79X518

#590

All parts diagram

Condenser cover

Part #WJ79X518

The manufacturer no longer makes this part, and there's no substitute part

Clamp Closure Curtain WJ2X538

#335

All parts diagram

Clamp closure curtain

Part #WJ2X538

The manufacturer no longer makes this part, and there's no substitute part

Grommet Compressor Mount WJ1X868

#401

All parts diagram

Grommet compressor mount

Part #WJ1X868

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Assembly WJ90X176

#600

All parts diagram

Cabinet assembly

Part #WJ90X176

The manufacturer no longer makes this part, and there's no substitute part

Control Cover Plate WJ79X522

#566

All parts diagram

Control cover plate

Part #WJ79X522

The manufacturer no longer makes this part, and there's no substitute part

Capacitor WJ20X666

#10

All parts diagram

Capacitor

Part #WJ20X666

The manufacturer no longer makes this part, and there's no substitute part

Capicitor Cover WJ79X520

#9

All parts diagram

Capicitor cover

Part #WJ79X520

The manufacturer no longer makes this part, and there's no substitute part

Brace WJ66X475

#800

All parts diagram

Brace

Part #WJ66X475

The manufacturer no longer makes this part, and there's no substitute part

Compressor Overload WJ23X312

#20

All parts diagram

Compressor overload

Part #WJ23X312

The manufacturer no longer makes this part, and there's no substitute part
