Model # JB860EJ3ES Official GE electric range

Name: Official GE JB860EJ3ES electric range Parts
Brand: GE
SKU: JB860EJ3ES
Availability: InStock

Here are the diagrams and repair parts for Official GE JB860EJ3ES electric range, as well as links to manuals and error code tables, if available.

Installation guide

Owner’s manual

Error Codes

By Schematic

By Part

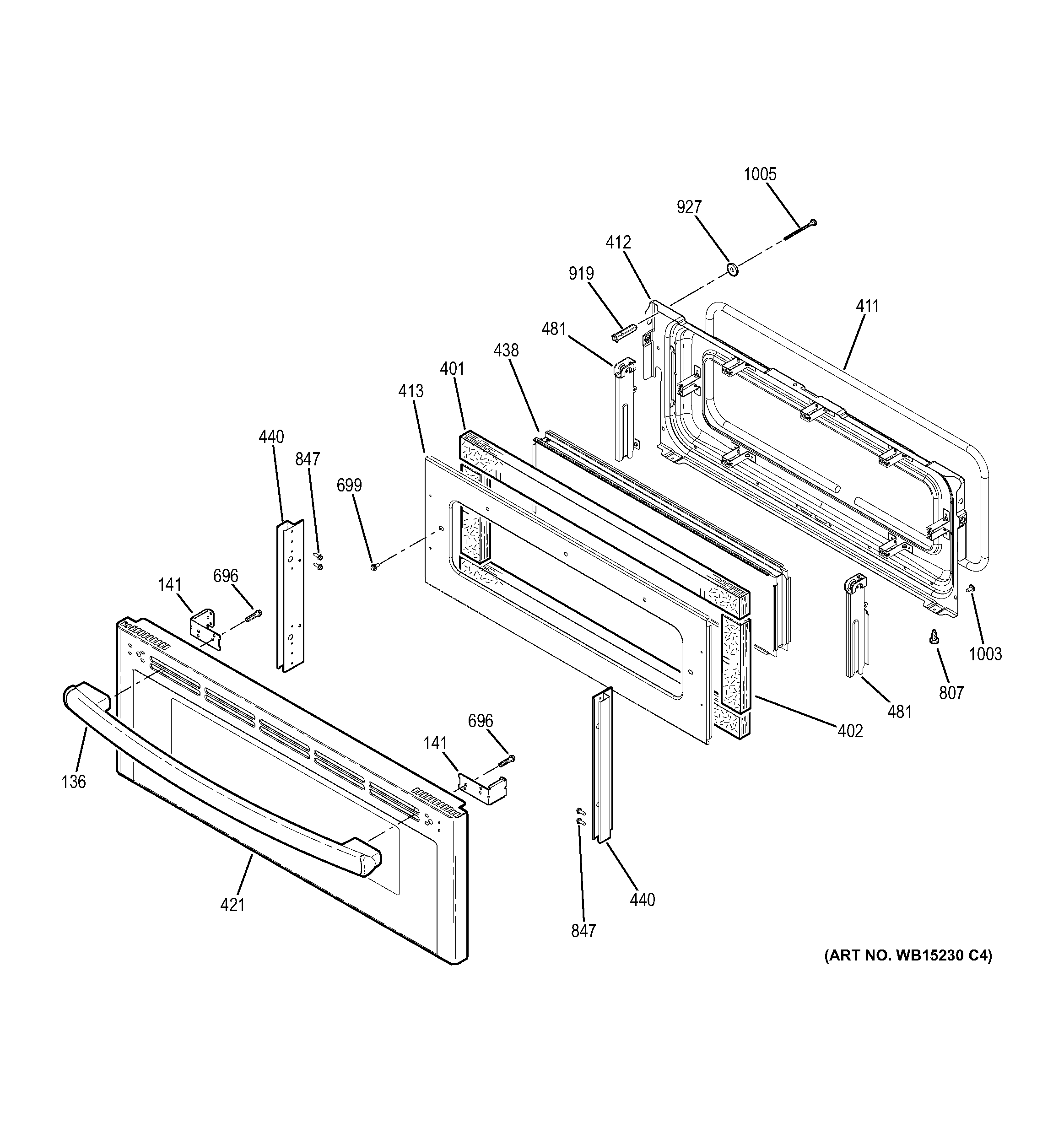

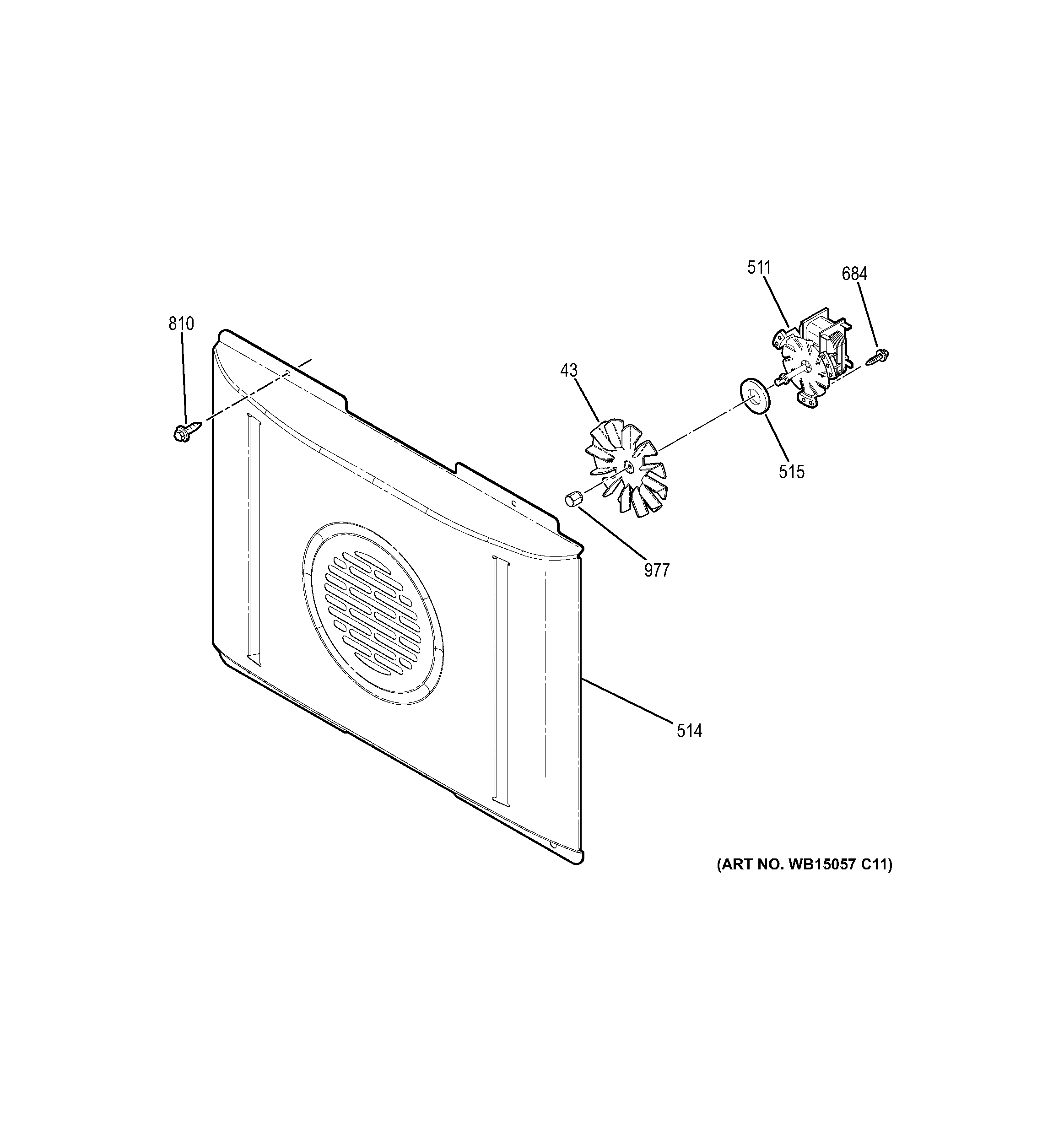

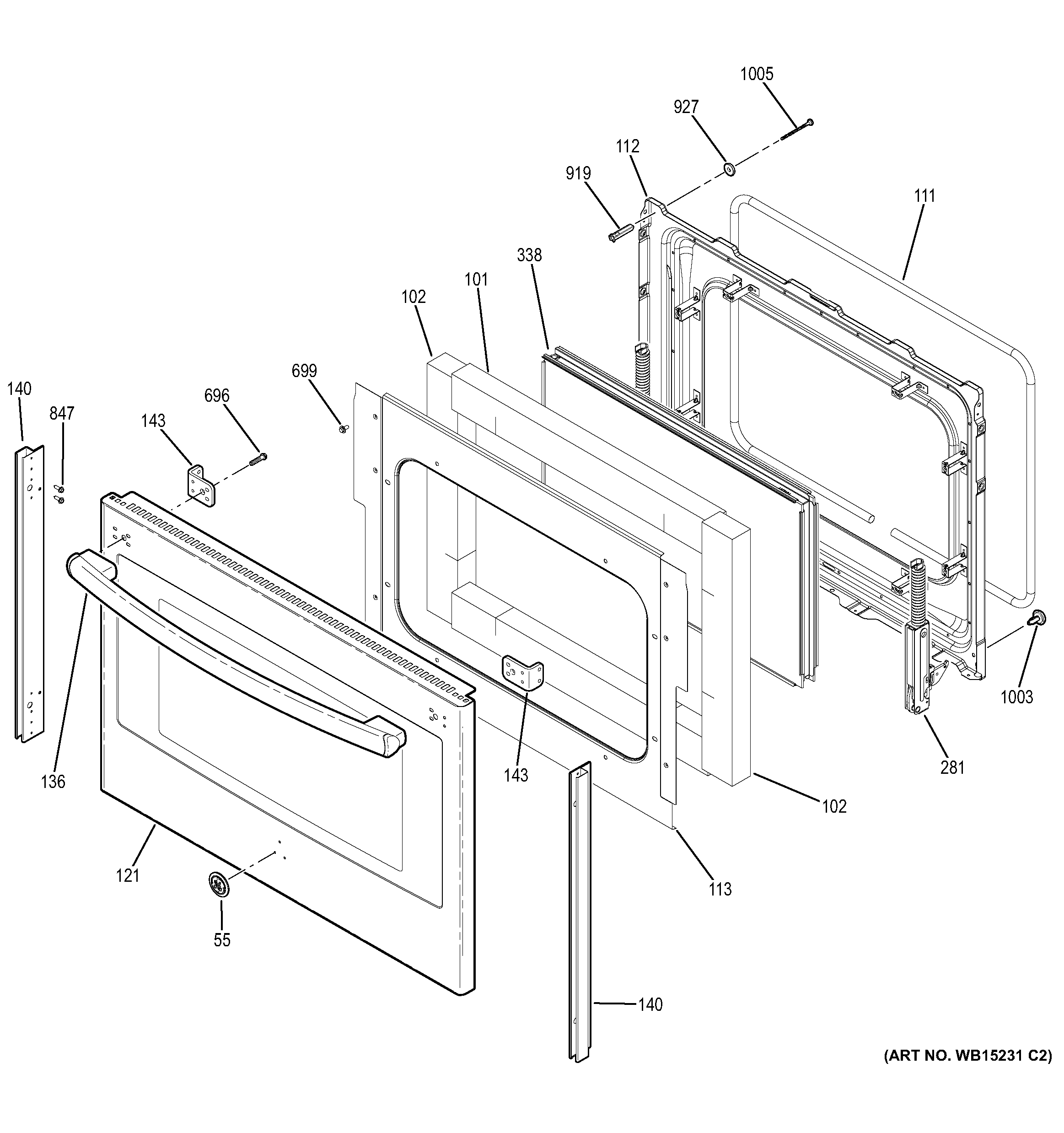

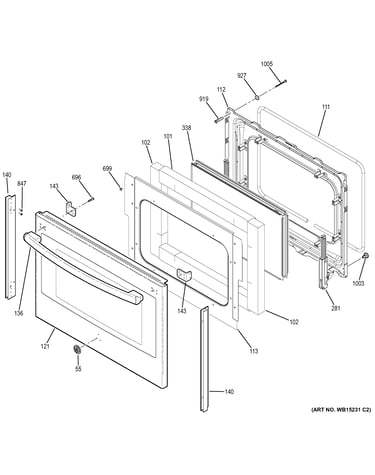

SELECT DIAGRAM

Browse Parts forJB860EJ3ES Ranges

#19

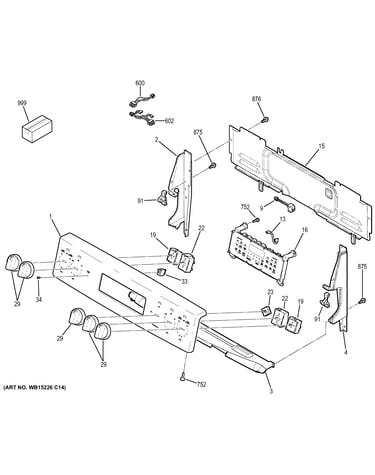

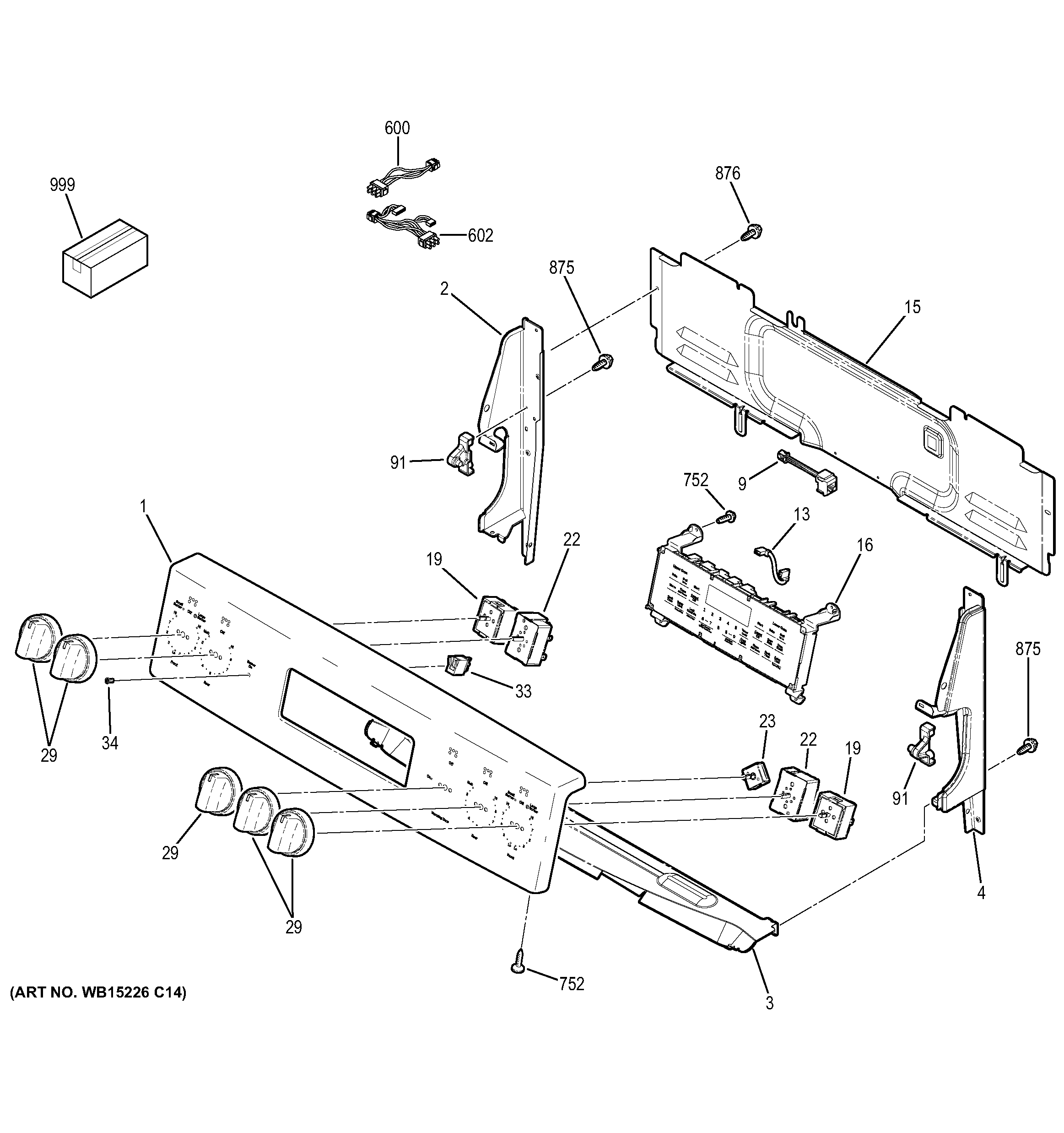

Control panel diagram
G.e. range surface element control switch
Part #WB24X25013
5 (1)
$38.21 |
14% OFF Phone Price : $44.21
In Stock
Qty
#257

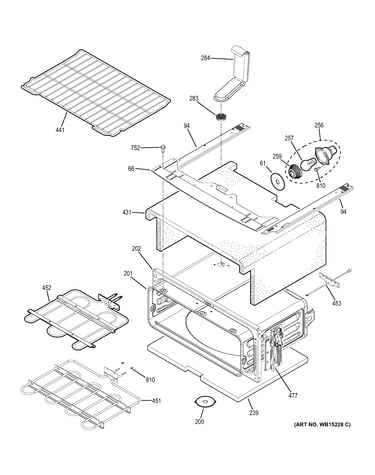

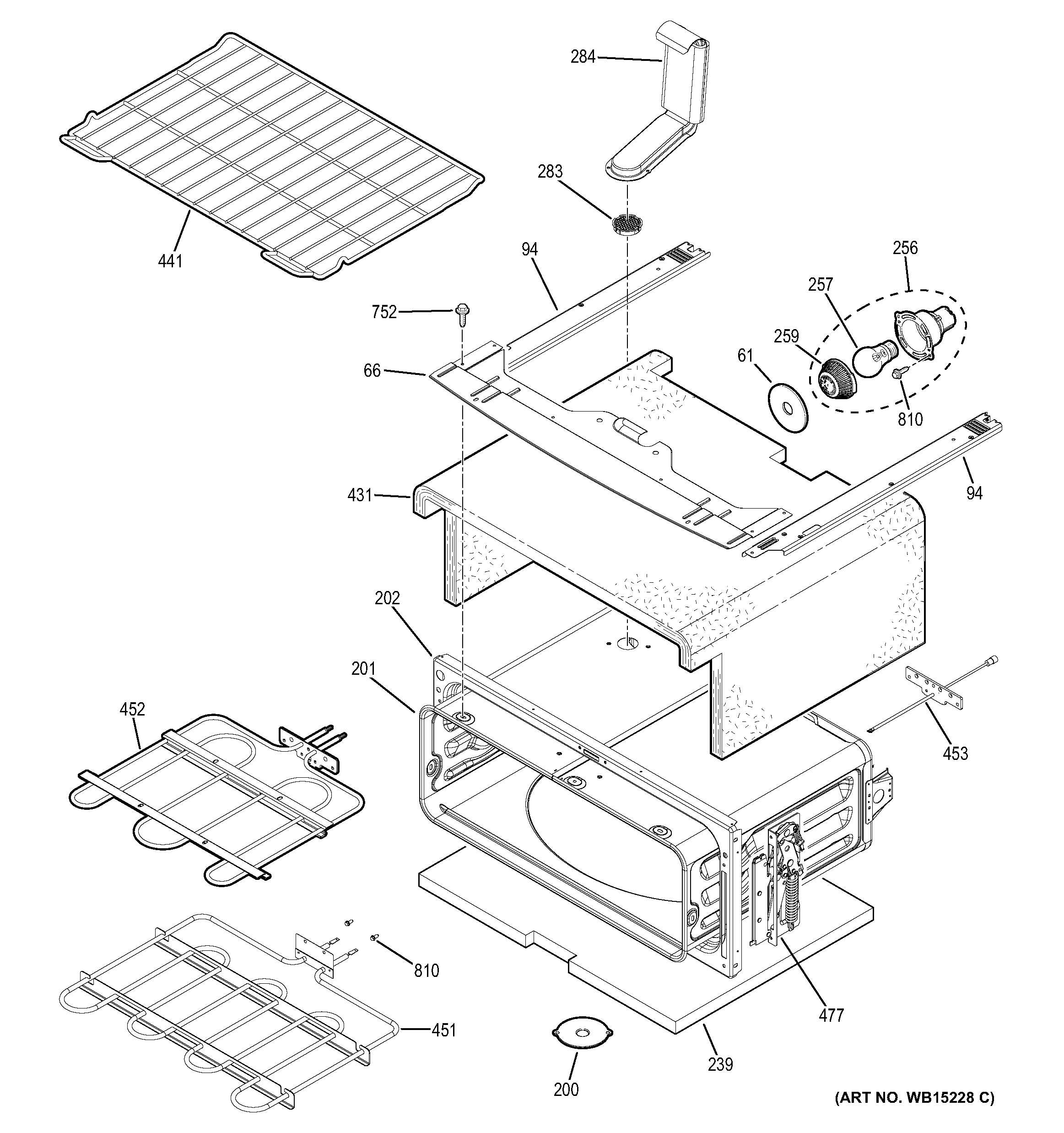

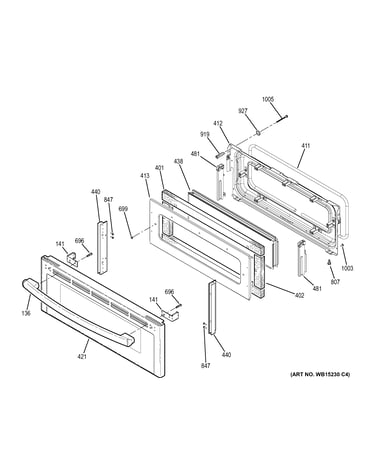

Upper oven diagram
Oven lamp
Part #WB08T10022
Replaced by #40A15
?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
1.72 (18)
$14.62 |
12% OFF Phone Price : $16.62
In Stock
Qty
#57

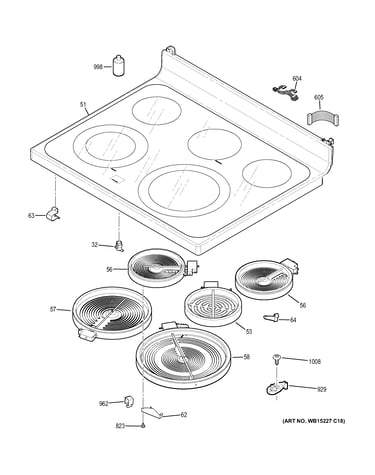

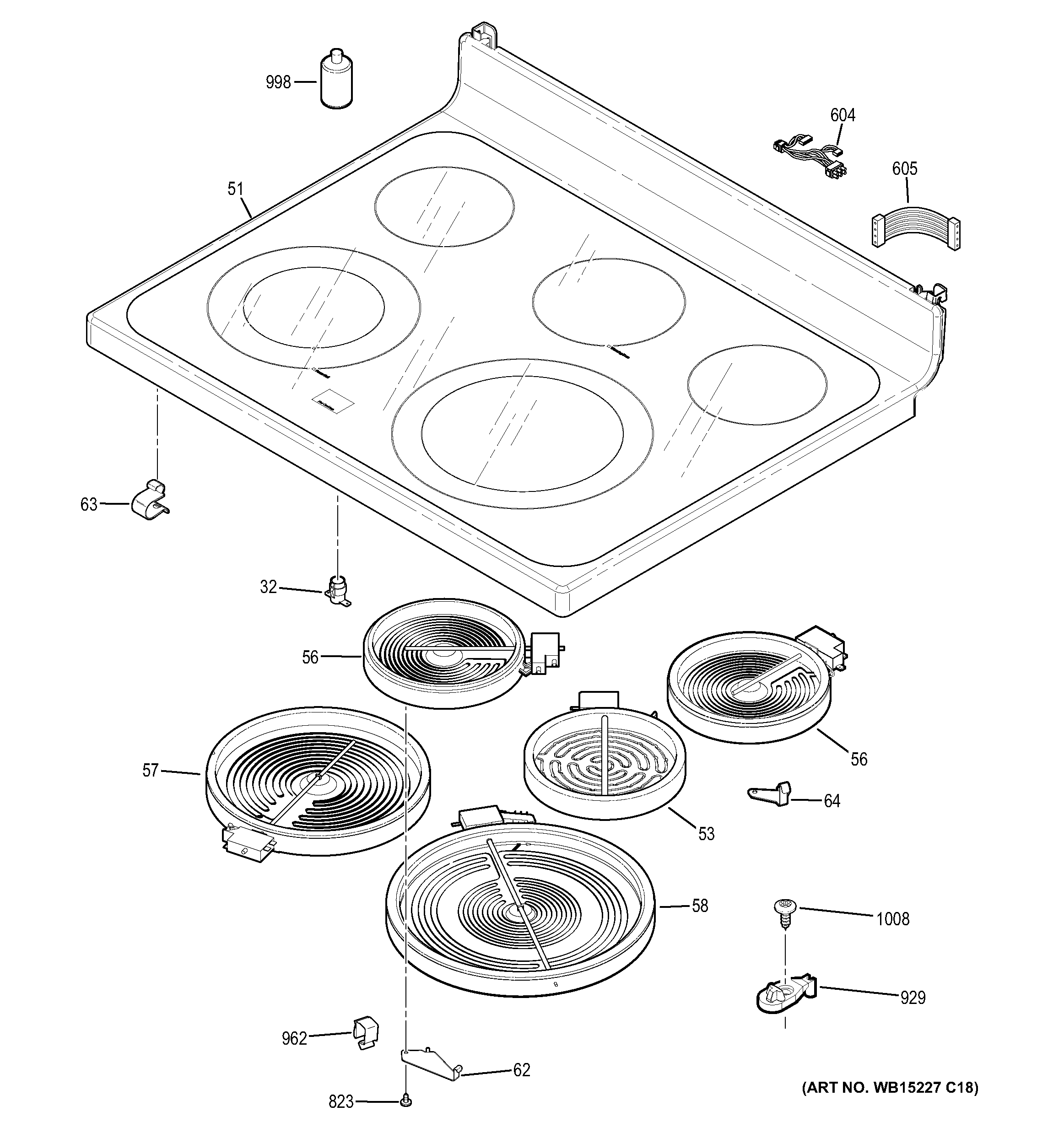

Cooktop diagram
G.e. range dual radiant surface element, 6 to 9-in
Part #WB30X24111
4.8 (5)
$99.03 |
11% OFF Phone Price : $111.03
In Stock
Qty
#253

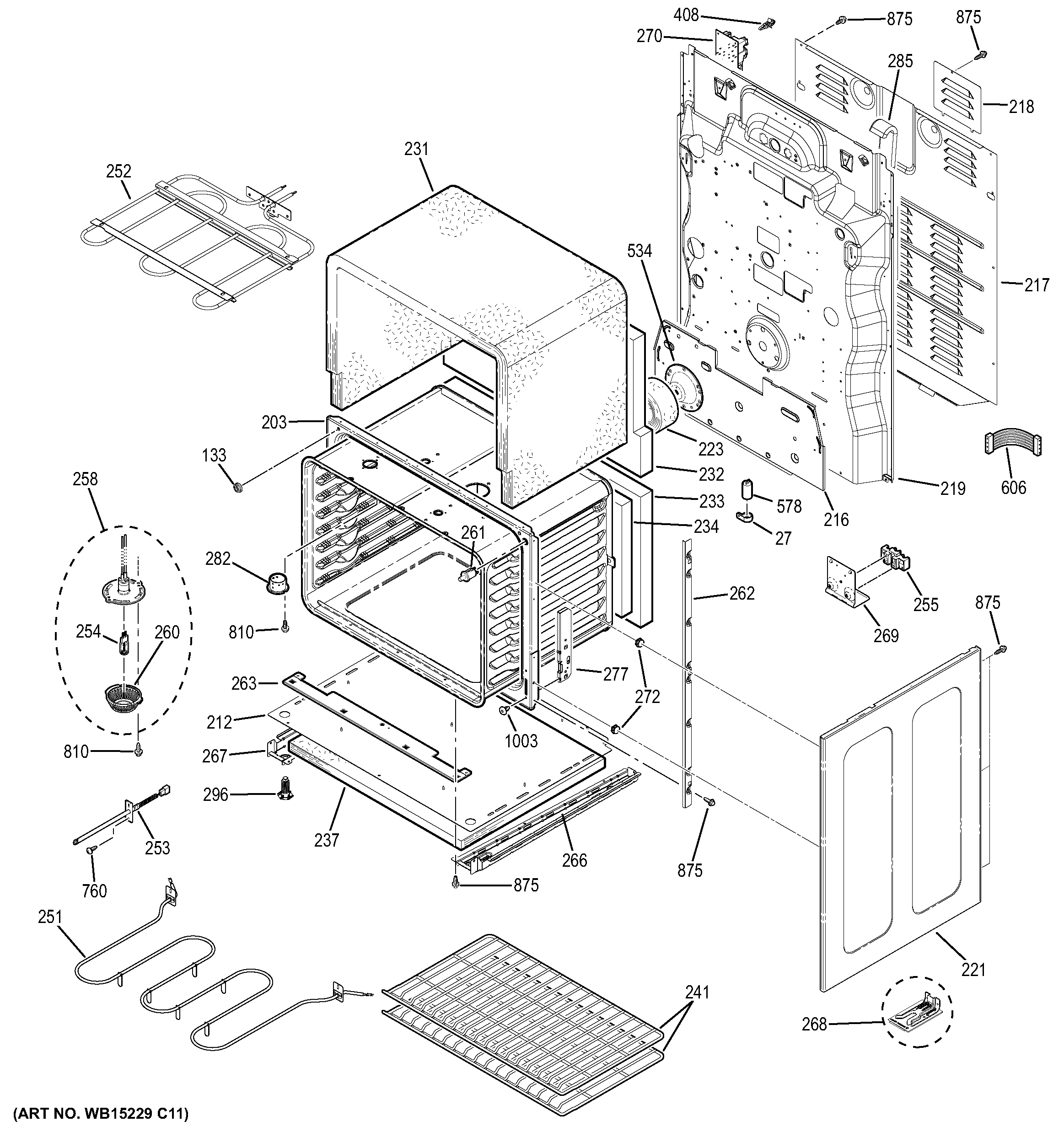

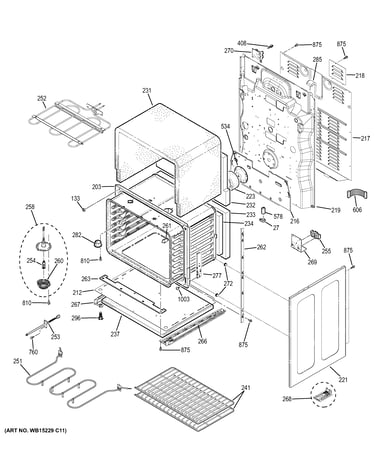

Lower oven diagram
Kenmore range oven temperature sensor
Part #WB21X22134
4 (3)
$20.61 |
23% OFF Phone Price : $26.61
In Stock
Qty
#22
Control panel diagram
Range surface element control switch, 1,500-watt
Part #WB24T10029
5 (2)
$41.73 |
13% OFF Phone Price : $47.73
In Stock
Qty
#56
Cooktop diagram
Range radiant surface element, 5-1/2-in
Part #WB30T10145
5 (4)
$93.37 |
6% OFF Phone Price : $99.37
In Stock
Qty
#255
Lower oven diagram
Range terminal block
Part #WB17T10011
5 (1)
$54.72 |
10% OFF Phone Price : $60.72
In Stock
Qty
#270
Lower oven diagram
Wall oven relay control board
Part #WB27X25594
This item is not returnable
$93.15 |
6% OFF Phone Price : $99.15
In Stock
Qty
Cooking appliance screw, #10-32
Part #WB01T10008
This item is not returnable
$9.89 |
9% OFF Phone Price : $10.89
In Stock
Qty
#16
Control panel diagram
Control
Part #WB27X27125
Replaced by #WB27X33137
?
Manufacturer substitution
This part replaces WB27X27125. Substitute parts can look different from the original.
$287.88 |
$12.00 OFF Phone Price : $299.88
In Stock
Qty
