Model # 11-0174 Official DP weight bench

Here are the diagrams and repair parts for Official DP 11-0174 weight bench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Cap 02020600
#18

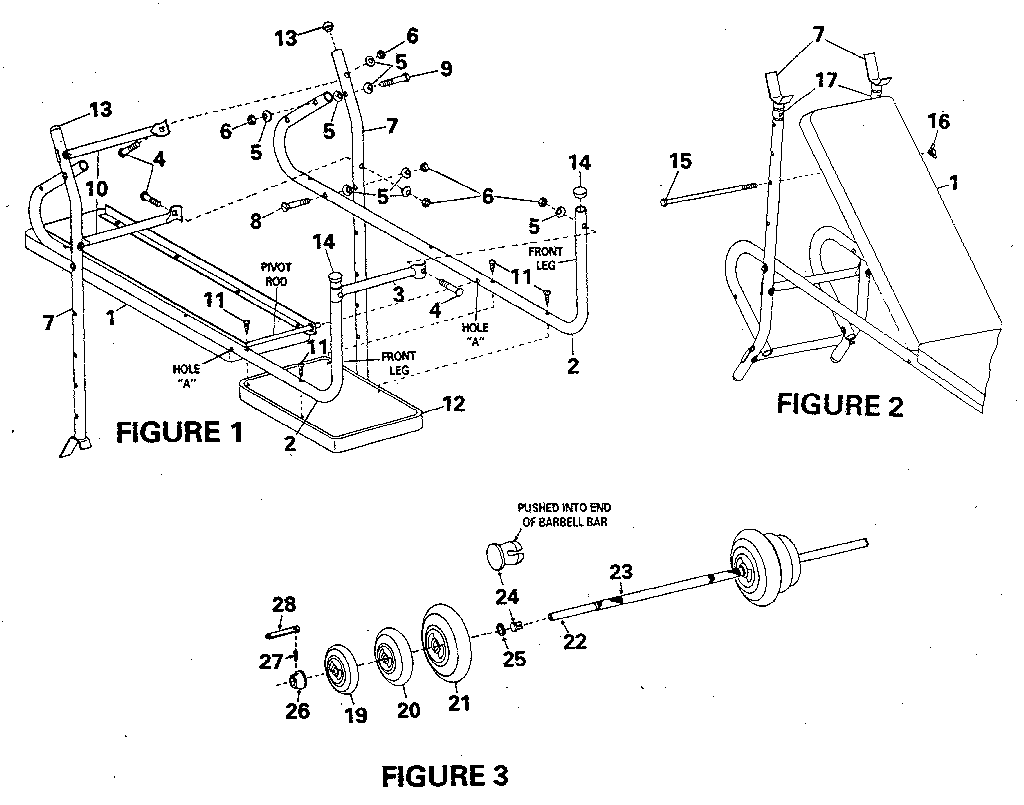

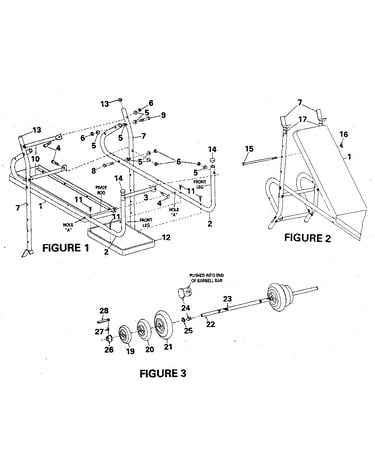

Weight bench diagram

Cap

Part #02020600

The manufacturer no longer makes this part, and there's no substitute part

Collar 33006315
#26

Weight bench diagram

Collar

Part #33006315

The manufacturer no longer makes this part, and there's no substitute part

Screw 21004000
#27

Weight bench diagram

Screw

Part #21004000

The manufacturer no longer makes this part, and there's no substitute part

Undercarriage 30161316
#2

Weight bench diagram

Undercarriage

Part #30161316

The manufacturer no longer makes this part, and there's no substitute part

Washer 26000667
#5

Weight bench diagram

Washer

Part #26000667

The manufacturer no longer makes this part, and there's no substitute part

Brbl Support 38063316
#7

Weight bench diagram

Brbl support

Part #38063316

The manufacturer no longer makes this part, and there's no substitute part

Disc 4kg 00021031
#20

Weight bench diagram

Disc 4kg

Part #00021031

The manufacturer no longer makes this part, and there's no substitute part

Cap Foot 02007700
#14

Weight bench diagram

Cap foot

Part #02007700

The manufacturer no longer makes this part, and there's no substitute part

Plas Washer 09001813
#25

Weight bench diagram

Plas washer

Part #09001813

The manufacturer no longer makes this part, and there's no substitute part

Wrench 29023267
#28

Weight bench diagram

Wrench

Part #29023267

The manufacturer no longer makes this part, and there's no substitute part
