Model # MWCP1085-A Official Magic Chef washer

Here are the diagrams and repair parts for Official Magic Chef MWCP1085-A washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Clamp 113200152
#6

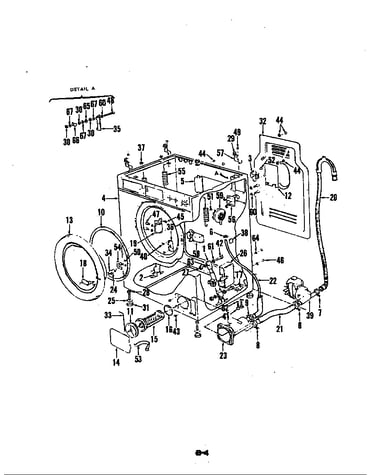

Cabinet & door diagram

Clamp

Part #113200152

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 113200152. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp 113200024
#3

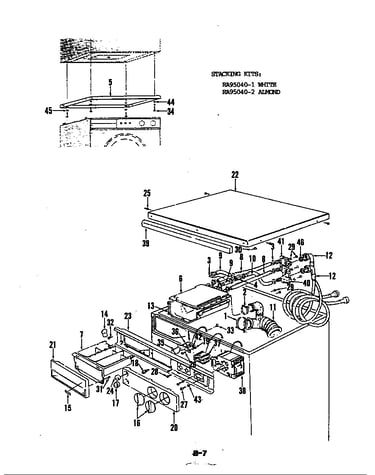

Control panel diagram

Clamp

Part #113200024

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 113200024. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Screw 912131141
#27

Control panel diagram

Screw

Part #912131141

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 912131141. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Clamp 113200366
#6

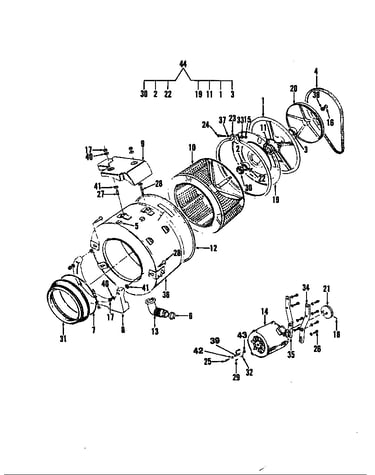

Tub diagram

Clamp

Part #113200366

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 113200366. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Clamp 113200202
#7

Cabinet & door diagram

Clamp

Part #113200202

Replaced by #22001376

?
Manufacturer substitution
This part replaces 113200202. Substitute parts can look different from the original.
This item is not returnable
$4.42
In Stock
Clamp 113200354
#9

Cabinet & door diagram

Clamp

Part #113200354

Replaced by #WP285655

?
Manufacturer substitution
This part replaces 113200354. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Clamp 113200087
#8

Cabinet & door diagram

Clamp

Part #113200087

Replaced by #22001376

?
Manufacturer substitution
This part replaces 113200087. Substitute parts can look different from the original.
This item is not returnable
$4.42
In Stock
Clamp 113200404
#2

Control panel diagram

Clamp

Part #113200404

Replaced by #22001376

?
Manufacturer substitution
This part replaces 113200404. Substitute parts can look different from the original.
This item is not returnable
$4.42
In Stock
Tub Back Rin 111600490
#23

Tub diagram

Tub back rin

Part #111600490

The manufacturer no longer makes this part, and there's no substitute part

Ring Gasket 114200636
#12

Tub diagram

Ring gasket

Part #114200636

The manufacturer no longer makes this part, and there's no substitute part
