Model # EDW30SBR Official Dacor dishwasher

Here are the diagrams and repair parts for Official Dacor EDW30SBR dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

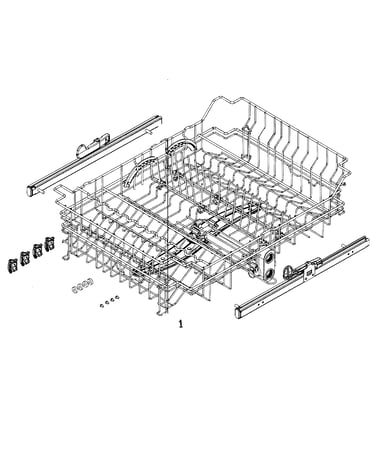

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Drain Pump 72113
#23

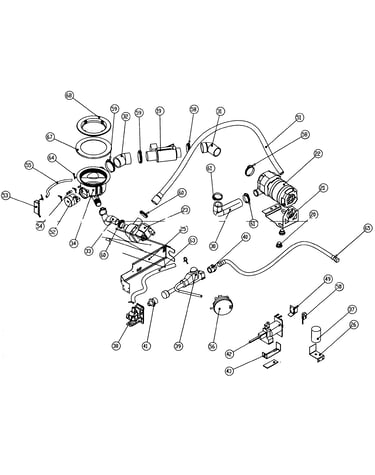

Pump assy diagram

Drain pump

Part #72113

$49.49
In Stock
Screw 83571
#78

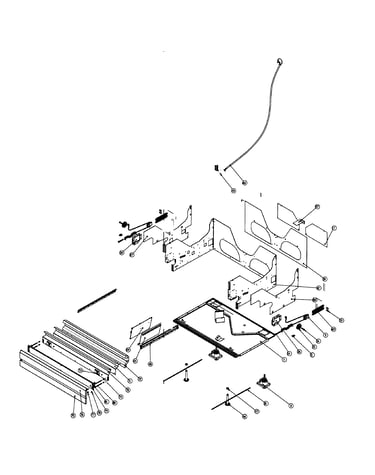

Base assy diagram

Screw

Part #83571

Replaced by #83263

?
Manufacturer substitution
This part replaces 83571. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Slide Seal 72327
#28

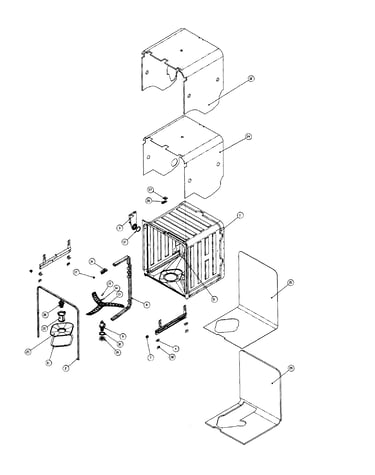

Cabinet diagram

Slide seal

Part #72327

This item is not returnable
$2.99
In Stock
Locknut Fr 83456
#47

Base assy diagram

Locknut fr

Part #83456

This item is not returnable
$2.16
In Stock
Sound Insulation 81556
#28

Base assy diagram

Sound insulation

Part #81556

$13.99
In Stock
Mounting Plate 36778
#79

Base assy diagram

Mounting plate

Part #36778

$19.49
In Stock
Door Liner 81558
#14

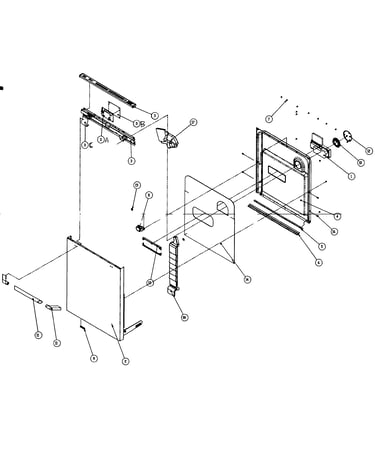

Door assy diagram

Door liner

Part #81558

$39.99
In Stock
Hose Clamp 62268
#64

Pump assy diagram

Hose clamp

Part #62268

This item is not returnable
$3.49
In Stock
Lower Rack 13568
#1

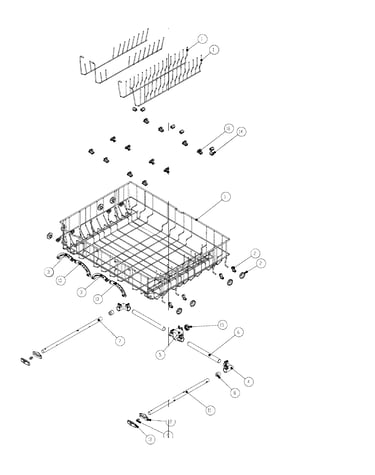

Lower rack diagram

Lower rack

Part #13568

$1076.49
In Stock
Toe Kick 36845
#76

Base assy diagram

Toe kick

Part #36845

$64.99
In Stock
