Kenmore
Gas Water Heater

Model # 153336161 Official Kenmore water heater

Here are the diagrams and repair parts for Official Kenmore 153336161 water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Inlet Tube 9003500
#13

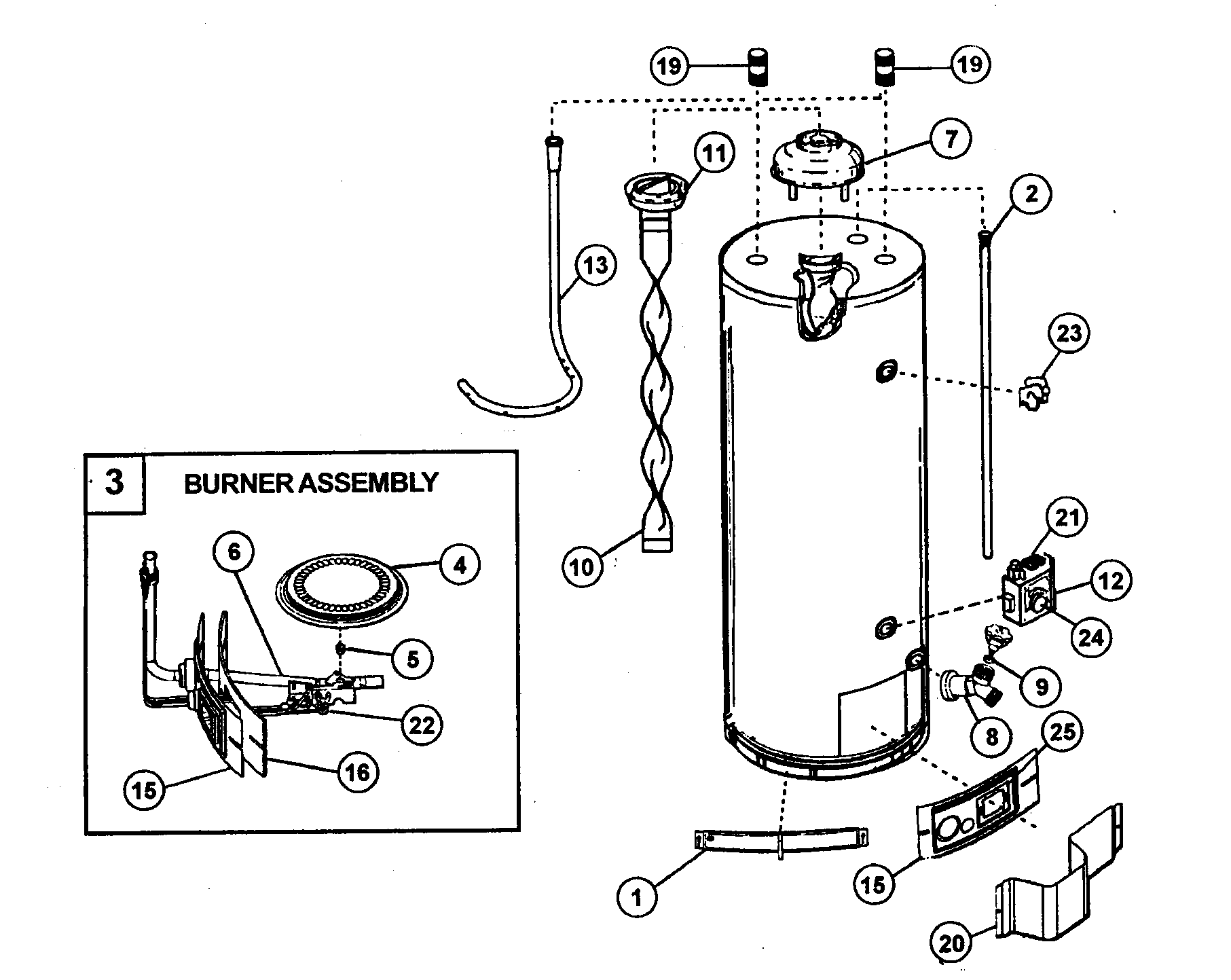

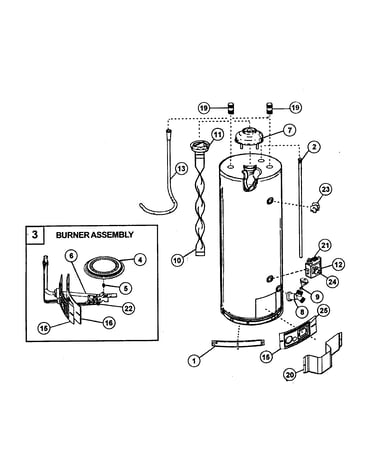

Water heater diagram

Inlet tube

Part #9003500

This item is not returnable
$5.79
In Stock
Owner's Manual 184231-000
#NI

Water heater diagram

Owner's manual

Part #184231-000

$13.99
In Stock
Water Heater Burner Assembly 9003477
#3

Water heater diagram

Water heater burner assembly

Part #9003477

$94.19 |
6% OFF Phone Price : $100.19
In Stock
Outer Door 9003545
#20

Water heater diagram

Outer door

Part #9003545

Replaced by #100109299

?
Manufacturer substitution
This part replaces 9003545. Substitute parts can look different from the original.
$35.56
In Stock
Water Heater Gas Valve Assembly F145-1278
#12

Water heater diagram

Water heater gas valve assembly

Part #F145-1278

The manufacturer no longer makes this part, and there's no substitute part

Tube Gasket 9003981
#14

Water heater diagram

Tube gasket

Part #9003981

Replaced by #100108744

?
Manufacturer substitution
This part replaces 9003981. Substitute parts can look different from the original.
$24.44
In Stock
Anode Rod 9003483
#2

Water heater diagram

Anode rod

Part #9003483

Replaced by #100109434

?
Manufacturer substitution
This part replaces 9003483. Substitute parts can look different from the original.
$36.67
In Stock
Restrictor 9003445
#11

Water heater diagram

Restrictor

Part #9003445

Replaced by #100110078

?
Manufacturer substitution
This part replaces 9003445. Substitute parts can look different from the original.
$27.78
In Stock
Kenmore Elite Water Heater Washer (replaces 0540042) 9001584
#9

Water heater diagram

Kenmore elite water heater washer (replaces 0540042)

Part #9001584

Replaced by #100108603

?
Manufacturer substitution
This part replaces 9001584. Substitute parts can look different from the original.
$24.44
In Stock
Relief Valve 9003484
#23

Water heater diagram

Relief valve

Part #9003484

Replaced by #100108279

?
Manufacturer substitution
This part replaces 9003484. Substitute parts can look different from the original.
$32.22
In Stock
