Kenmore
Room Air Conditioner

Model # 2539750557 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 2539750557 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

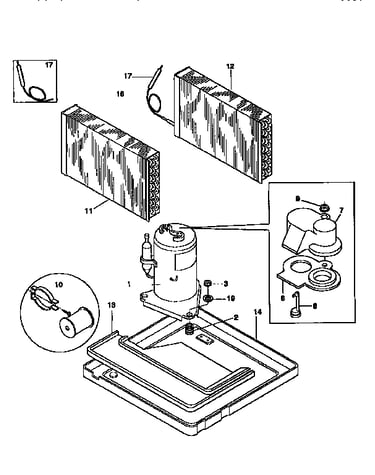

Compressor diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Wrapper 5303302856
#1

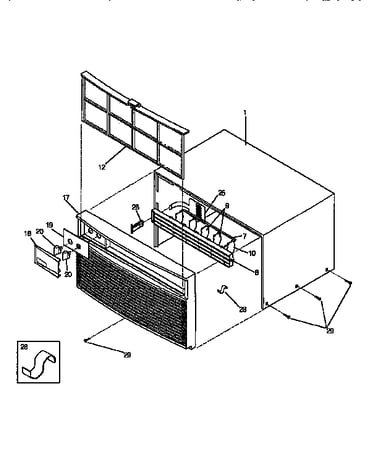

Wrapper diagram

Wrapper

Part #5303302856

$60.99
In Stock
Cover Capacitor 5303302855
#19

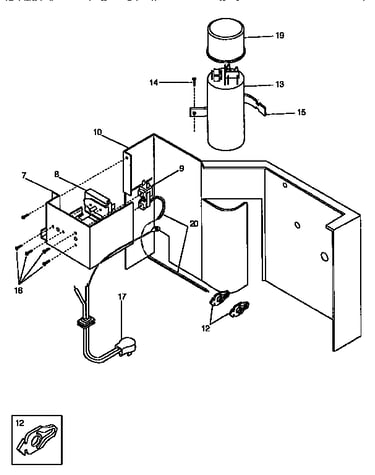

Control panel diagram

Cover capacitor

Part #5303302855

$20.78
In Stock
Bulkhead 309602401
Bulkhead

Part #309602401

$14.49
In Stock
Overload 5303311029
#8

Compressor diagram

Overload

Part #5303311029

$43.03
In Stock
Handle Vent 309100509
#26

Wrapper diagram

Handle vent

Part #309100509

This item is not returnable
$2.16
In Stock
Room Air Conditioner Owner's Manual 5303306245

#*51961

All parts diagram

Room air conditioner owner's manual

Part #5303306245

This item is not returnable
$4.89
In Stock
Screw 3202975
#2

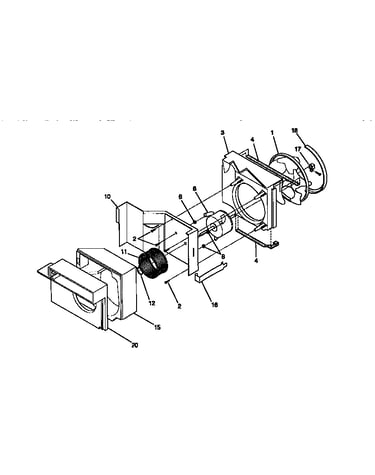

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Screw 5303303691
Screw

Part #5303303691

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303303691. Substitute parts can look different from the original.
$14.69
In Stock
Gasket 3002603
#1

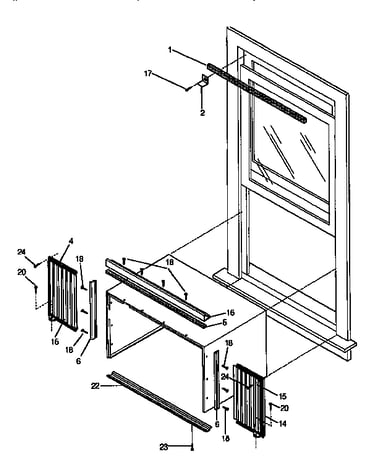

Window mounting kit diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
