GE
Side-By-Side Refrigerator

Model # GSL22JGDDLS Official GE refrigerator - d series

Here are the diagrams and repair parts for Official GE GSL22JGDDLS refrigerator - d series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

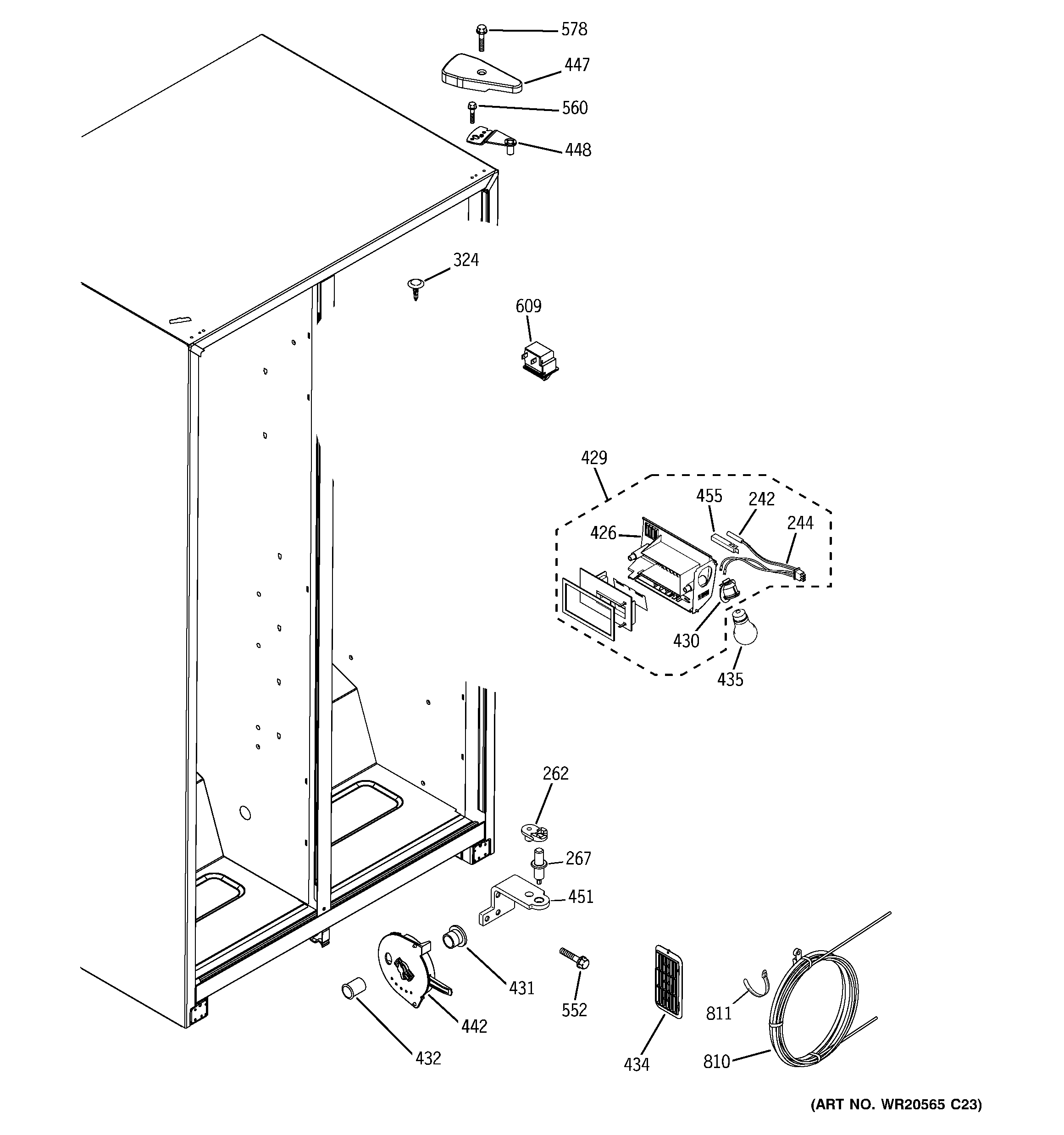

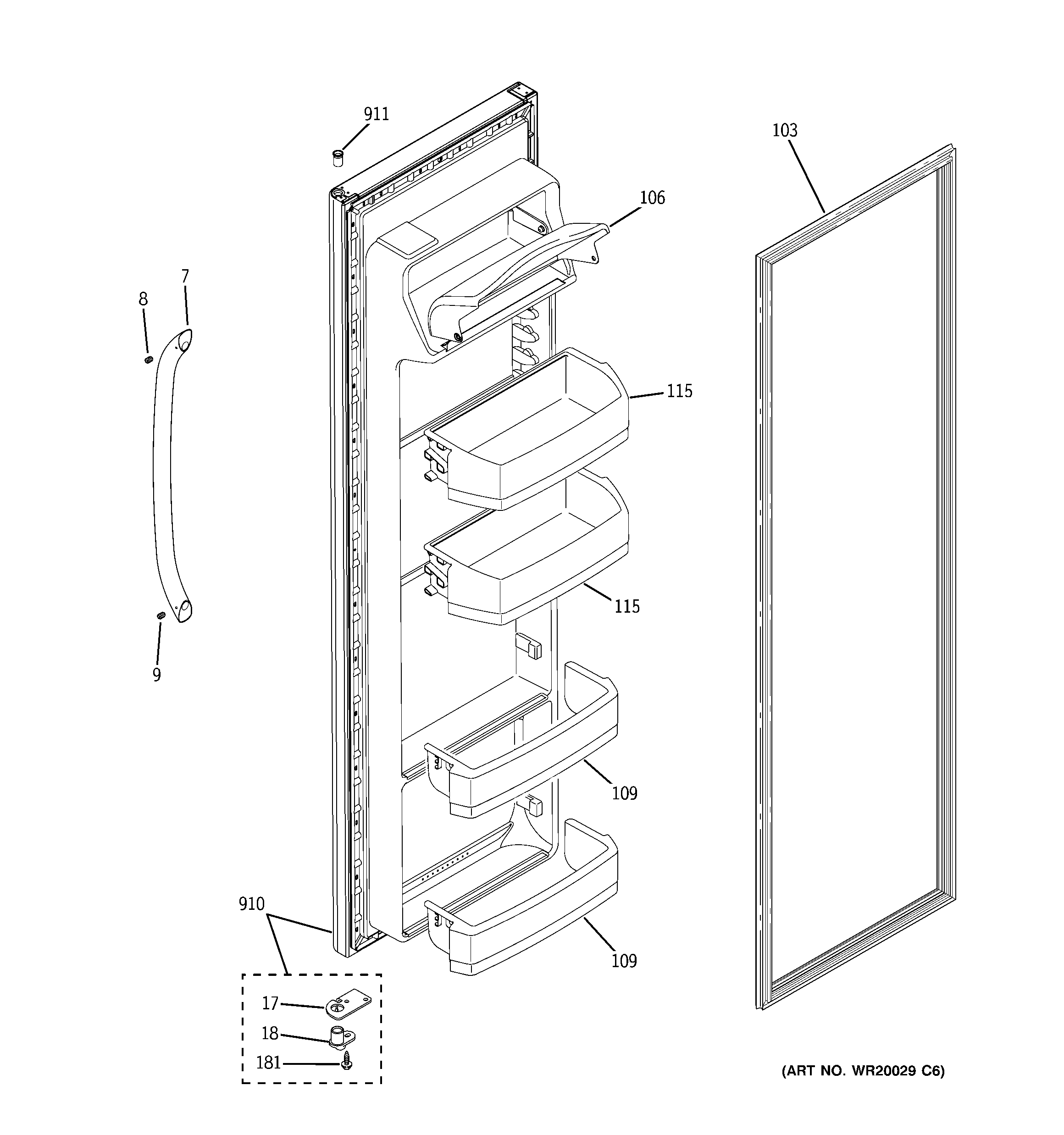

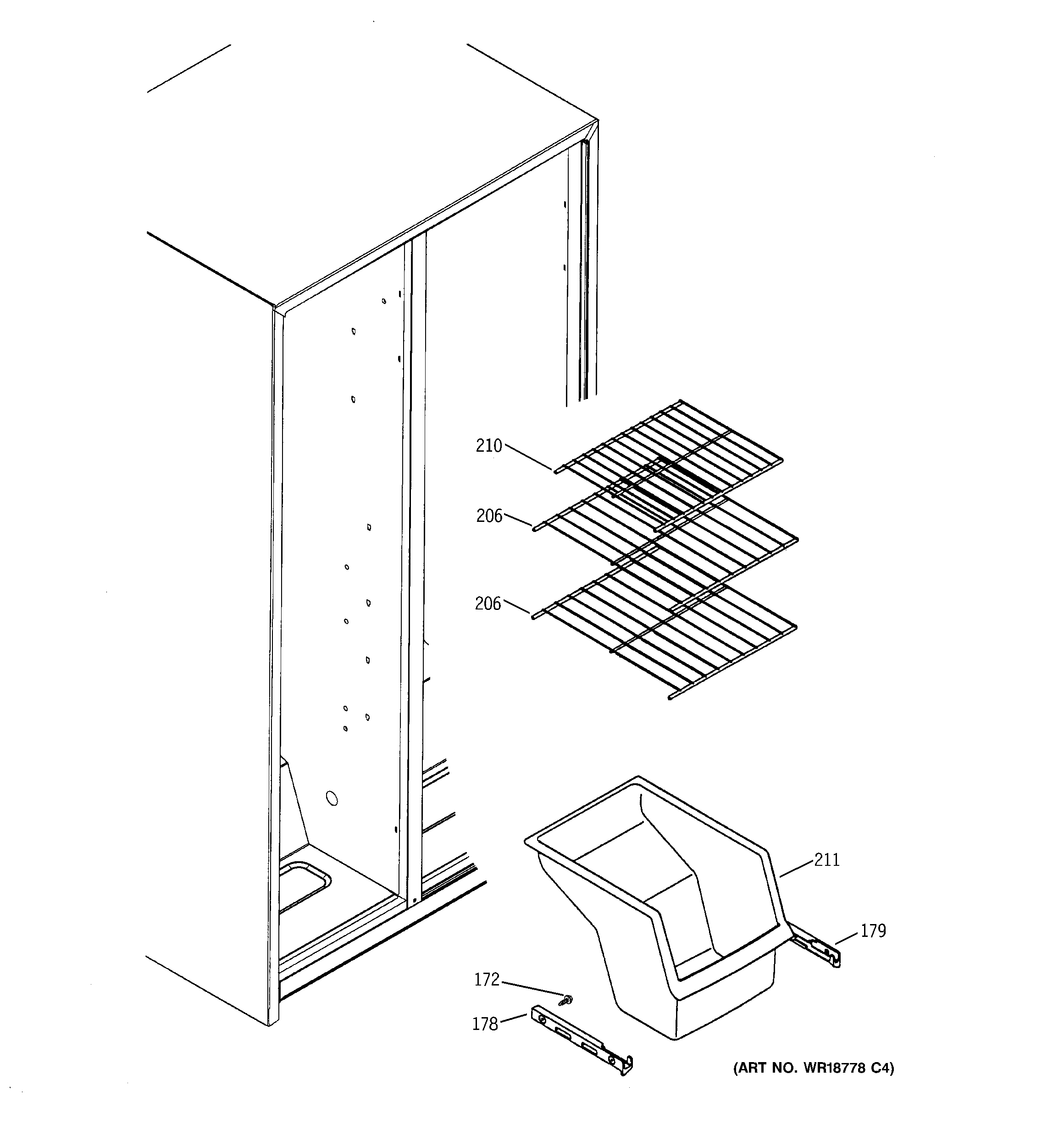

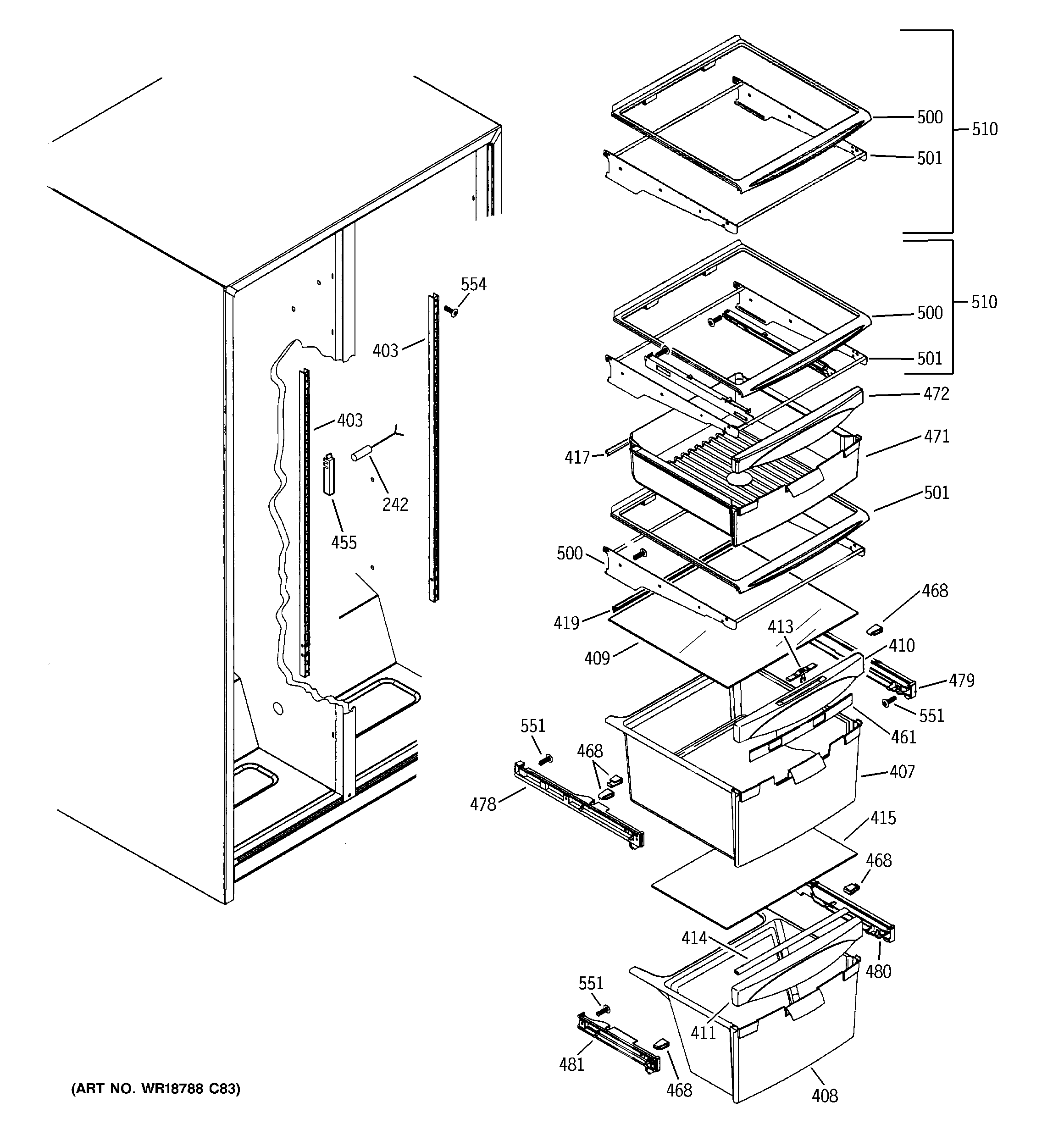

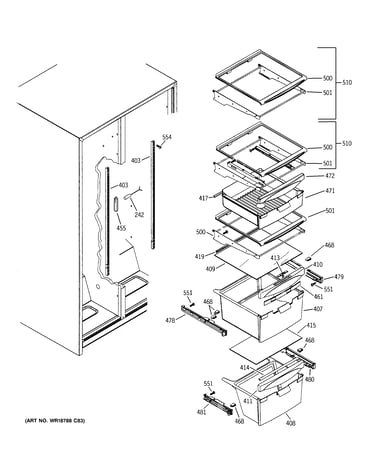

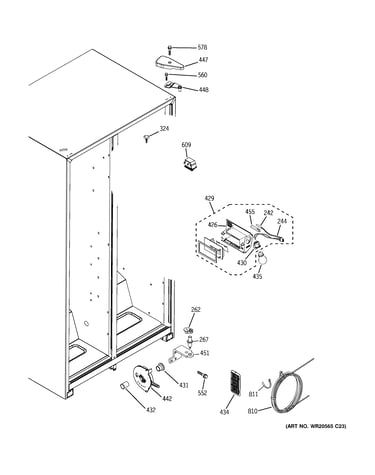

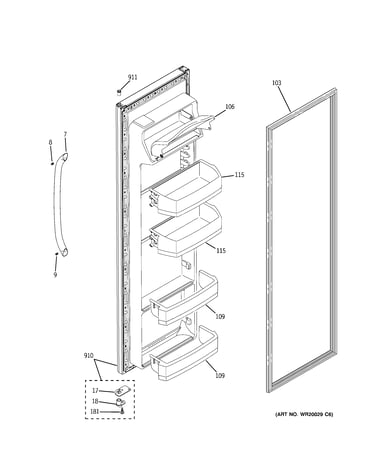

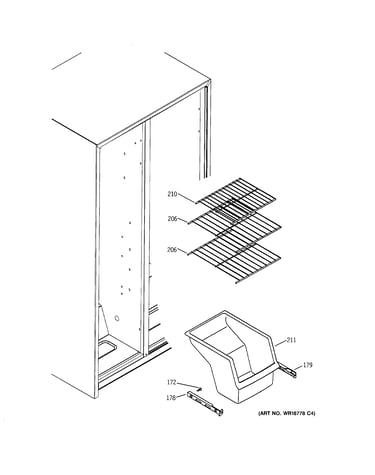

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Refrigerator Temperature Sensor WR55X10735
#241

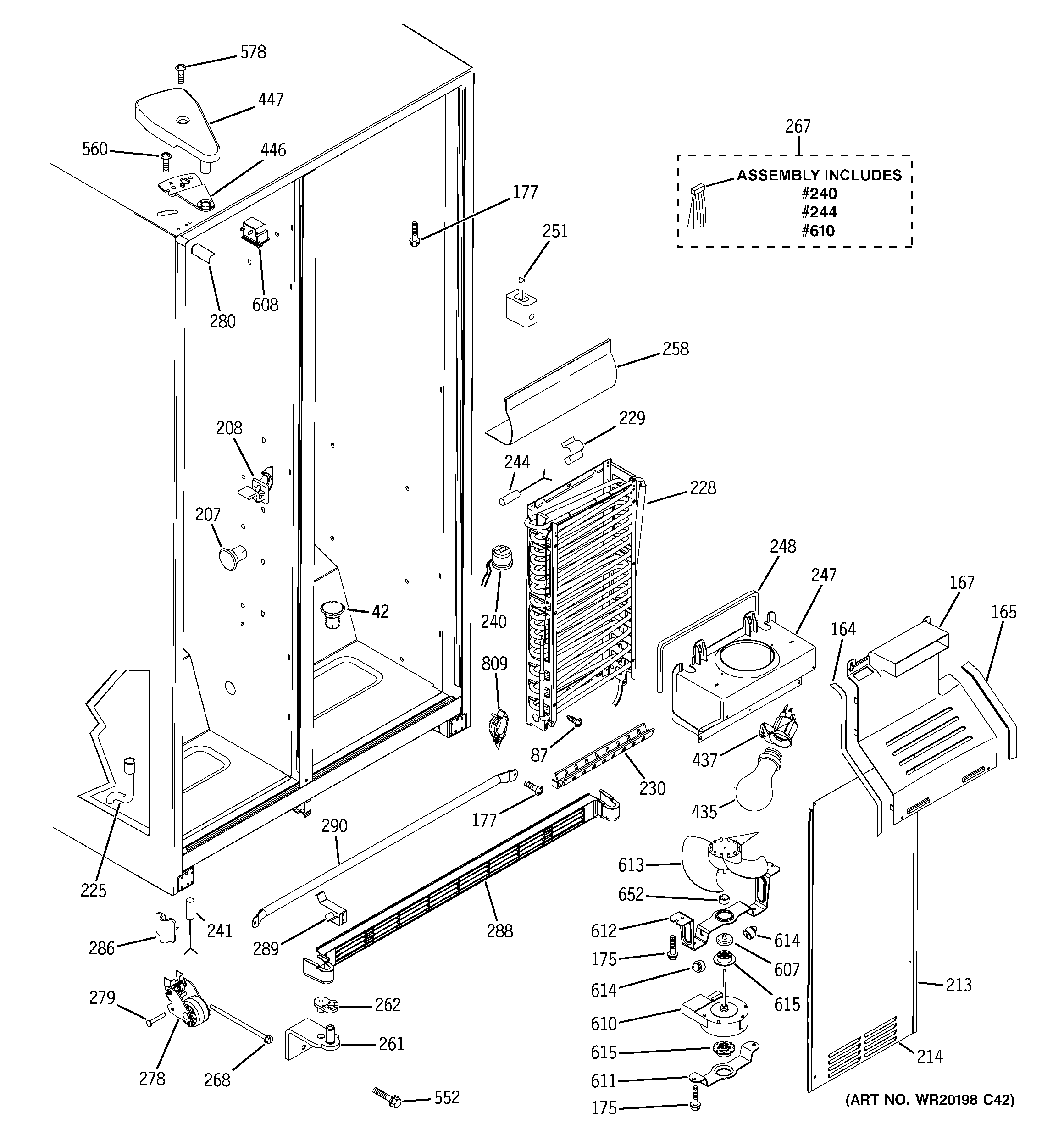

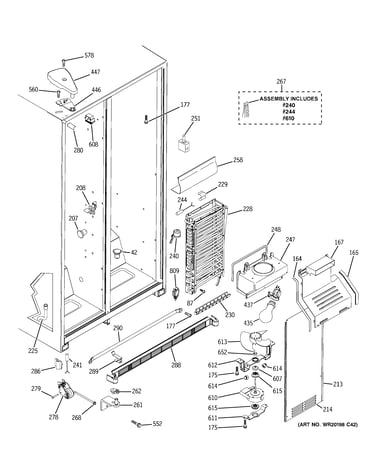

Freezer section diagram

Refrigerator temperature sensor

Part #WR55X10735

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10735. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10736
Refrigerator temperature sensor

Part #WR55X10736

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10736. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X10737
Refrigerator temperature sensor

Part #WR55X10737

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X10737. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Cover WR29X10080
#821

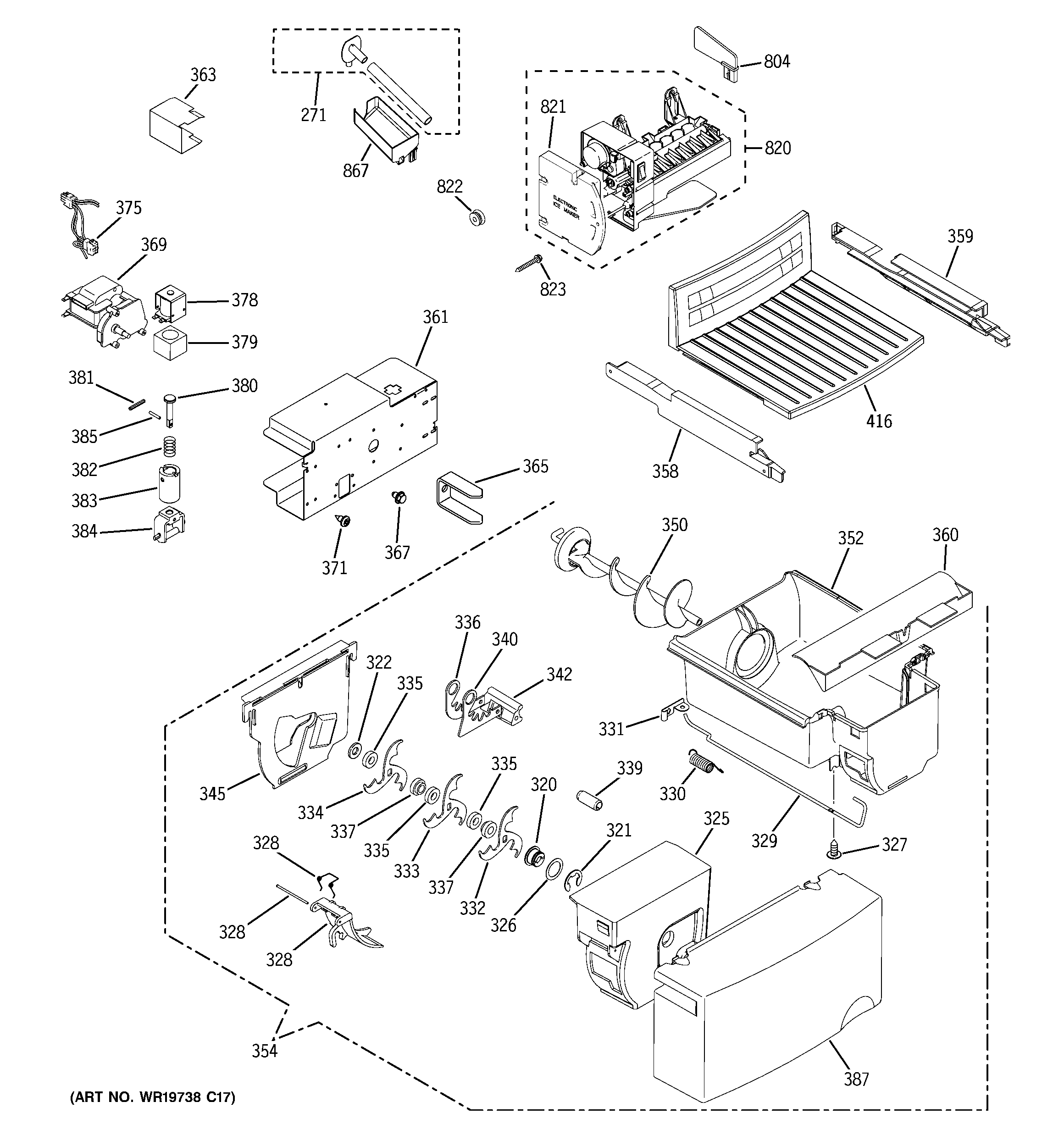

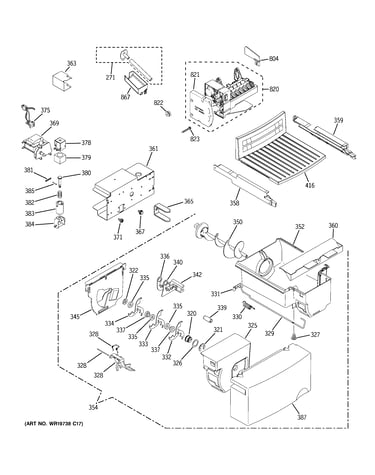

Ice maker & dispenser diagram

Refrigerator cover

Part #WR29X10080

Replaced by #WR30X10093

?
Manufacturer substitution
This part replaces WR29X10080. Substitute parts can look different from the original.
BEST SELLER
$186.44 |
6% OFF Phone Price : $198.44
In Stock
Refrigerator Filter Dryer WR86X10068
#740

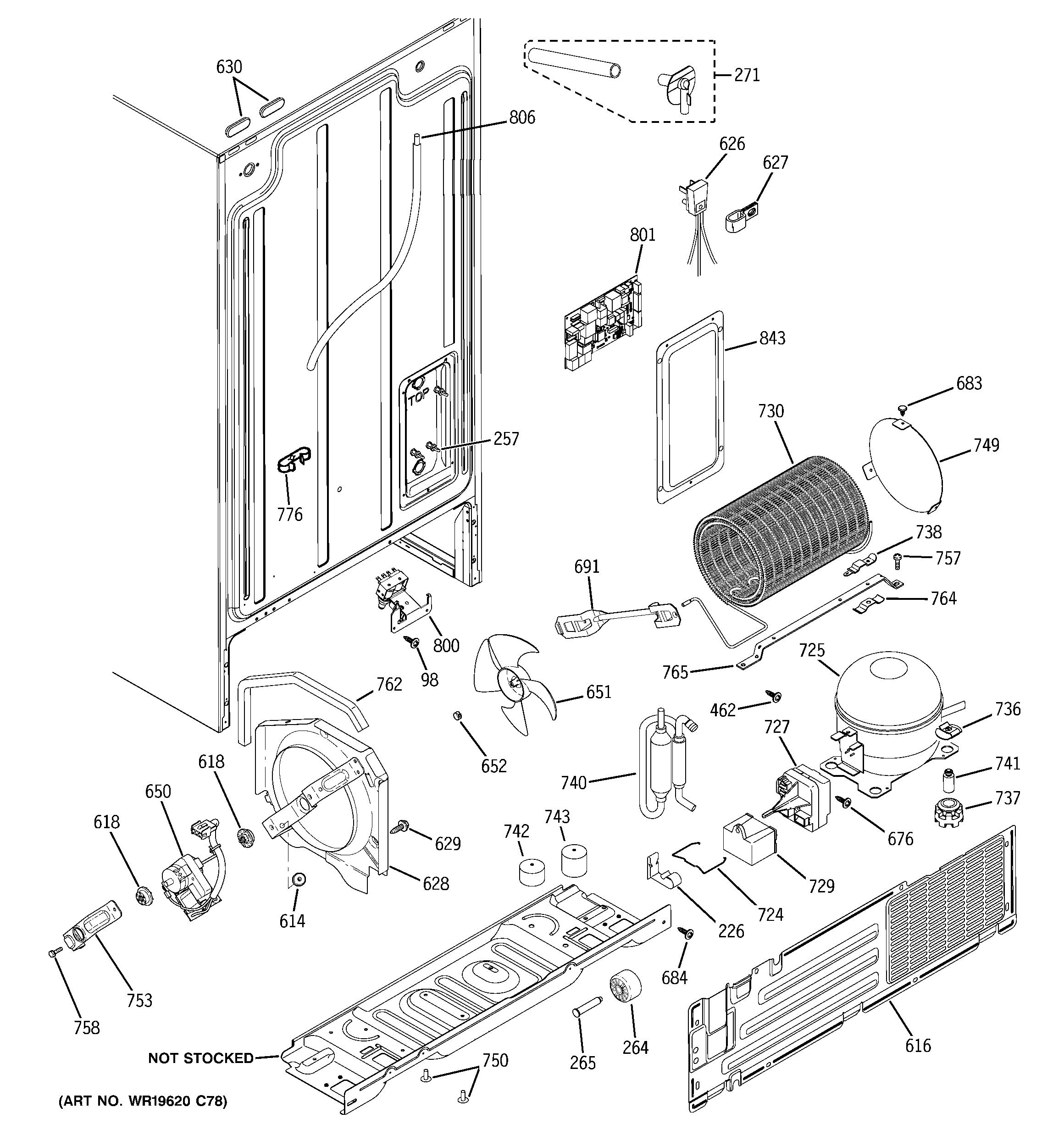

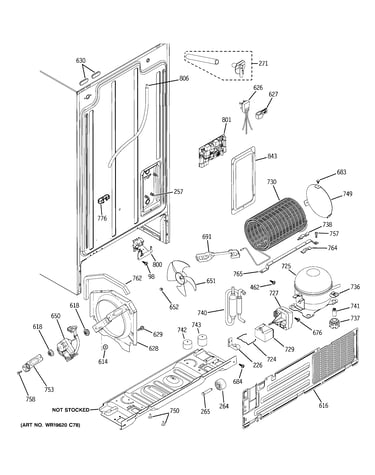

Machine compartment diagram

Refrigerator filter dryer

Part #WR86X10068

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10068. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Water Valve WR57X10040
#800

Machine compartment diagram

Refrigerator water valve

Part #WR57X10040

Replaced by #WR57X33326

?
Manufacturer substitution
This part replaces WR57X10040. Substitute parts can look different from the original.
BEST SELLER
$64.94 |
9% OFF Was : $71.36
In Stock
Capacitor WR62X0079
#729

Machine compartment diagram

Capacitor

Part #WR62X0079

Replaced by #WR55X24064

?
Manufacturer substitution
This part replaces WR62X0079. Substitute parts can look different from the original.
BEST SELLER
$40.73 |
13% OFF Phone Price : $46.73
In Stock
Rca Refrigerator Dispenser Ice Chute Door Solenoid (replaces Wr62x10020) WR62X10055
#36

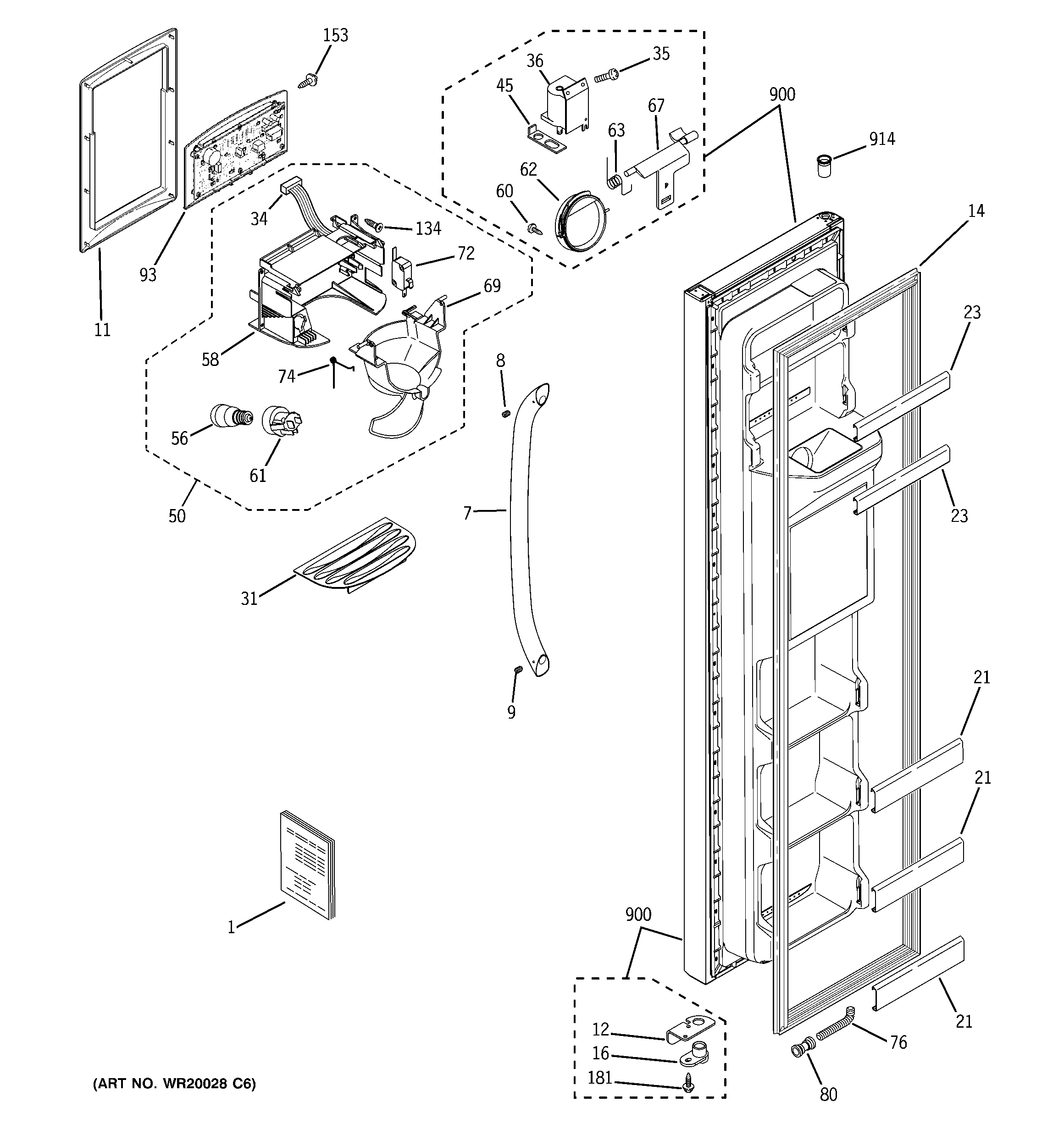

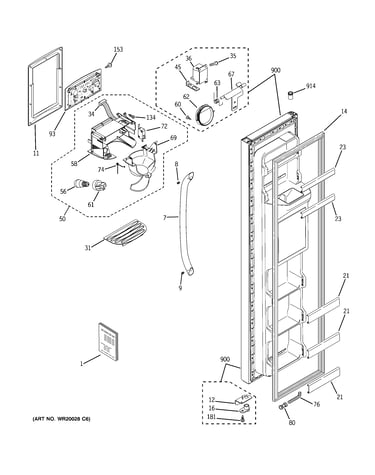

Freezer door diagram

Rca refrigerator dispenser ice chute door solenoid (replaces wr62x10020)

Part #WR62X10055

BEST SELLER
$54.06 |
10% OFF Phone Price : $60.06
In Stock
Refrigerator Water Tube Fitting, 5/16 X 5/16-in (replaces Wr02x10471) WR02X11330
#80

Freezer door diagram

Refrigerator water tube fitting, 5/16 x 5/16-in (replaces wr02x10471)

Part #WR02X11330

BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Refrigerator Evaporator Fan Blade WR60X10208
#613

Freezer section diagram

Refrigerator evaporator fan blade

Part #WR60X10208

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10208. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
