Wall Oven/Microwave Combo

Model # GMC305PDQ5 Official Whirlpool electric built-in microwave/oven combo

Here are the diagrams and repair parts for Official Whirlpool GMC305PDQ5 electric built-in microwave/oven combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

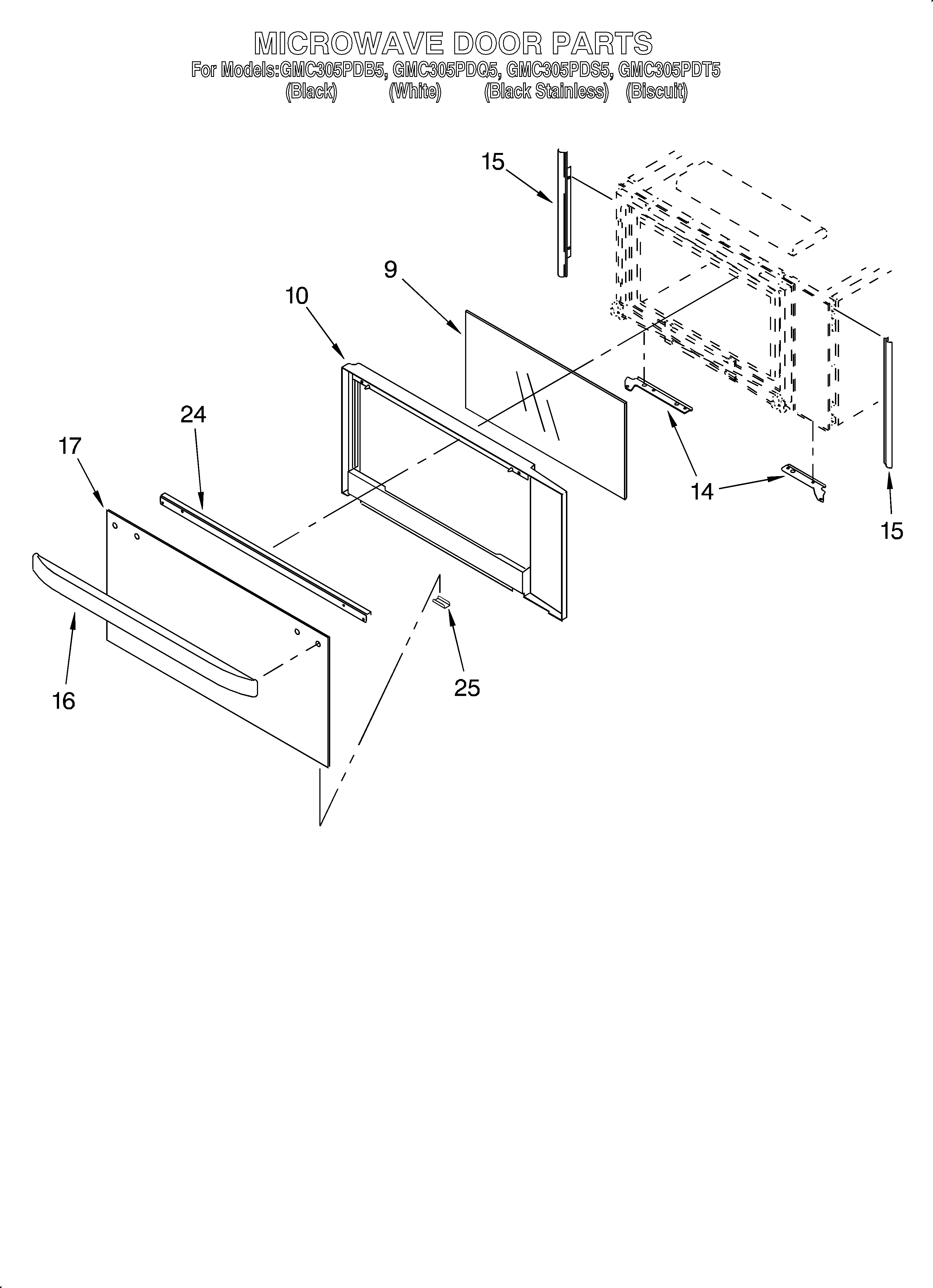

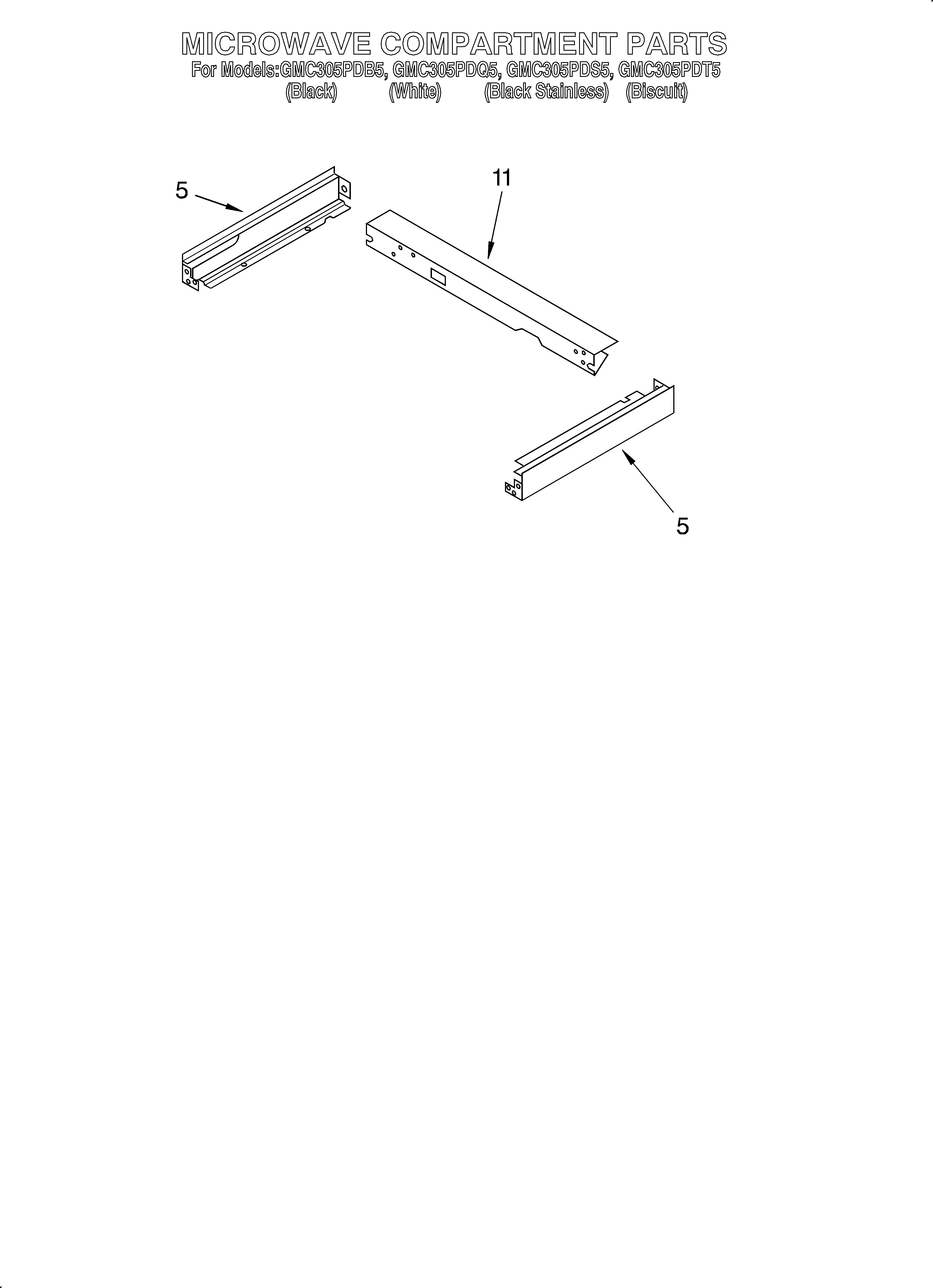

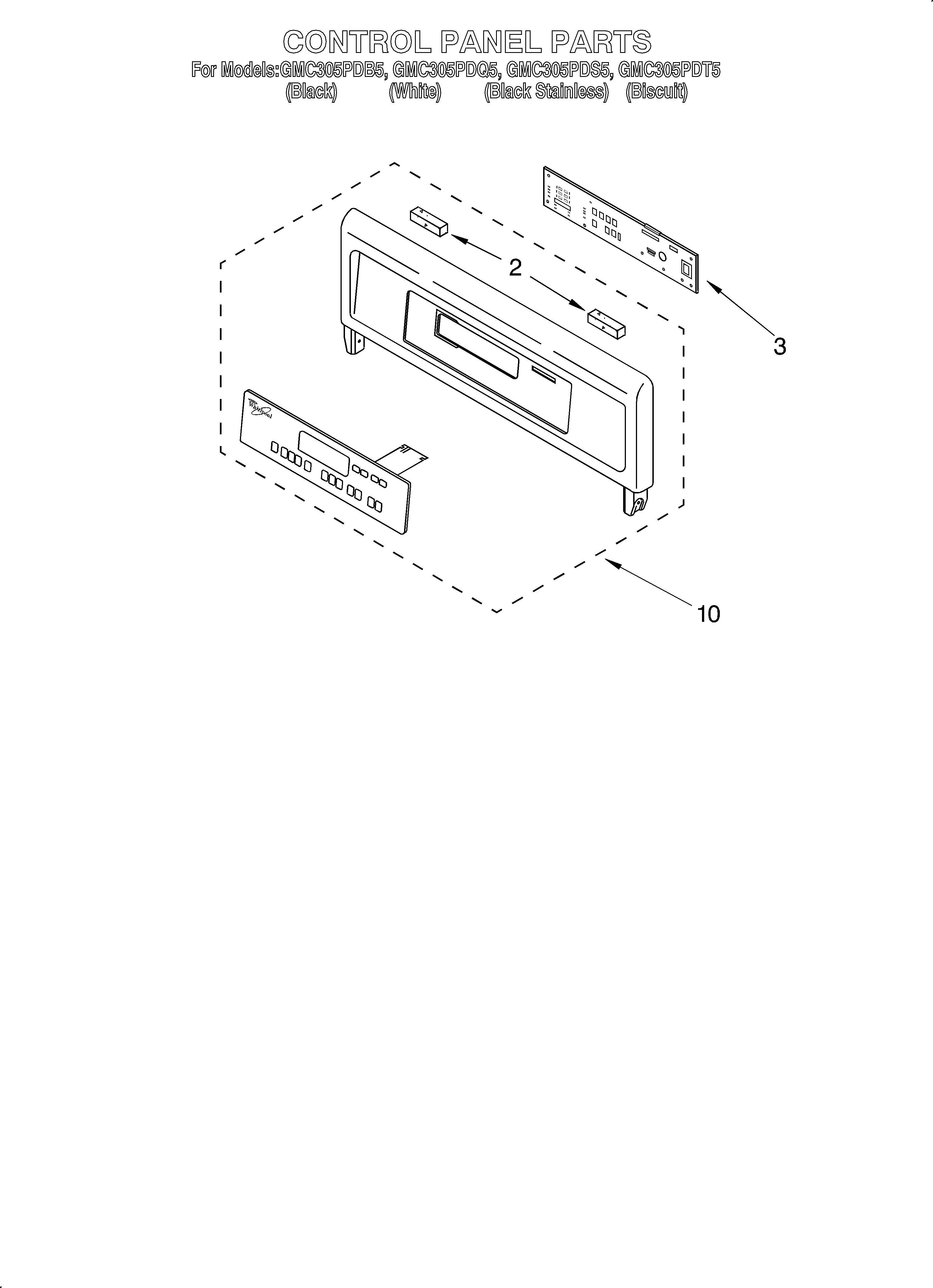

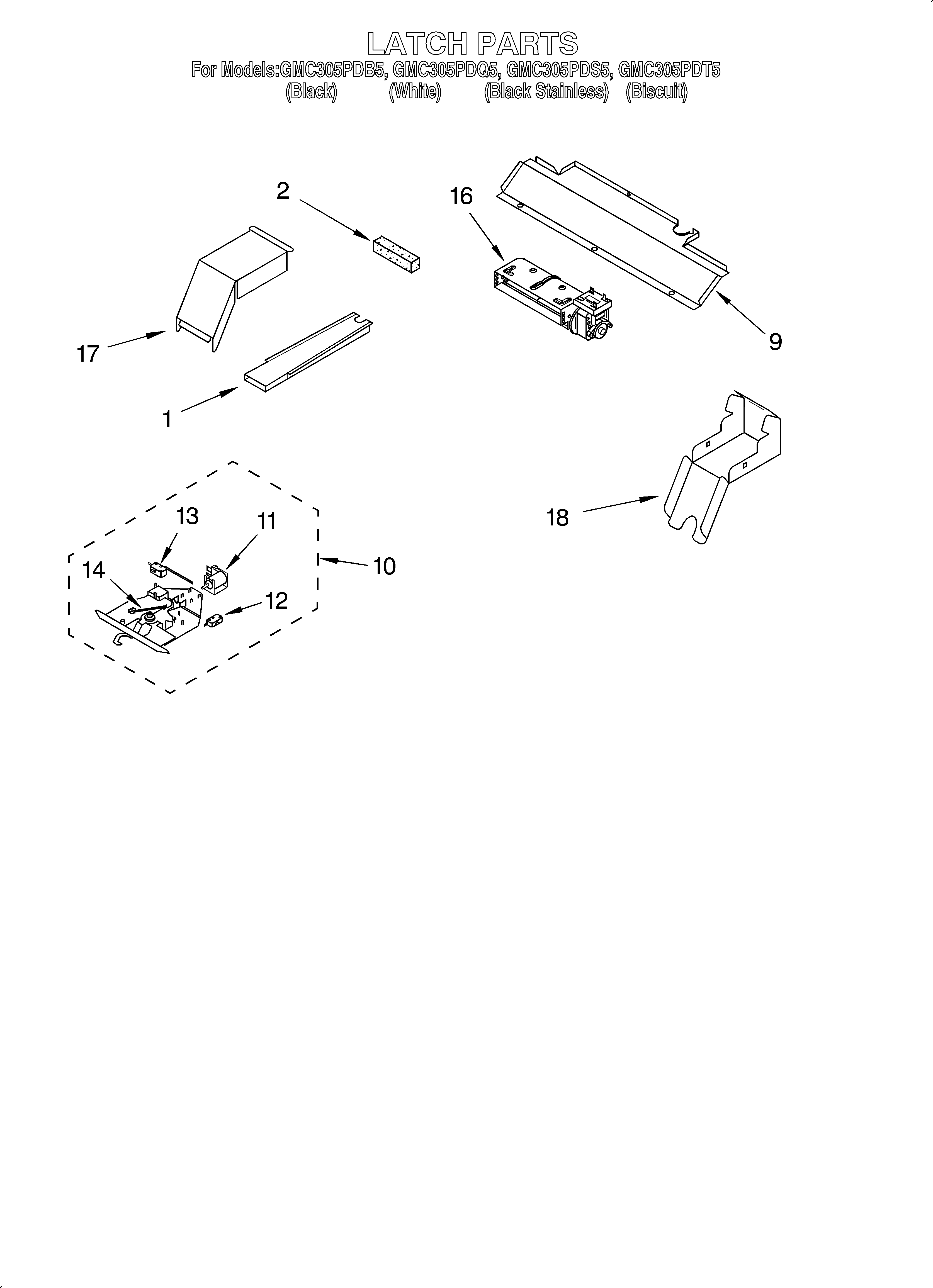

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 223 parts  |
Microwave Door Interlock Switch 4375346
#51

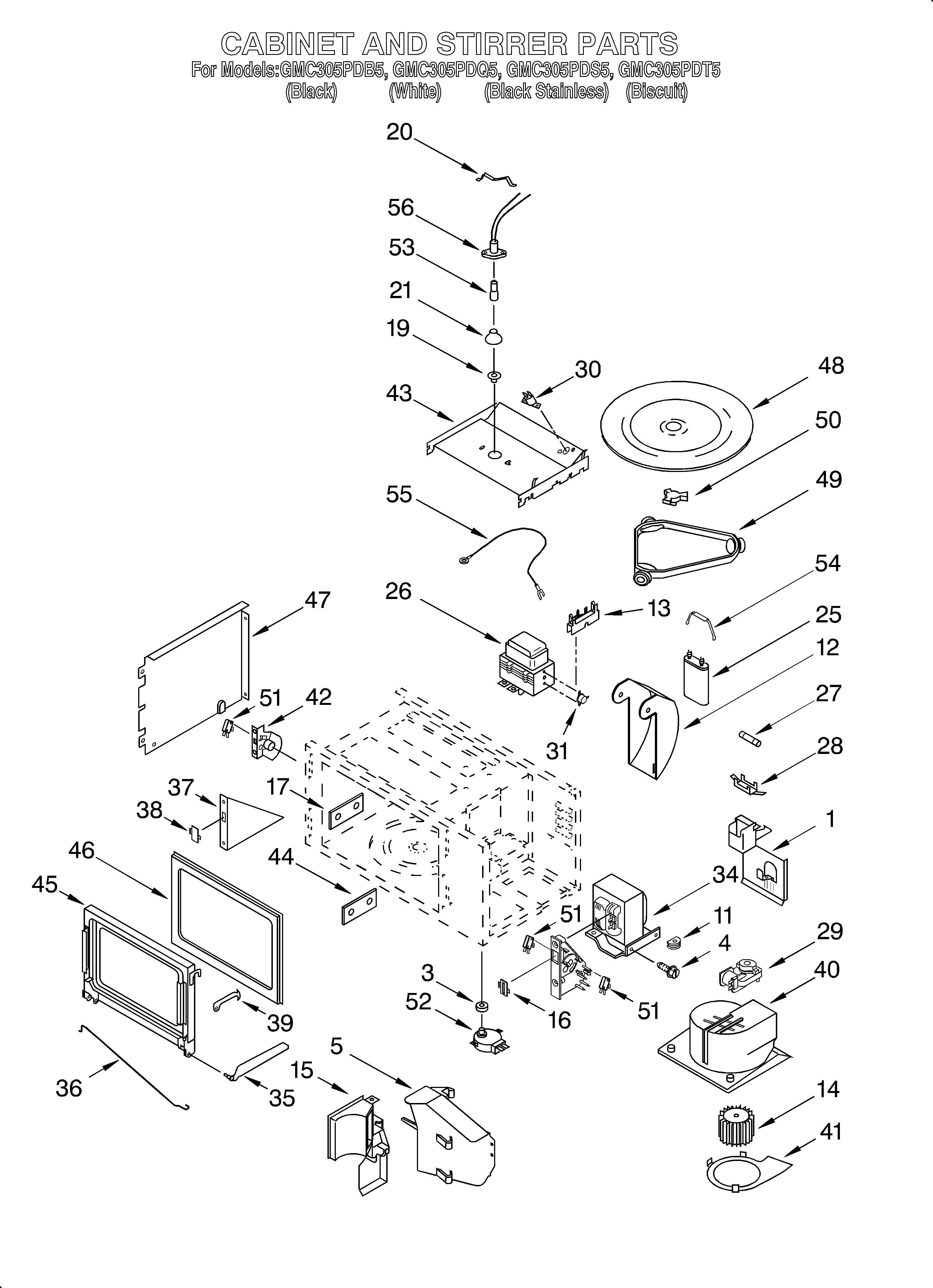

Cabinet and stirrer diagram

Microwave door interlock switch

Part #4375346

Replaced by #W10211972

?
Manufacturer substitution
This part replaces 4375346. Substitute parts can look different from the original.
BEST SELLER
$30.85 |
16% OFF Phone Price : $36.85
In Stock
Bake Element 4452153
#7

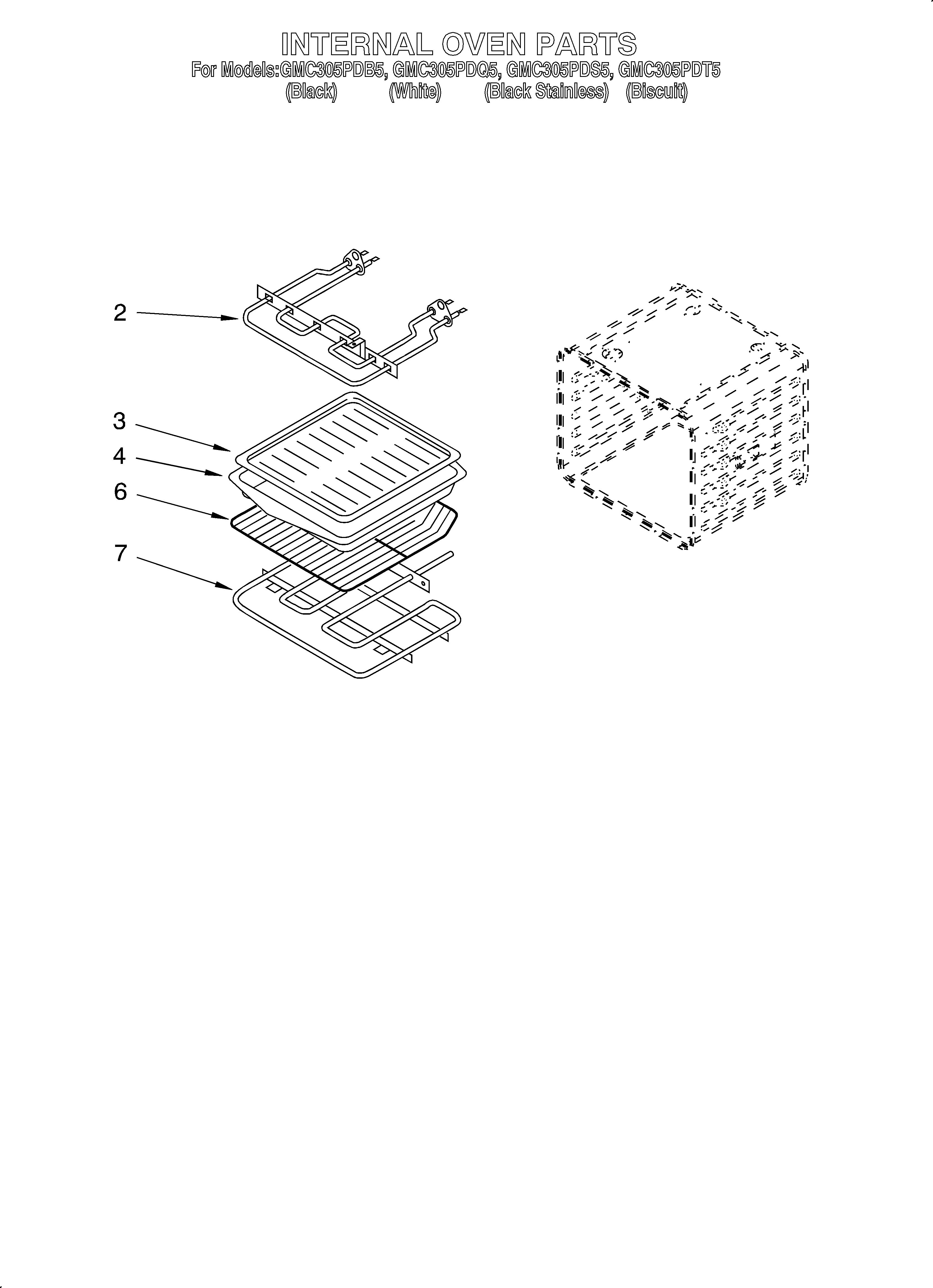

Internal oven diagram

Bake element

Part #4452153

Replaced by #WPW10207397

?
Manufacturer substitution
This part replaces 4452153. Substitute parts can look different from the original.
BEST SELLER
$49.26 |
11% OFF Phone Price : $55.26
In Stock
Wall Oven Temperature Sensor 4455636
#29

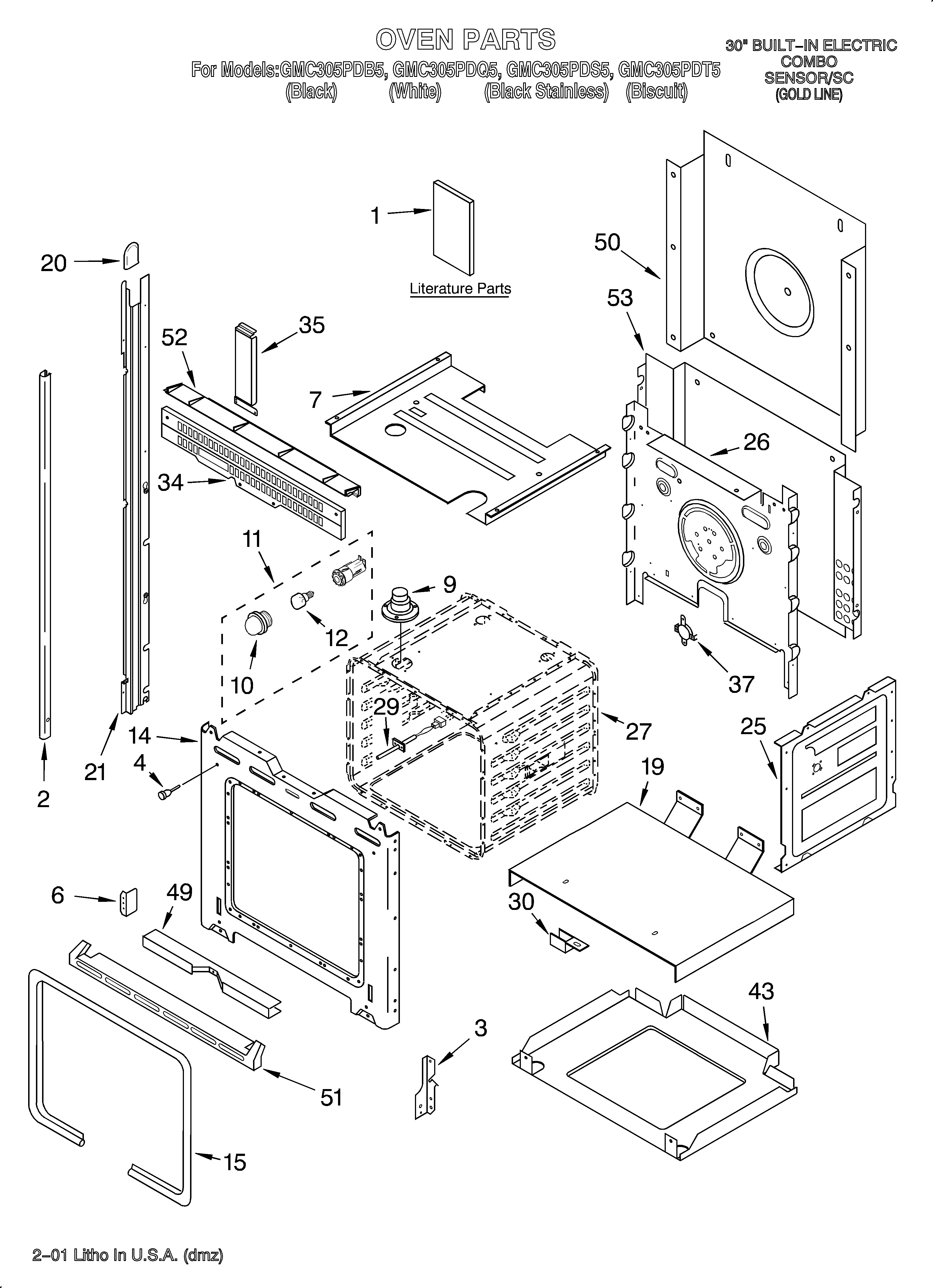

Oven/literature diagram

Wall oven temperature sensor

Part #4455636

Replaced by #WPW10131825

?
Manufacturer substitution
This part replaces 4455636. Substitute parts can look different from the original.
BEST SELLER
$65.43 |
8% OFF Phone Price : $71.43
In Stock
Wall Oven Door Inner Glass 4449259
#3

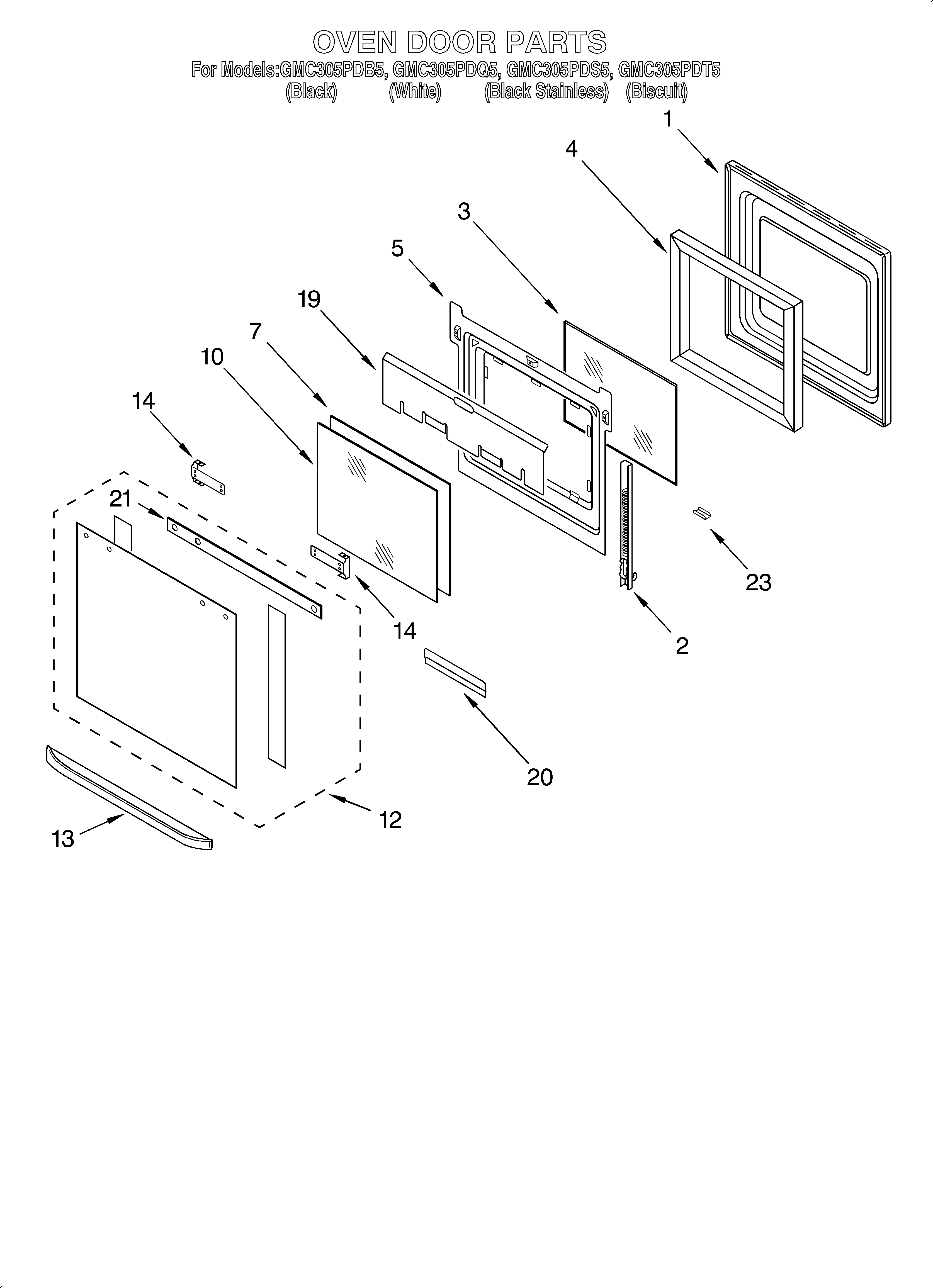

Oven door diagram

Wall oven door inner glass

Part #4449259

Replaced by #WP4449259

?
Manufacturer substitution
This part replaces 4449259. Substitute parts can look different from the original.
BEST SELLER
$80.39 |
7% OFF Phone Price : $86.39
In Stock
Mounting Bracket 4375336
#42A

Cabinet and stirrer diagram

Mounting bracket

Part #4375336

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375336. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Oven Mounting Bracket 4375335
#42

Cabinet and stirrer diagram

Oven mounting bracket

Part #4375335

Replaced by #W10727408

?
Manufacturer substitution
This part replaces 4375335. Substitute parts can look different from the original.
BEST SELLER
$88.84 |
6% OFF Phone Price : $94.84
In Stock
Appliance Touch-up Paint 72017
#NI

Top venting/optional diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Oven Baseless Lamp 4375348
#53

Cabinet and stirrer diagram

Oven baseless lamp

Part #4375348

Replaced by #WPW10440740

?
Manufacturer substitution
This part replaces 4375348. Substitute parts can look different from the original.
BEST SELLER
$22.69 |
21% OFF Phone Price : $28.69
In Stock
Diode 4375349
#54

Cabinet and stirrer diagram

Diode

Part #4375349

Replaced by #WPW10687786

?
Manufacturer substitution
This part replaces 4375349. Substitute parts can look different from the original.
BEST SELLER
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Spray W 350930
#NI

Top venting/optional diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
