Kenmore
Electric Water Heater

Model # 153318270 Official Kenmore electric water heater

Here are the diagrams and repair parts for Official Kenmore 153318270 electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 18 parts  |
Lower Panel 9000320
#6

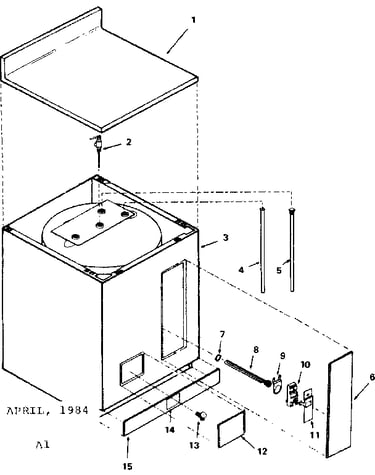

Replacement parts diagram

Lower panel

Part #9000320

$24.49
In Stock
Toe Panel 9000338
#15

Replacement parts diagram

Toe panel

Part #9000338

$15.49
In Stock
Water Heater Top Panel 9000335
#1

Replacement parts diagram

Water heater top panel

Part #9000335

Replaced by #100108386

?
Manufacturer substitution
This part replaces 9000335. Substitute parts can look different from the original.
$271.82
In Stock
Water Heater Thermostat Bracket (replaces 0110238, 0110238-01, 0110322, 9000309015) 9000309
#9

Replacement parts diagram

Water heater thermostat bracket (replaces 0110238, 0110238-01, 0110322, 9000309015)

Part #9000309

Replaced by #100108380

?
Manufacturer substitution
This part replaces 9000309. Substitute parts can look different from the original.
$27.78
In Stock
Water Heater Drain Valve 9000254
#13

Replacement parts diagram

Water heater drain valve

Part #9000254

Replaced by #100108361

?
Manufacturer substitution
This part replaces 9000254. Substitute parts can look different from the original.
$17.14
In Stock
Water Heater Heating Element Gasket 9000308
#7

Replacement parts diagram

Water heater heating element gasket

Part #9000308

Replaced by #9000308005

?
Manufacturer substitution
This part replaces 9000308. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Element 9000385
#8

Replacement parts diagram

Element

Part #9000385

Replaced by #100108327

?
Manufacturer substitution
This part replaces 9000385. Substitute parts can look different from the original.
$60.00
In Stock
Thermostat 9000509
#10

Replacement parts diagram

Thermostat

Part #9000509

Replaced by #100108424

?
Manufacturer substitution
This part replaces 9000509. Substitute parts can look different from the original.
$30.00
In Stock
Warranty F642-14478A

#NI

All parts diagram

Warranty

Part #F642-14478A

The manufacturer no longer makes this part, and there's no substitute part

Tank W/jackt 8000001
#3

Replacement parts diagram

Tank w/jackt

Part #8000001

The manufacturer no longer makes this part, and there's no substitute part
