Kenmore
Electric Wall Oven

Model # 91147069791 Official Kenmore 27" single built-in oven

Here are the diagrams and repair parts for Official Kenmore 91147069791 27" single built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

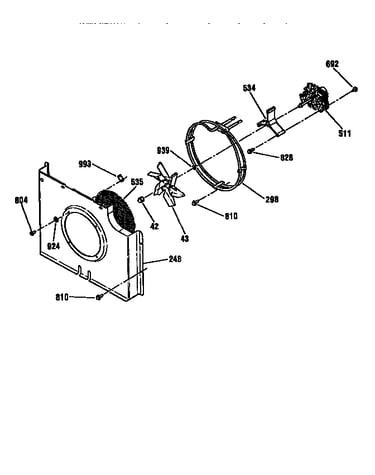

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
40a15bulb STD372401
#257

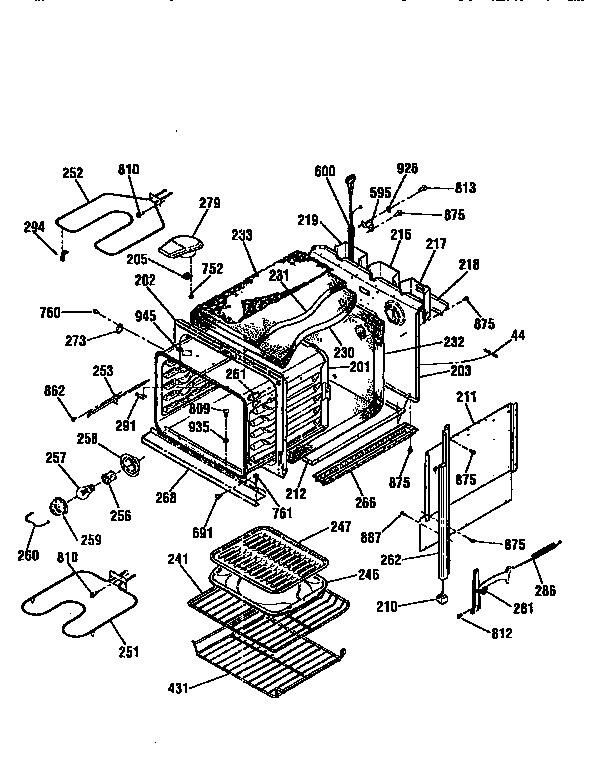

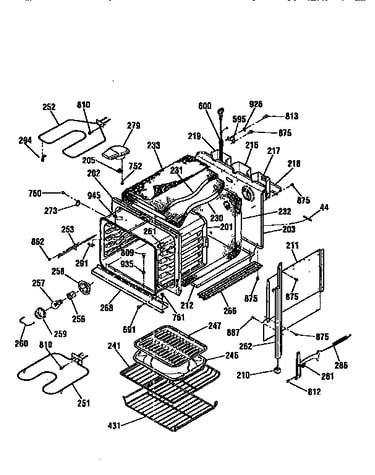

Body diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Sensor WB21X5347
#253

Body diagram

Sensor

Part #WB21X5347

Replaced by #WB21X5301

?
Manufacturer substitution
This part replaces WB21X5347. Substitute parts can look different from the original.
BEST SELLER
$144.49 |
8% OFF Phone Price : $156.49
In Stock
Range Broil Element WB44K5009
#252

Body diagram

Range broil element

Part #WB44K5009

BEST SELLER
$60.12 |
9% OFF Phone Price : $66.12
In Stock
Screw WB01K5150
#699

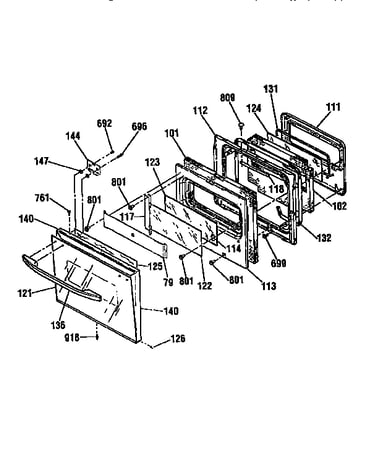

Door diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Wall Oven Light Lens WB36X0389
#259

Body diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Screw WB01M0001
#801

Door diagram

Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01K5138
#800

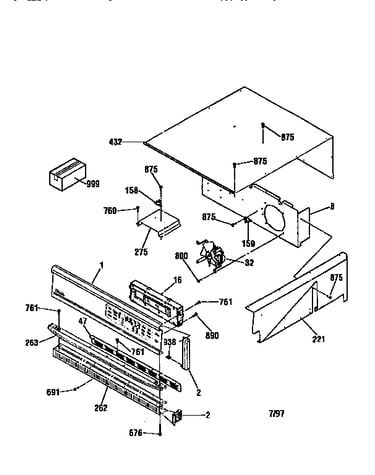

Control diagram

Screw

Part #WB01K5138

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5138. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Wall Oven Door Seal (replaces Wb02x9683, Wb2x9683, Wb32k5025, Wb32m2) WB32K5038
#132

Door diagram

Wall oven door seal (replaces wb02x9683, wb2x9683, wb32k5025, wb32m2)

Part #WB32K5038

$77.17 |
7% OFF Phone Price : $83.17
In Stock
Seal WB02X9168
#131

Door diagram

Seal

Part #WB02X9168

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces WB02X9168. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Screw WB01K5028
#760

Body diagram

Screw

Part #WB01K5028

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01K5028. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
