Model # DMC-FH22PR Official Panasonic digital camera

Here are the diagrams and repair parts for Official Panasonic DMC-FH22PR digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Panasonic Frame Unit VXP3355
#113

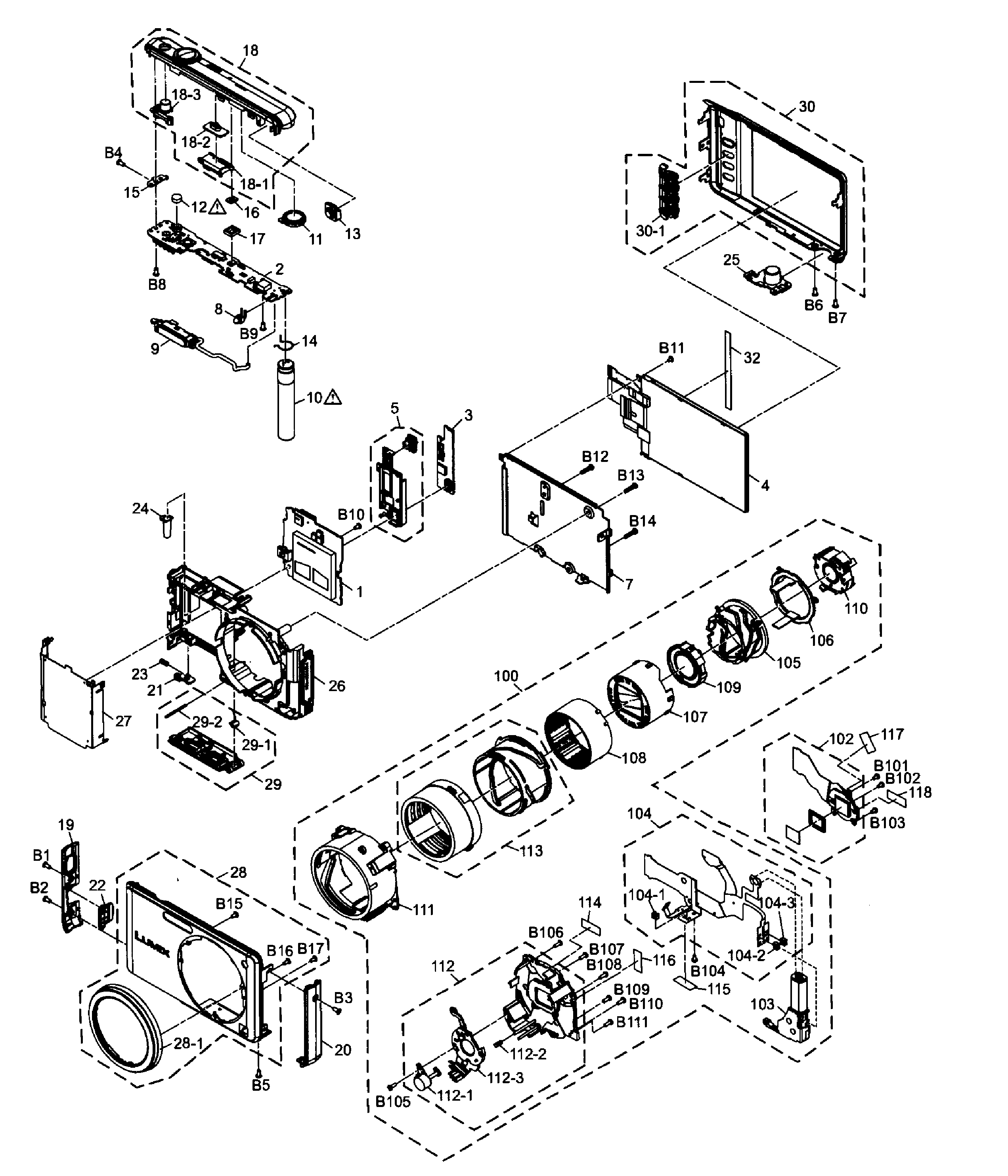

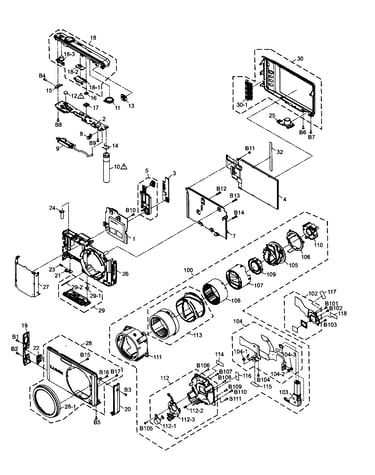

Cabinet parts diagram

Panasonic frame unit

Part #VXP3355

$38.30
In Stock
Panasonic E.cap. F2A2F8800003
#10

Cabinet parts diagram

Panasonic e.cap.

Part #F2A2F8800003

$10.67
In Stock
Panasonic Speaker L0AA01A00047
#11

Cabinet parts diagram

Panasonic speaker

Part #L0AA01A00047

$7.68
In Stock
Panasonic Af Led B3ADA0000230
#8

Cabinet parts diagram

Panasonic af led

Part #B3ADA0000230

This item is not returnable
$4.02
In Stock
Panasonic Ccd Unit VEK0Q32
#102

Cabinet parts diagram

Panasonic ccd unit

Part #VEK0Q32

$135.81
In Stock
Panasonic Tape(a) VZT0938
Panasonic tape(a)

Part #VZT0938

This item is not returnable
$2.16
In Stock
Panasonic Mic Damper VMT1968
#16

Cabinet parts diagram

Panasonic mic damper

Part #VMT1968

This item is not returnable
$4.02
In Stock
Panasonic Tape(b) VZT0939
#116

Cabinet parts diagram

Panasonic tape(b)

Part #VZT0939

This item is not returnable
$2.16
In Stock
Panasonic A/v Cable K1HA08CD0027
#NI

Cabinet parts diagram

Panasonic a/v cable

Part #K1HA08CD0027

$20.50
In Stock
Panasonic Frame Plat VMP9563
#7

Cabinet parts diagram

Panasonic frame plat

Part #VMP9563

This item is not returnable
$4.02
In Stock
