Model # GSG20IBMDFBB Official GE refrigerator - m series

Here are the diagrams and repair parts for Official GE GSG20IBMDFBB refrigerator - m series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

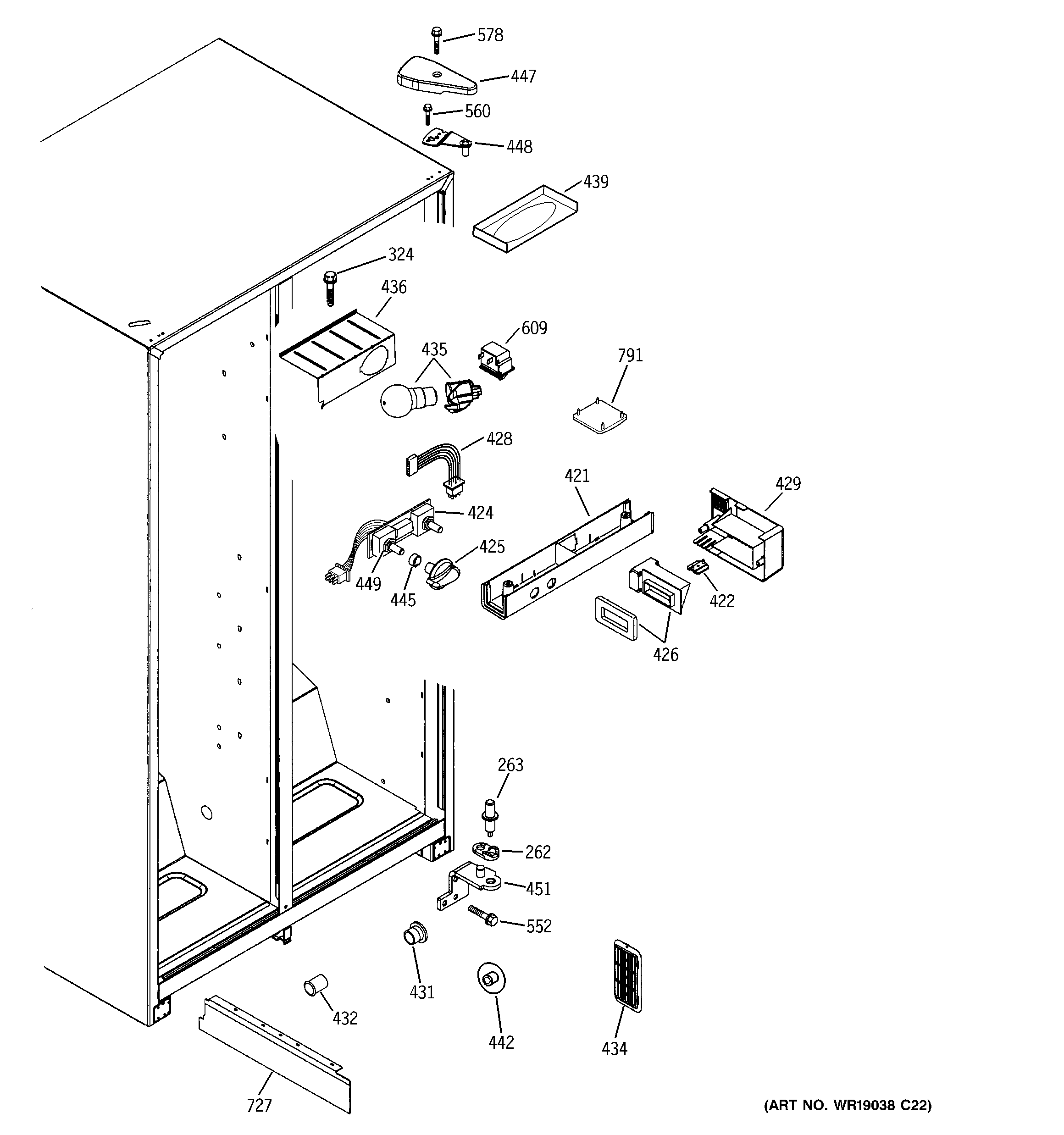

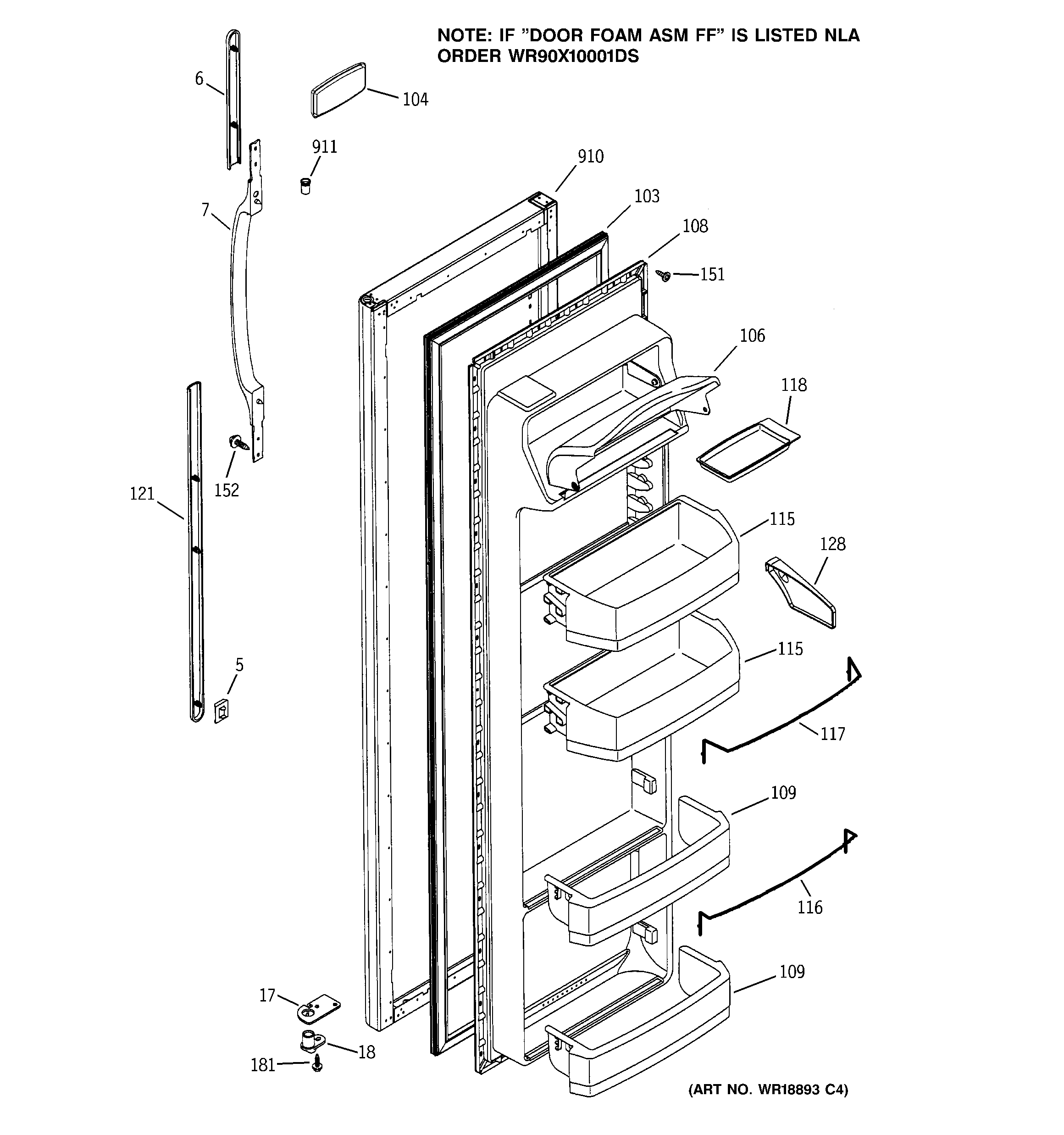

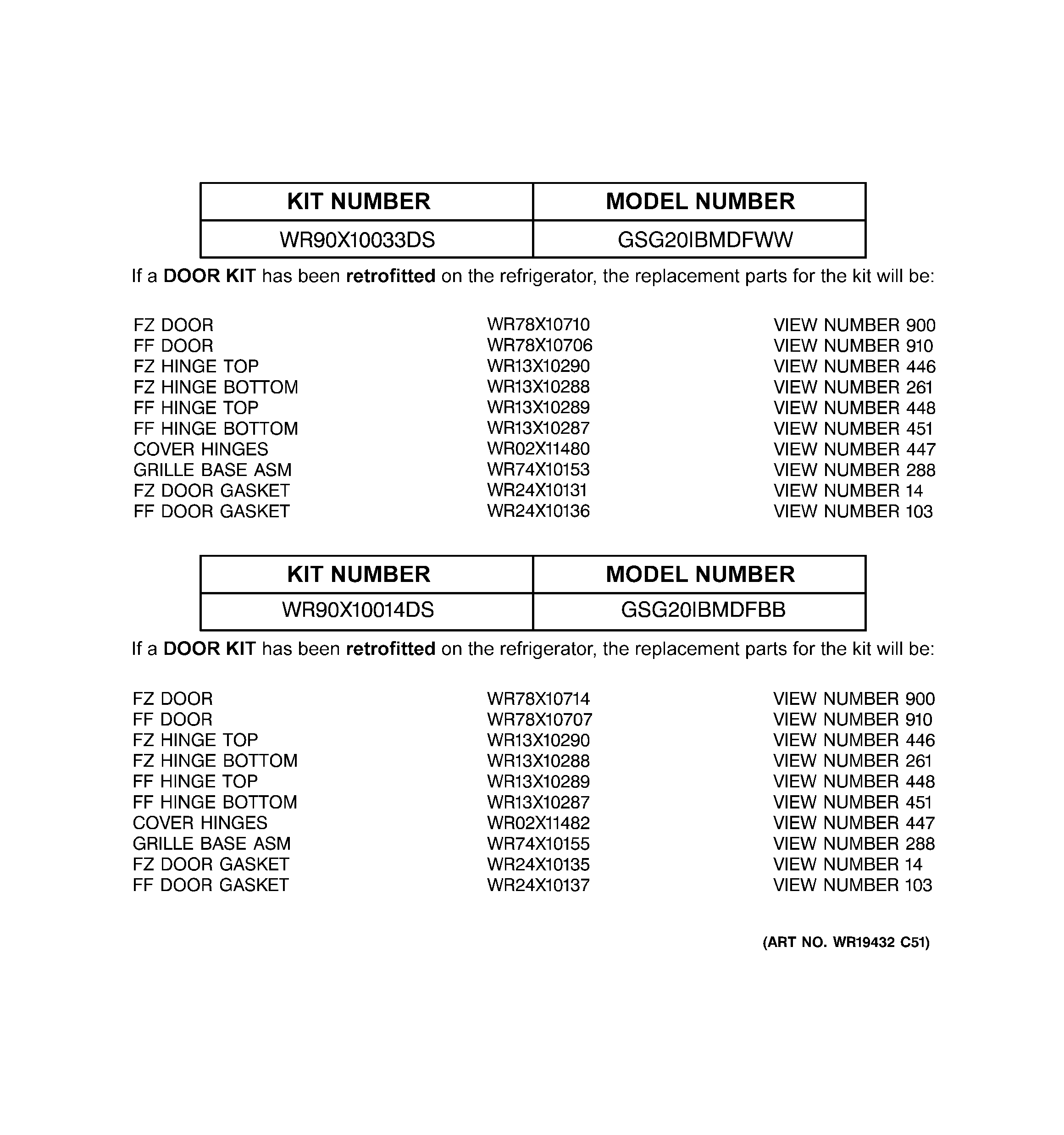

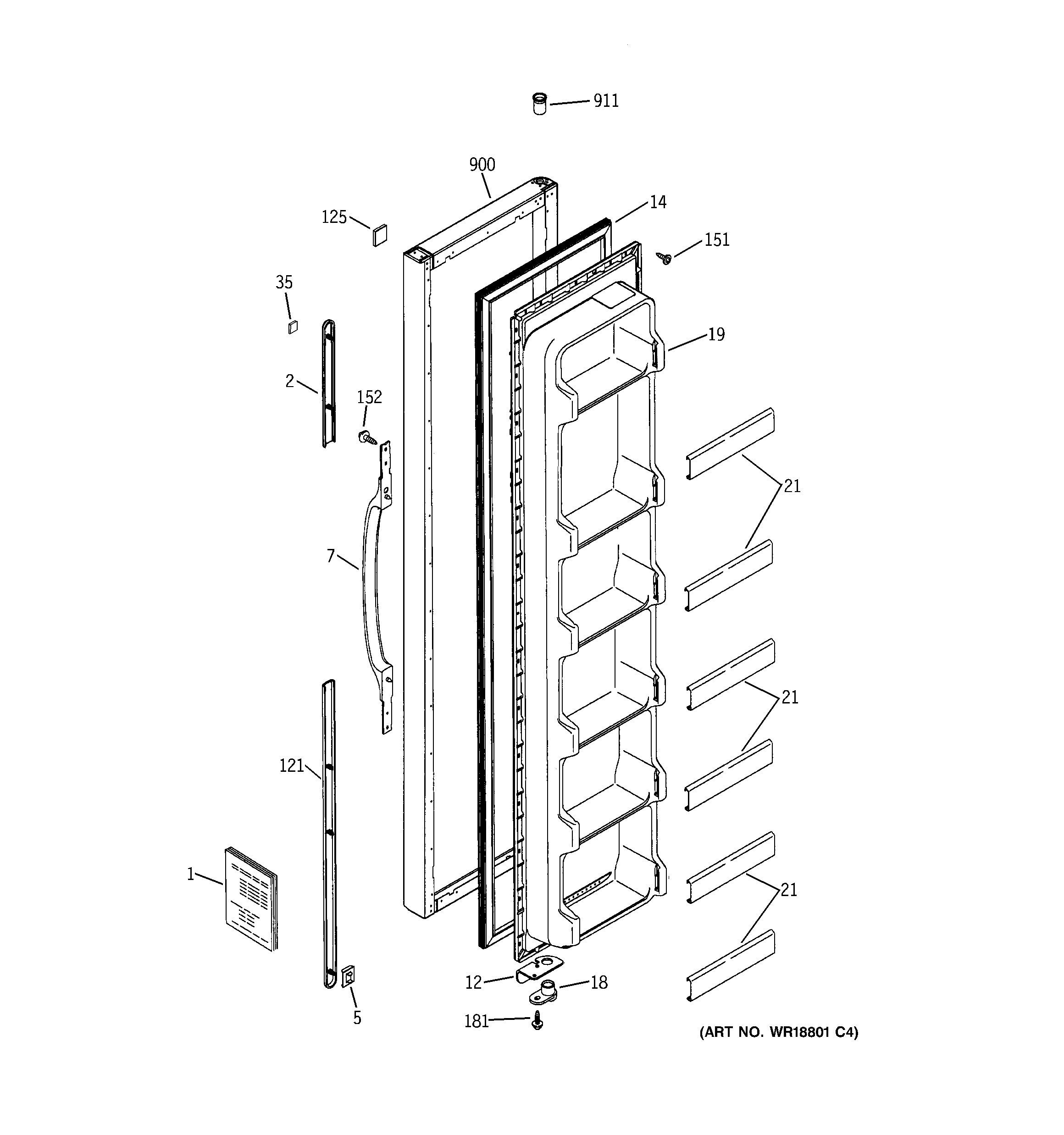

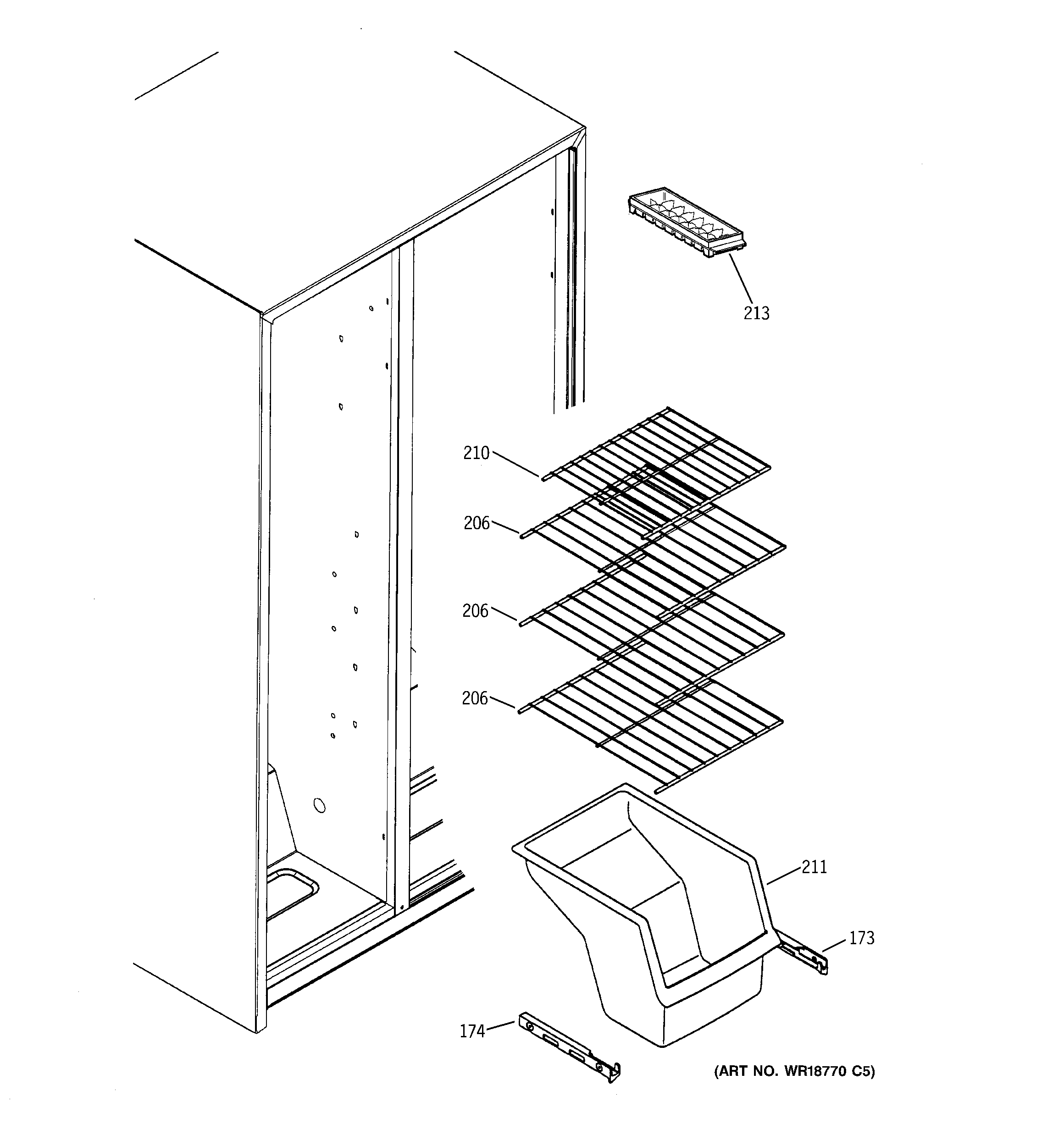

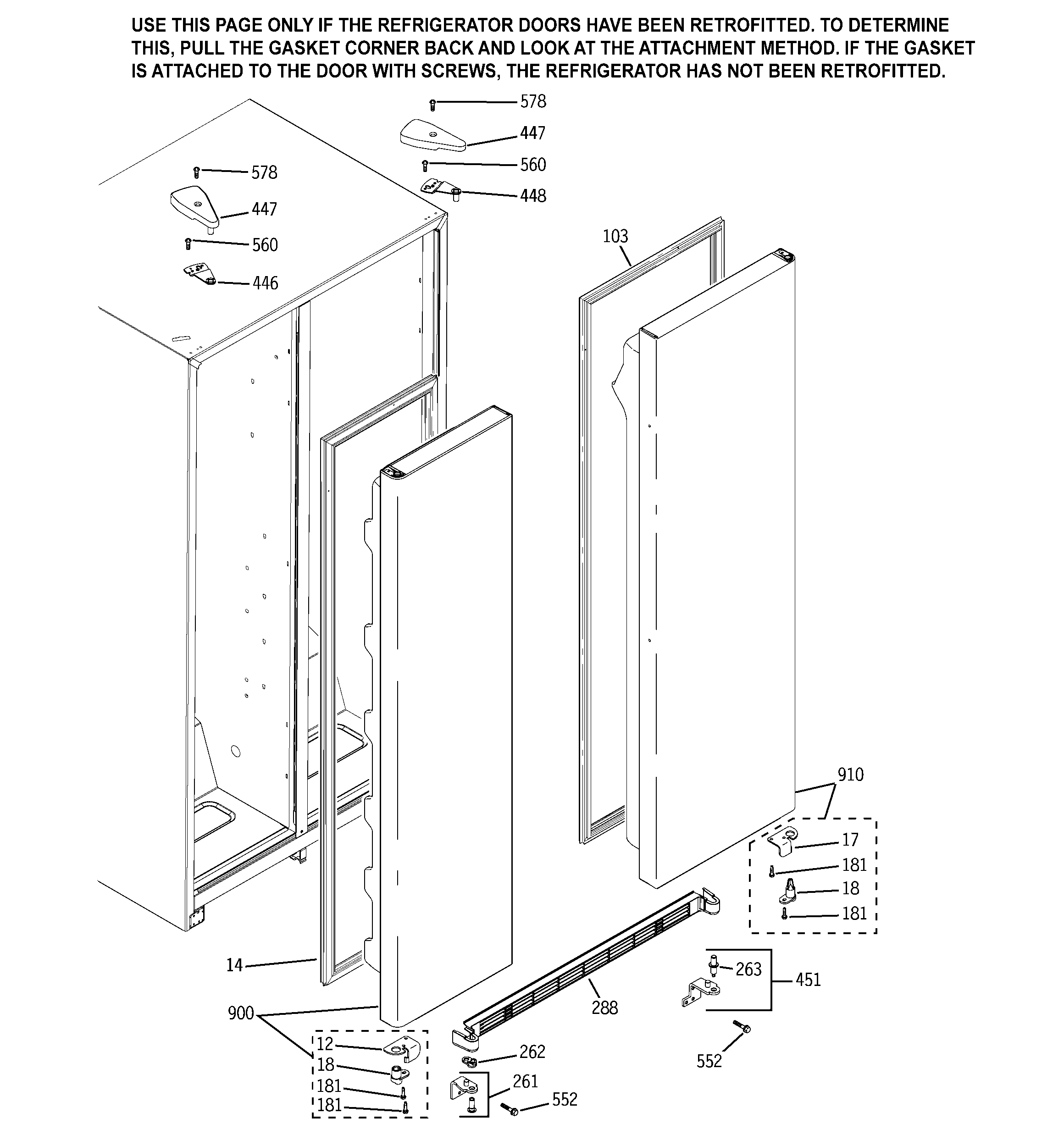

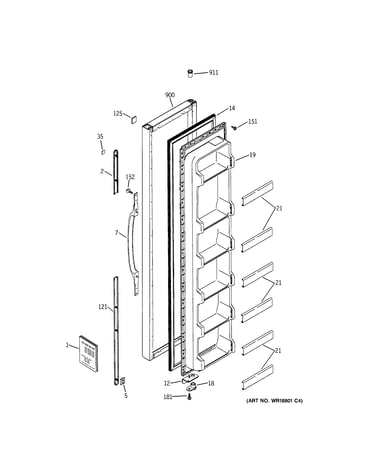

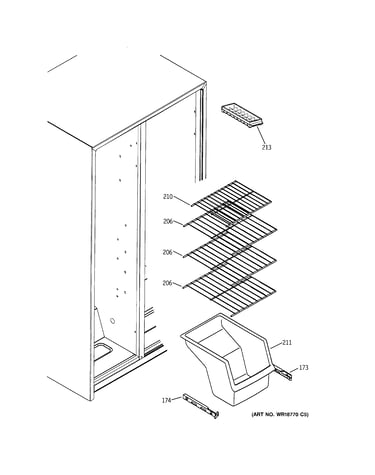

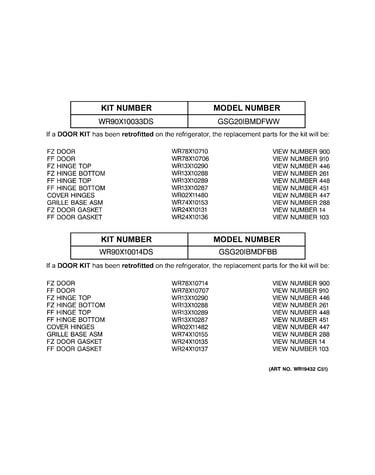

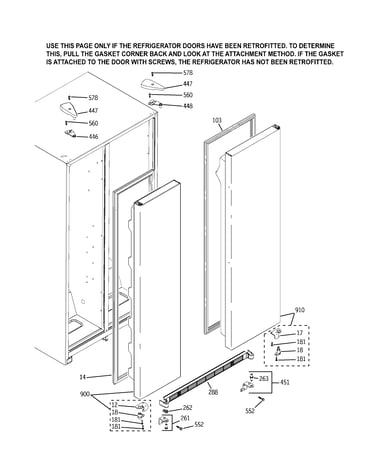

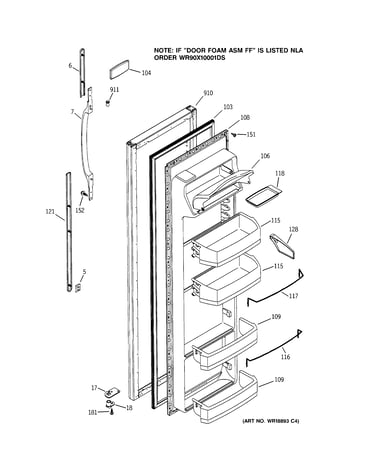

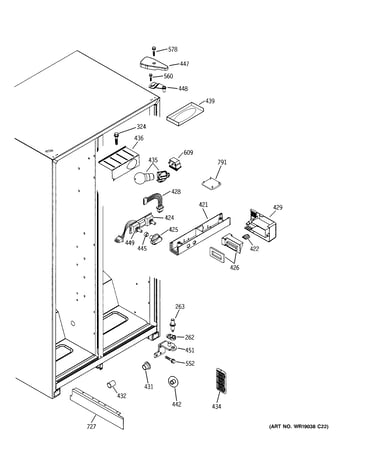

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 197 parts  |
Refrigerator Temperature Sensor WR50X10027
Refrigerator temperature sensor

Part #WR50X10027

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR50X10027. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Dryer Filter WR86X0096
#740

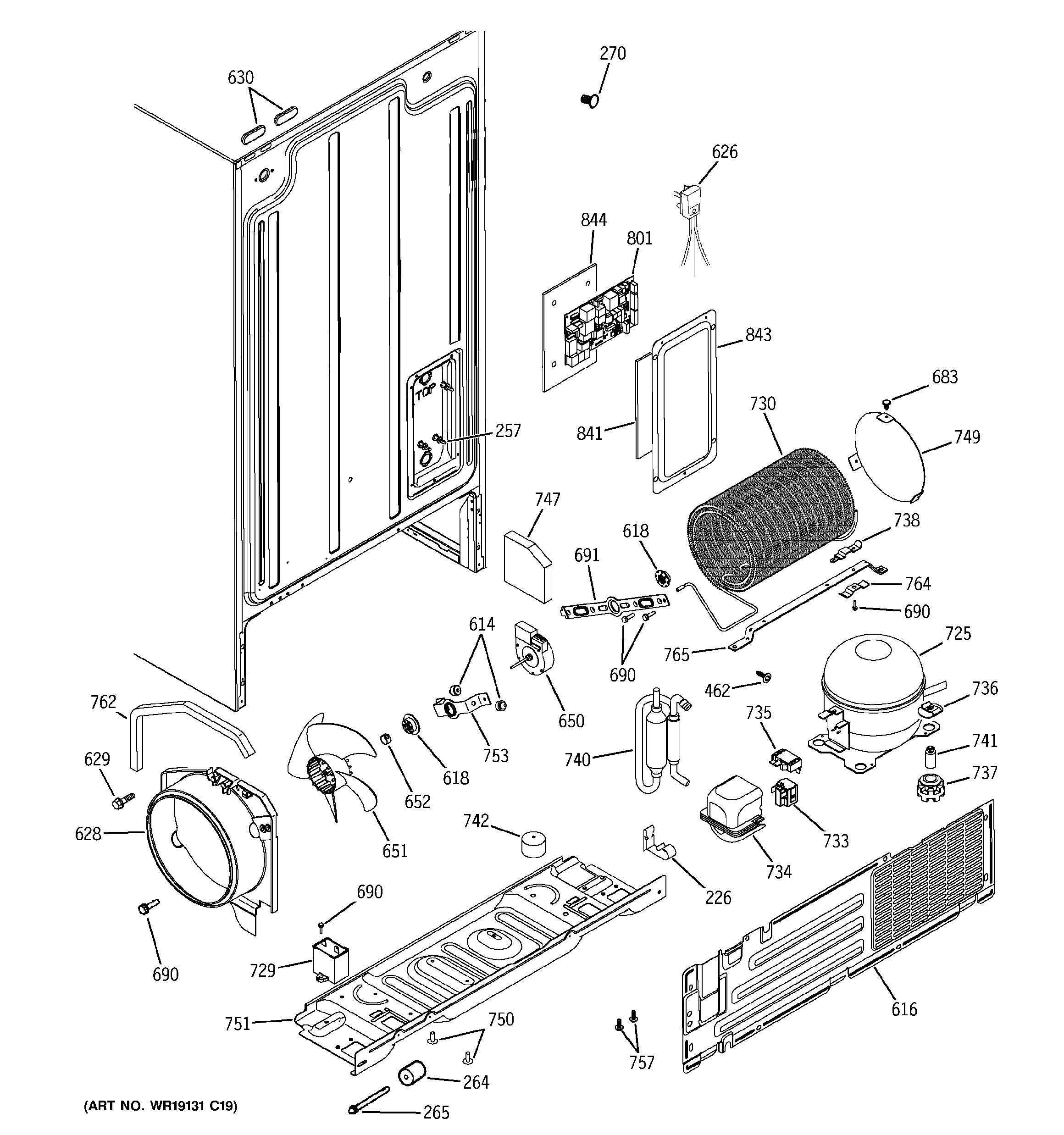

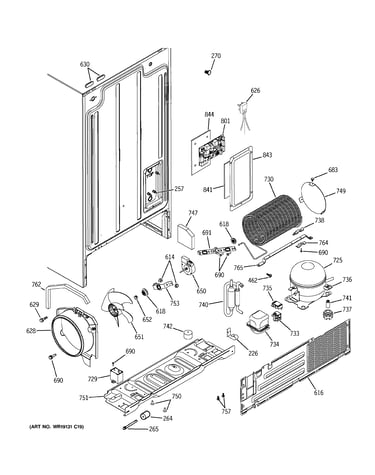

Sealed system & mother board diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Thermostat WR50X10015
#240

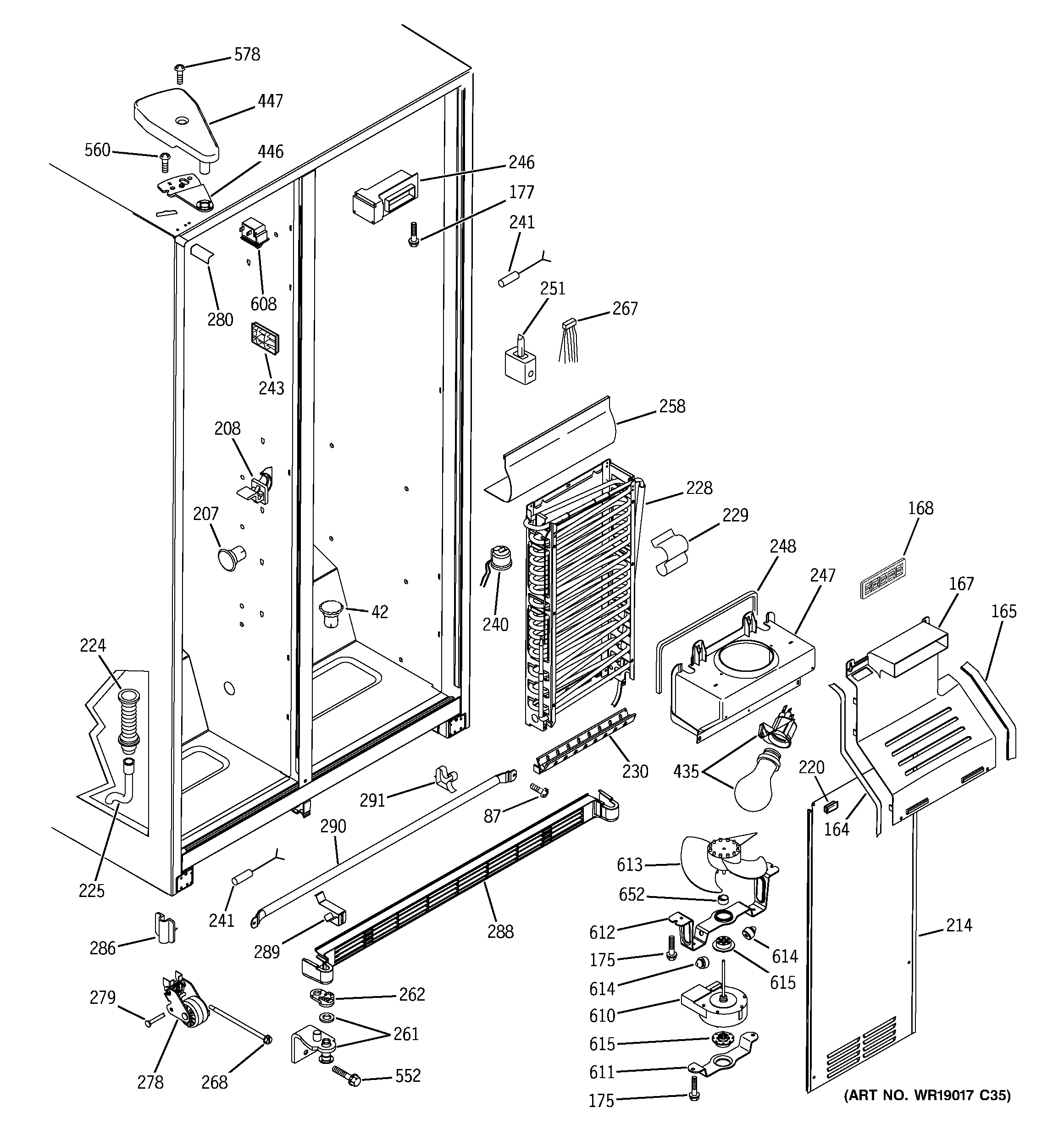

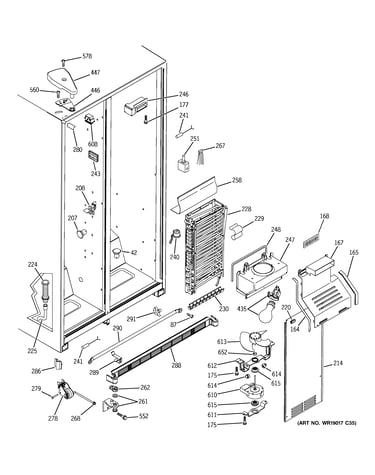

Freezer section diagram

Refrigerator thermostat

Part #WR50X10015

Replaced by #WR50X10068

?
Manufacturer substitution
This part replaces WR50X10015. Substitute parts can look different from the original.
BEST SELLER
$20.93 |
22% OFF Phone Price : $26.93
In Stock
Refrigerator Evaporator Blade WR60X10075
#613

Freezer section diagram

Refrigerator evaporator blade

Part #WR60X10075

Replaced by #WR60X30922

?
Manufacturer substitution
This part replaces WR60X10075. Substitute parts can look different from the original.
BEST SELLER
$85.08 |
7% OFF Phone Price : $91.08
In Stock
Comp Rep Kit WR87X10044
#725

Sealed system & mother board diagram

Comp rep kit

Part #WR87X10044

Replaced by #WR87X10111

?
Manufacturer substitution
This part replaces WR87X10044. Substitute parts can look different from the original.
BEST SELLER
$608.56 |
$12.00 OFF Phone Price : $620.56
In Stock
Motor Dc Con WR60X10065
#650

Sealed system & mother board diagram

Motor dc con

Part #WR60X10065

Replaced by #WR60X10209

?
Manufacturer substitution
This part replaces WR60X10065. Substitute parts can look different from the original.
BEST SELLER
$57.54 |
9% OFF Phone Price : $63.54
In Stock
Refrigerator Evaporator Fan Motor Grommet (replaces Wr02x12008) WR02X10519
#615

Freezer section diagram

Refrigerator evaporator fan motor grommet (replaces wr02x12008)

Part #WR02X10519

Replaced by #WR02X12008

?
Manufacturer substitution
This part replaces WR02X10519. Substitute parts can look different from the original.
BEST SELLER
$19.32
In Stock
Refrigerator Slide Assembly, Right WR72X0240
#479

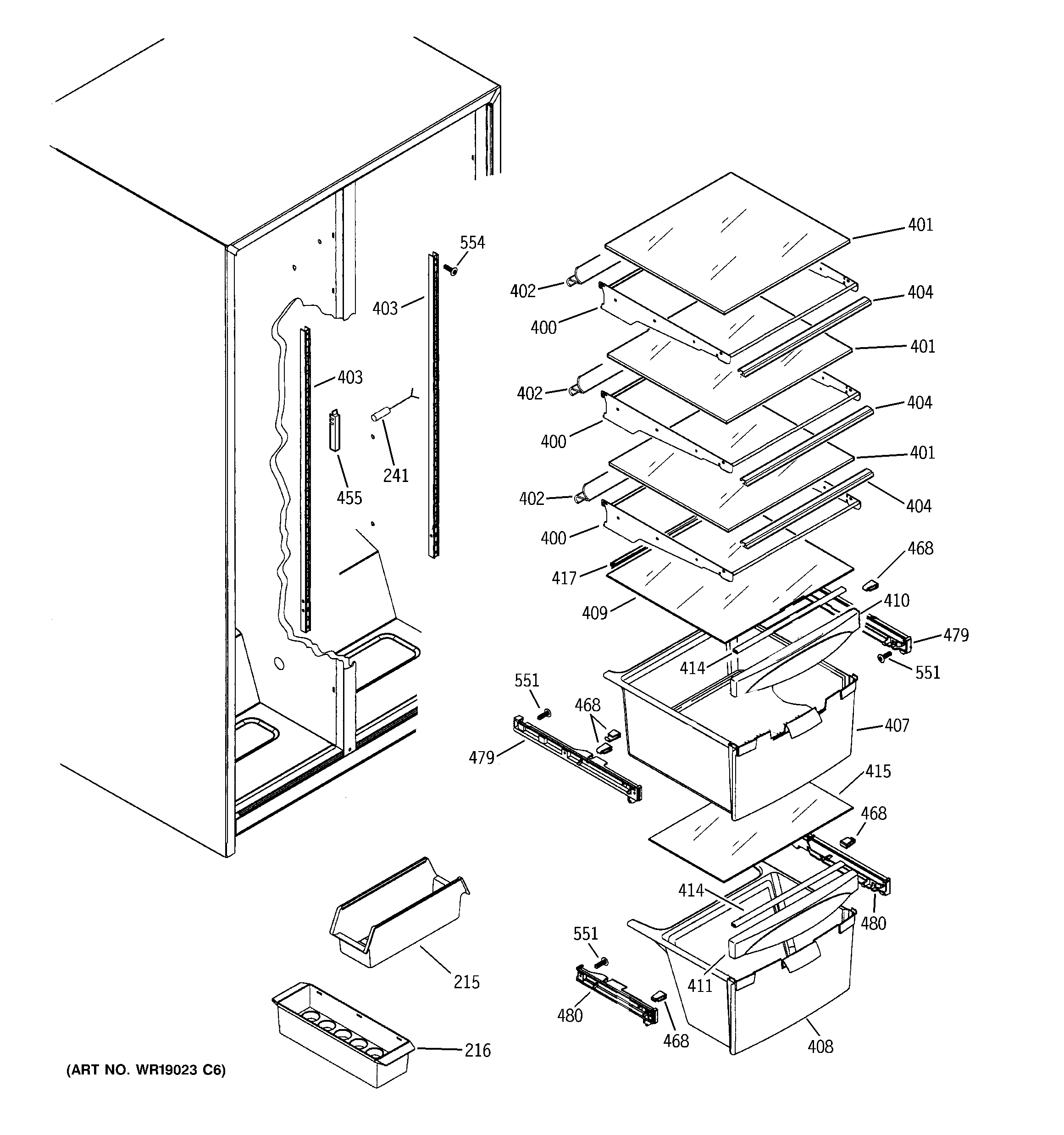

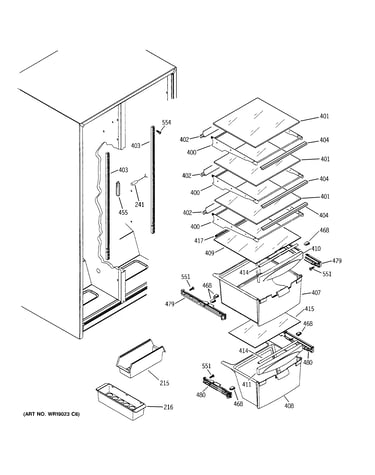

Fresh food shelves diagram

Refrigerator slide assembly, right

Part #WR72X0240

Replaced by #WR72X240

?
Manufacturer substitution
This part replaces WR72X0240. Substitute parts can look different from the original.
BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
Ge Profile Refrigerator Condenser Coil (replaces Wr49x10151, Wr84x10065, Wr84x10071, Wr84x10072, Wr84x10074, Wr84x10078, Wr84x37865, Wr87x37966) WR84X10022
#730

Sealed system & mother board diagram

Ge profile refrigerator condenser coil (replaces wr49x10151, wr84x10065, wr84x10071, wr84x10072, wr84x10074, wr84x10078, wr84x37865, wr87x37966)

Part #WR84X10022

BEST SELLER
$386.88 |
$12.00 OFF Phone Price : $398.88
In Stock
Refrigerator Slide Assembly, Left WR72X0239
#479

Fresh food shelves diagram

Refrigerator slide assembly, left

Part #WR72X0239

Replaced by #WR72X239

?
Manufacturer substitution
This part replaces WR72X0239. Substitute parts can look different from the original.
BEST SELLER
$26.43 |
19% OFF Phone Price : $32.43
In Stock
