Model # 93210400 (101-999999) Official Ariens snow thrower - 93210400

Here are the diagrams and repair parts for Official Ariens 93210400-101-999999 snow thrower - 93210400, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

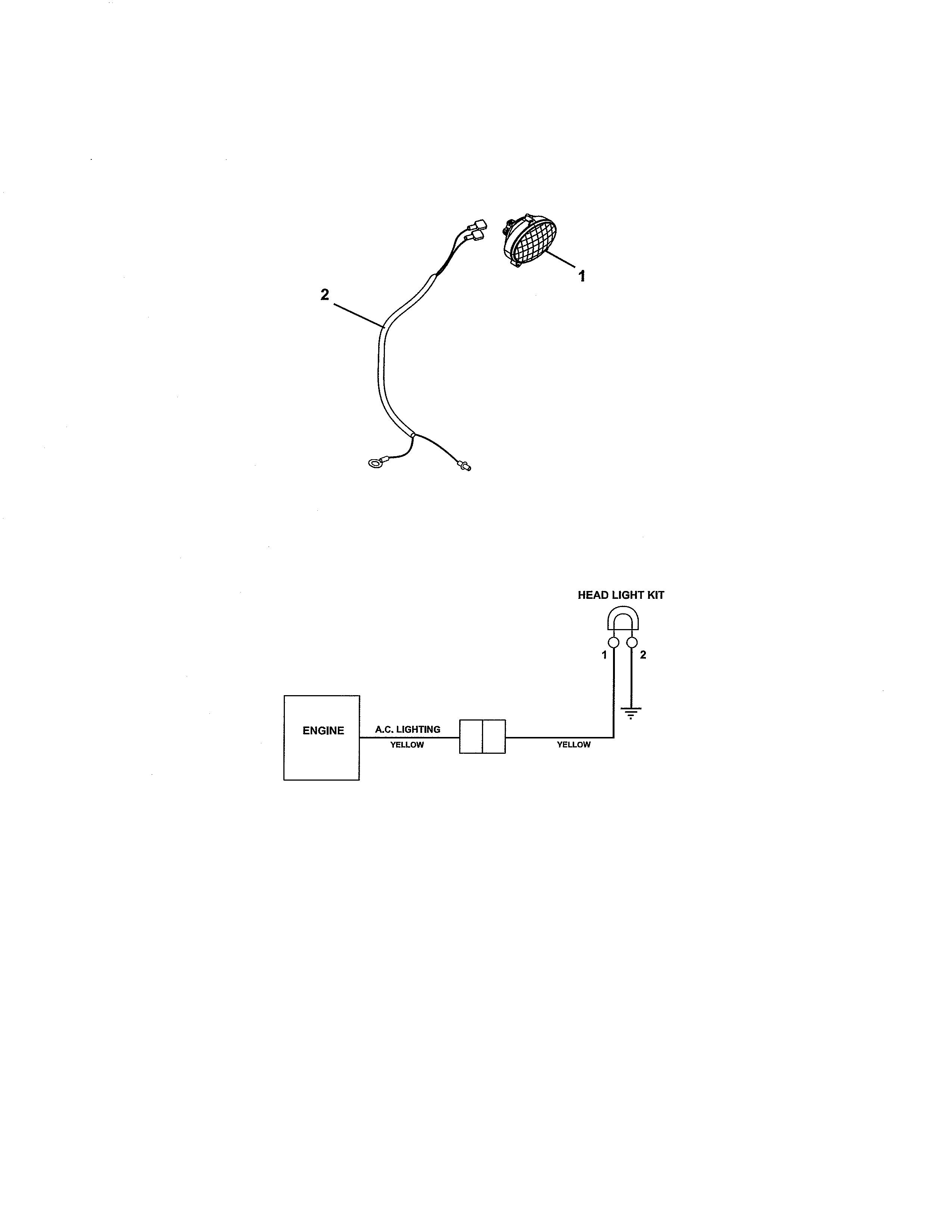

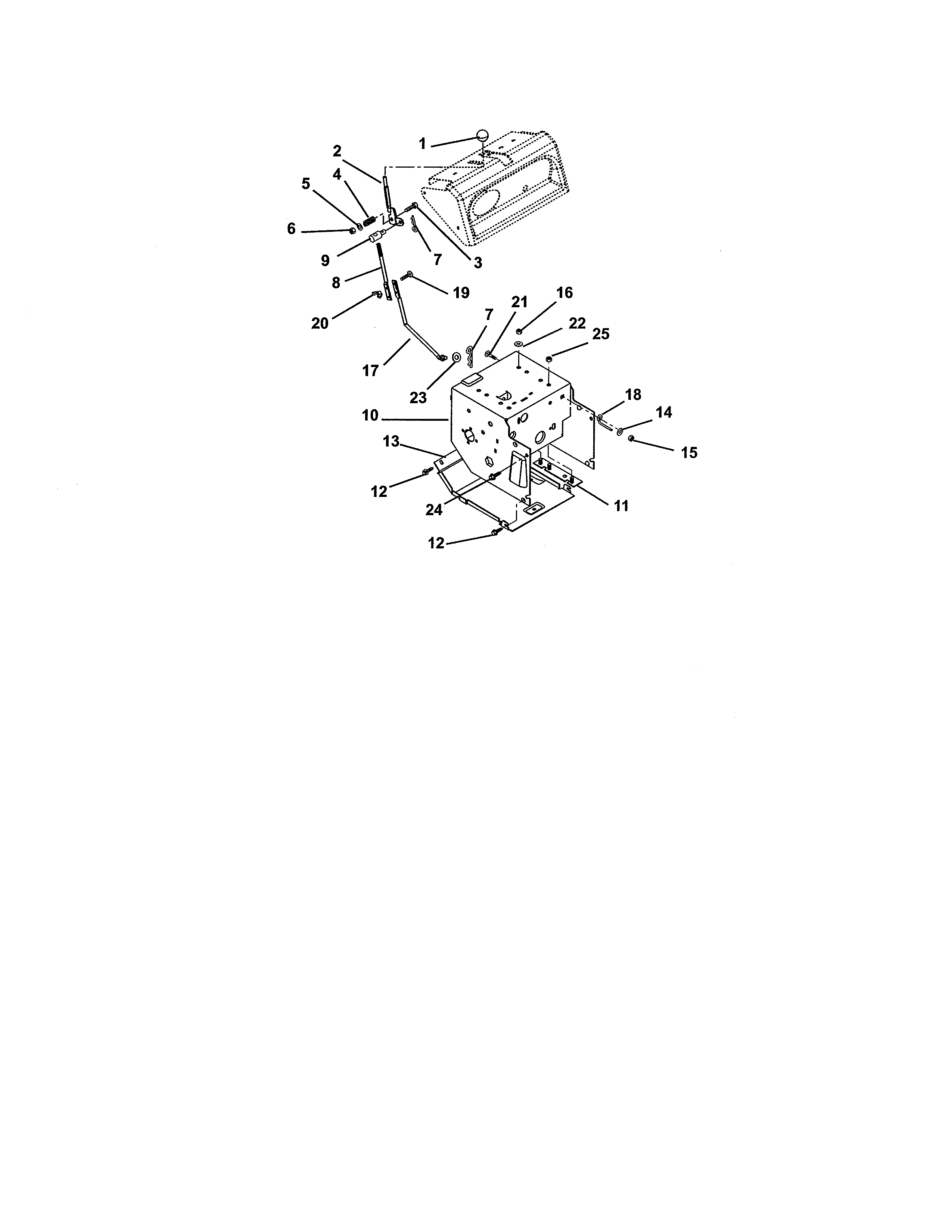

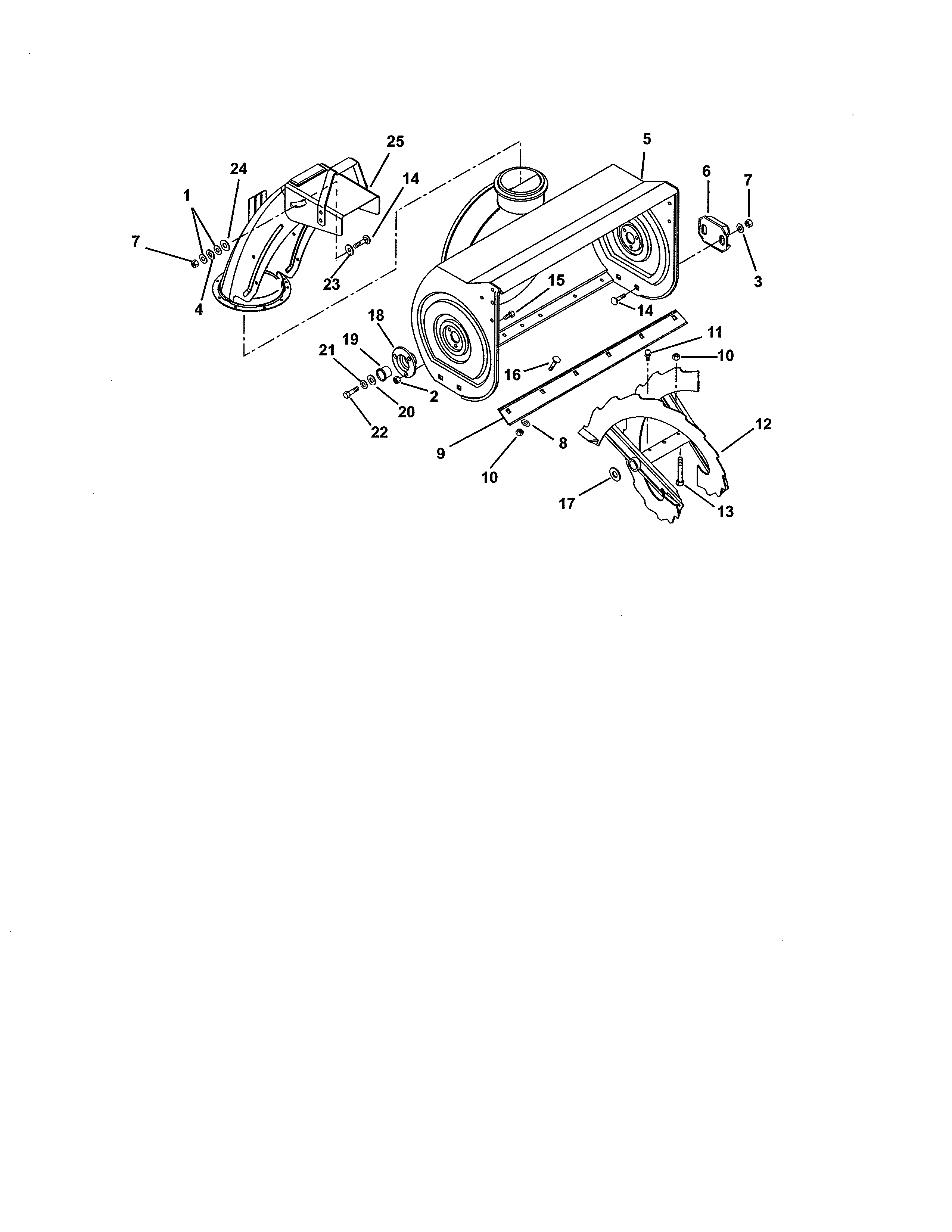

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 230 parts  |
Snowblower Wheel Lock Pin 07053700
#29

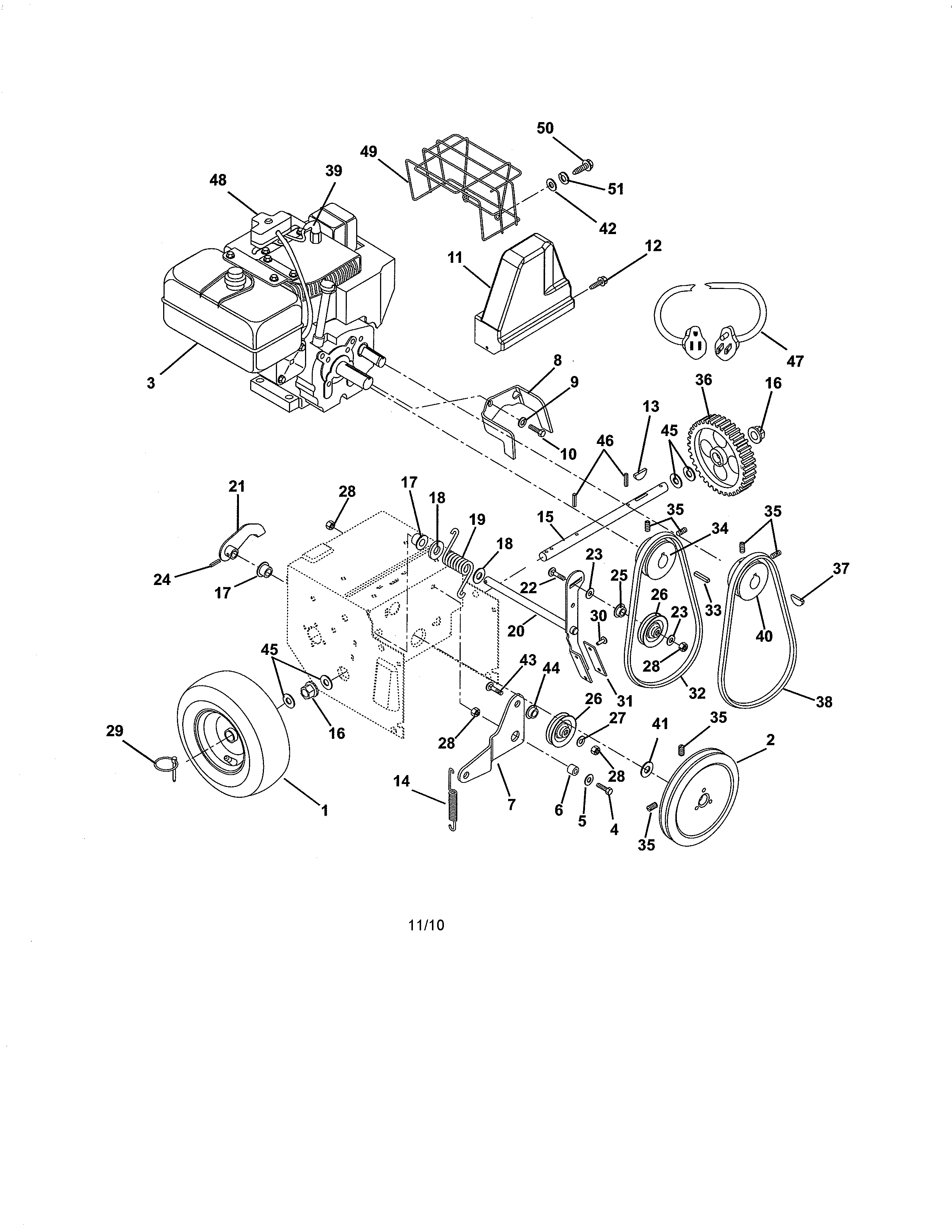

Engine/belt drive diagram

Snowblower wheel lock pin

Part #07053700

This item is not returnable
$5.08 |
16% OFF Phone Price : $6.08
In Stock
Lawn & Garden Equipment Flat Washer 06436200
Lawn & garden equipment flat washer

Part #06436200

This item is not returnable
$3.22
In Stock
Lawn & Garden Equipment Hex Head Bolt 05947000
Lawn & garden equipment hex head bolt

Part #05947000

This item is not returnable
$3.22
In Stock
Ariens Axle Shaft 03239800
#15

Engine/belt drive diagram

Ariens axle shaft

Part #03239800

$123.58
In Stock
Ariens Bumper 07511800
#11

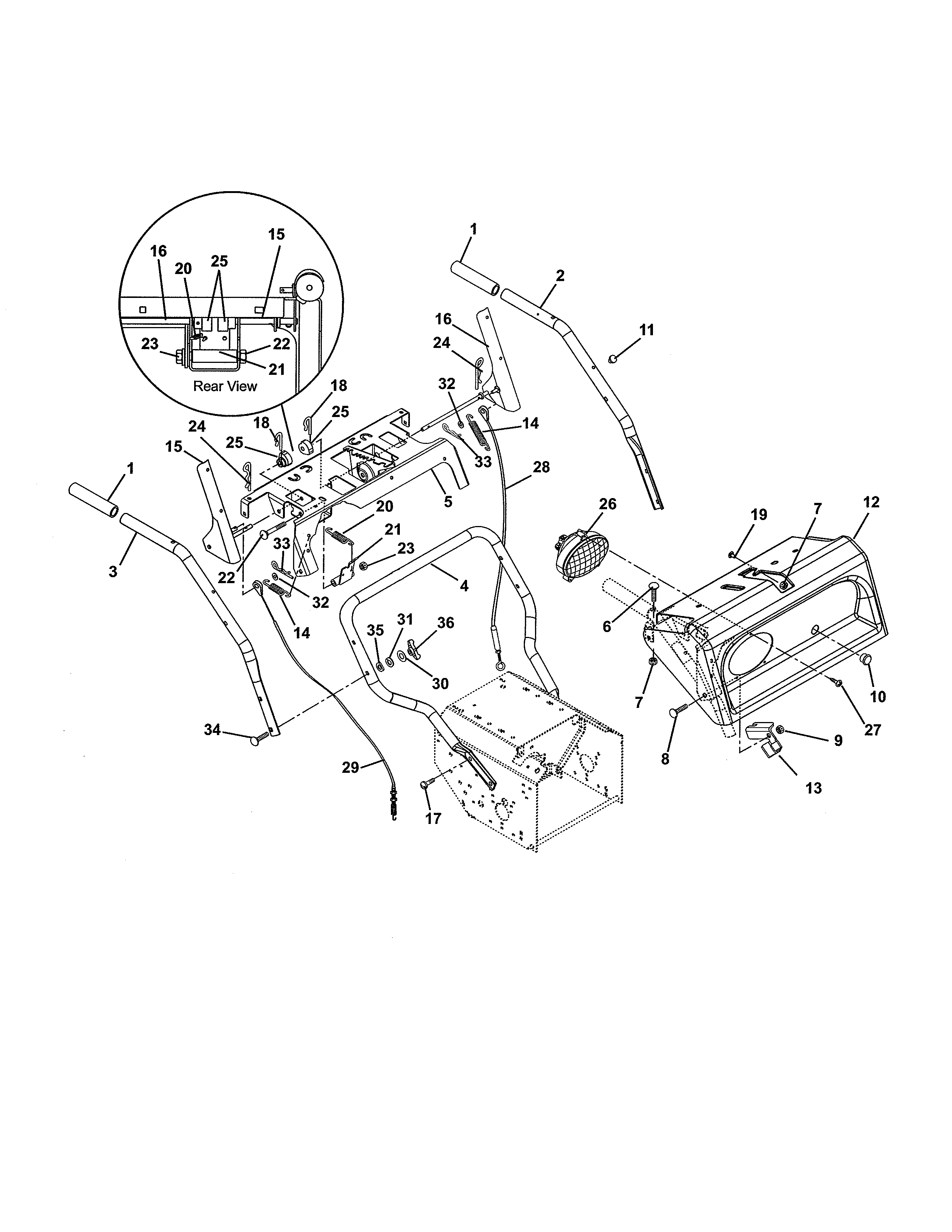

Handlebars/controls diagram

Ariens bumper

Part #07511800

$7.63
In Stock
Ariens Key 06601800
#33

Engine/belt drive diagram

Ariens key

Part #06601800

$8.26
In Stock
Craftsman Bshg-flg.500 05503700
Craftsman bshg-flg.500

Part #05503700

This item is not returnable
$2.46
In Stock
Snowblower Friction Plate 03201100
#21

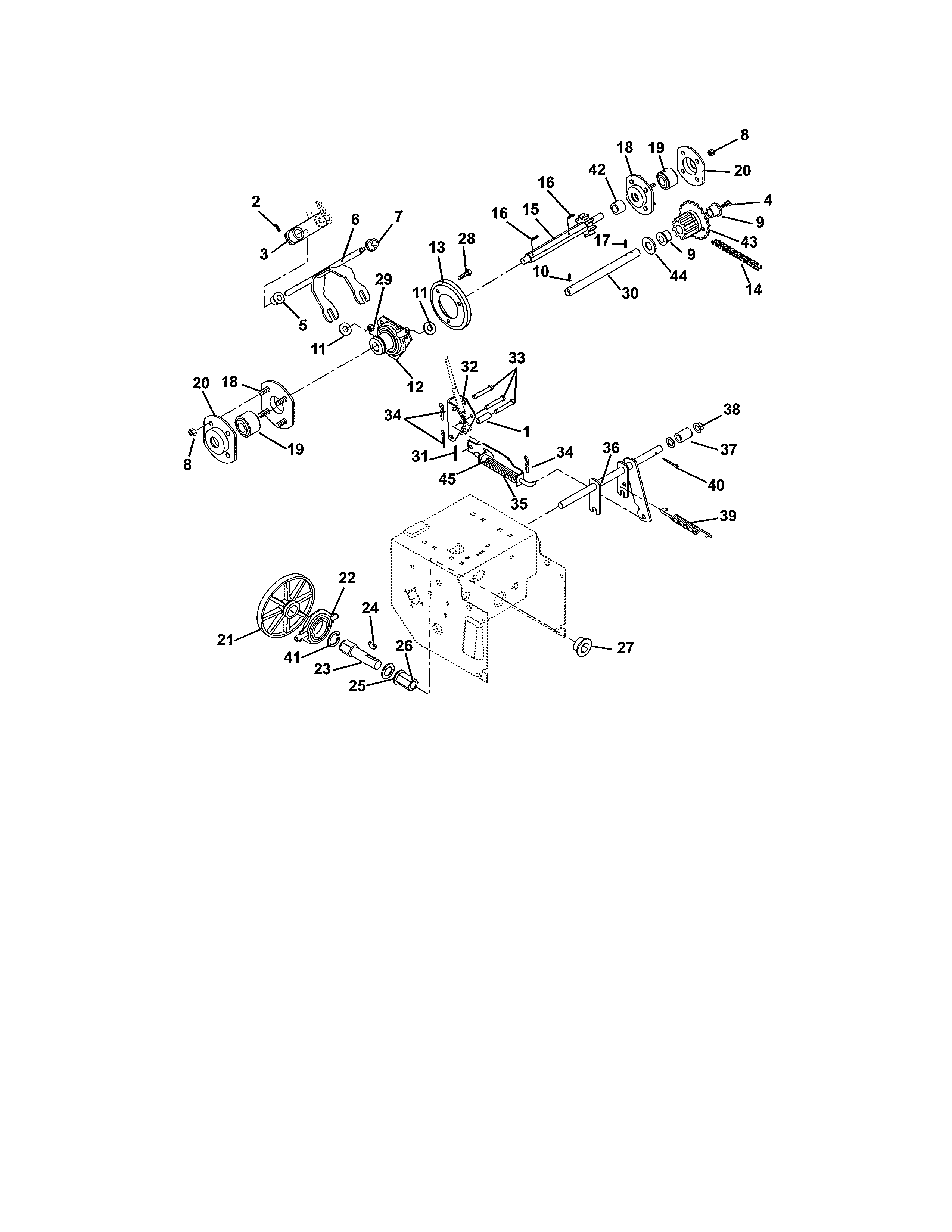

Friction drive diagram

Snowblower friction plate

Part #03201100

$119.14
In Stock
Tap Screw 07412900
#23

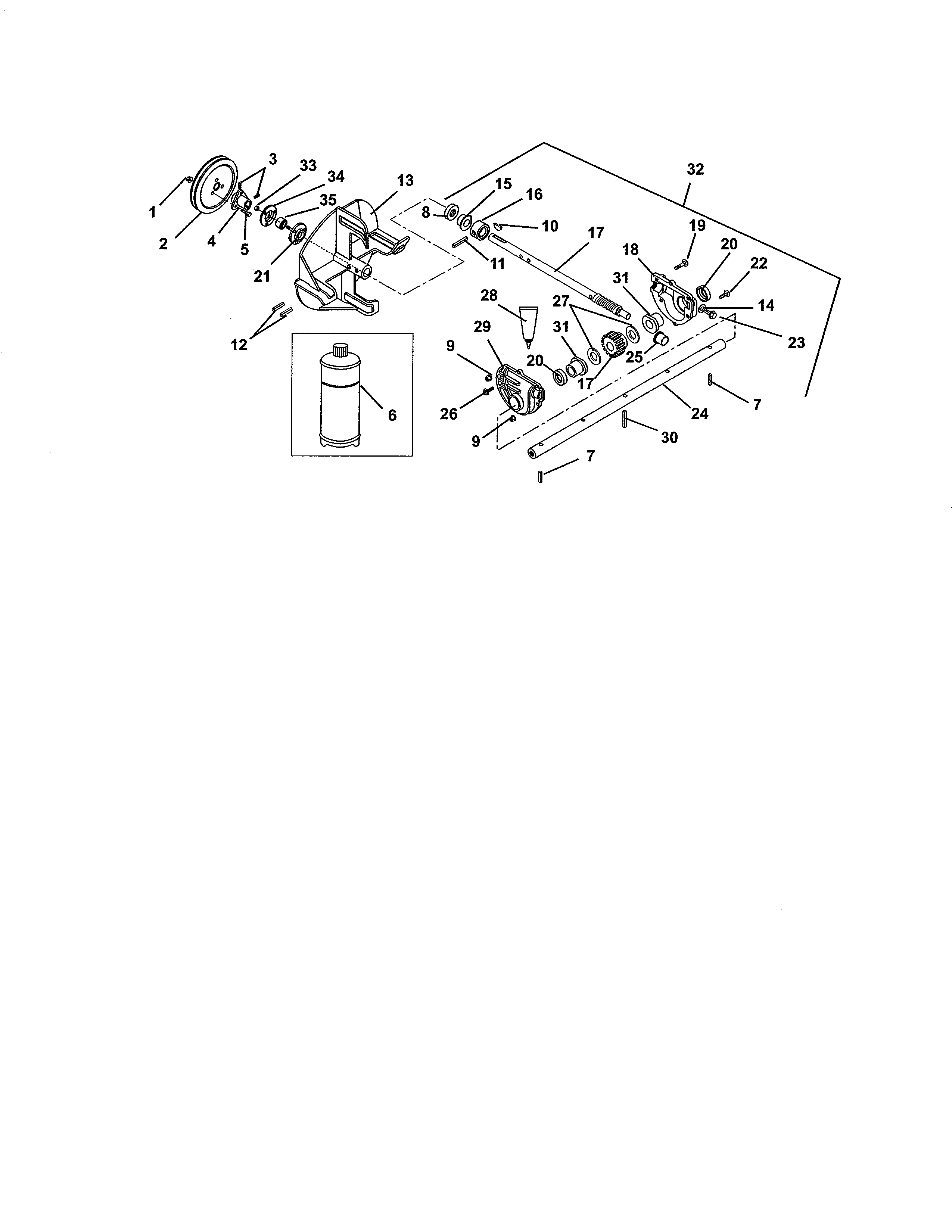

Gear case/impeller diagram

Tap screw

Part #07412900

This item is not returnable
$2.30
In Stock
Lawn & Garden Equipment Bolt 06224400
#8

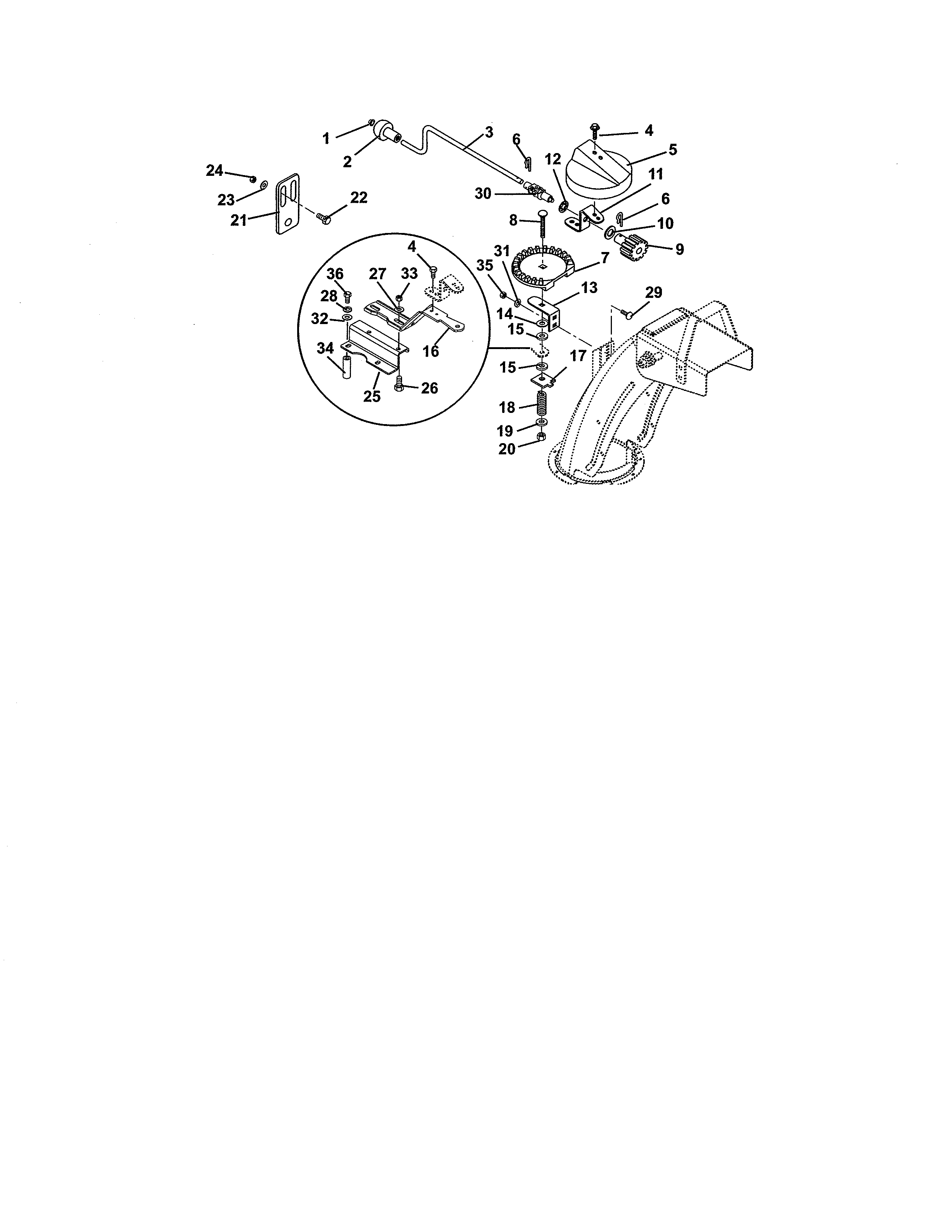

Discharge chute crank diagram

Lawn & garden equipment bolt

Part #06224400

This item is not returnable
$2.16
In Stock
