Model # 198700 TO 198799 (0141) Official Briggs & Stratton engine

Here are the diagrams and repair parts for Official Briggs & Stratton 198700-TO-198799-0141 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

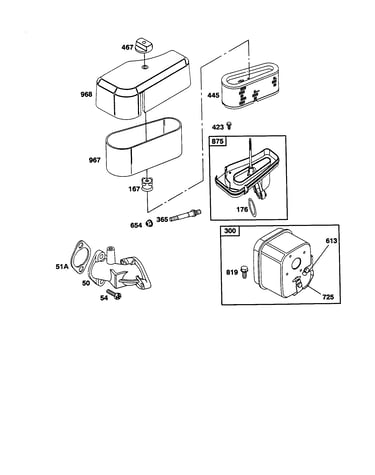

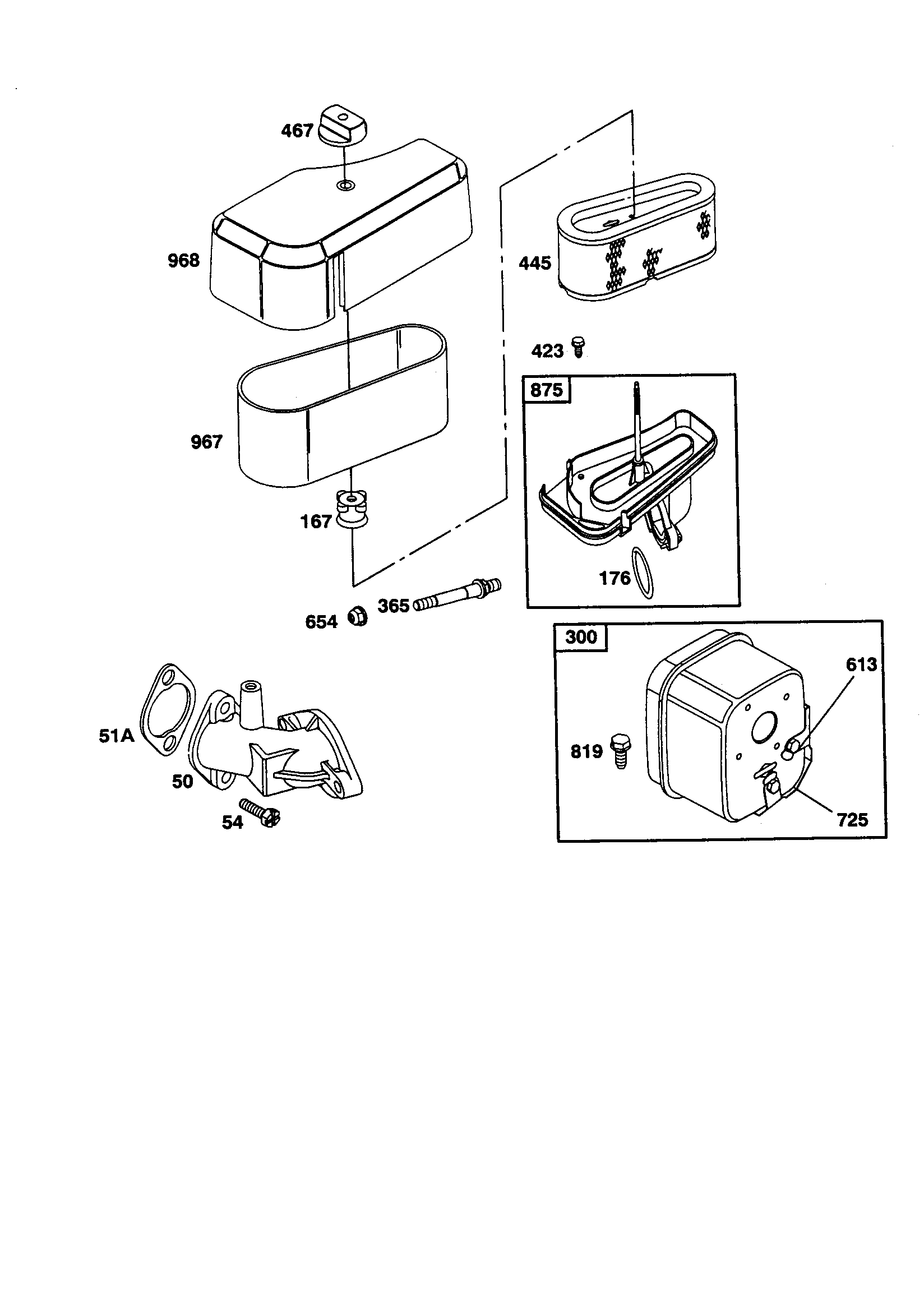

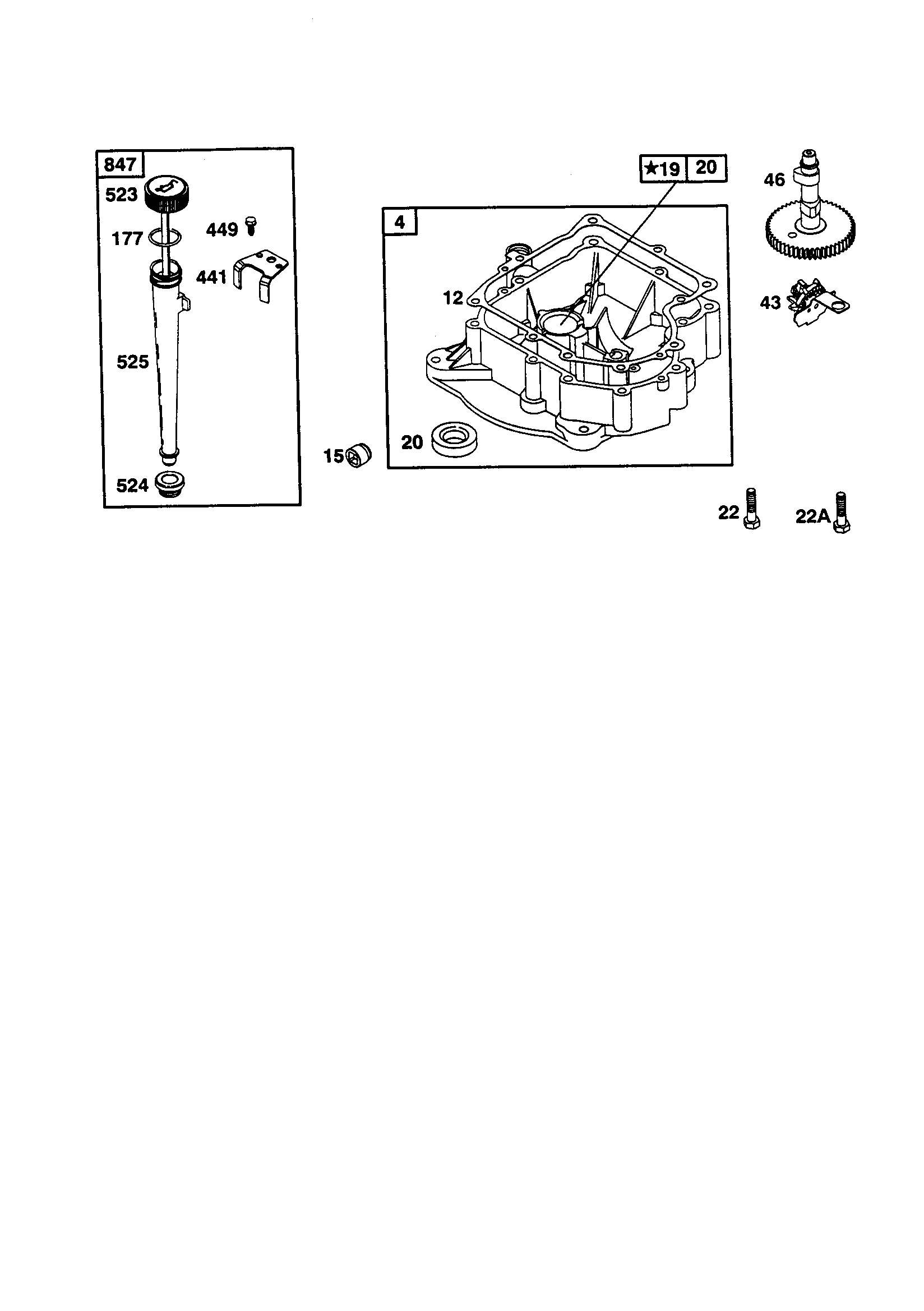

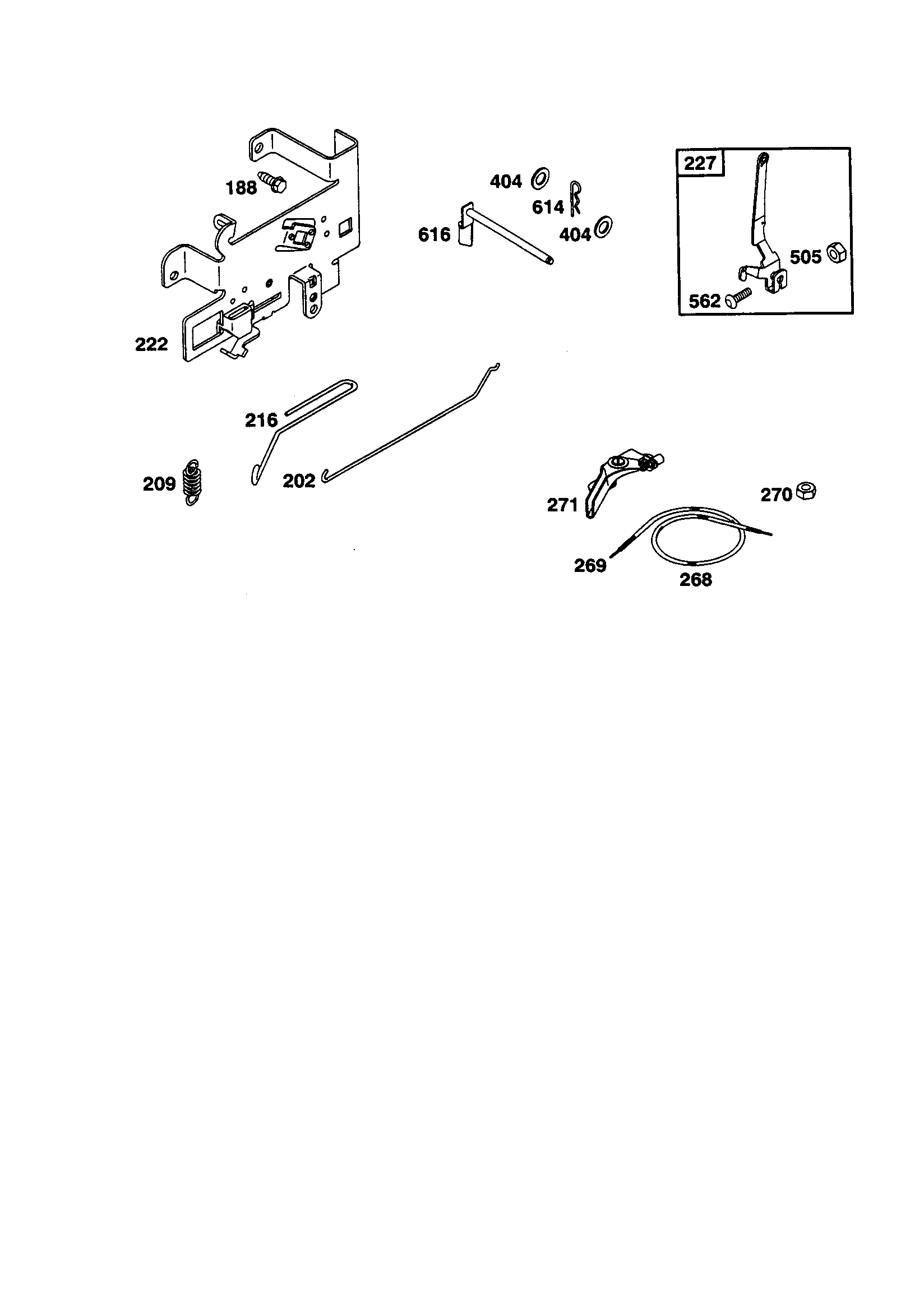

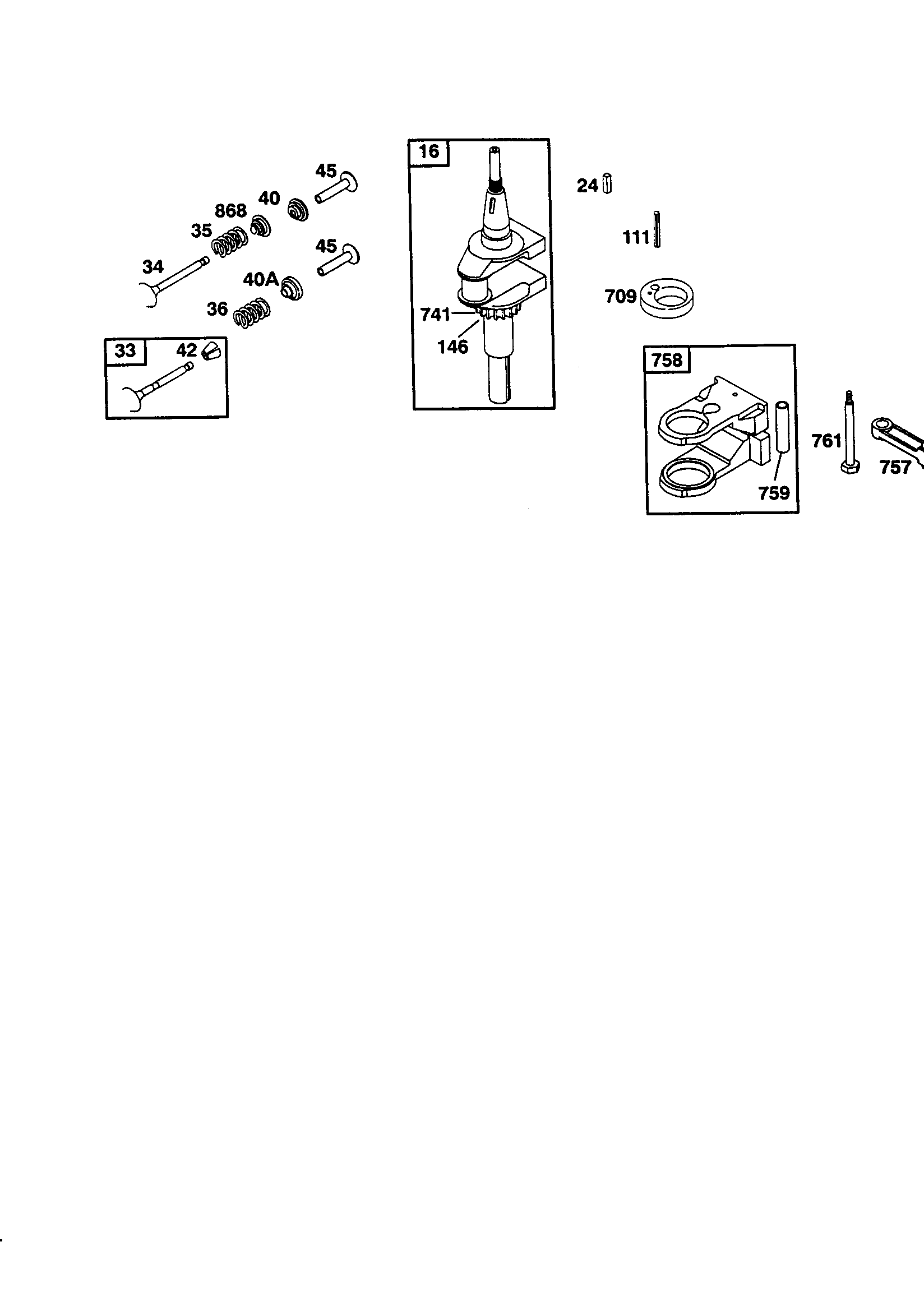

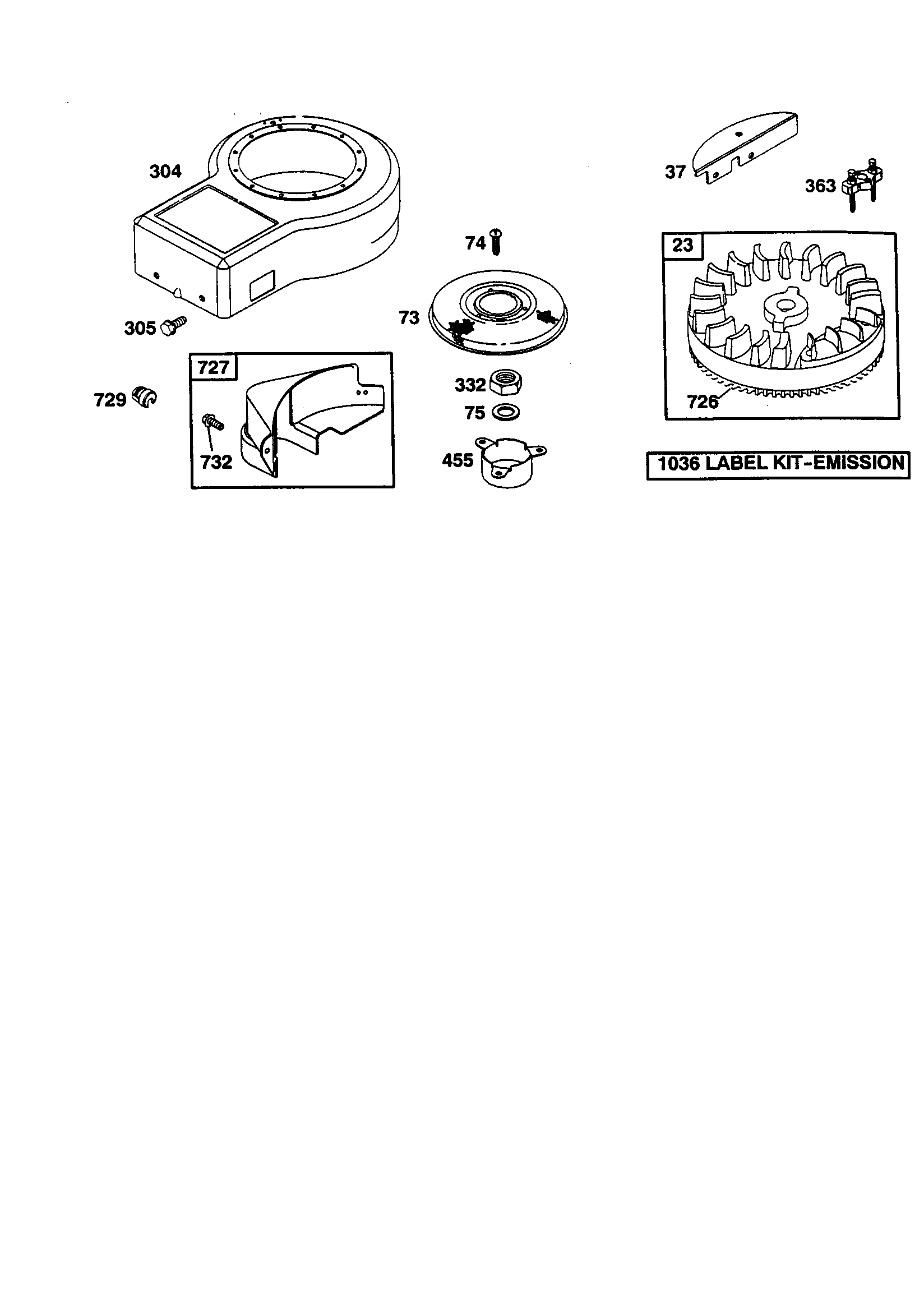

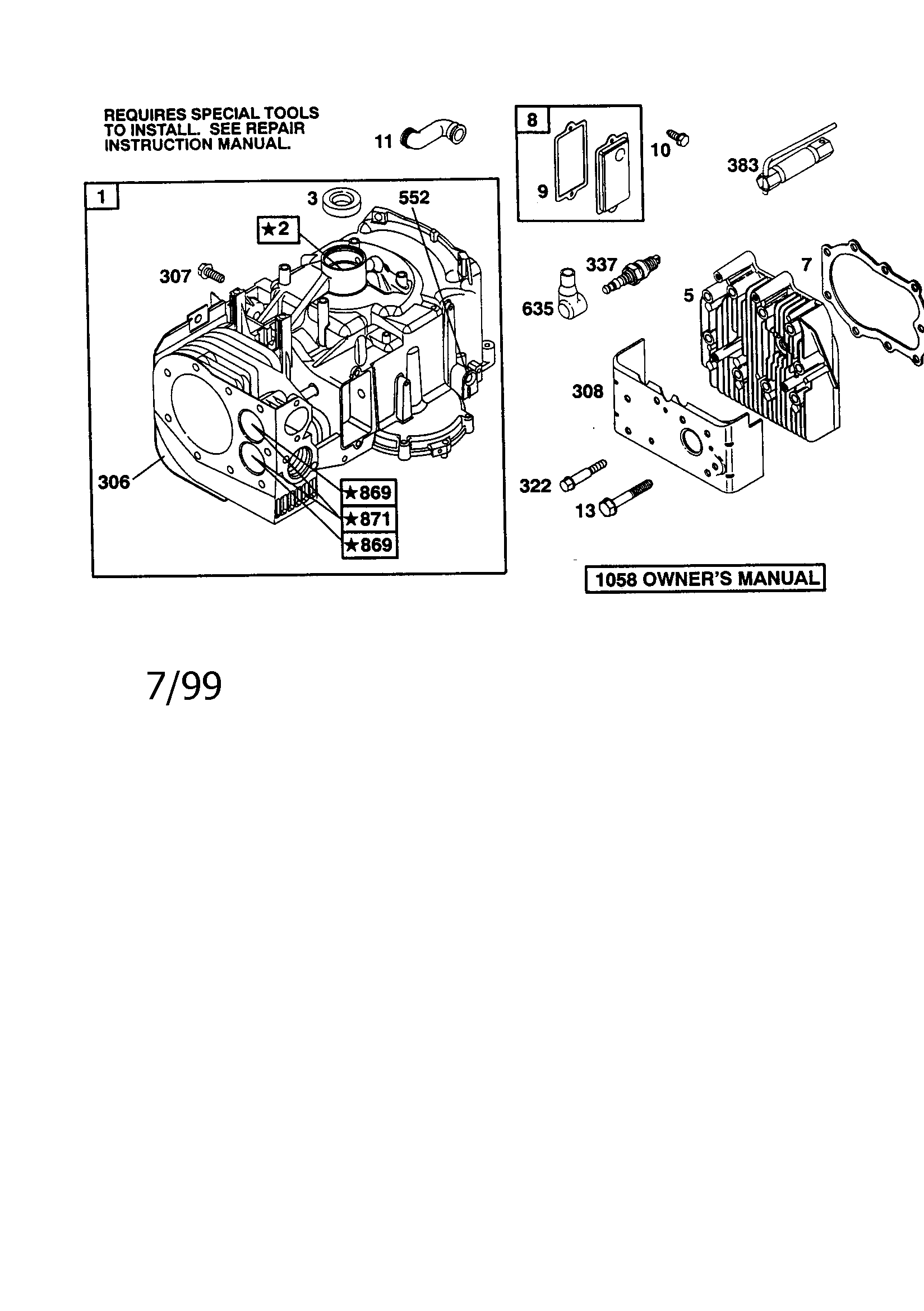

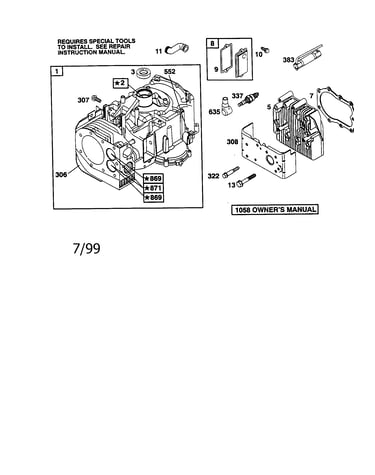

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Fuel Filter (red) 298090
#240

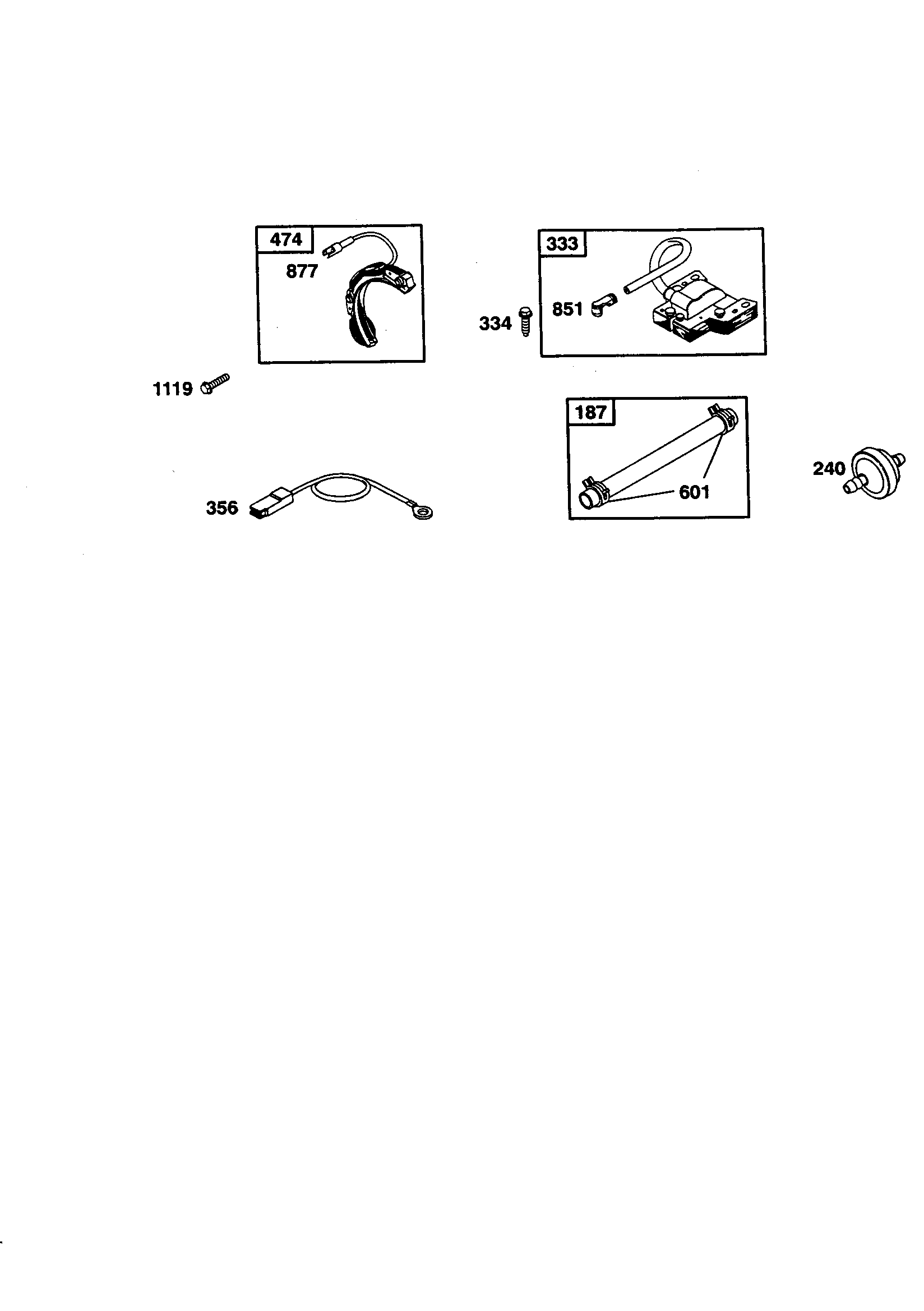

Armature diagram

Fuel filter (red)

Part #298090

Replaced by #298090S

?
Manufacturer substitution
This part replaces 298090. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock

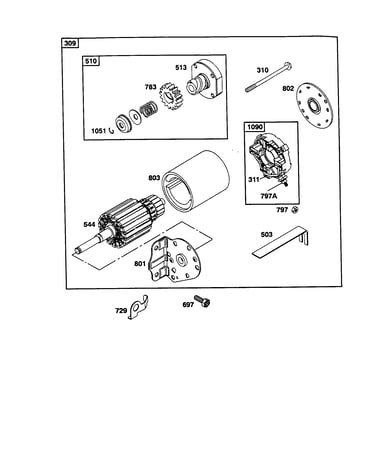

Starter Gear 693059
#783

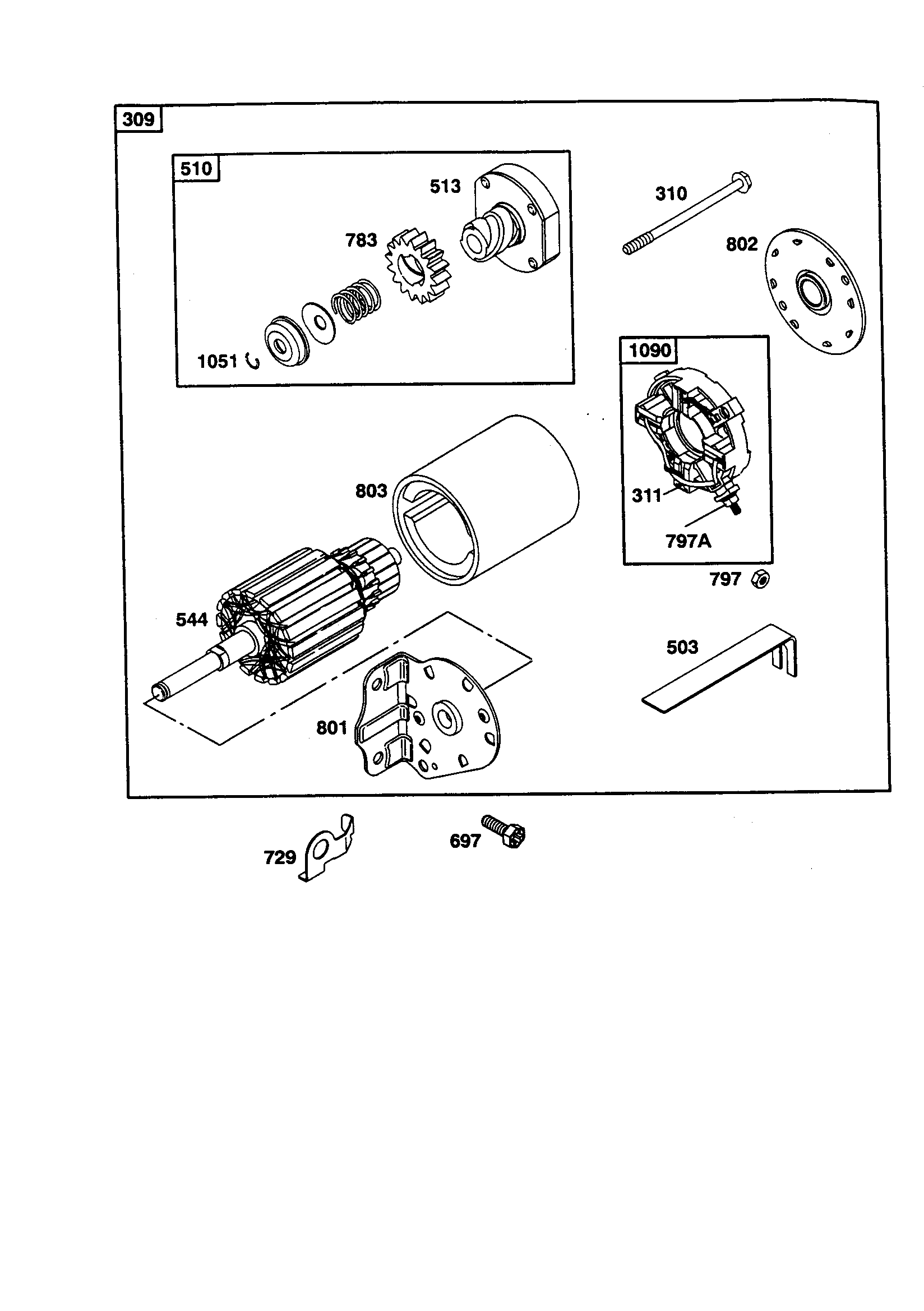

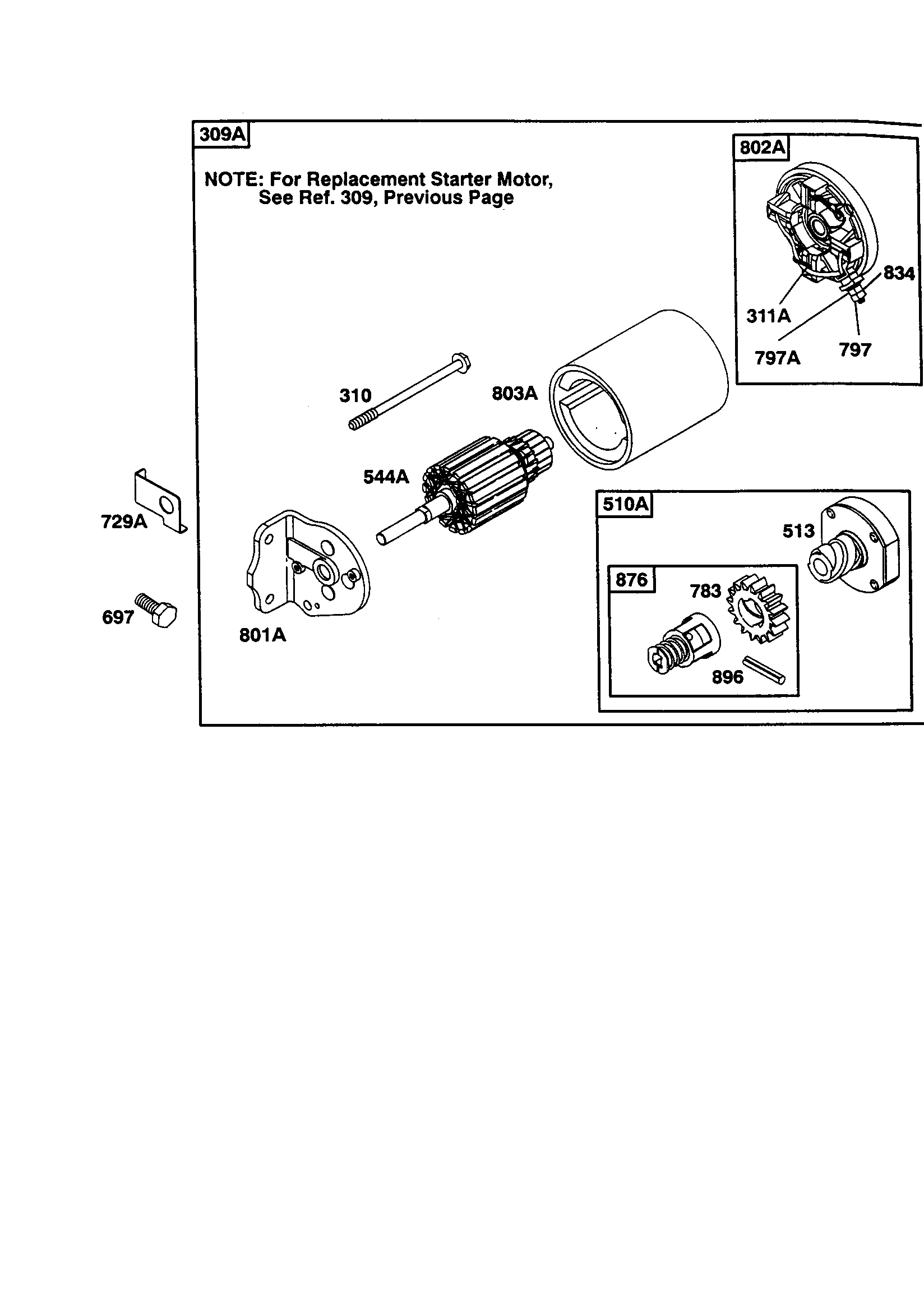

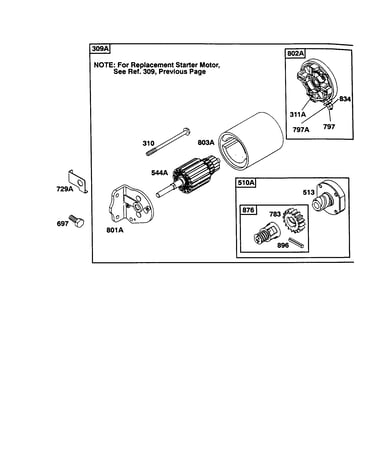

Replacement starter motor diagram

Starter gear

Part #693059

Replaced by #695708

?
Manufacturer substitution
This part replaces 693059. Substitute parts can look different from the original.
BEST SELLER
$8.20 |
11% OFF Phone Price : $9.20
In Stock
Gasket 281106
Gasket

Part #281106

Replaced by #691917

?
Manufacturer substitution
This part replaces 281106. Substitute parts can look different from the original.
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Gasket 281165
Gasket

Part #281165

Replaced by #281165S

?
Manufacturer substitution
This part replaces 281165. Substitute parts can look different from the original.
This item is not returnable
$7.89 |
11% OFF Phone Price : $8.89
In Stock
Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 494378, Bs-495933) 495933
#975

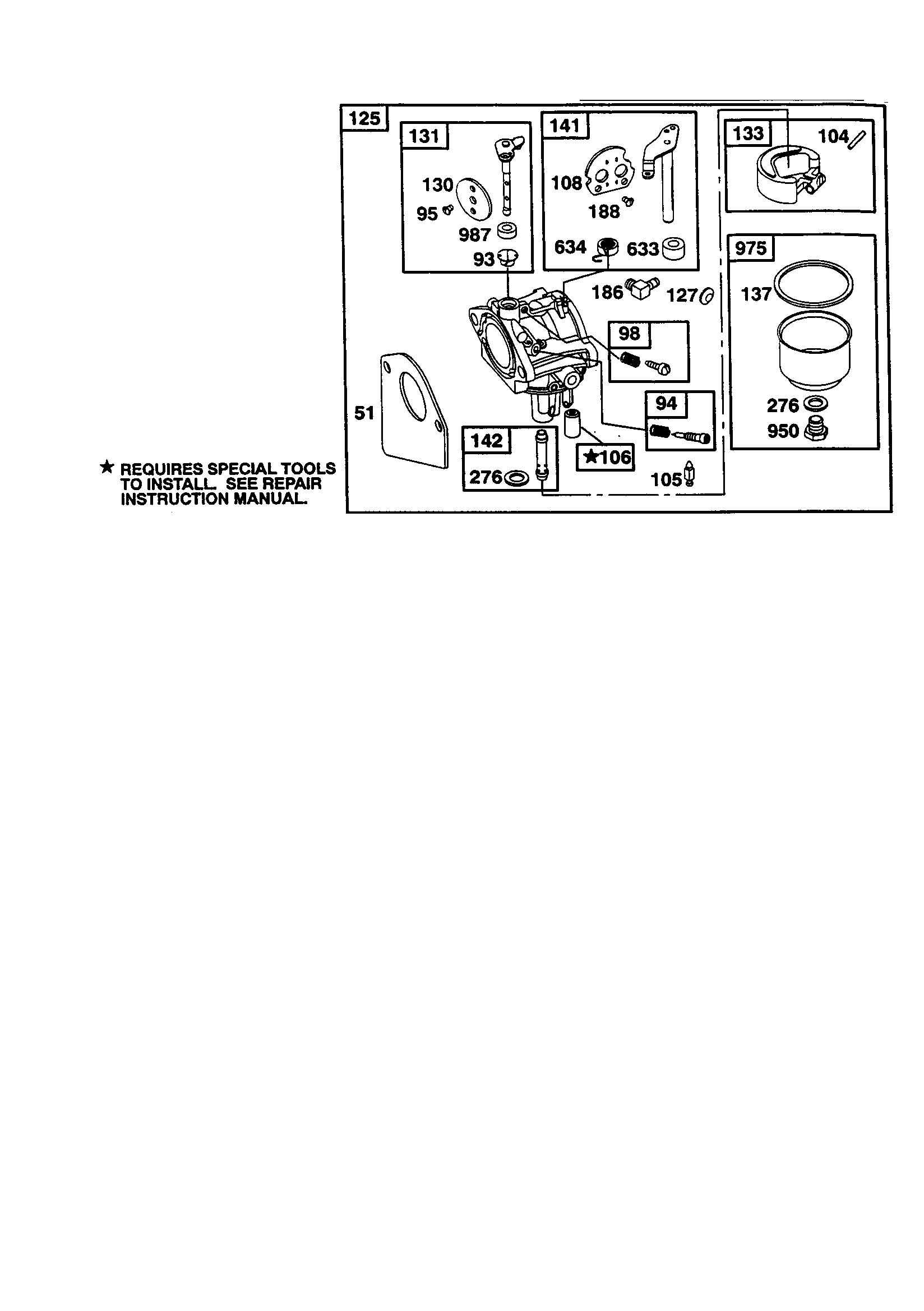

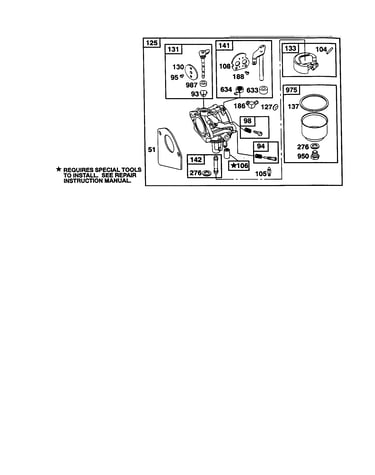

Carburetor diagram

Lawn & garden equipment engine carburetor float bowl (replaces 494378, bs-495933)

Part #495933

This item is not returnable
$17.29 |
10% OFF Phone Price : $19.29
In Stock
Terminal 493880
#851

Armature diagram

Terminal

Part #493880

Replaced by #493880S

?
Manufacturer substitution
This part replaces 493880. Substitute parts can look different from the original.
This item is not returnable
$4.75 |
17% OFF Phone Price : $5.75
In Stock
Oil Seal 281370
Oil seal

Part #281370

Replaced by #281370S

?
Manufacturer substitution
This part replaces 281370. Substitute parts can look different from the original.
This item is not returnable
$11.80 |
14% OFF Phone Price : $13.80
In Stock
Lawn & Garden Equipment Engine Carburetor Rebuild Kit 497535
#121

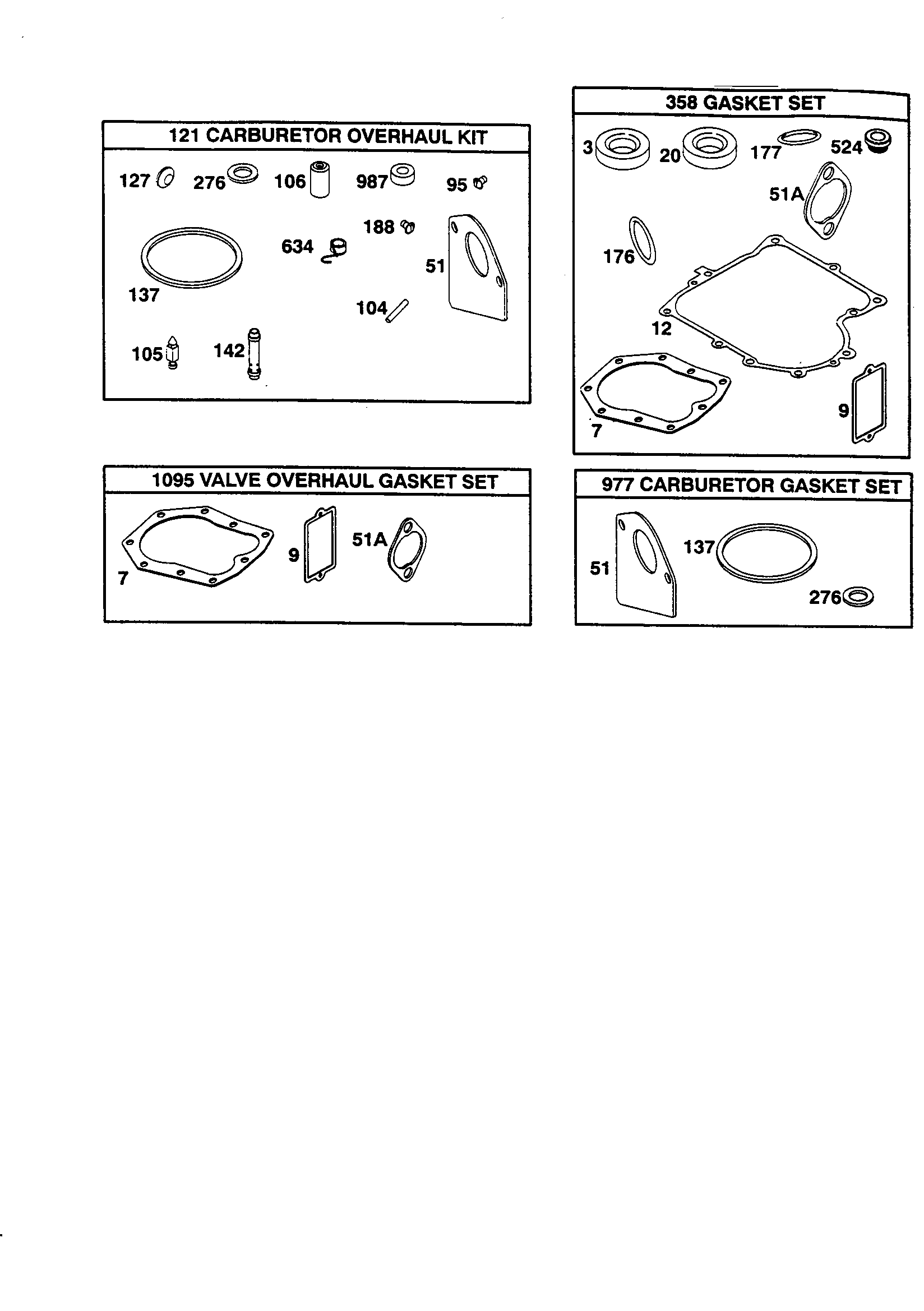

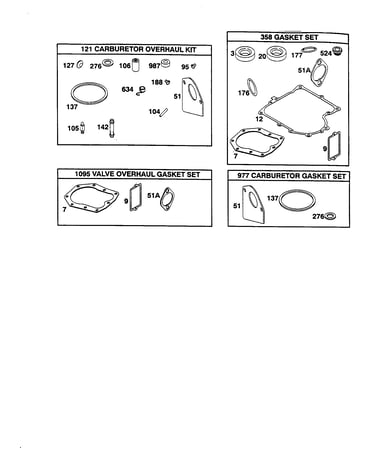

Gasket sets diagram

Lawn & garden equipment engine carburetor rebuild kit

Part #497535

$68.69 |
8% OFF Phone Price : $74.69
In Stock
Screw 94731
#334

Armature diagram

Screw

Part #94731

Replaced by #691061

?
Manufacturer substitution
This part replaces 94731. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Carburetor 494385
#977

Gasket sets diagram

Carburetor

Part #494385

Replaced by #497535

?
Manufacturer substitution
This part replaces 494385. Substitute parts can look different from the original.
$68.69 |
8% OFF Phone Price : $74.69
In Stock
