Model # 21A-675B063 Official Troybilt tiller

Here are the diagrams and repair parts for Official Troybilt 21A-675B063 tiller, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

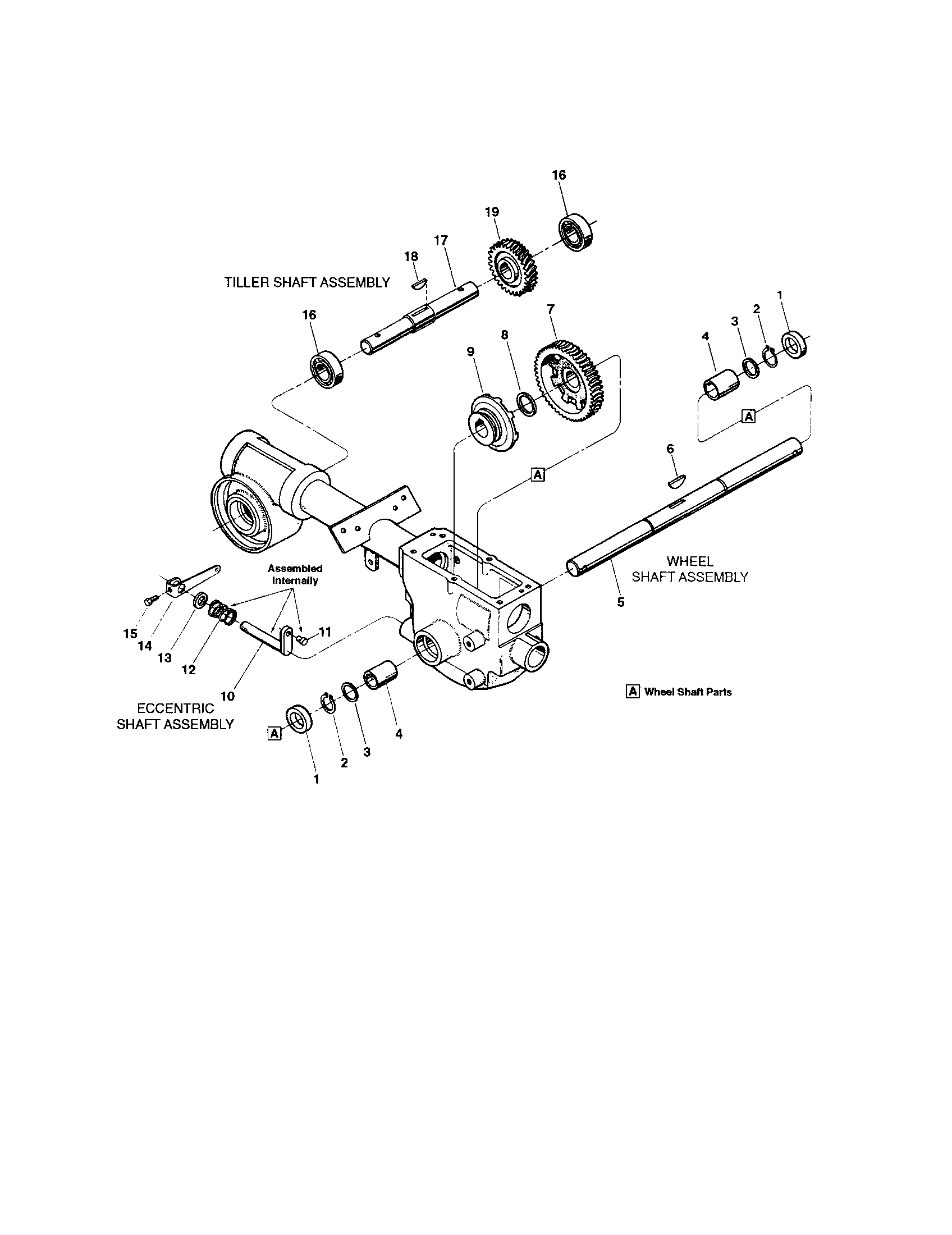

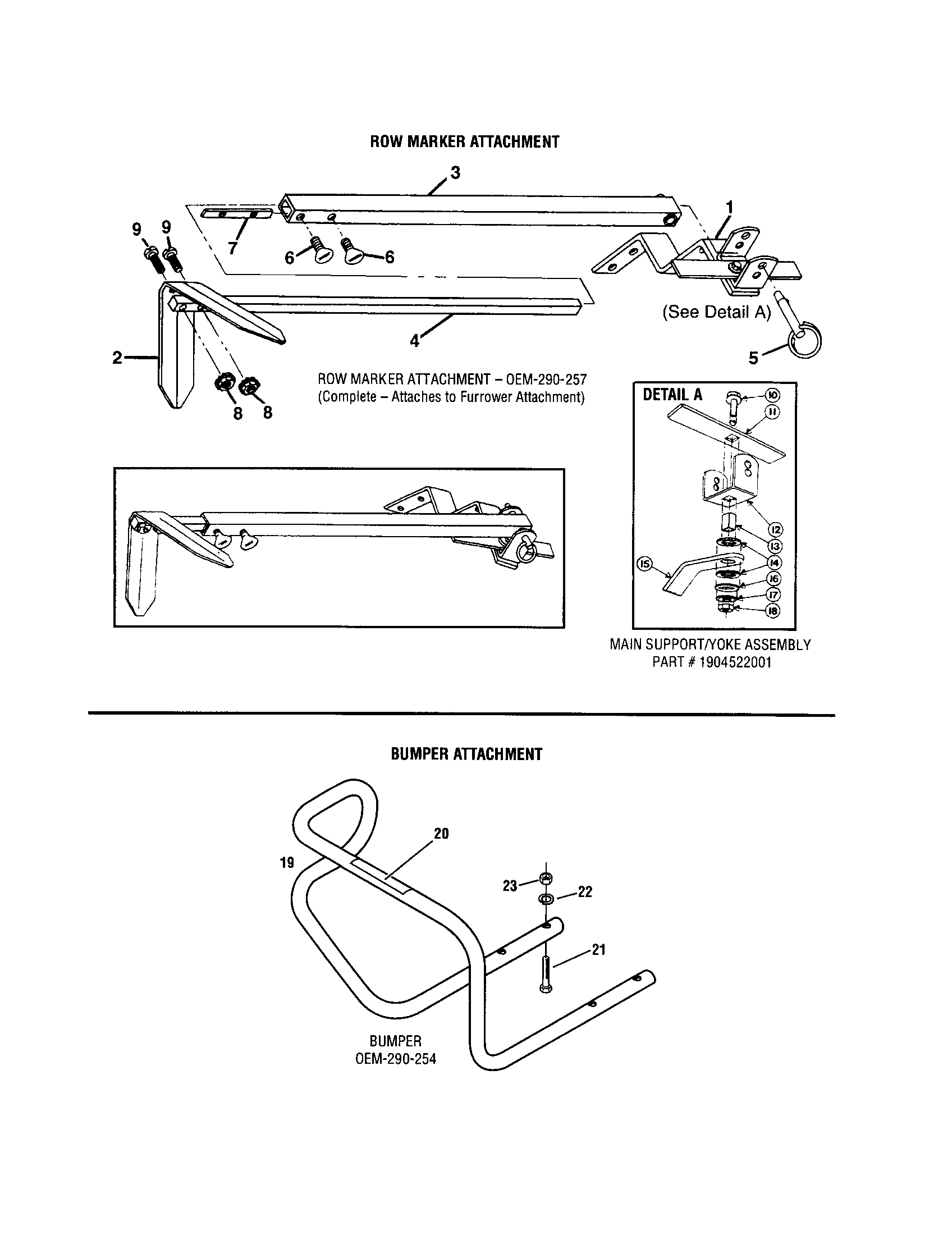

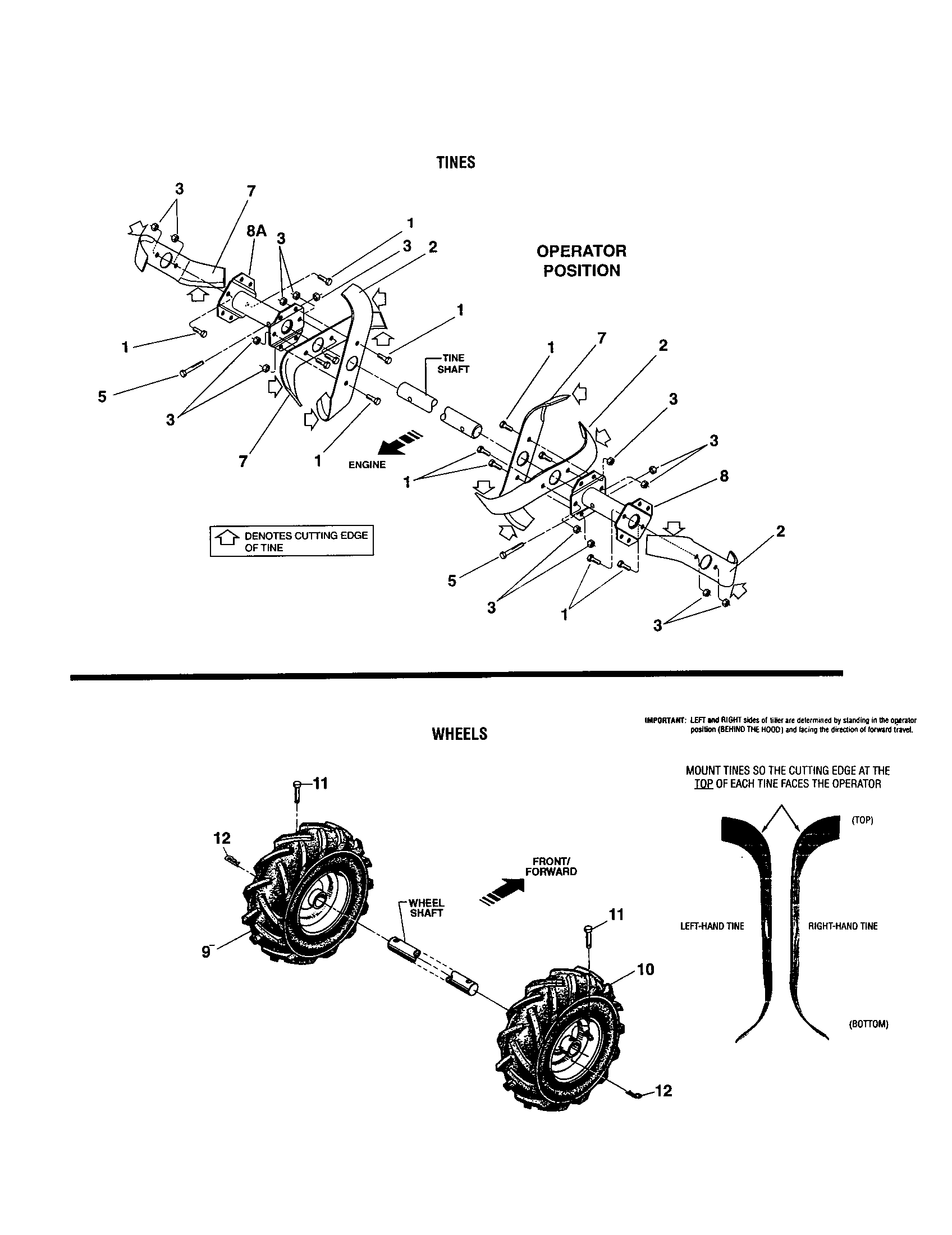

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 185 parts  |
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Lock Washer 736-0119
Lock washer

Part #736-0119

Replaced by #936-0119

?
Manufacturer substitution
This part replaces 736-0119. Substitute parts can look different from the original.
This item is not returnable
$6.05 |
14% OFF Phone Price : $7.05
In Stock
Ryobi Lawn Tractor Bolt (replaces 01000369, 1509-091, 1509-117, 153015, 706-10123-20, 706-501277-1, 710-0342, 910-3005) 710-3005
#13

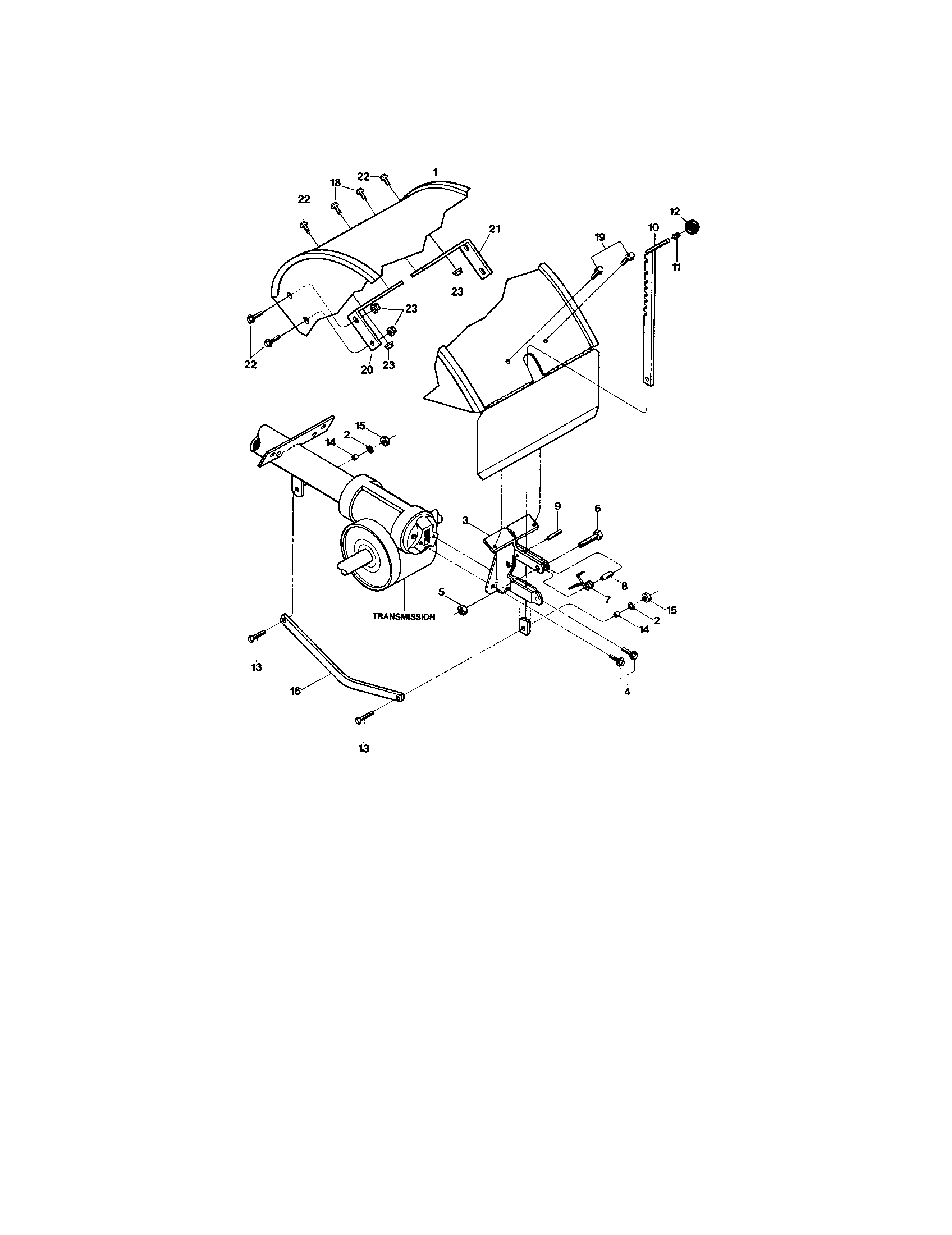

Hood, bracket and depth regulator diagram

Ryobi lawn tractor bolt (replaces 01000369, 1509-091, 1509-117, 153015, 706-10123-20, 706-501277-1, 710-0342, 910-3005)

Part #710-3005

This item is not returnable
$5.11 |
16% OFF Phone Price : $6.11
In Stock
Lawn & Garden Equipment Cable Tie 725-0157
#19

Handlebar and control levers diagram

Lawn & garden equipment cable tie

Part #725-0157

Replaced by #726-0178

?
Manufacturer substitution
This part replaces 725-0157. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Ace Lawn & Garden Equipment Flange Lock Nut 712-3004A
#7

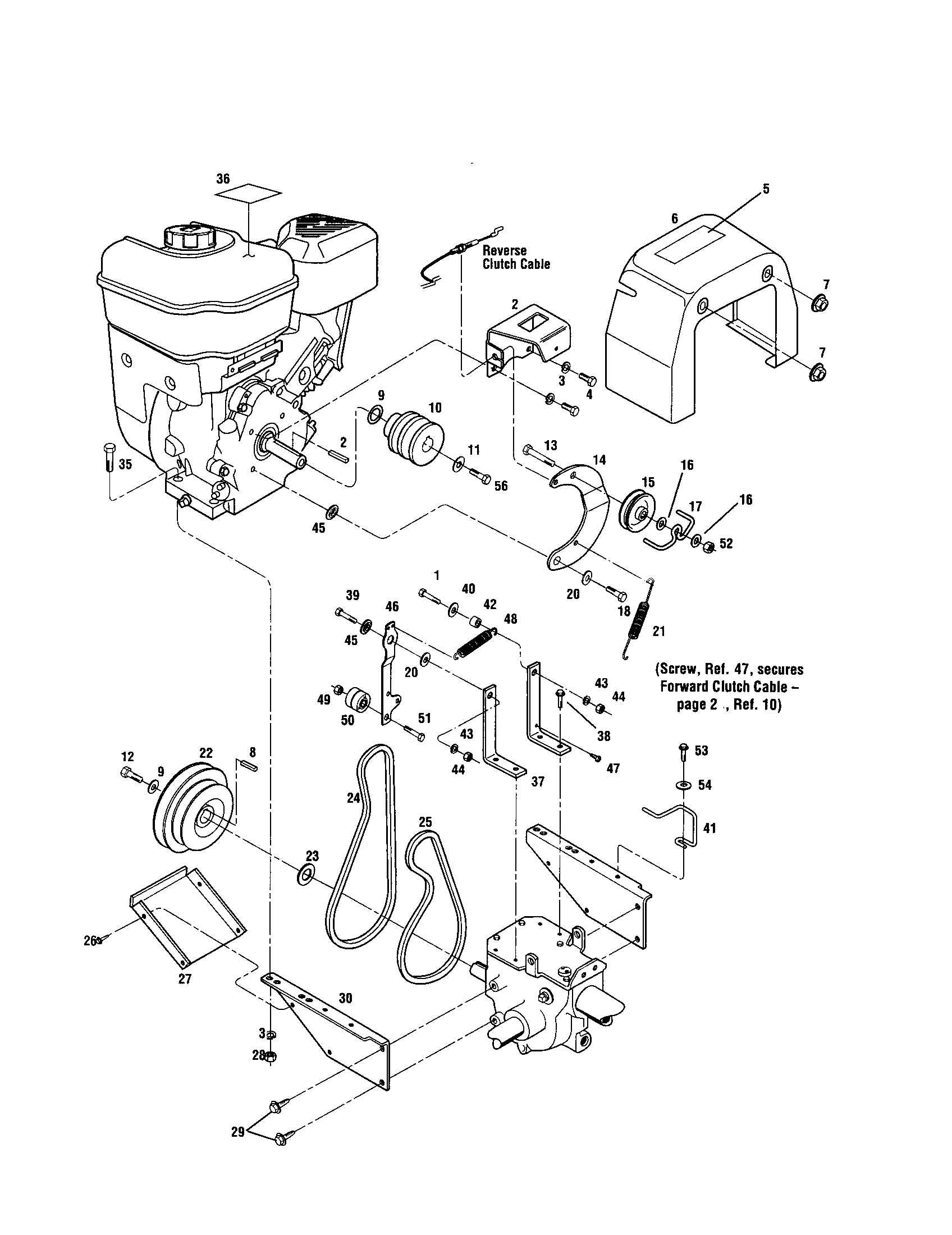

Engine/support bracket/pulley/belt diagram

Ace lawn & garden equipment flange lock nut

Part #712-3004A

This item is not returnable
$4.92 |
17% OFF Phone Price : $5.92
In Stock
Forward Drive Cable 1918791
#10

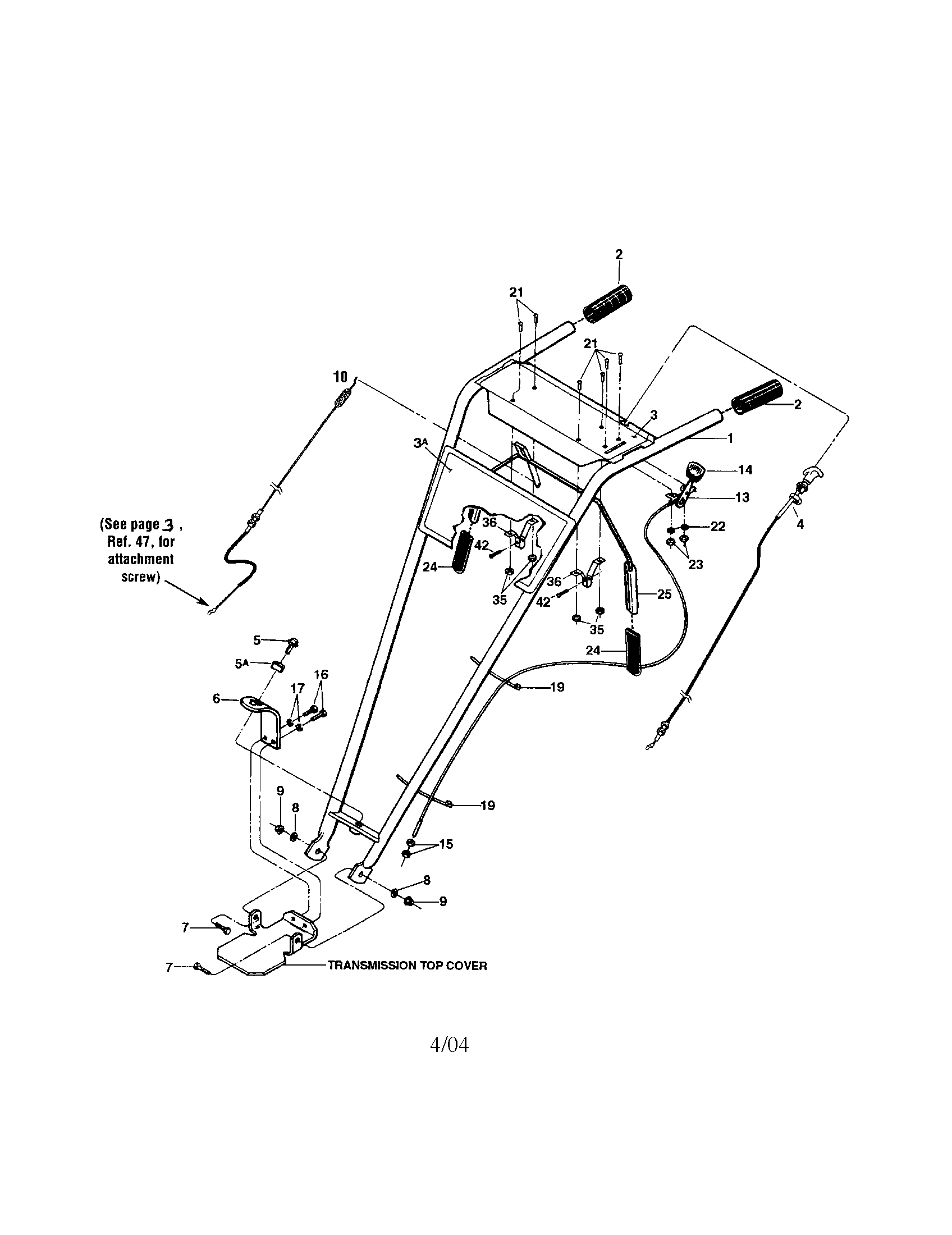

Handlebar and control levers diagram

Forward drive cable

Part #1918791

Replaced by #946-04027

?
Manufacturer substitution
This part replaces 1918791. Substitute parts can look different from the original.
$45.98 |
12% OFF Phone Price : $51.98
In Stock
Oil Seal 1983632
#5

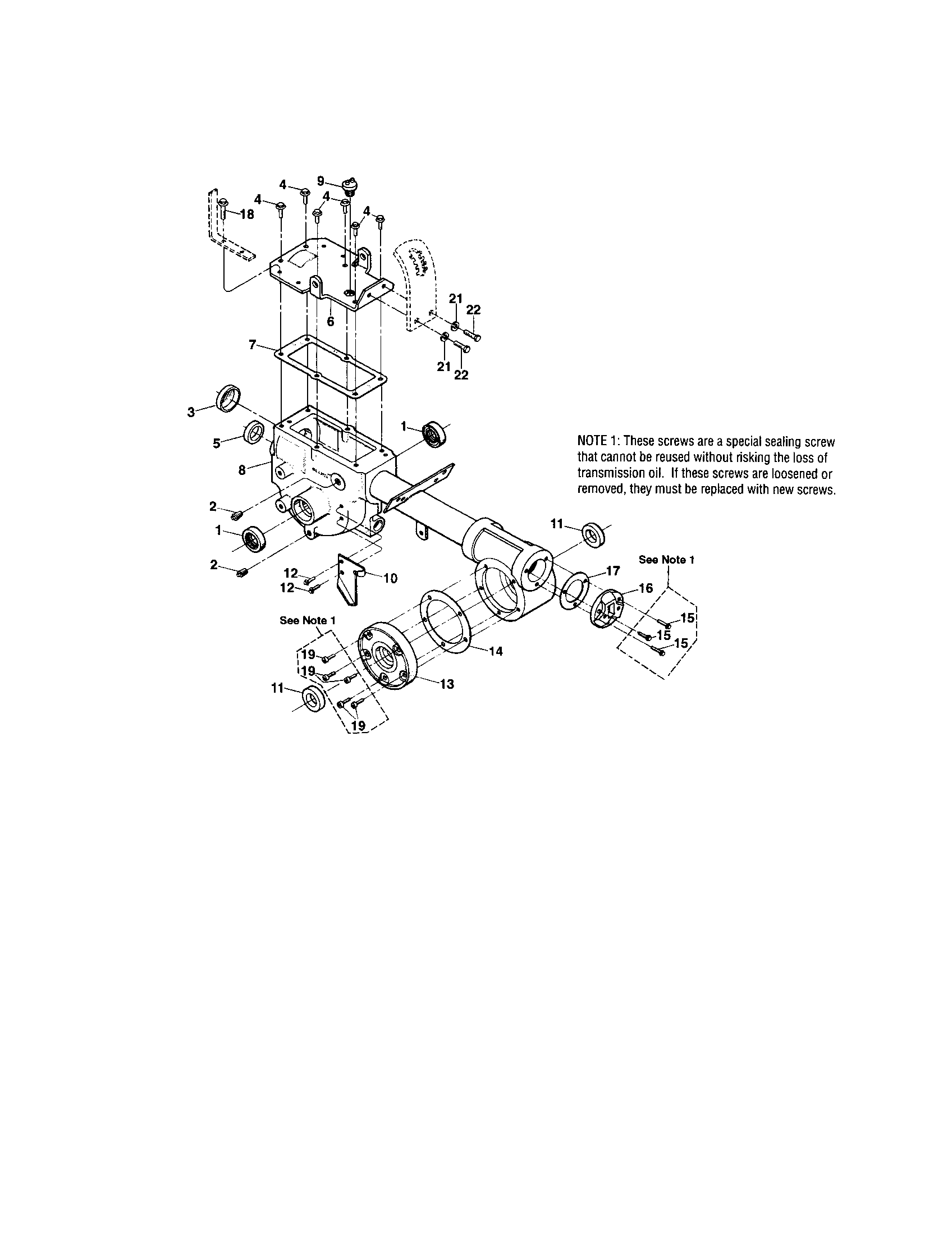

Transmission housing/covers/seals diagram

Oil seal

Part #1983632

Replaced by #921-04044

?
Manufacturer substitution
This part replaces 1983632. Substitute parts can look different from the original.
$13.91
In Stock
Washer GW-9955
#5A

Handlebar and control levers diagram

Washer

Part #GW-9955

Replaced by #736-04445

?
Manufacturer substitution
This part replaces GW-9955. Substitute parts can look different from the original.
This item is not returnable
$5.77
In Stock
Oil Seal 721-04044
#11

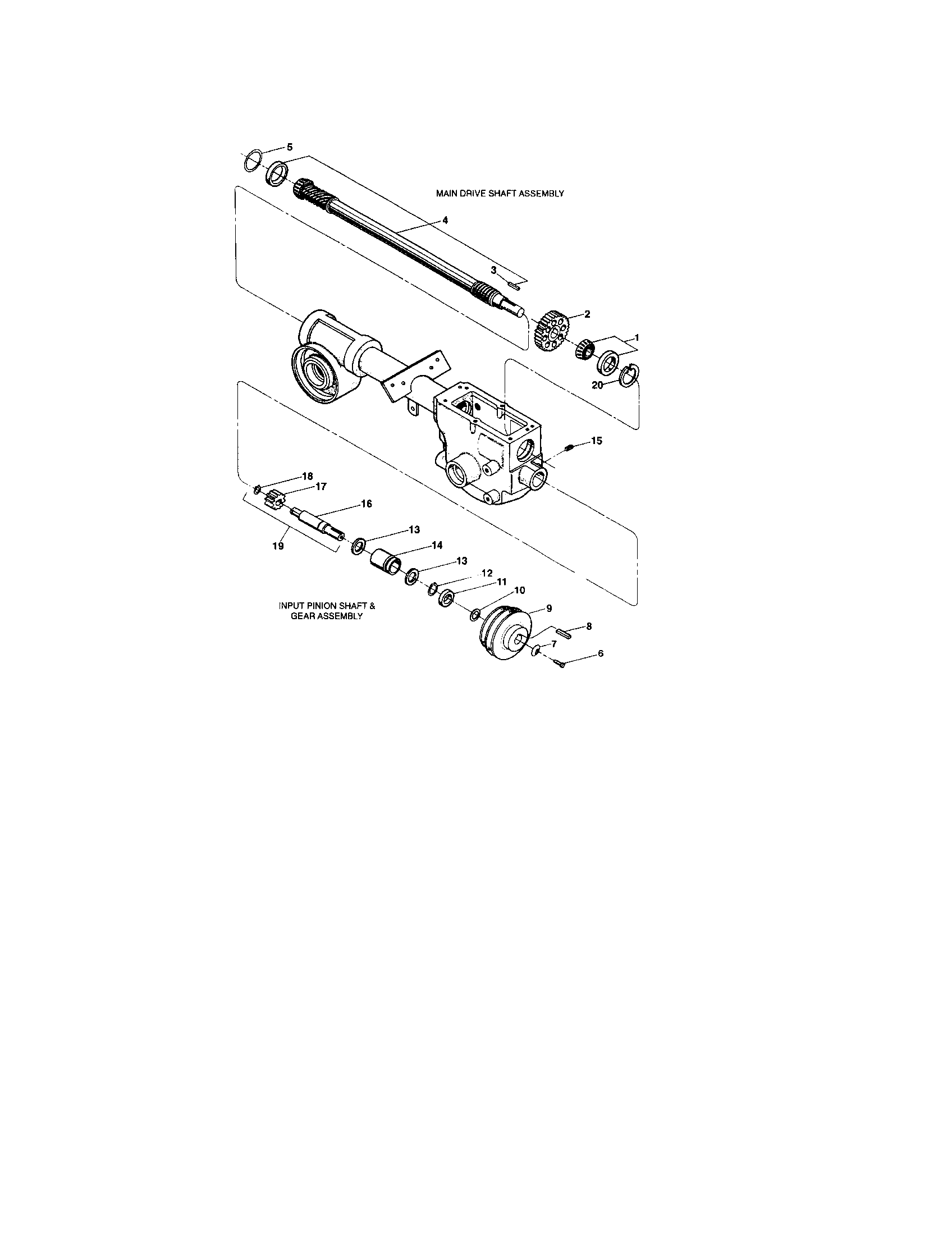

Drive shaft/input pinion shaft/gear diagram

Oil seal

Part #721-04044

Replaced by #921-04044

?
Manufacturer substitution
This part replaces 721-04044. Substitute parts can look different from the original.
$13.91
In Stock
Ace Hood Bracket GW-2525
#3

Hood, bracket and depth regulator diagram

Ace hood bracket

Part #GW-2525

$118.88
In Stock
