Model # WCISFL0 Official Frigidaire washer - lf31290030

Here are the diagrams and repair parts for Official Frigidaire WCISFL0 washer - lf31290030, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 202 parts  |
Screw 08002339
#20

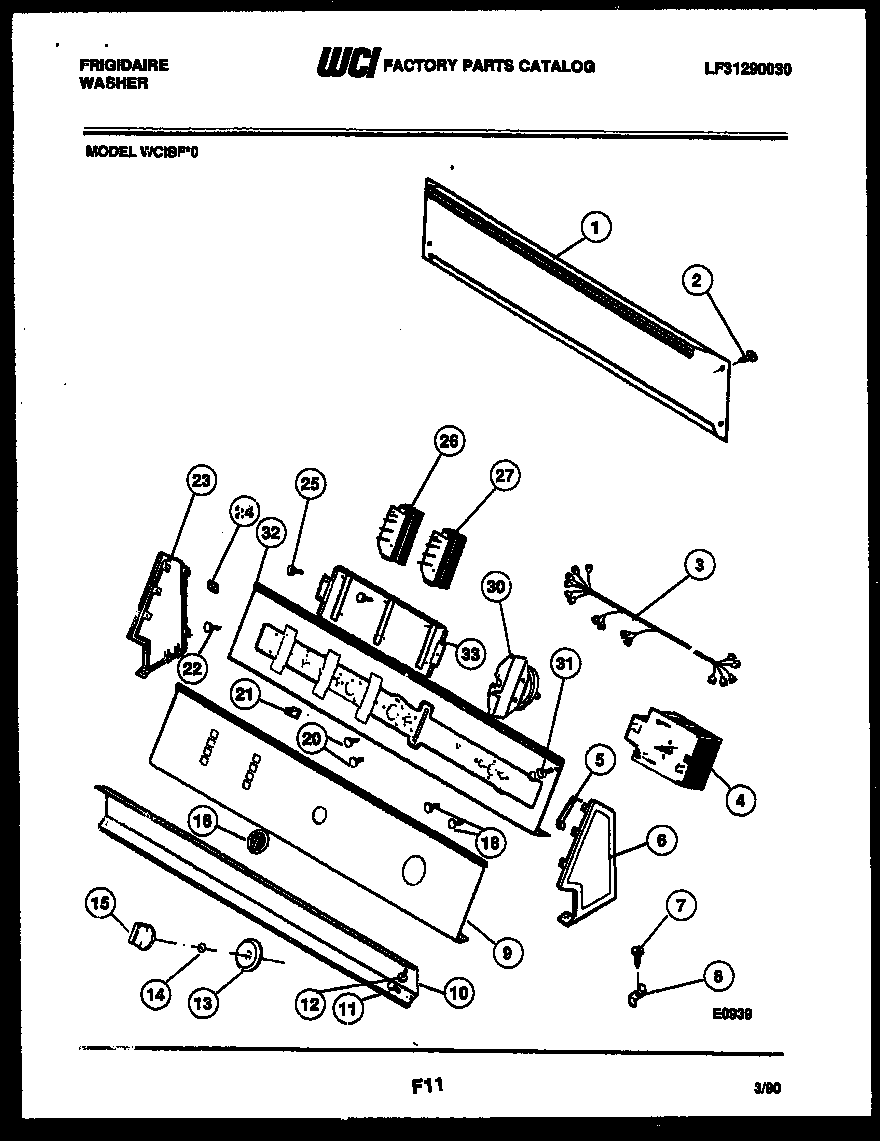

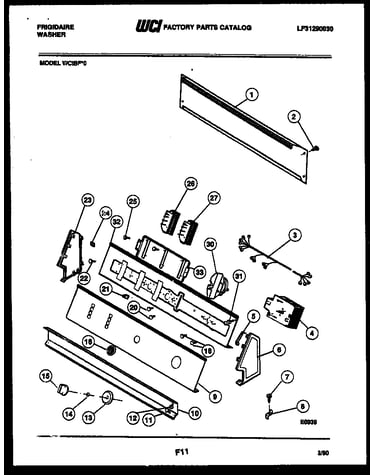

Console and control parts diagram

Screw

Part #08002339

Replaced by #131168200

?
Manufacturer substitution
This part replaces 08002339. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Washer Valve 5303207418
#1

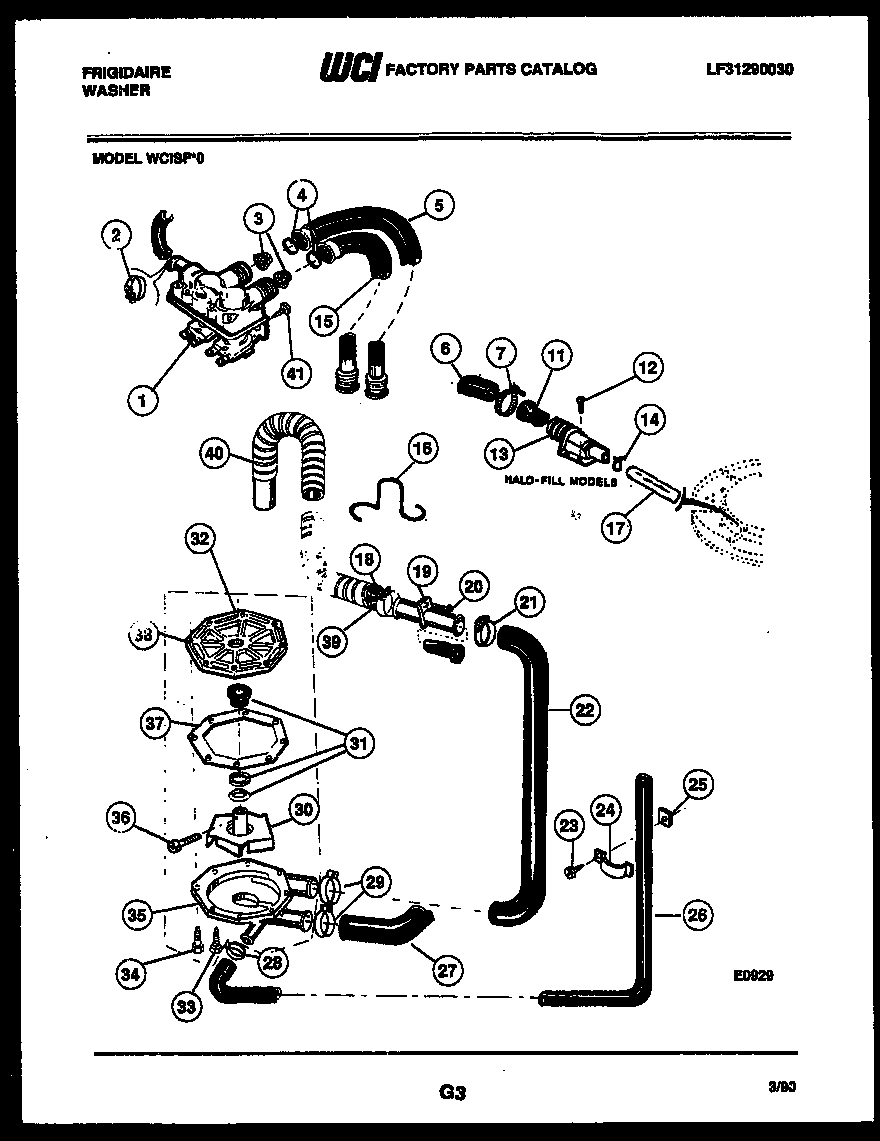

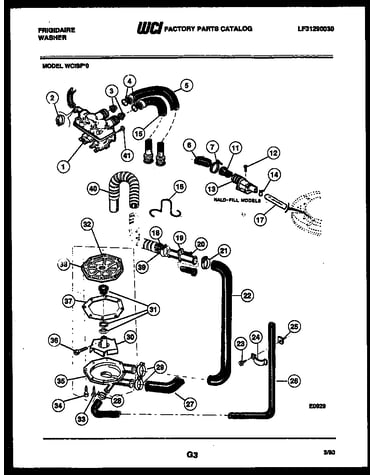

Pump, water valve and water inlet diagram

Washer valve

Part #5303207418

Replaced by #134190200

?
Manufacturer substitution
This part replaces 5303207418. Substitute parts can look different from the original.
$125.33 |
9% OFF Phone Price : $137.33
In Stock
Washer 08002401
#22

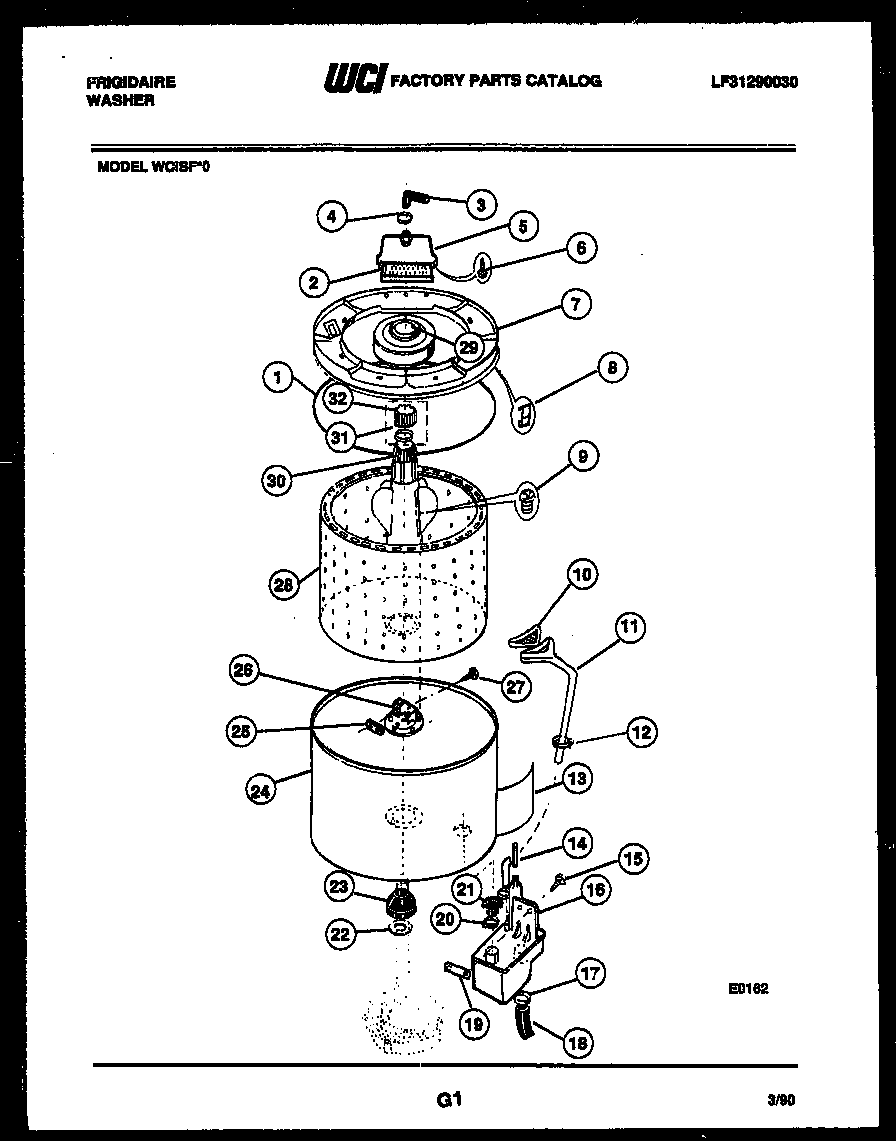

Tub detail diagram

Washer

Part #08002401

Replaced by #5308002401

?
Manufacturer substitution
This part replaces 08002401. Substitute parts can look different from the original.
$20.89 |
22% OFF Phone Price : $26.89
In Stock
H/c Fill Hos 6561384
H/c fill hos

Part #6561384

Replaced by #5303912532

?
Manufacturer substitution
This part replaces 6561384. Substitute parts can look different from the original.
$67.57 |
8% OFF Phone Price : $73.57
In Stock
Tube 08011257
#14

Tub detail diagram

Tube

Part #08011257

Replaced by #5304401845

?
Manufacturer substitution
This part replaces 08011257. Substitute parts can look different from the original.
$49.98 |
11% OFF Phone Price : $55.98
In Stock
Seal 08011270
#4

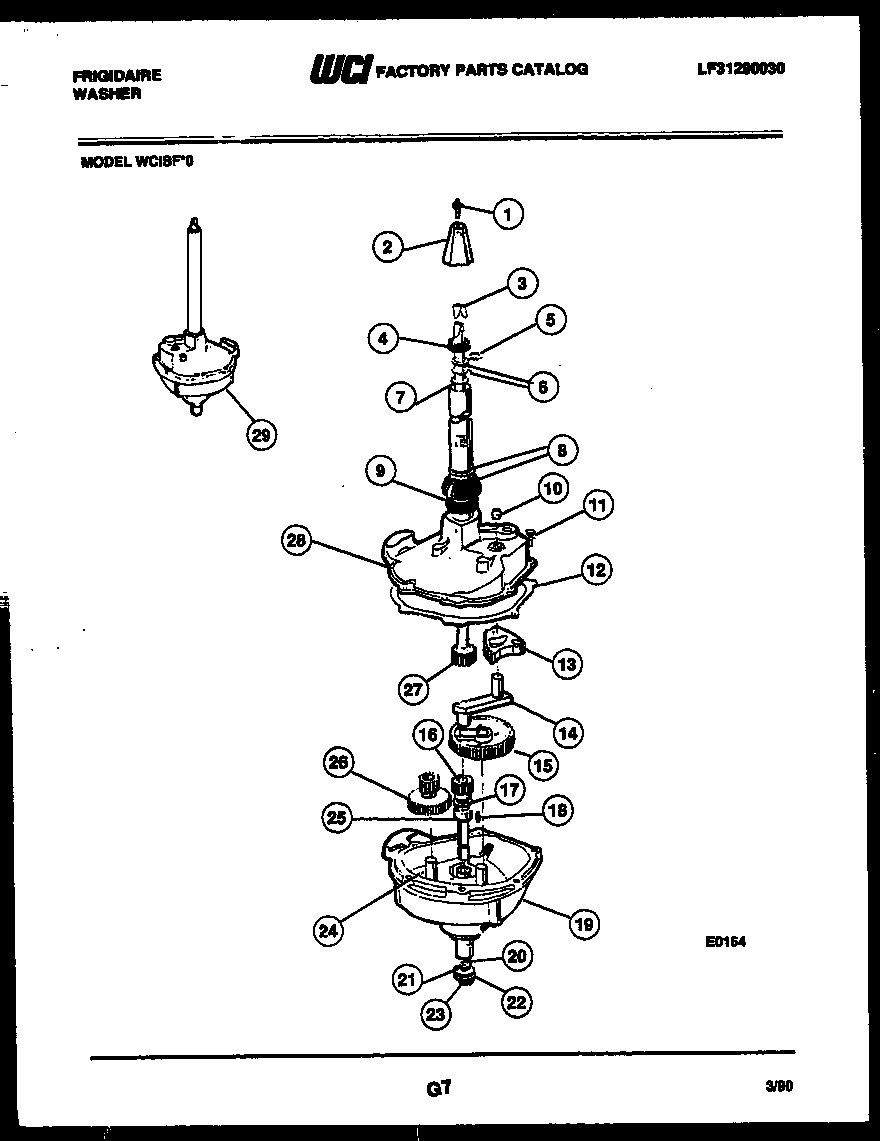

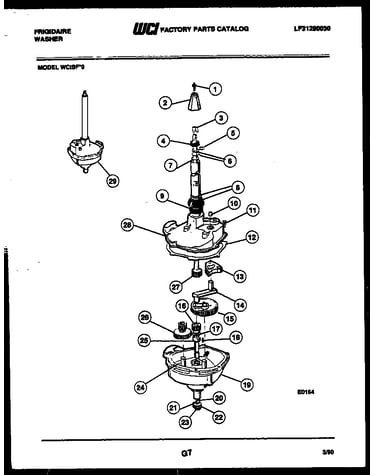

Transmission parts diagram

Seal

Part #08011270

Replaced by #5303161307

?
Manufacturer substitution
This part replaces 08011270. Substitute parts can look different from the original.
$19.44 |
9% OFF Phone Price : $21.44
In Stock
Screw 08027475
#11

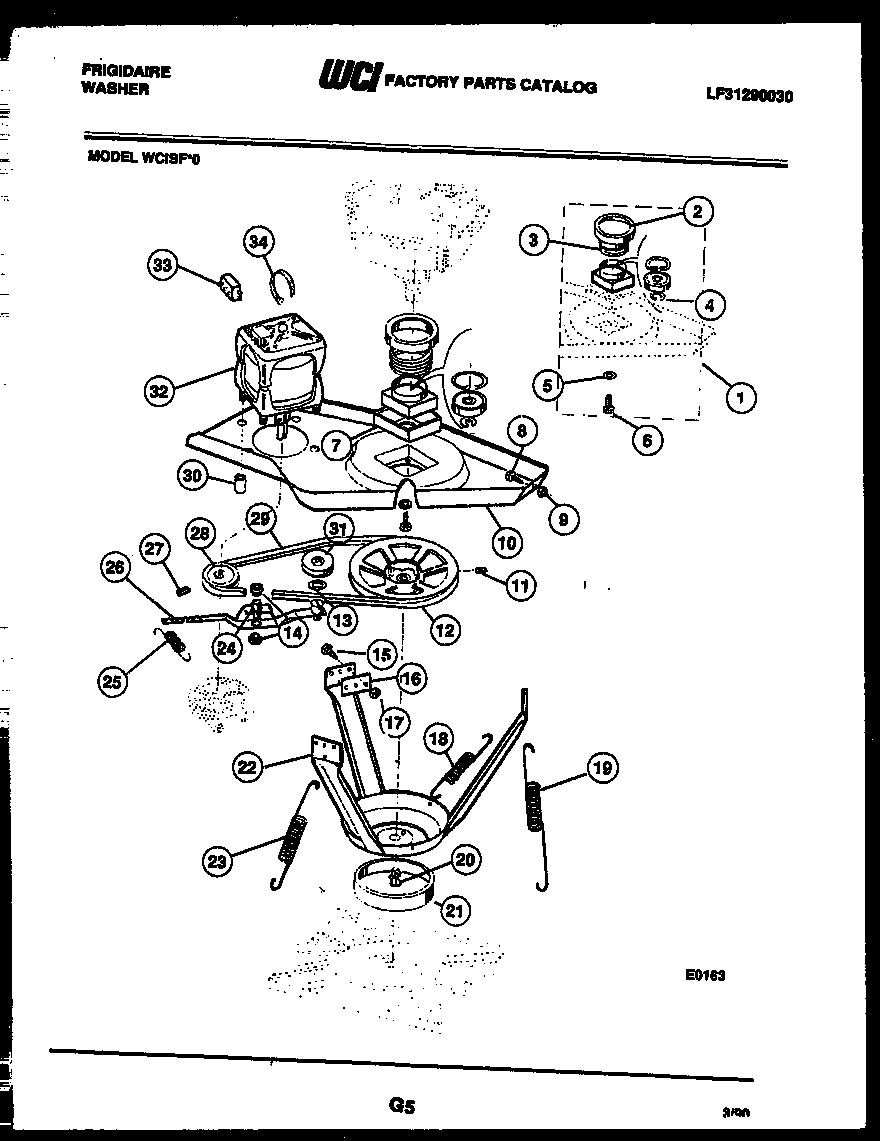

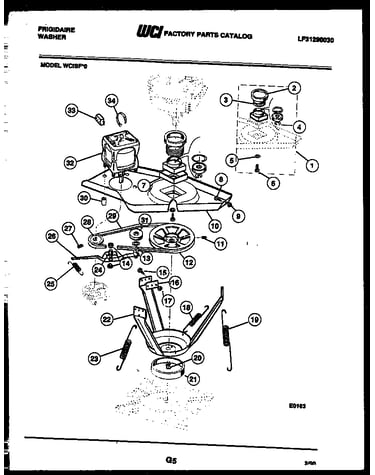

Motor and idler arm clutch diagram

Screw

Part #08027475

Replaced by #5303270023

?
Manufacturer substitution
This part replaces 08027475. Substitute parts can look different from the original.
$22.84
In Stock
Seal 08002477
#20

Transmission parts diagram

Seal

Part #08002477

Replaced by #5303161173

?
Manufacturer substitution
This part replaces 08002477. Substitute parts can look different from the original.
$10.80
In Stock
White-westinghouse Strap 08014349
#5

Console and control parts diagram

White-westinghouse strap

Part #08014349

This item is not returnable
$2.29
In Stock
Shell 08015512
#23

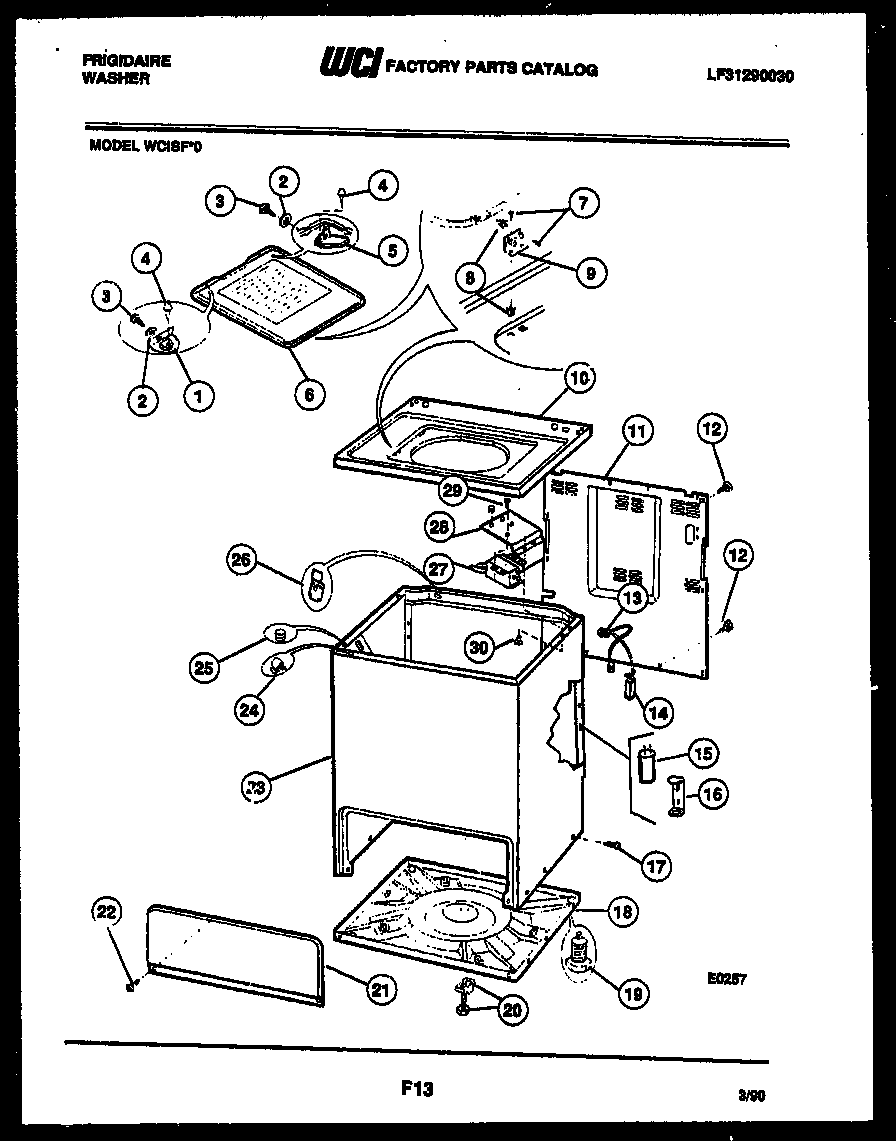

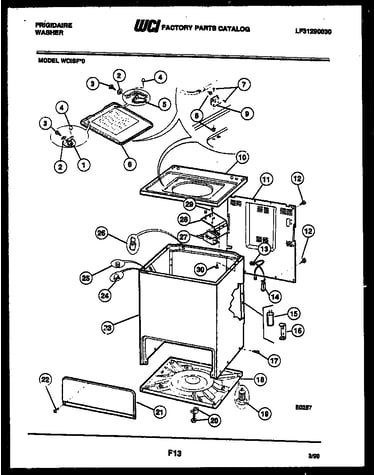

Cabinet parts diagram

Shell

Part #08015512

$166.49
In Stock
