Model # AKQ10ANT1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AKQ10ANT1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

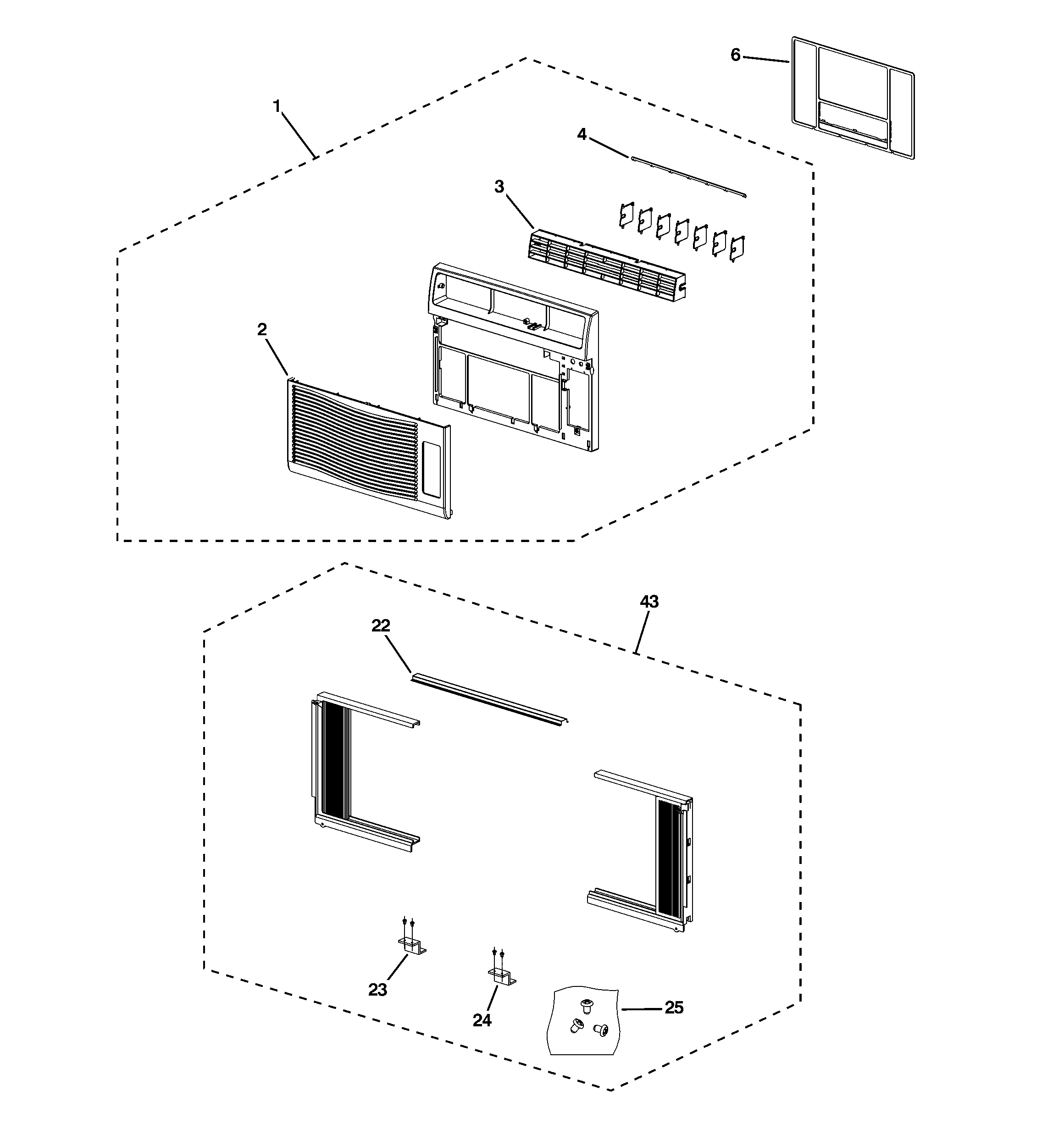

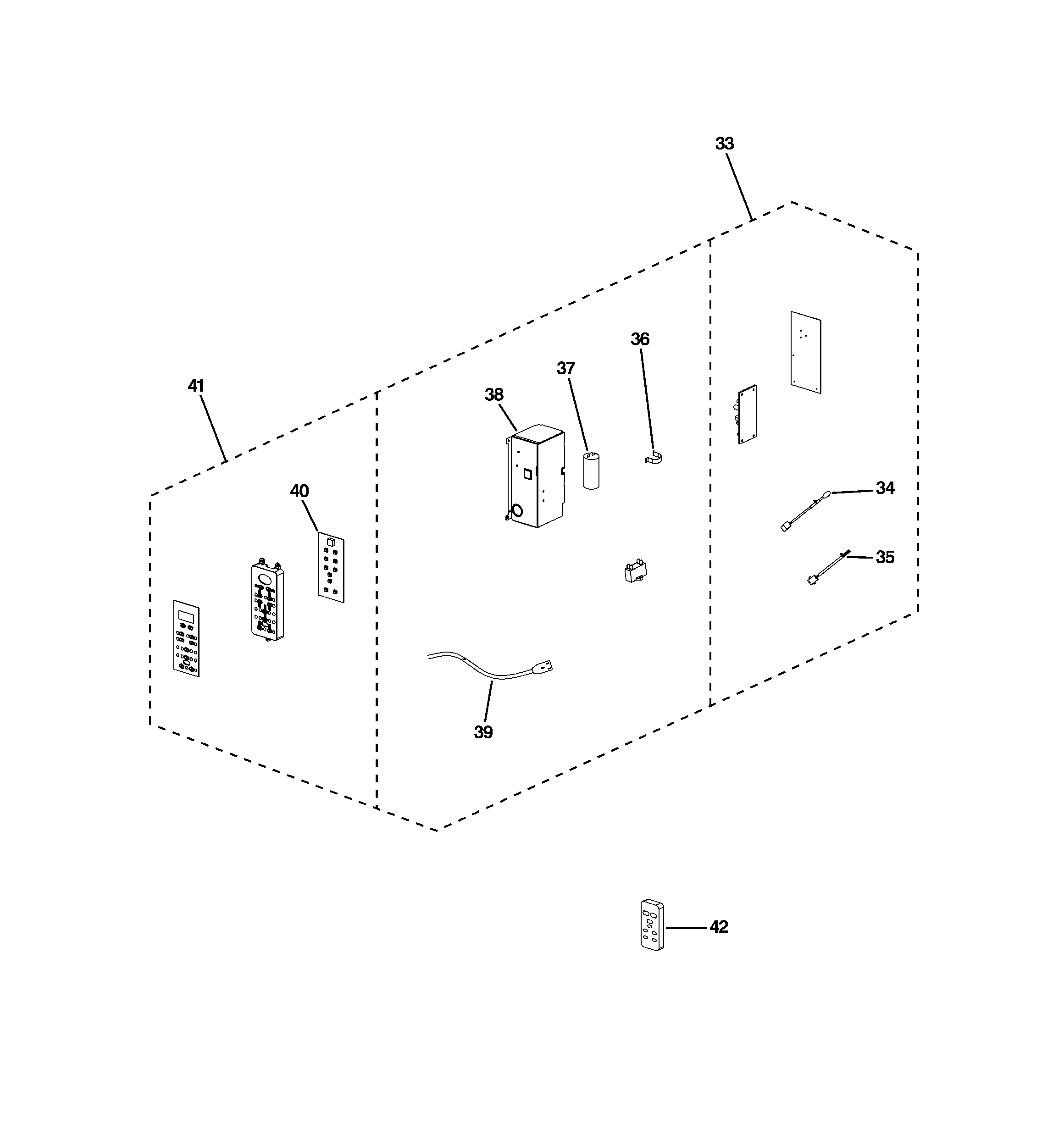

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Fan Shell Co WJ79X10229
#12

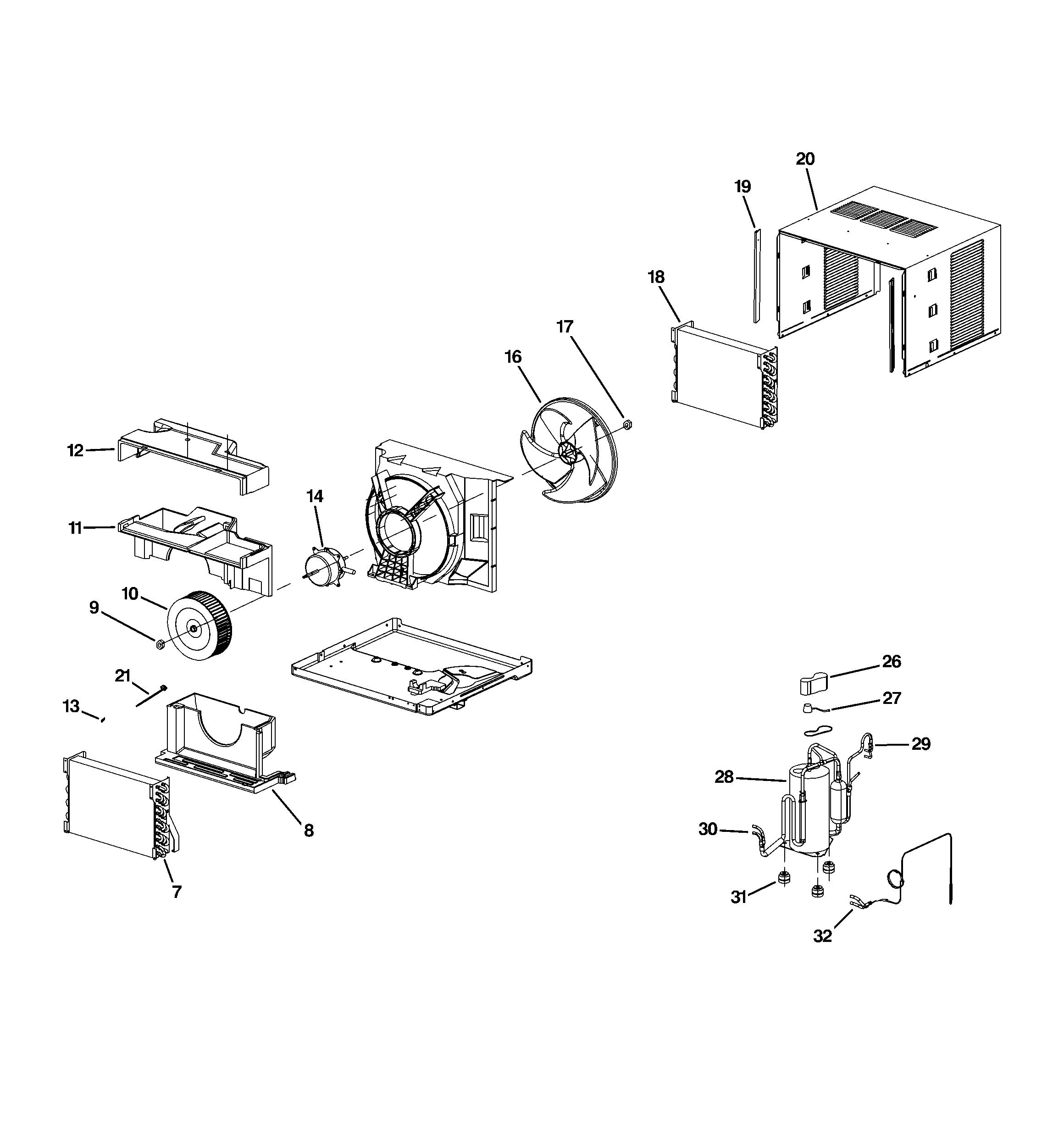

Cabinet & components diagram

Fan shell co

Part #WJ79X10229

$21.71
In Stock
Axial Flow Fan WJ73X10196
#16

Cabinet & components diagram

Axial flow fan

Part #WJ73X10196

$21.29
In Stock
Condensor As WJ87X10254
#18

Cabinet & components diagram

Condensor as

Part #WJ87X10254

$65.84
In Stock
Compressor WJ98X10287
#28

Cabinet & components diagram

Compressor

Part #WJ98X10287

$237.71
In Stock
Nut WJ01X10401
#17

Cabinet & components diagram

Nut

Part #WJ01X10401

The manufacturer no longer makes this part, and there's no substitute part

Condensor As WJ87X10255
#18

Cabinet & components diagram

Condensor as

Part #WJ87X10255

The manufacturer no longer makes this part, and there's no substitute part

Complete Protector WJ79X10228
#26

Cabinet & components diagram

Complete protector

Part #WJ79X10228

The manufacturer no longer makes this part, and there's no substitute part

Nut WJ01X10400
#9

Cabinet & components diagram

Nut

Part #WJ01X10400

The manufacturer no longer makes this part, and there's no substitute part

Fan Shell Co WJ76X10302
#12

Cabinet & components diagram

Fan shell co

Part #WJ76X10302

The manufacturer no longer makes this part, and there's no substitute part

Suction Pipe WJ57X10021
#30

Cabinet & components diagram

Suction pipe

Part #WJ57X10021

The manufacturer no longer makes this part, and there's no substitute part
