Model # DW257TY1 Official DeWalt screwdriver

Here are the diagrams and repair parts for Official DeWalt DW257TY1 screwdriver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 63 parts |

#46

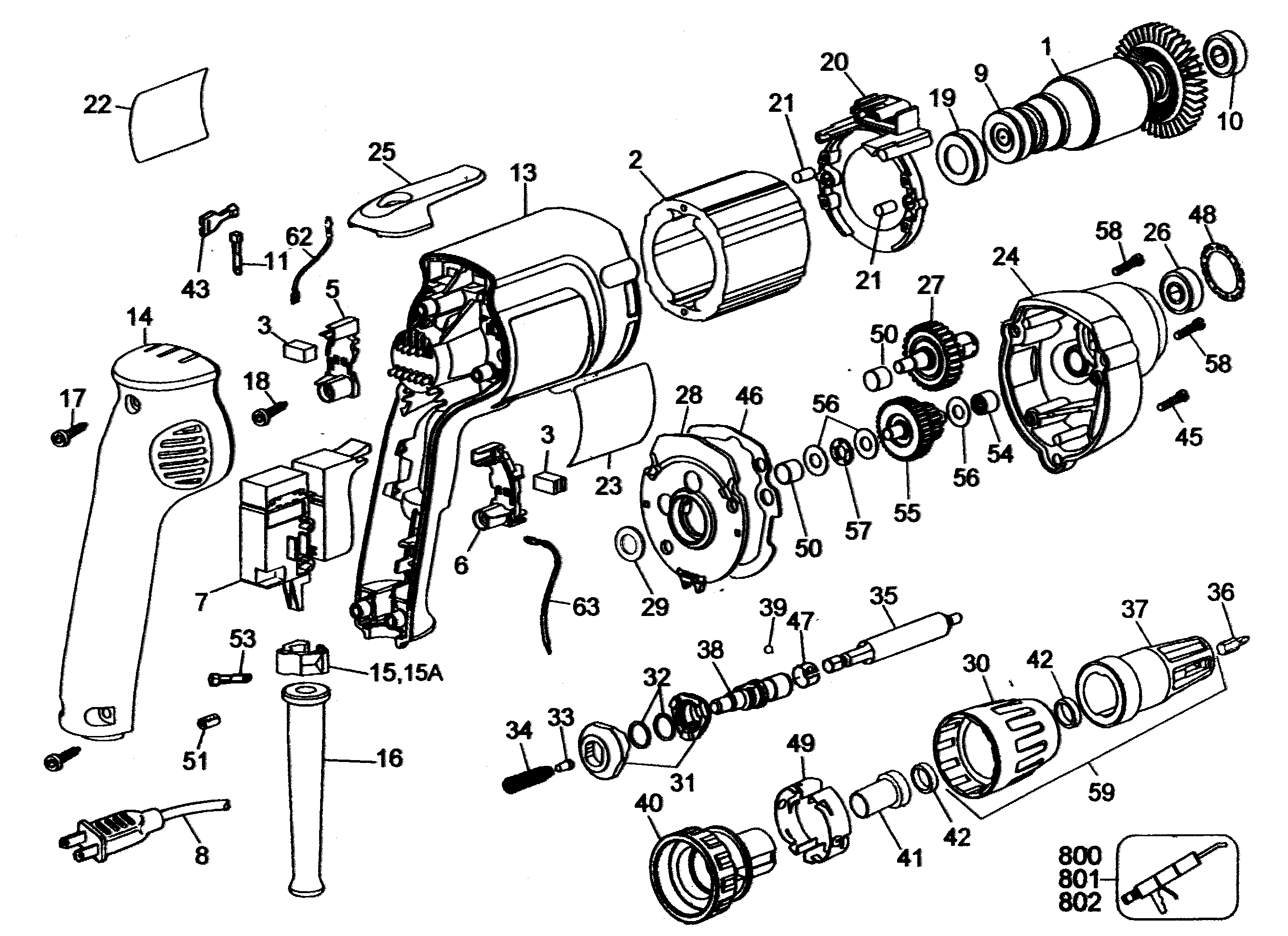

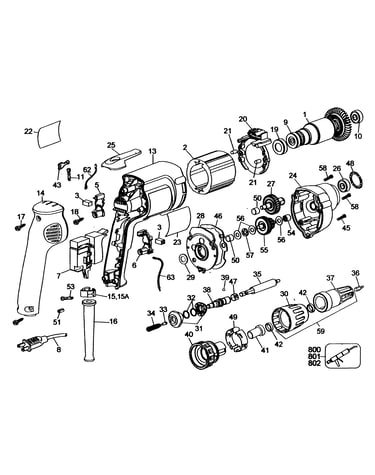

Screwdriver diagram

Gasket

Part #176655-00

The manufacturer no longer makes this part, and there's no substitute part

#41

Screwdriver diagram

Black & decker bearing

Part #450907-00

The manufacturer no longer makes this part, and there's no substitute part

#26

Screwdriver diagram

Power tool bearing

Part #330003-09

The manufacturer no longer makes this part, and there's no substitute part

#45

Screwdriver diagram

Screw

Part #330019-14

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Magnetic Bit Tip Holder 619773-02

#35

Screwdriver diagram

Drill/driver magnetic bit tip holder

Part #619773-02

The manufacturer no longer makes this part, and there's no substitute part

#801

Screwdriver diagram

Craftsman grease

Part #283484-01

The manufacturer no longer makes this part, and there's no substitute part

#19

Screwdriver diagram

Black & decker sleeve

Part #949721-03

The manufacturer no longer makes this part, and there's no substitute part

#48

Screwdriver diagram

Retainer

Part #176689-00

The manufacturer no longer makes this part, and there's no substitute part

#34

Screwdriver diagram

Black & decker spring

Part #86211-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord Strain Relief 330005-01

#16A

Screwdriver diagram

Power tool power cord strain relief

Part #330005-01

The manufacturer no longer makes this part, and there's no substitute part
