Upright Vacuum

Model # 6230AT Official Eureka upright oxygen vacuum

Here are the diagrams and repair parts for Official Eureka 6230AT upright oxygen vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part

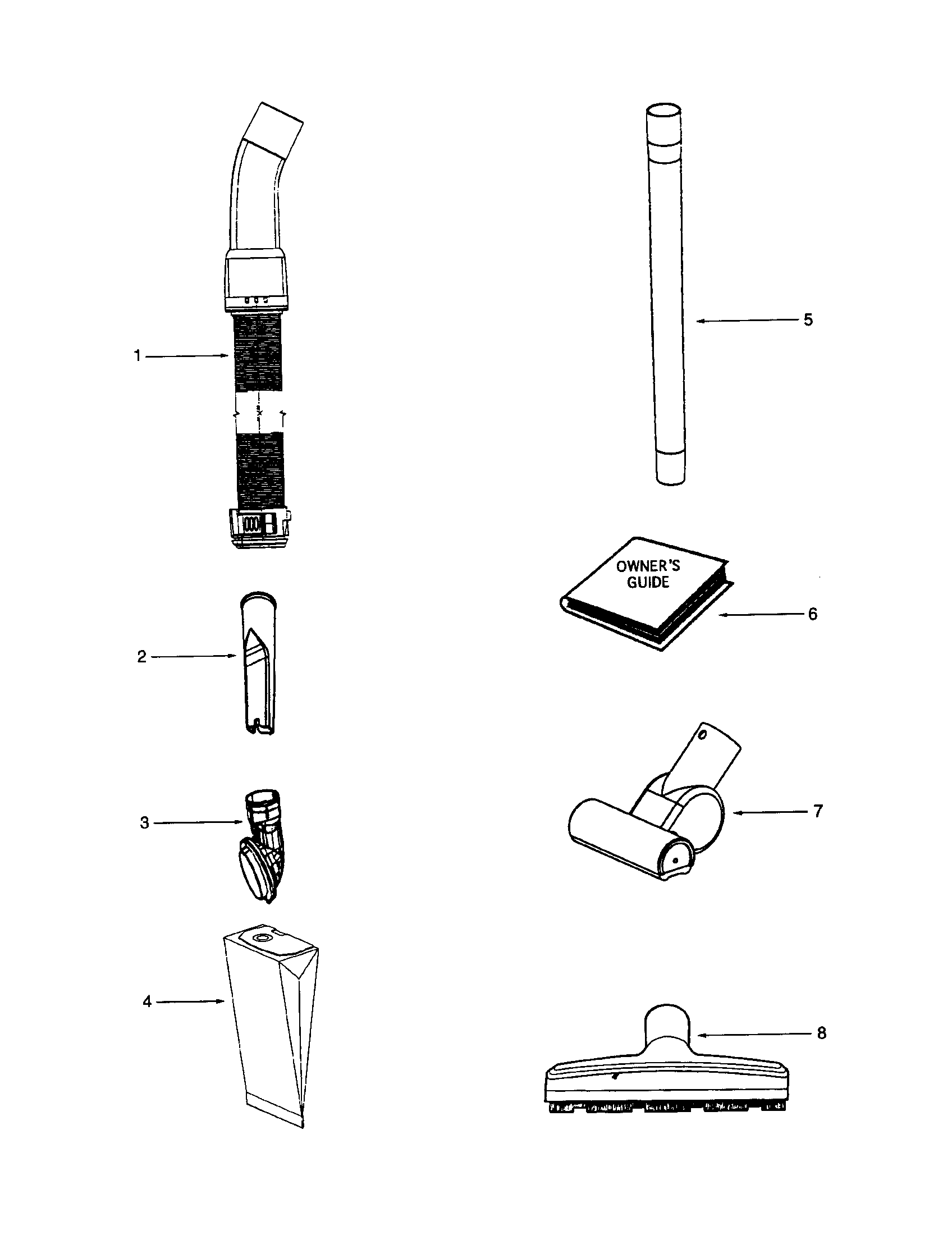

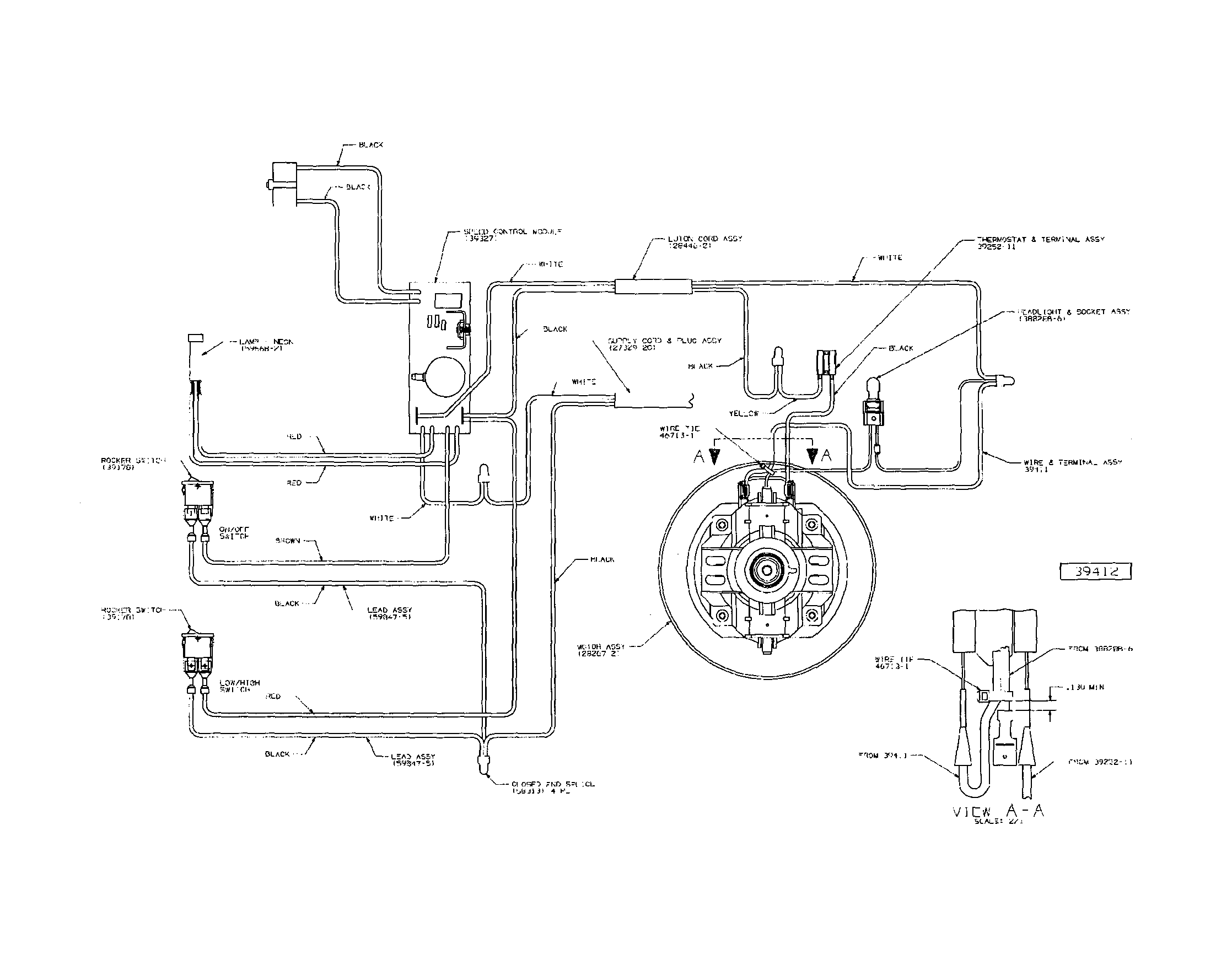

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
6230AT Vacuum Cleaners
Pedal 39197B-335N
#16

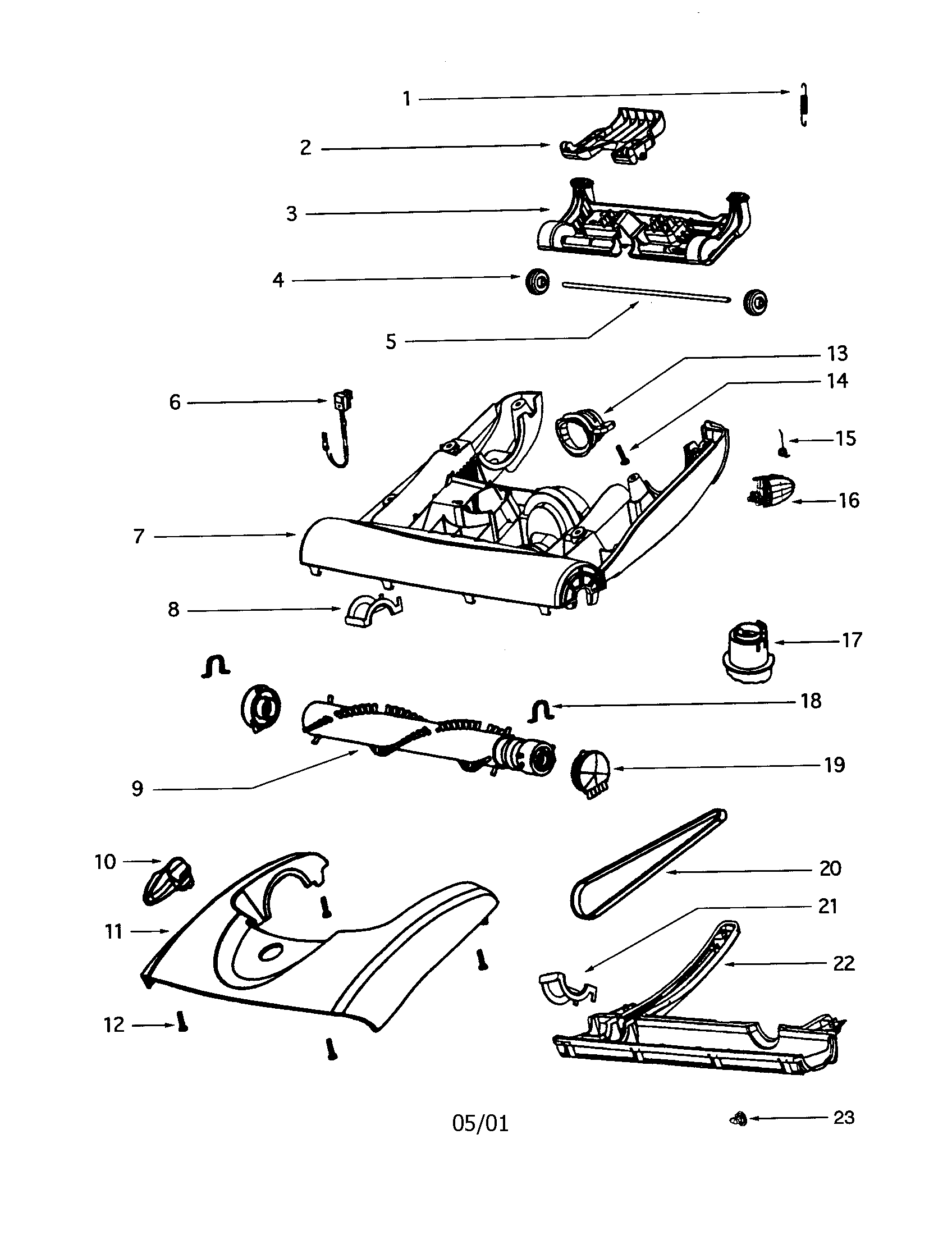

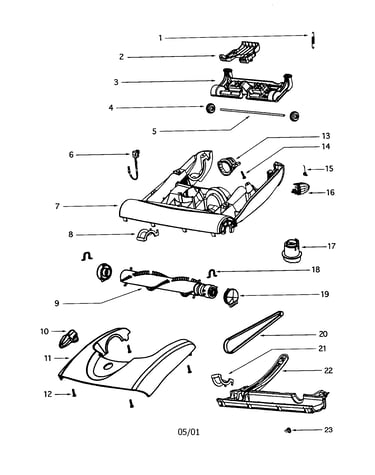

Hood and base diagram

Pedal

Part #39197B-335N

The manufacturer no longer makes this part, and there's no substitute part

Handle 39162-3
#19

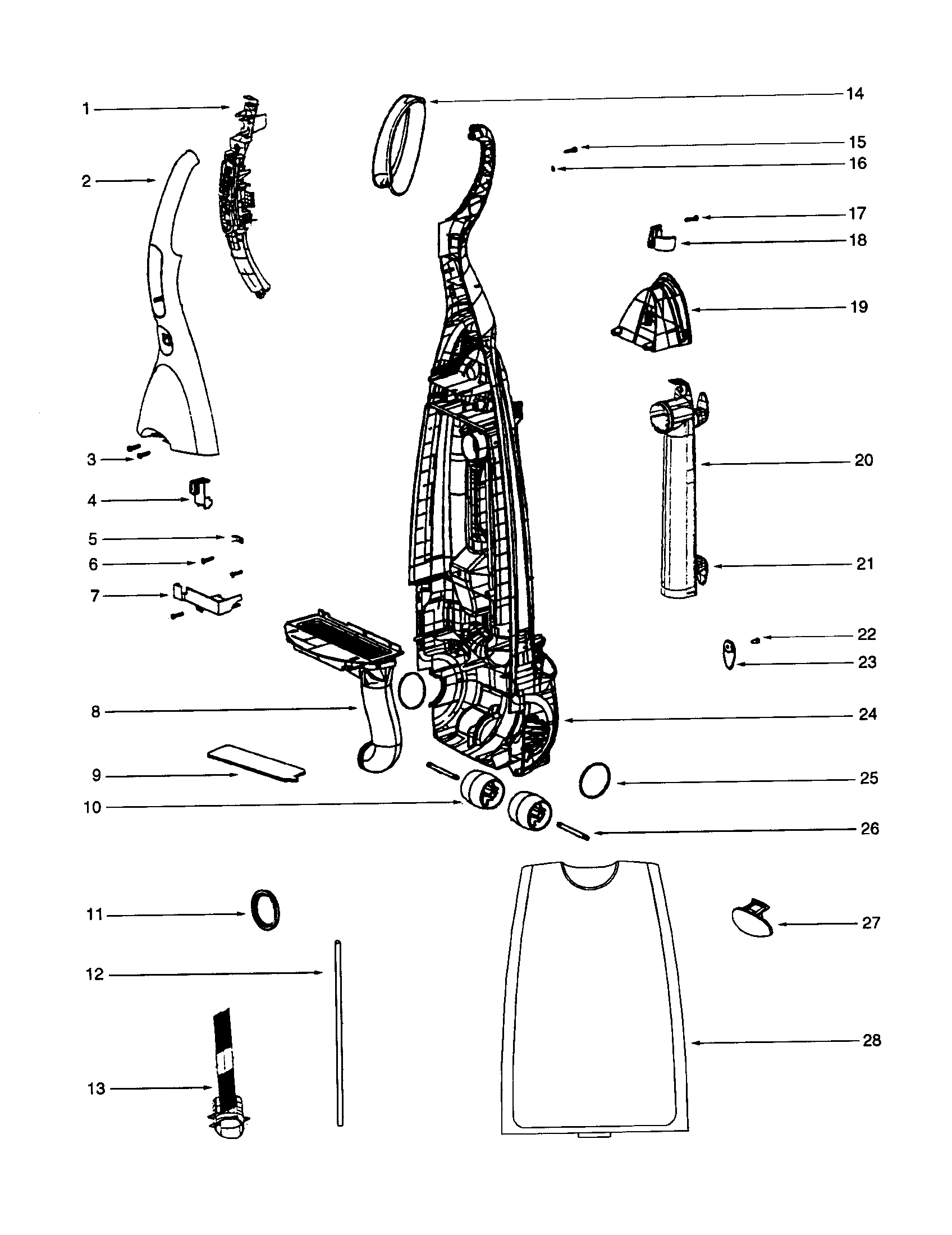

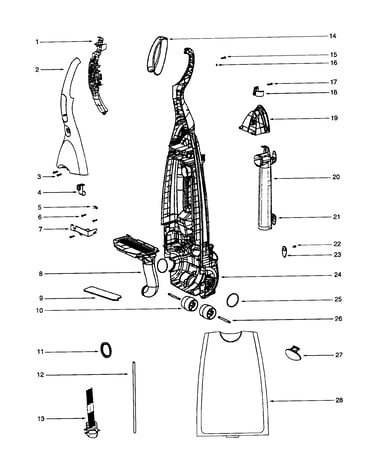

Body diagram

Handle

Part #39162-3

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Twist-on Wire Connector, 5-pack 60192-1
#9

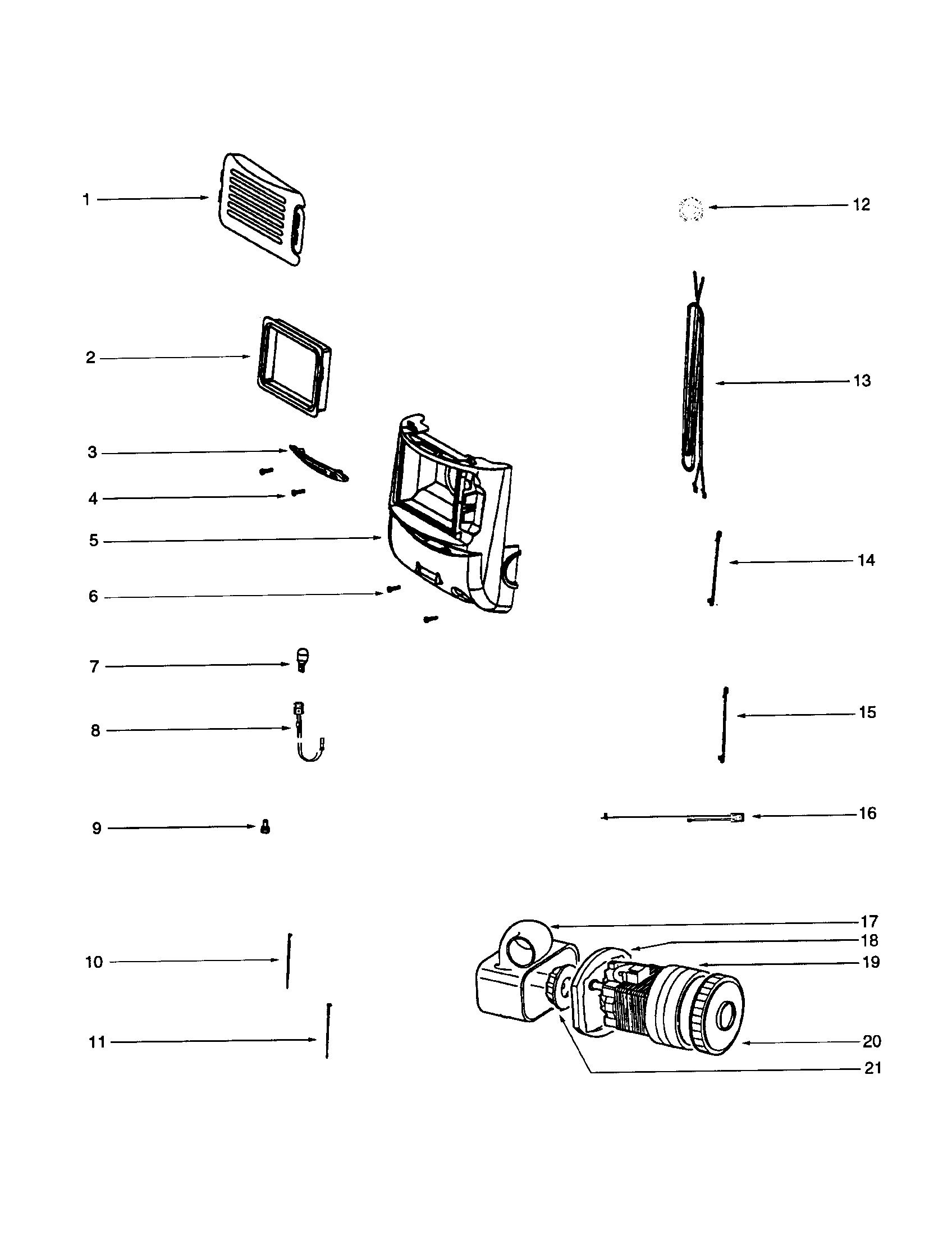

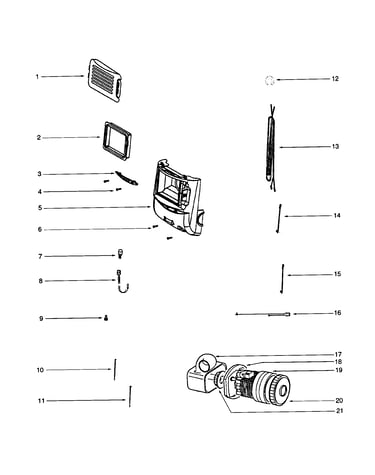

Motor cover diagram

Vacuum twist-on wire connector, 5-pack

Part #60192-1

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Washer 60810
#20D

Body diagram

Electrolux washer

Part #60810

The manufacturer no longer makes this part, and there's no substitute part

Grip 39170-335N
#14

Body diagram

Grip

Part #39170-335N

The manufacturer no longer makes this part, and there's no substitute part

Seal 59654
#8A

Body diagram

Seal

Part #59654

The manufacturer no longer makes this part, and there's no substitute part

Motor 60807-2
#19

Motor cover diagram

Motor

Part #60807-2

The manufacturer no longer makes this part, and there's no substitute part

Chamber 28415
#8B

Body diagram

Chamber

Part #28415

The manufacturer no longer makes this part, and there's no substitute part

Electrolux On-sert 70910
#12

Motor cover diagram

Electrolux on-sert

Part #70910

The manufacturer no longer makes this part, and there's no substitute part

Electrolux Clamp 39214
#5

Body diagram

Electrolux clamp

Part #39214

The manufacturer no longer makes this part, and there's no substitute part
