Model # HE2950T981 Official Maytag electric water heater

Here are the diagrams and repair parts for Official Maytag HE2950T981 electric water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

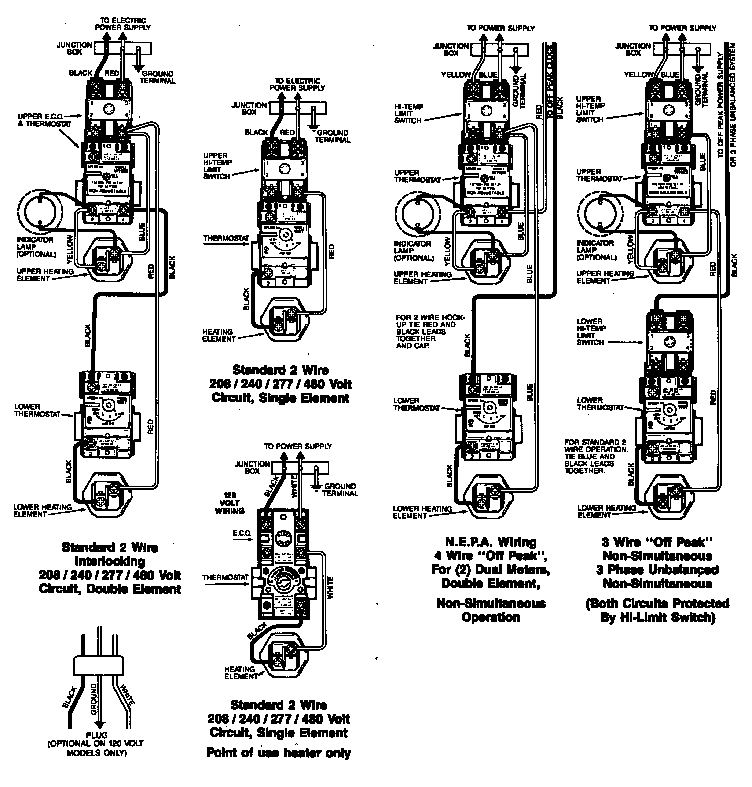

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Access Panel 9000452
#15

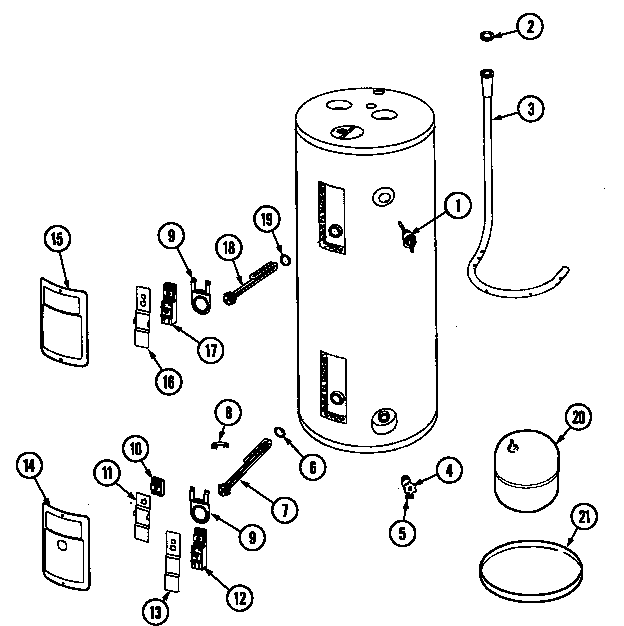

Body diagram

Access panel

Part #9000452

$16.49
In Stock
Terminal Cover 66001064
#16

Body diagram

Terminal cover

Part #66001064

The manufacturer no longer makes this part, and there's no substitute part

Dip Tube 66001066
#3A

Body diagram

Dip tube

Part #66001066

The manufacturer no longer makes this part, and there's no substitute part

Drain Valve 66001015
#4

Body diagram

Drain valve

Part #66001015

The manufacturer no longer makes this part, and there's no substitute part

Auto Start Switch & Conduit (series 0) NLA
#21B

Wiring information diagram

Auto start switch & conduit (series 0)

Part #NLA

The manufacturer no longer makes this part, and there's no substitute part

Element Gasket 9000308
#6

Body diagram

Element gasket

Part #9000308

The manufacturer no longer makes this part, and there's no substitute part

Manual, Use & Care W/new - Series 9 12001792
#21A

Body diagram

Manual, use & care w/new - series 9

Part #12001792

The manufacturer no longer makes this part, and there's no substitute part

Drain Valve 66001075
#4A

Body diagram

Drain valve

Part #66001075

The manufacturer no longer makes this part, and there's no substitute part

Therm,upper, 66001009
#17

Body diagram

Therm,upper,

Part #66001009

The manufacturer no longer makes this part, and there's no substitute part

Elem Htg 380 66001001
Elem htg 380

Part #66001001

The manufacturer no longer makes this part, and there's no substitute part
