Kenmore
Gas Range

Model # 103735620 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 103735620 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 142 parts  |
Lamp Bulb 65973

#NI

All parts diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Support 86931
#42

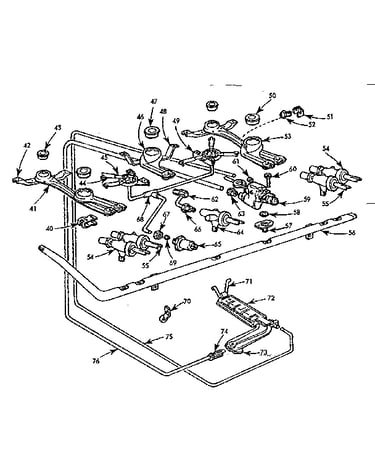

Burner section diagram

Support

Part #86931

This item is not returnable
$2.29
In Stock
Drawer Guide 97820
#93B

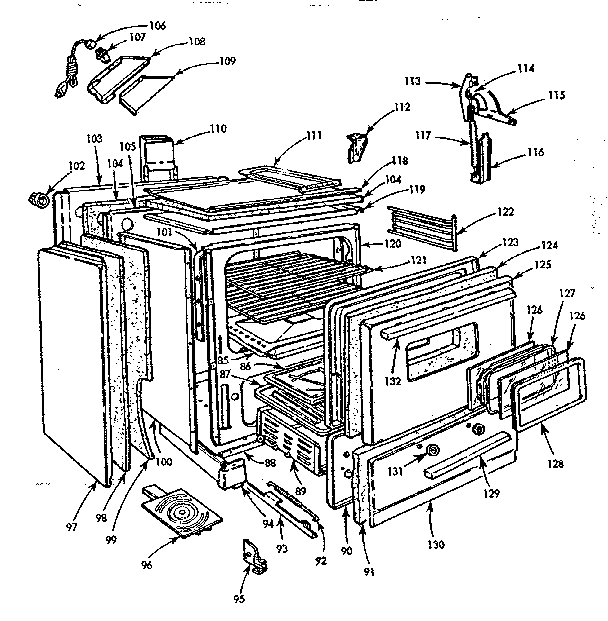

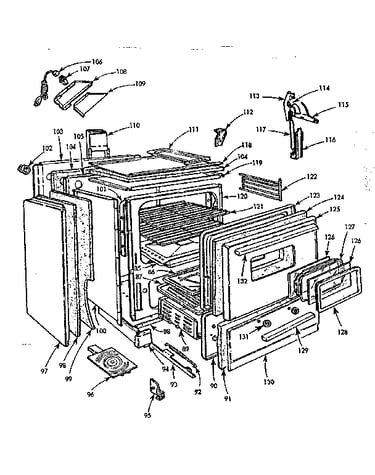

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Loxit Nut 79719
#66

Burner section diagram

Loxit nut

Part #79719

Replaced by #100108370

?
Manufacturer substitution
This part replaces 79719. Substitute parts can look different from the original.
$36.67
In Stock
Door Arm 97758
#115A

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Oven Rack 70822
#121

Body section diagram

Oven rack

Part #70822

The manufacturer no longer makes this part, and there's no substitute part

Retainer 98117
#112B

Body section diagram

Retainer

Part #98117

The manufacturer no longer makes this part, and there's no substitute part

Retainer 86999
#128

Body section diagram

Retainer

Part #86999

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 97800
#123

Body section diagram

Door lining

Part #97800

The manufacturer no longer makes this part, and there's no substitute part

Glass Clock 98031
#7

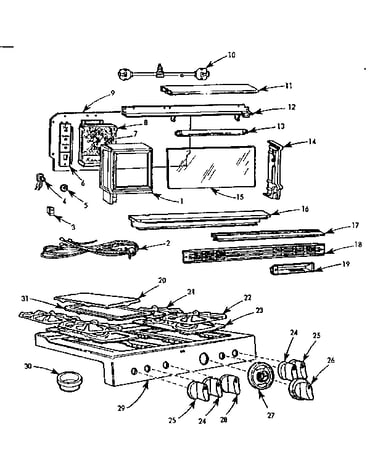

Main top section diagram

Glass clock

Part #98031

The manufacturer no longer makes this part, and there's no substitute part
