Model # 917252492 Official Craftsman sleeve hitch tiller attachment

Here are the diagrams and repair parts for Official Craftsman 917252492 sleeve hitch tiller attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |
Spring Retainer 3146R
#27

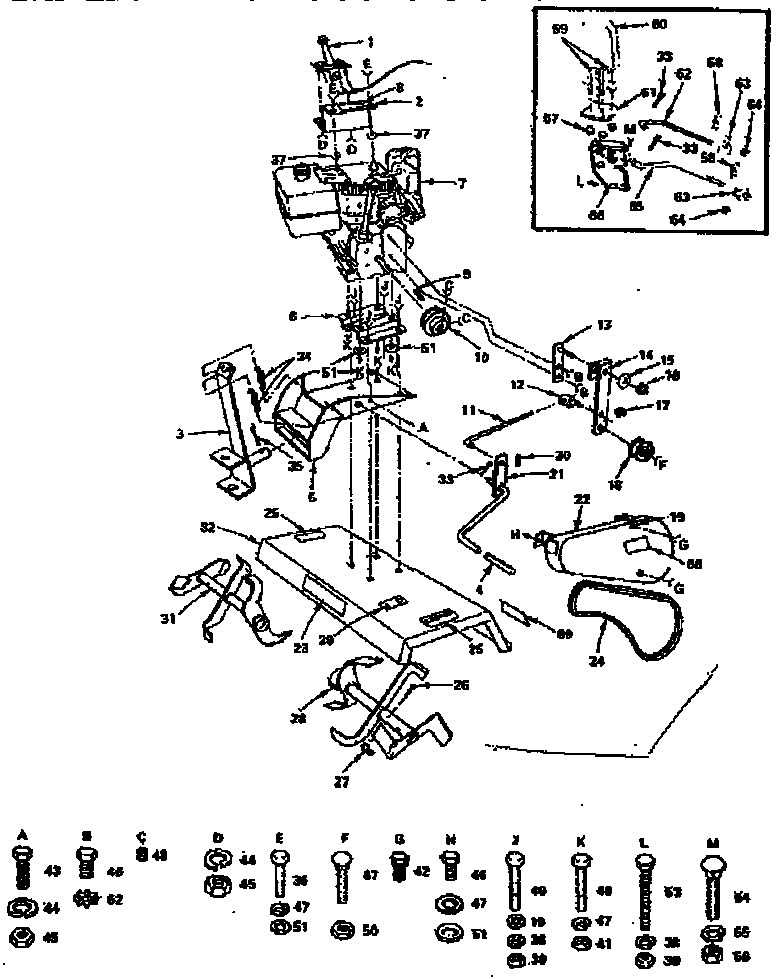

Engine and tines diagram

Spring retainer

Part #3146R

Replaced by #532003146

?
Manufacturer substitution
This part replaces 3146R. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Thrust Bearing 1370H
#26

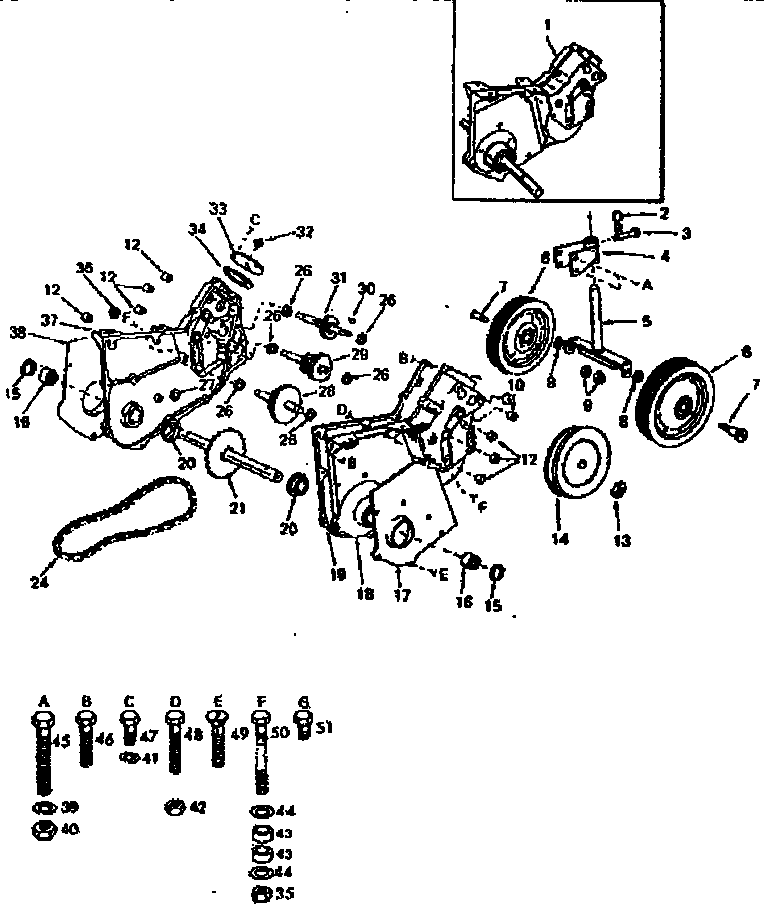

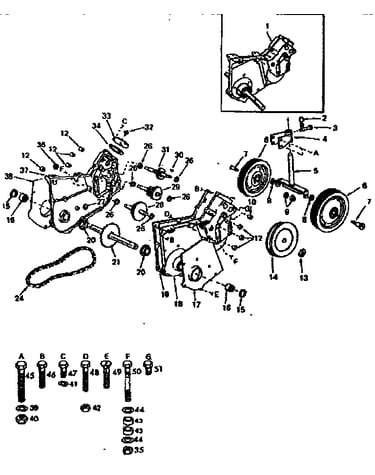

Transmission and gauge wheels diagram

Thrust bearing

Part #1370H

Replaced by #532001370

?
Manufacturer substitution
This part replaces 1370H. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Hitch Pin, 2-pack 4939M
#58

Engine and tines diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Retainer 4497H
#20

Engine and tines diagram

Retainer

Part #4497H

Replaced by #532004497

?
Manufacturer substitution
This part replaces 4497H. Substitute parts can look different from the original.
This item is not returnable
$6.30
In Stock
Spring 8905R
#34

Engine and tines diagram

Spring

Part #8905R

Replaced by #532008905

?
Manufacturer substitution
This part replaces 8905R. Substitute parts can look different from the original.
$33.31
In Stock
Nut 73690600
#57

Engine and tines diagram

Nut

Part #73690600

Replaced by #596322601

?
Manufacturer substitution
This part replaces 73690600. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Tractor Accessories Tiller Clevis Pin (replaces 138078, 326j, 326j500, 43023, 502498, 506028, 506538, 511606, 518015, 5297h, 532004929, 6202j, 711-0599, L-5042, L-5069, L-5078) 4929H
Tractor accessories tiller clevis pin (replaces 138078, 326j, 326j500, 43023, 502498, 506028, 506538, 511606, 518015, 5297h, 532004929, 6202j, 711-0599, l-5042, l-5069, l-5078)

Part #4929H

Replaced by #532004929

?
Manufacturer substitution
This part replaces 4929H. Substitute parts can look different from the original.
$10.26
In Stock
Bolt 74930632
#53

Engine and tines diagram

Bolt

Part #74930632

Replaced by #874930632

?
Manufacturer substitution
This part replaces 74930632. Substitute parts can look different from the original.
$10.26
In Stock
Shldr Bolt 4898H
#7

Transmission and gauge wheels diagram

Shldr bolt

Part #4898H

Replaced by #596434402

?
Manufacturer substitution
This part replaces 4898H. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Bearing Seal 3136R
#10

Transmission and gauge wheels diagram

Bearing seal

Part #3136R

Replaced by #532005020

?
Manufacturer substitution
This part replaces 3136R. Substitute parts can look different from the original.
This item is not returnable
$19.98 |
9% OFF Phone Price : $21.98
In Stock
