Gas Water Heater

Model # HP5950TCAN Official Maytag water heater

Here are the diagrams and repair parts for Official Maytag HP5950TCAN water heater, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
HP5950TCAN Water Heaters
Baffle, Flue - Series 10 9000516
#16

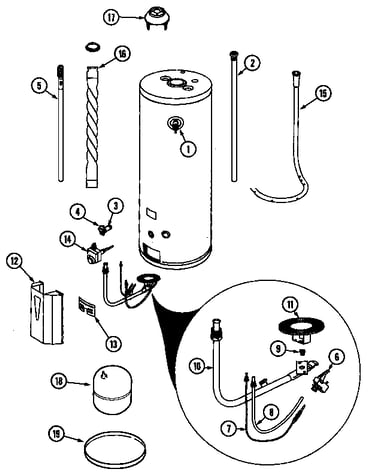

Body diagram

Baffle, flue - series 10

Part #9000516

The manufacturer no longer makes this part, and there's no substitute part

Manual, Use & Care - Series 9 66001097
#17B

Body diagram

Manual, use & care - series 9

Part #66001097

The manufacturer no longer makes this part, and there's no substitute part

Draft Hood 66001032
#17

Body diagram

Draft hood

Part #66001032

The manufacturer no longer makes this part, and there's no substitute part

Dip Tube 66001030
#15

Body diagram

Dip tube

Part #66001030

The manufacturer no longer makes this part, and there's no substitute part

Tank, Expansion (2 Gal.) - Series 10 66001013
#17A

Body diagram

Tank, expansion (2 gal.) - series 10

Part #66001013

The manufacturer no longer makes this part, and there's no substitute part

Orifice, Burner (#51) - Series 12 0230224
#9

Body diagram

Orifice, burner (#51) - series 12

Part #0230224

The manufacturer no longer makes this part, and there's no substitute part

Valve, Relief-5/8"shank - Series 10 66001079
#1

Body diagram

Valve, relief-5/8"shank - series 10

Part #66001079

The manufacturer no longer makes this part, and there's no substitute part

Valve, Drain-5/8" Shank - Series 10 66001080
#3

Body diagram

Valve, drain-5/8" shank - series 10

Part #66001080

The manufacturer no longer makes this part, and there's no substitute part

Orifice, Burner (#50) - Series 12 0230225
#9A

Body diagram

Orifice, burner (#50) - series 12

Part #0230225

The manufacturer no longer makes this part, and there's no substitute part
