Model # GL-200/P96176-12F Official Amana gas furnace

Here are the diagrams and repair parts for Official Amana GL-200-P96176-12F gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

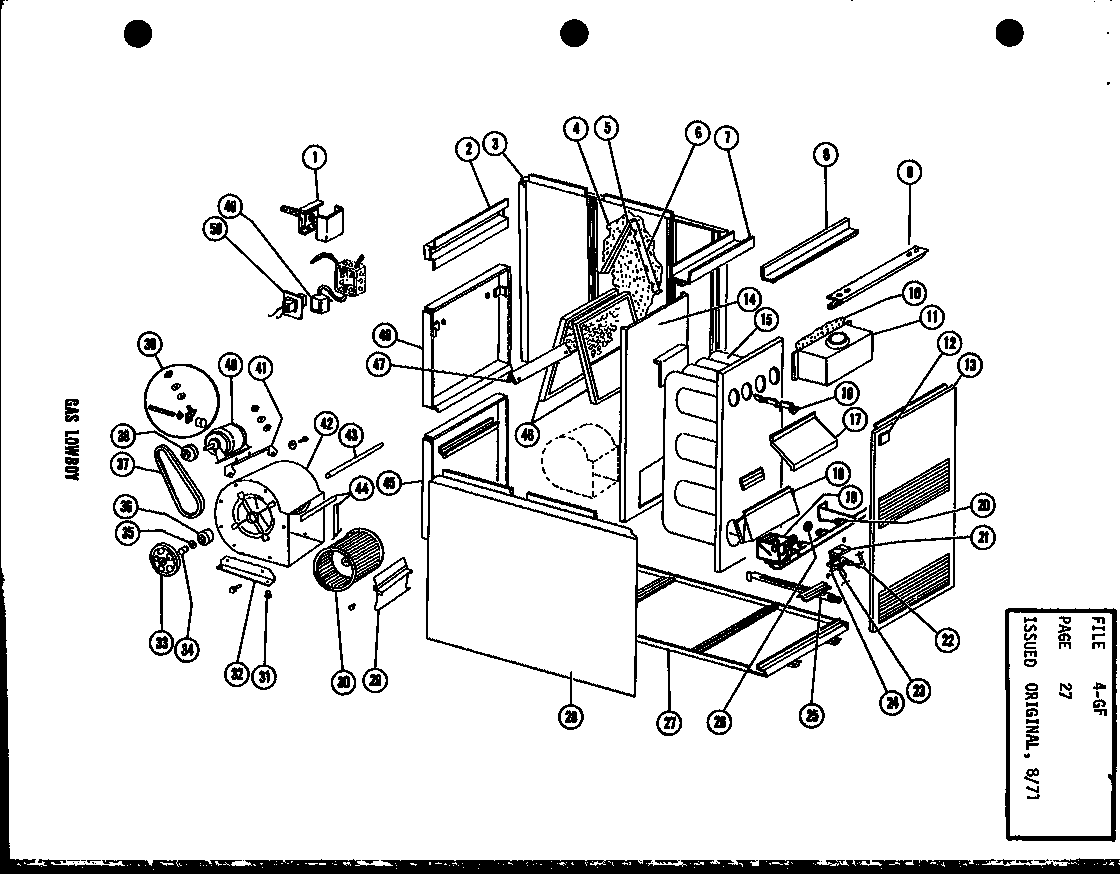

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Natural Gas Burner D9618001
#28A

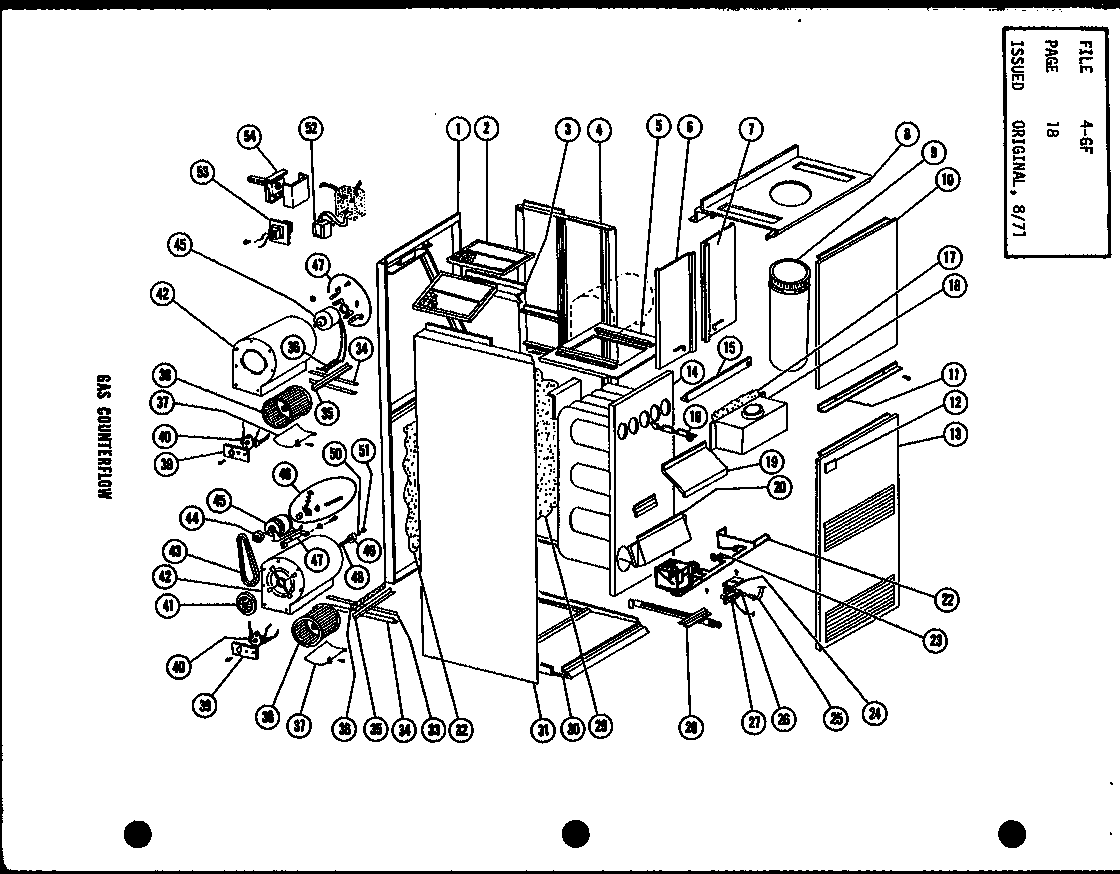

Gas counterflow (gc-140/p96177-17f) (gc-140-5/p96177-18f) diagram

Natural gas burner

Part #D9618001

The manufacturer no longer makes this part, and there's no substitute part

Use M0750101 M0750001

#NI

All parts diagram

Use m0750101

Part #M0750001

The manufacturer no longer makes this part, and there's no substitute part

Collar, Thrust, 3/4" 5151200 M0875807
#51

Gas counterflow (gc-140/p96177-17f) (gc-140-5/p96177-18f) diagram

Collar, thrust, 3/4" 5151200

Part #M0875807

The manufacturer no longer makes this part, and there's no substitute part

Orifce - Nat. Gas #33 Drill M0755602
#23C

Gas counterflow (gc-140/p96177-17f) (gc-140-5/p96177-18f) diagram

Orifce - nat. gas #33 drill

Part #M0755602

The manufacturer no longer makes this part, and there's no substitute part

Draft Diverter G'sket, Sides 9-31/32" B9200802
#17A

Gas counterflow (gc-140/p96177-17f) (gc-140-5/p96177-18f) diagram

Draft diverter g'sket, sides 9-31/32"

Part #B9200802

The manufacturer no longer makes this part, and there's no substitute part

Felt, Blower Mounting Angle, 1-1/2 X 1/8 X 16 A9003210
#33

Gas counterflow (gc-140/p96177-17f) (gc-140-5/p96177-18f) diagram

Felt, blower mounting angle, 1-1/2 x 1/8 x 16

Part #A9003210

The manufacturer no longer makes this part, and there's no substitute part

Motor Pulley - 1/2" C5252201
#44A

Gas counterflow (gc-140/p96177-17f) (gc-140-5/p96177-18f) diagram

Motor pulley - 1/2"

Part #C5252201

The manufacturer no longer makes this part, and there's no substitute part

Auxialry Limit Control, Spdt, 20600d-74-70f110-2 M0352801
#40

Gas counterflow (gc-140/p96177-17f) (gc-140-5/p96177-18f) diagram

Auxialry limit control, spdt, 20600d-74-70f110-2

Part #M0352801

The manufacturer no longer makes this part, and there's no substitute part

Bearing Assembly M0875806
#49

Gas counterflow (gc-140/p96177-17f) (gc-140-5/p96177-18f) diagram

Bearing assembly

Part #M0875806

The manufacturer no longer makes this part, and there's no substitute part

Fan Realy, S.p.s.t., H.r8225b015 C5845601
#52

Gas counterflow (gc-140/p96177-17f) (gc-140-5/p96177-18f) diagram

Fan realy, s.p.s.t., h.r8225b015

Part #C5845601

The manufacturer no longer makes this part, and there's no substitute part
