Caloric
Gas Range

Model # RLS358UOFC/P1141106NW Official Caloric gas range

Here are the diagrams and repair parts for Official Caloric RLS358UOFC-P1141106NW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Switch 0088874
#11

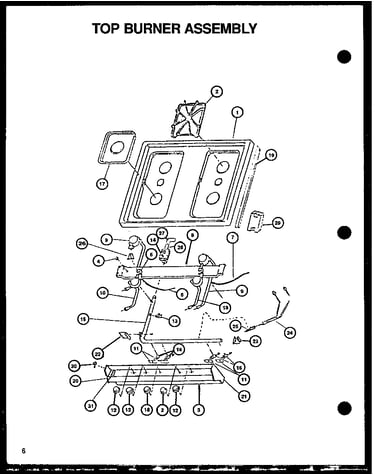

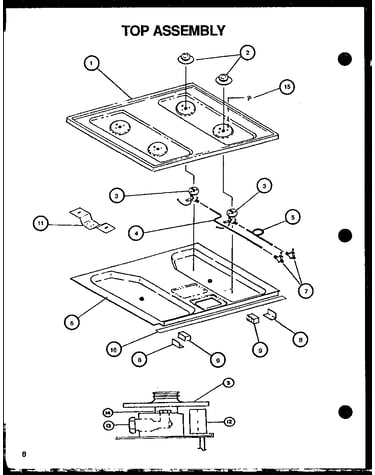

Tob burner assembly diagram

Switch

Part #0088874

Replaced by #WP4157180

?
Manufacturer substitution
This part replaces 0088874. Substitute parts can look different from the original.
$47.09 |
11% OFF Phone Price : $53.09
In Stock
End Cap, R.h. 0311834
#21C

Tob burner assembly diagram

End cap, r.h.

Part #0311834

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube Clip 0310802
#28

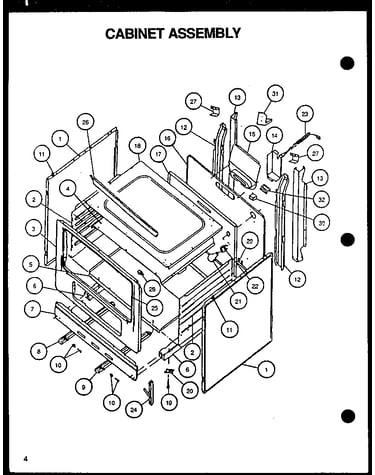

Cabinet assembly diagram

Capillary tube clip

Part #0310802

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 0056140
#14

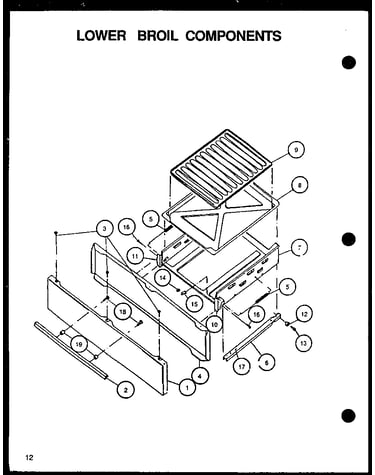

Lower broil components diagram

Lock nut

Part #0056140

The manufacturer no longer makes this part, and there's no substitute part

Igniter 0311618
#5A

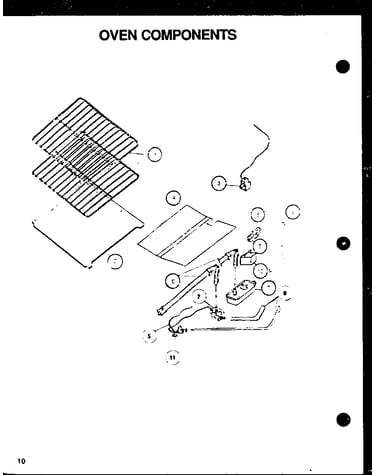

Oven components diagram

Igniter

Part #0311618

The manufacturer no longer makes this part, and there's no substitute part

Glass Backguard 0055021
#1B

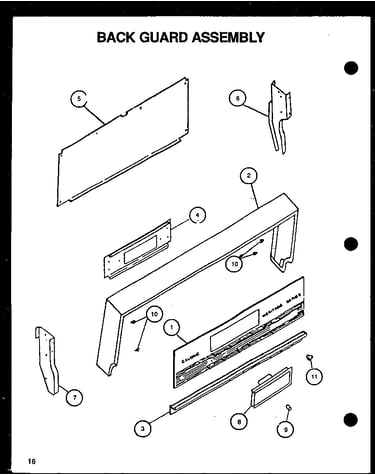

Back guard assembly diagram

Glass backguard

Part #0055021

The manufacturer no longer makes this part, and there's no substitute part

Cord Set 0088884
#23

Cabinet assembly diagram

Cord set

Part #0088884

The manufacturer no longer makes this part, and there's no substitute part

Glass Backguard (346) 0055002
#1A

Back guard assembly diagram

Glass backguard (346)

Part #0055002

The manufacturer no longer makes this part, and there's no substitute part

Control Panel, (rls348) 0055014
#3B

Tob burner assembly diagram

Control panel, (rls348)

Part #0055014

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Bumper Mount 0311752
#8A

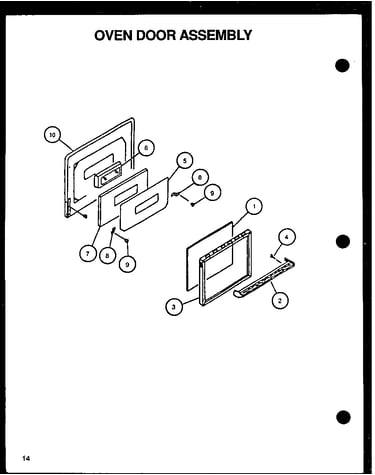

Oven door assembly diagram

Bracket, bumper mount

Part #0311752

The manufacturer no longer makes this part, and there's no substitute part
