Jenn-Air
Range

Model # JDS8860BDP Official Jenn-Air dual-fuel slide-in range

Here are the diagrams and repair parts for Official Jenn-Air JDS8860BDP dual-fuel slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

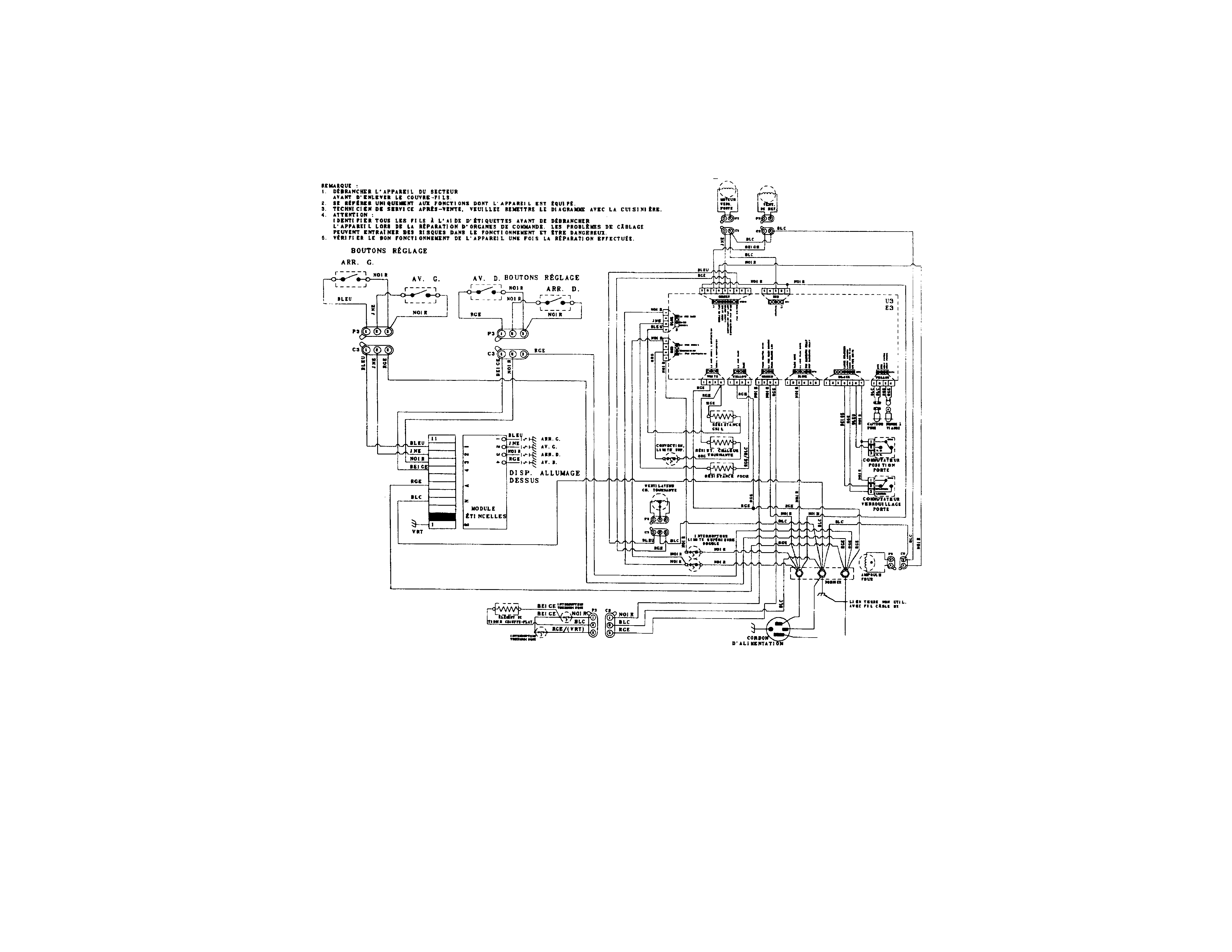

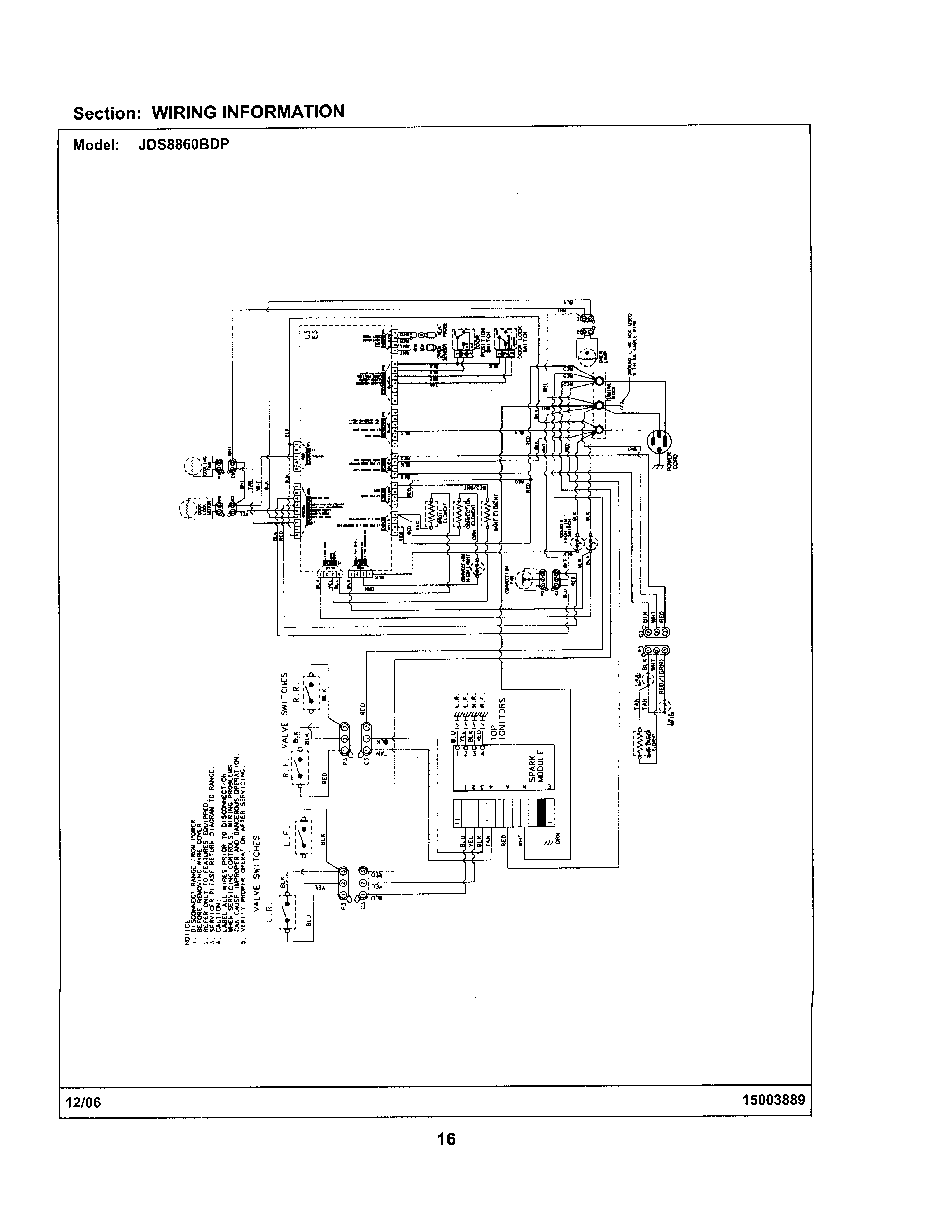

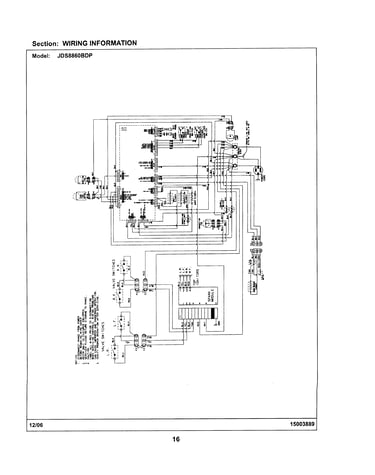

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Self Screw 74007410
#13

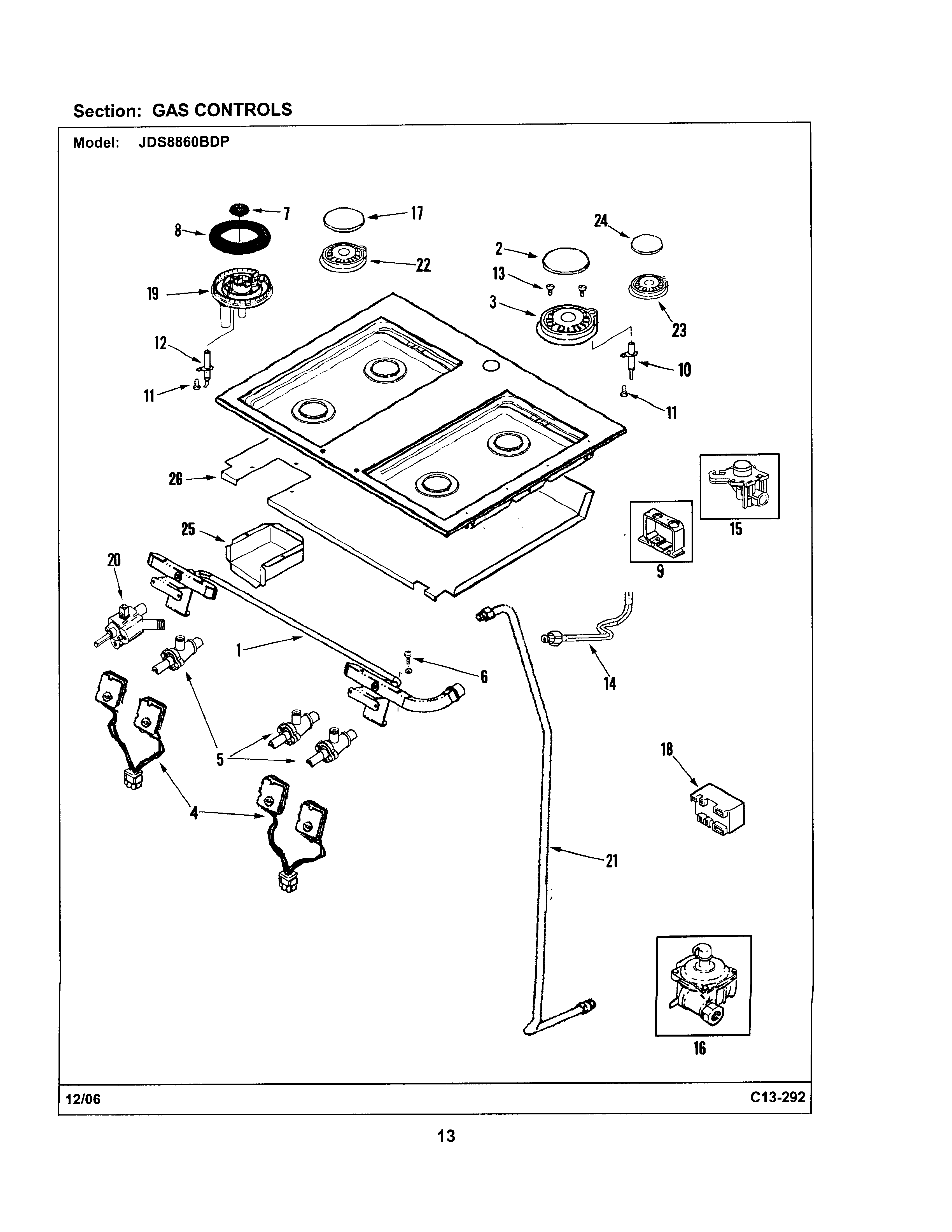

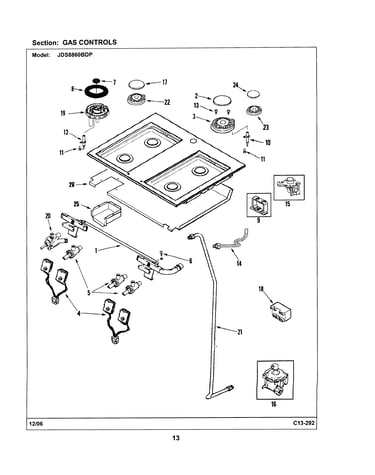

Gas controls diagram

Self screw

Part #74007410

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 74007410. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.34 |
14% OFF Phone Price : $7.34
In Stock
Terminal Block 7401P039-60
#26

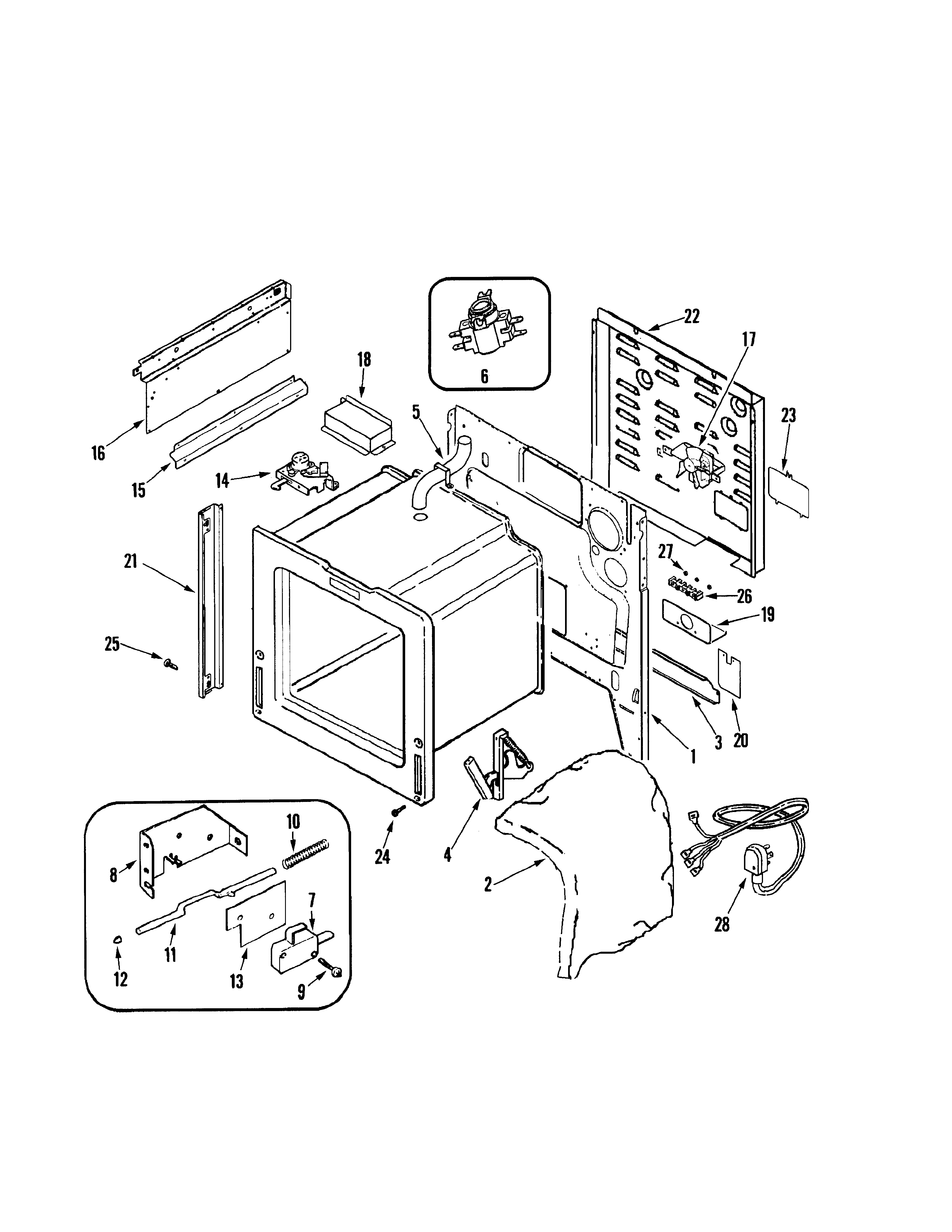

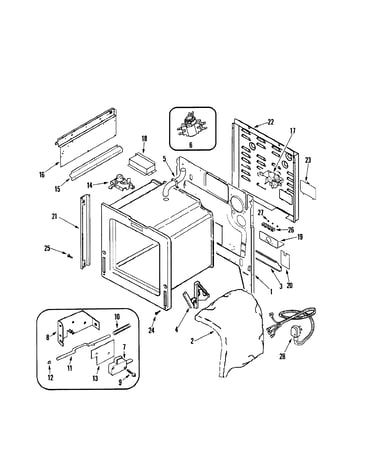

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74004943
#16

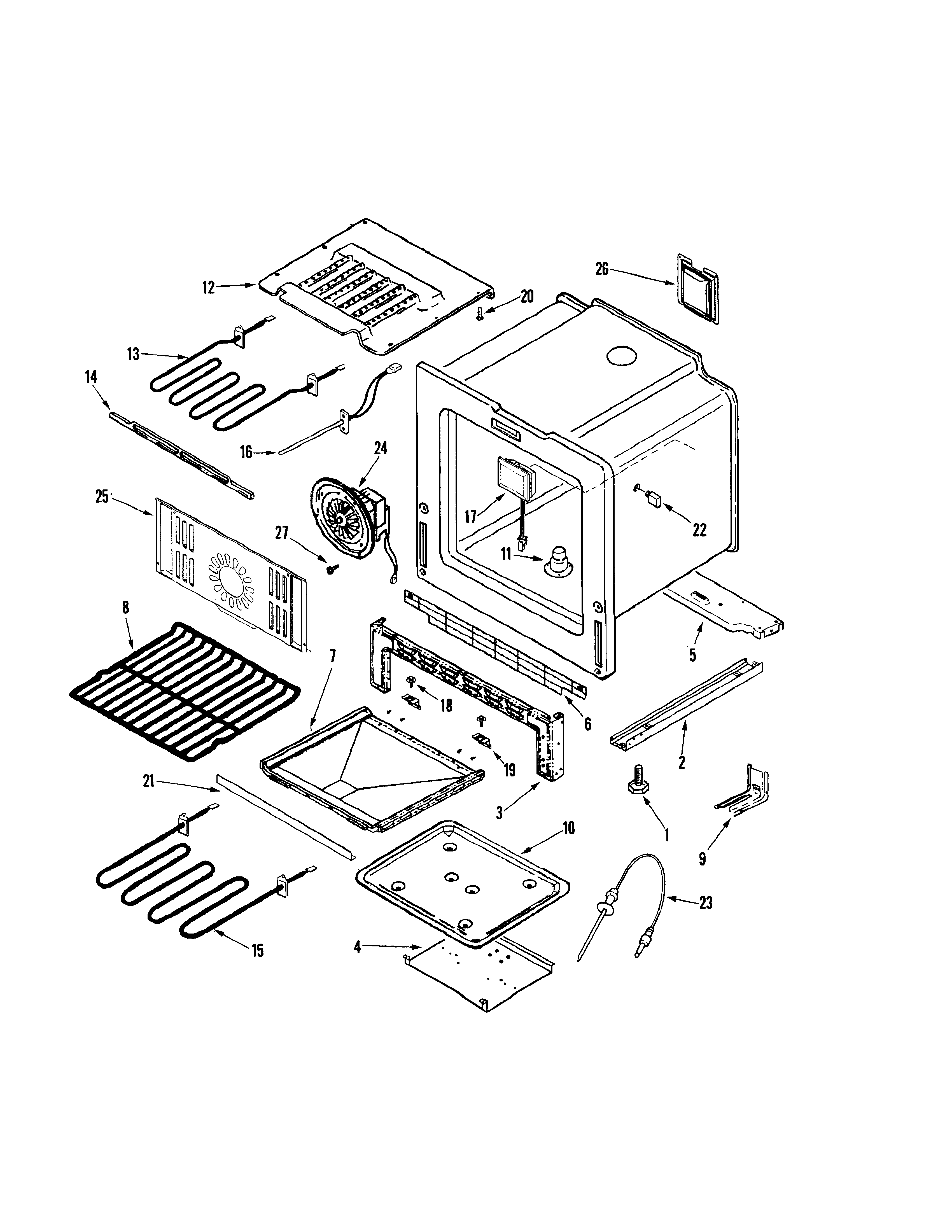

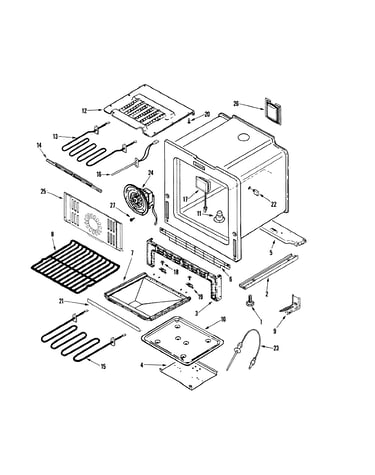

Oven / base diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Igniter Screw 74009337
#11

Gas controls diagram

Igniter screw

Part #74009337

Replaced by #WP8273062

?
Manufacturer substitution
This part replaces 74009337. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.40 |
23% OFF Phone Price : $4.40
In Stock
Door Gasket 7201P046-60
#4

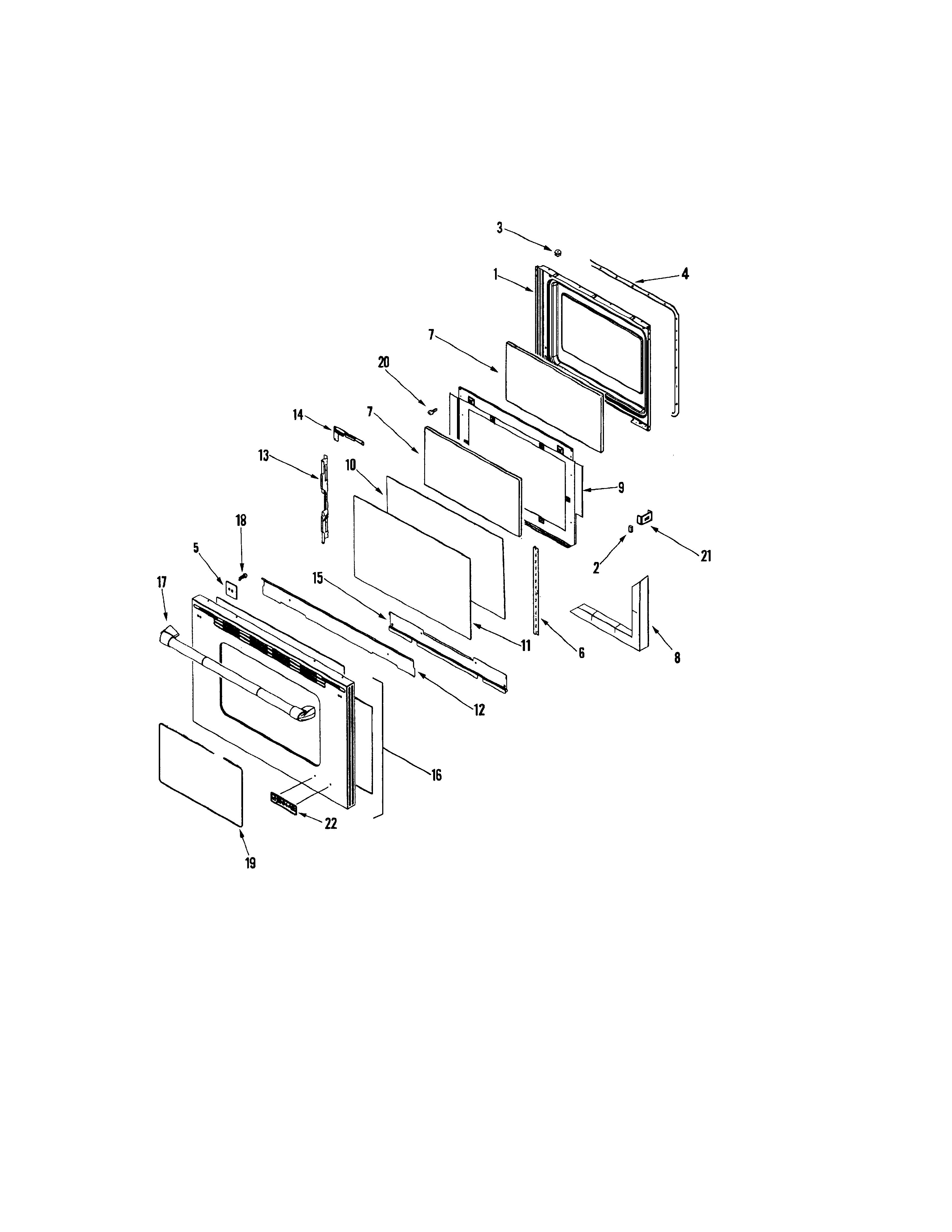

Door diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
BEST SELLER
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Control Switch 74011685
#1

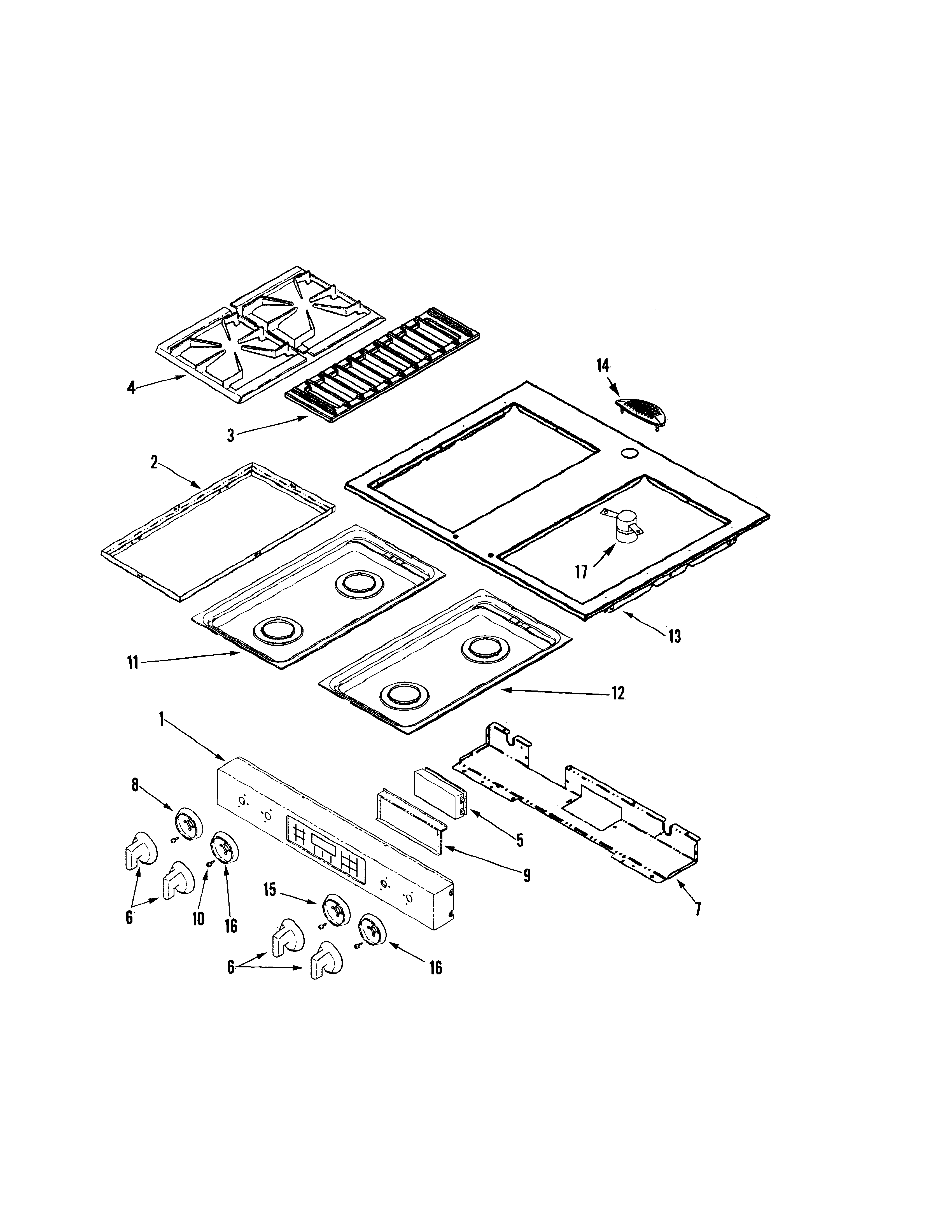

Control panel / top assembly diagram

Control switch

Part #74011685

Replaced by #WP5760M339-60

?
Manufacturer substitution
This part replaces 74011685. Substitute parts can look different from the original.
$324.84 |
$12.00 OFF Phone Price : $336.84
In Stock
Screw 7101P338-60
#NI

Control panel / top assembly diagram

Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw Element 74002979
#14

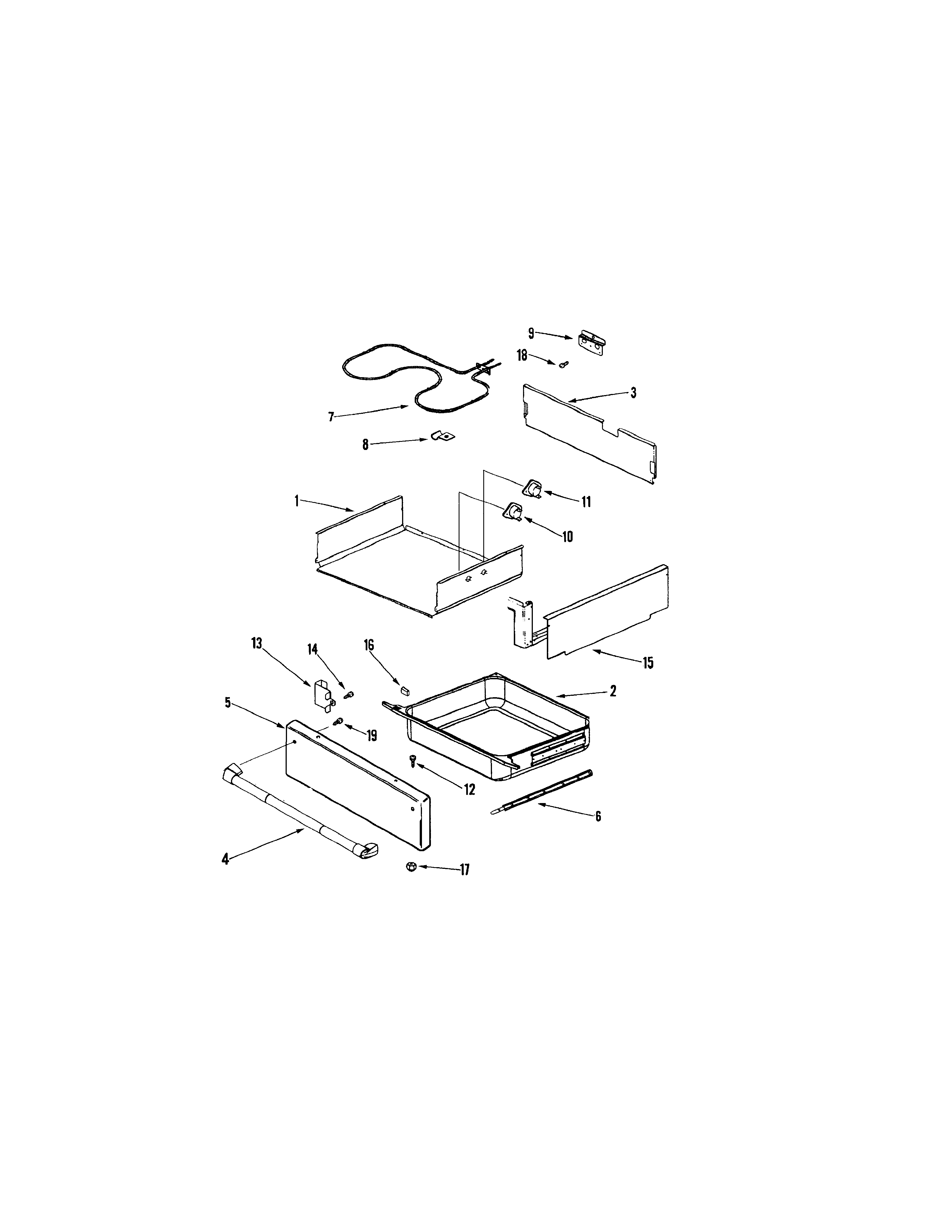

Warming drawer diagram

Screw element

Part #74002979

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74002979. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cooktop Burner Orifice And Holder, 5,000-btu 74009553
#NI

Gas controls diagram

Cooktop burner orifice and holder, 5,000-btu

Part #74009553

$37.37 |
14% OFF Phone Price : $43.37
In Stock
Screw 7101P112-60
#24

Body diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
