Model # FFTR1514QB4 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FFTR1514QB4 refrigerator, as well as links to manuals and error code tables, if available.

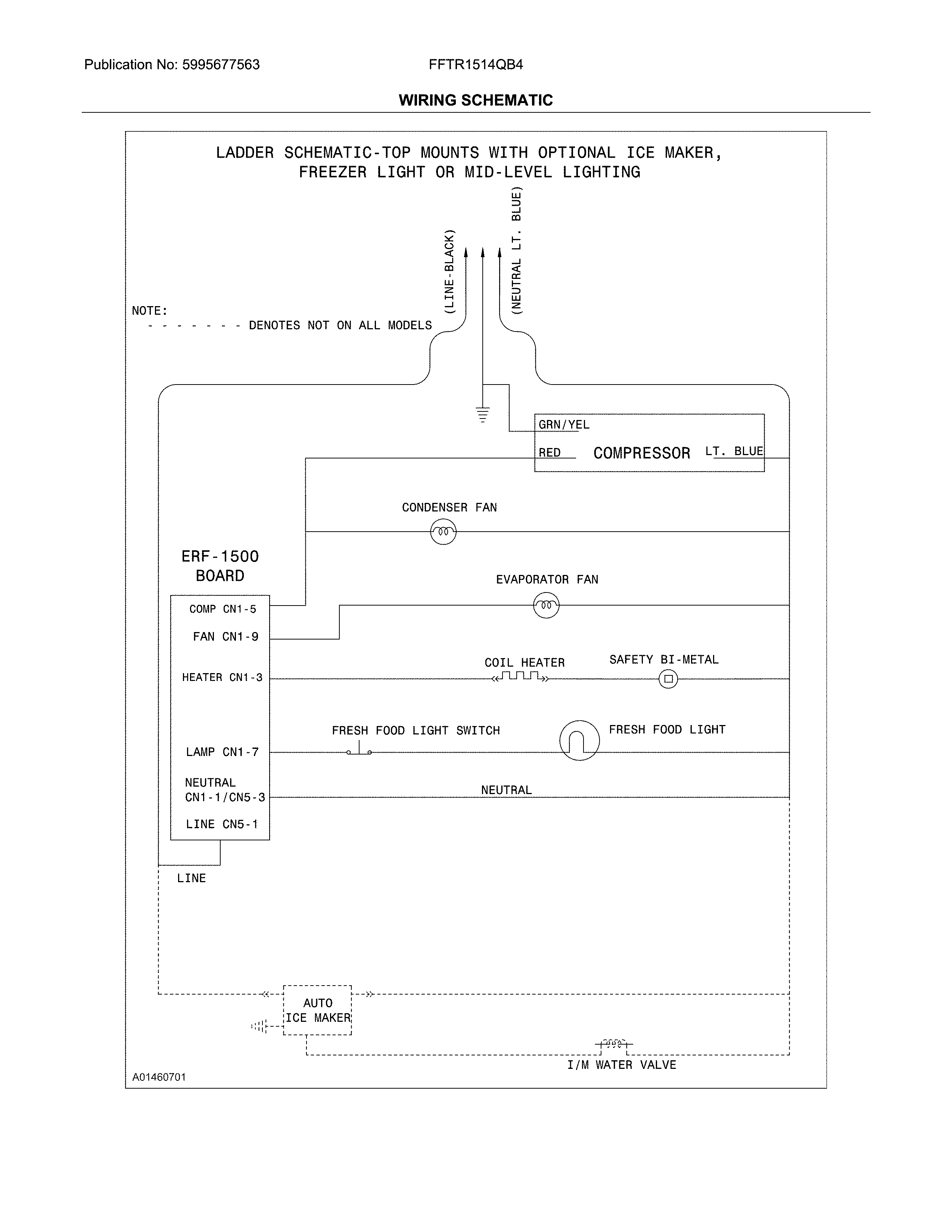

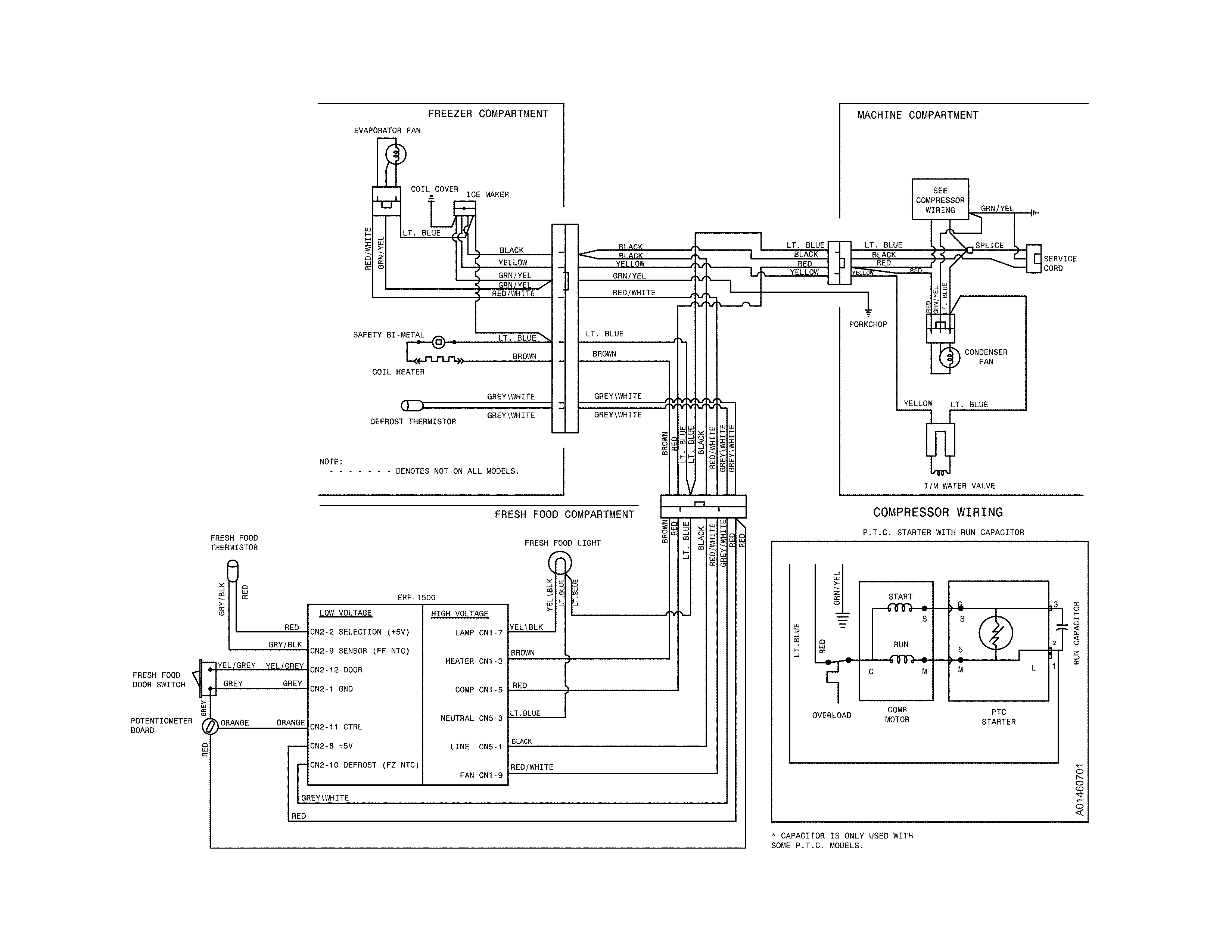

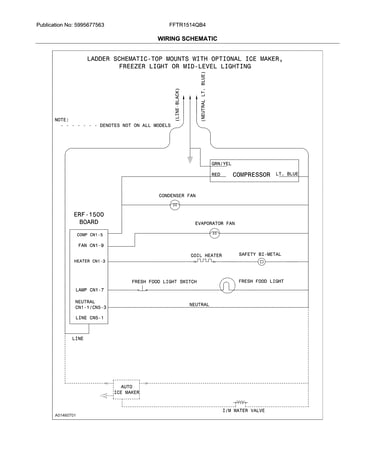

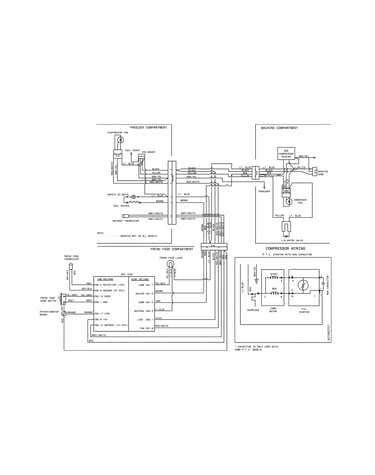

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
FFTR1514QB4 Refrigerator
Refrigerator Filter Dryer 242190201
#4

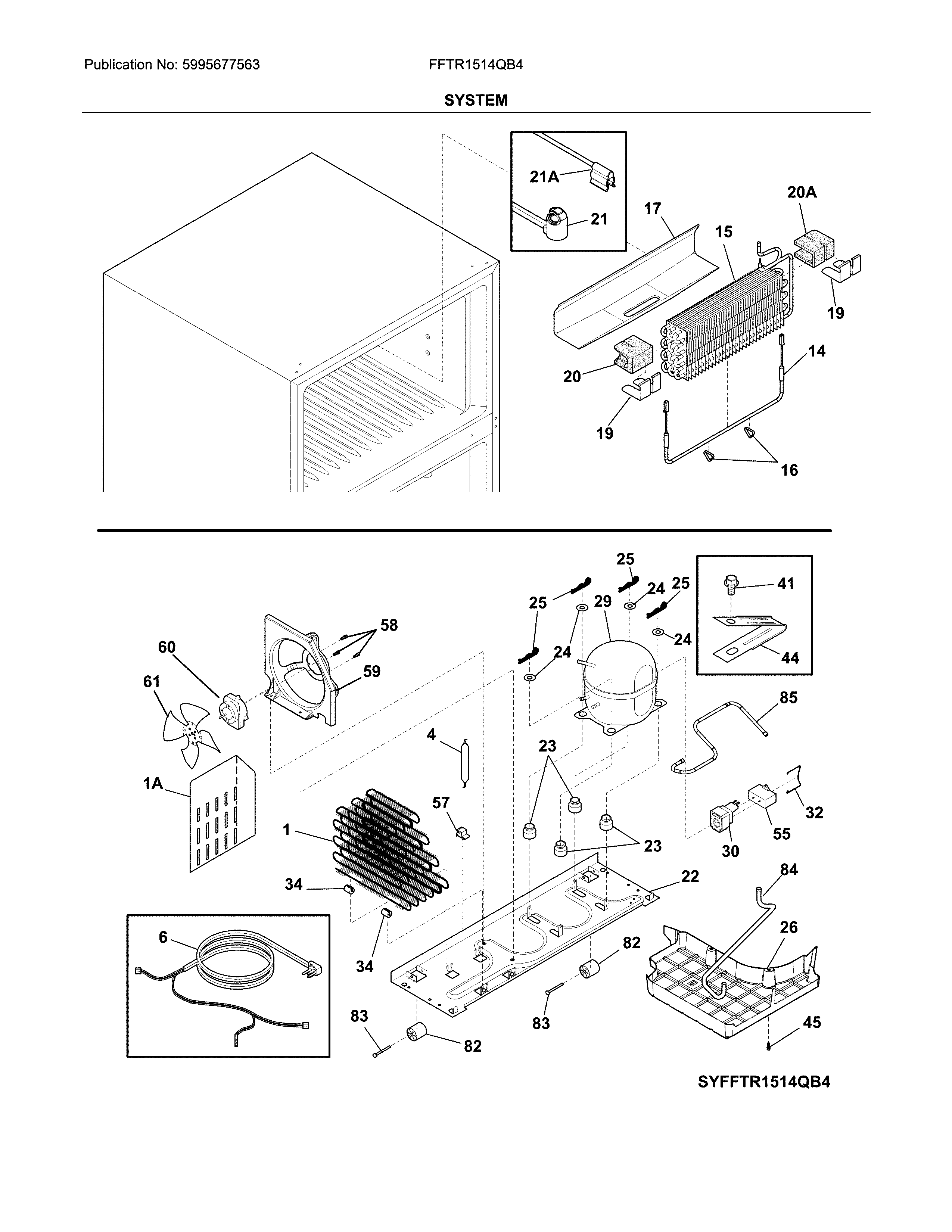

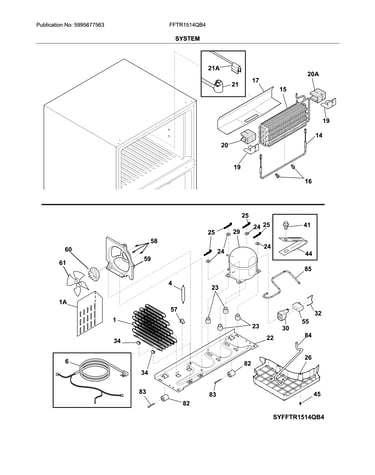

System diagram

Refrigerator filter dryer

Part #242190201

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242190201. Substitute parts can look different from the original.
BEST SELLER
$12.71
14% OFF Phone Price : $14.71
In Stock
Refrigerator Light Bulb (replaces 7241555401) 241555401
#15

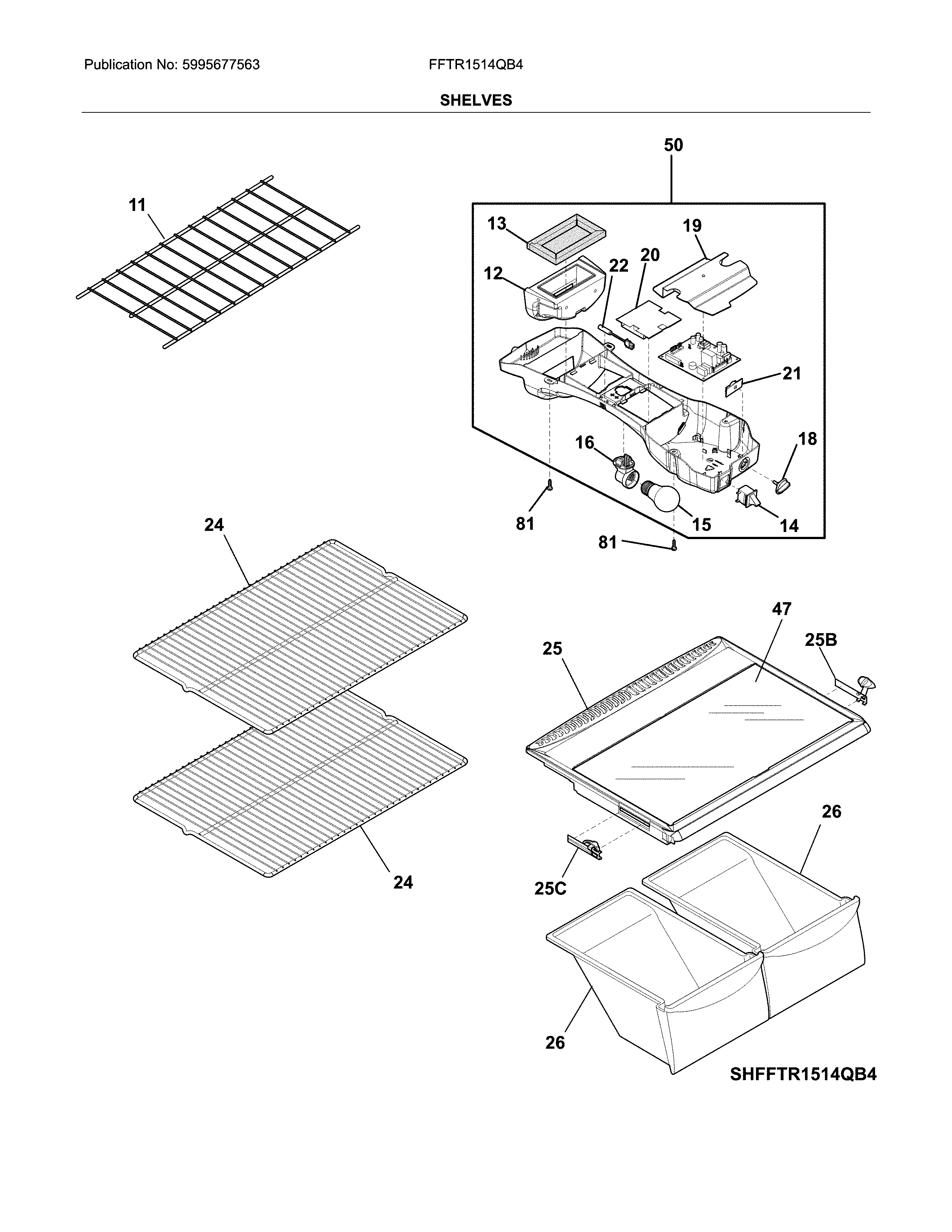

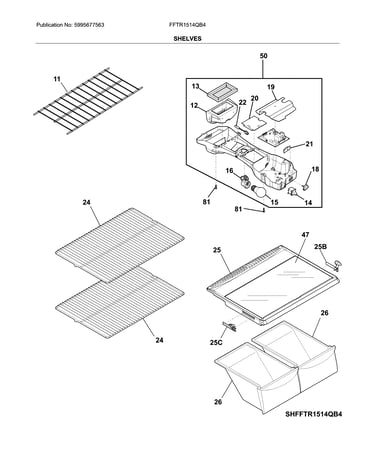

Shelves diagram

Refrigerator light bulb (replaces 7241555401)

Part #241555401

Replaced by #316538904

?
Manufacturer substitution
This part replaces 241555401. Substitute parts can look different from the original.
BEST SELLER
$16.47
11% OFF Phone Price : $18.47
In Stock
Refrigerator Temperature Sensor (replaces 240597201, 240597202, 7240597203) 240597203
#22

Shelves diagram

Refrigerator temperature sensor (replaces 240597201, 240597202, 7240597203)

Part #240597203

BEST SELLER
$49.14
11% OFF Phone Price : $55.14
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$36.97
14% OFF Phone Price : $42.97
In Stock
Refrigerator Motor 242219201
#13

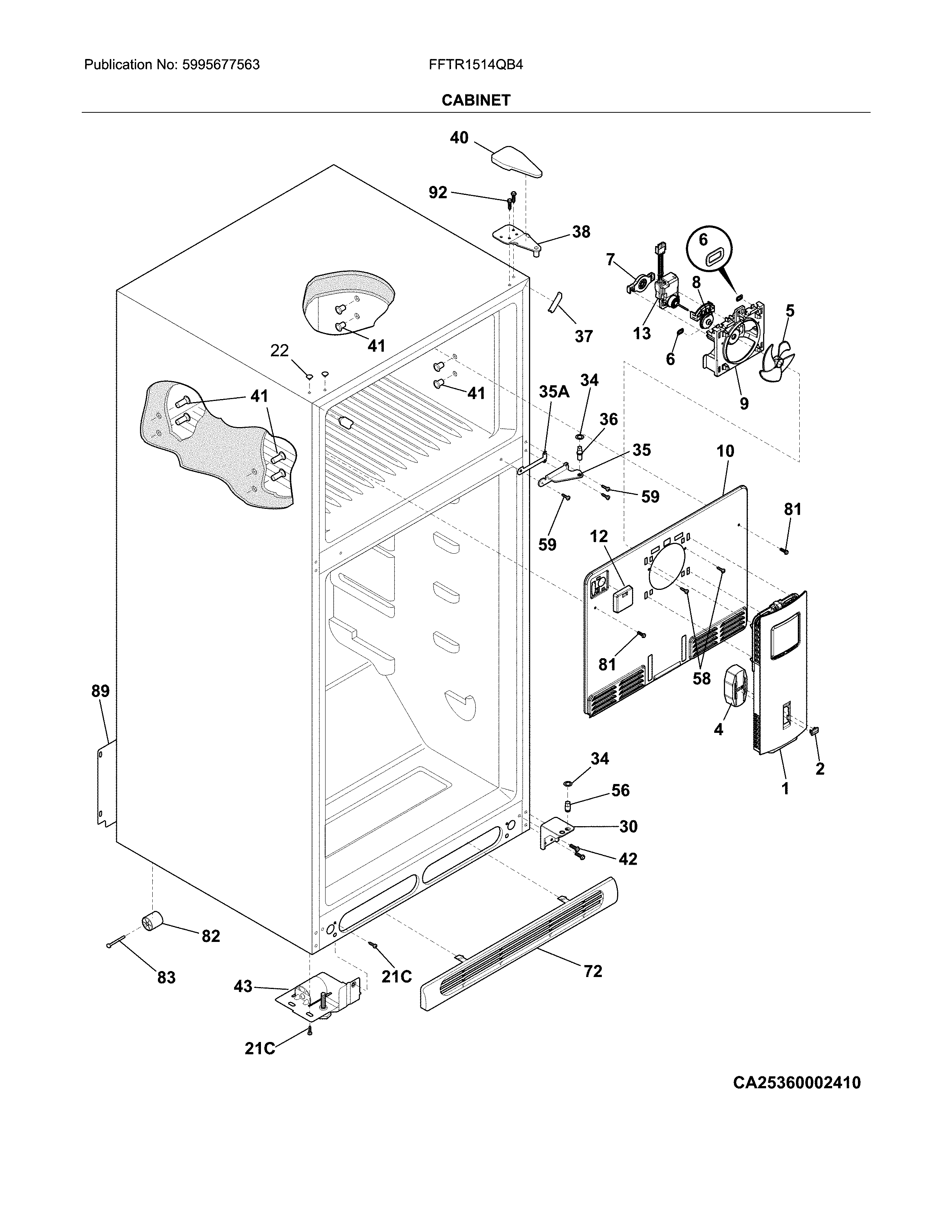

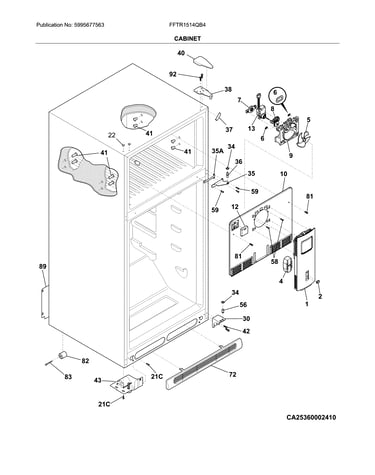

Cabinet diagram

Refrigerator motor

Part #242219201

Replaced by #242077705

?
Manufacturer substitution
This part replaces 242219201. Substitute parts can look different from the original.
BEST SELLER
$84.00
7% OFF Phone Price : $90.00
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$9.69
9% OFF Phone Price : $10.69
In Stock
Frigidaire Refrigerator Door Shelf Rail 240535101
#4

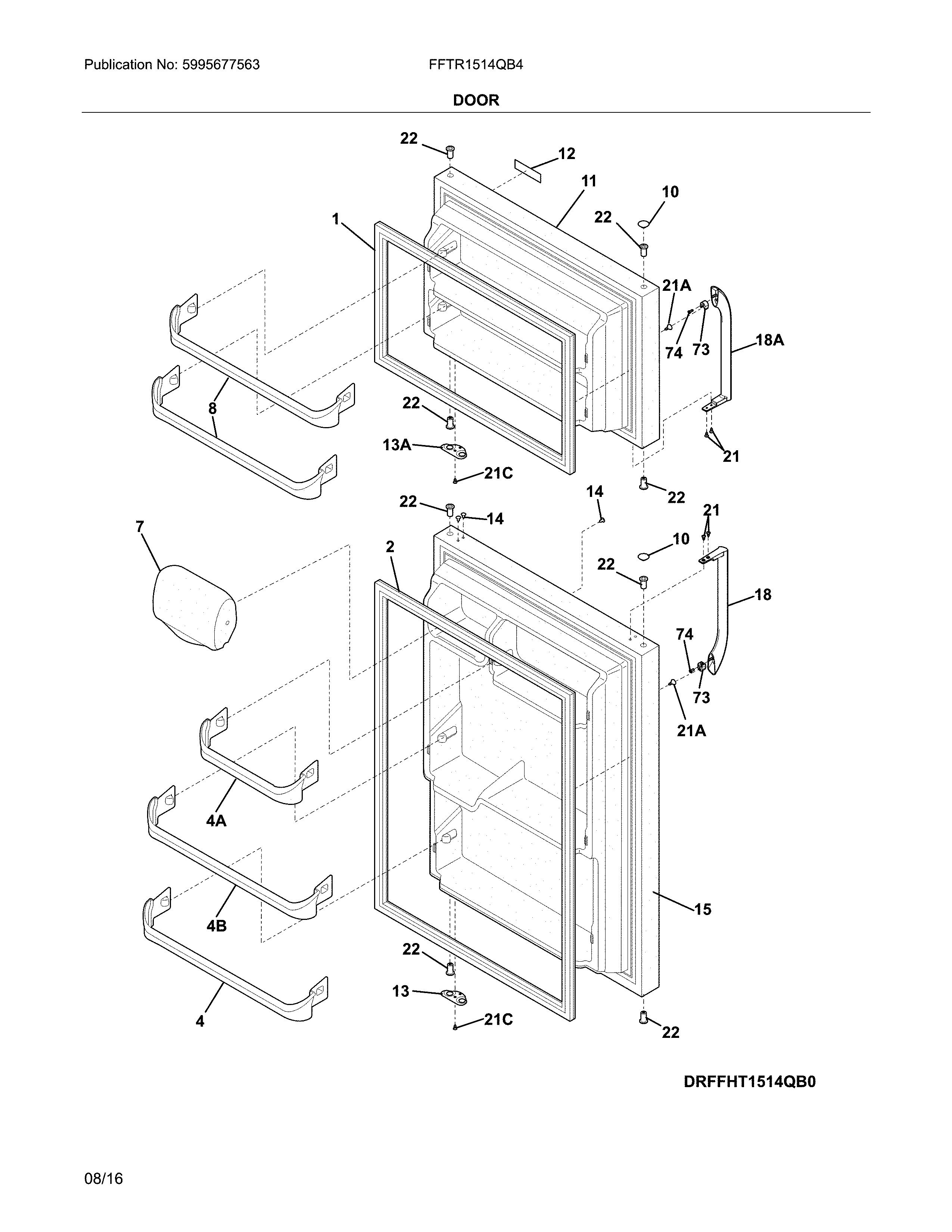

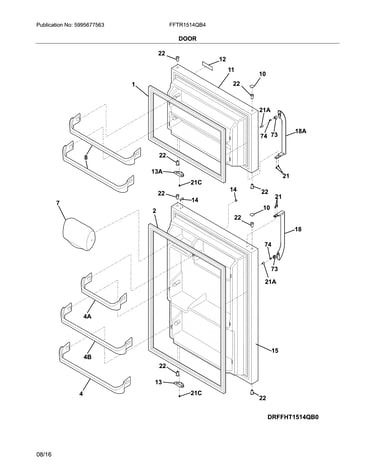

Door diagram

Frigidaire refrigerator door shelf rail

Part #240535101

BEST SELLER
$25.29
19% OFF Phone Price : $31.29
In Stock
Compressor-s 241926702
#29

System diagram

Compressor-s

Part #241926702

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 241926702. Substitute parts can look different from the original.
BEST SELLER
$443.15
$12.00 OFF Phone Price : $455.15
In Stock
Refrigerator Evaporator Fan Blade 242219302
#5

Cabinet diagram

Refrigerator evaporator fan blade

Part #242219302

BEST SELLER
$17.47
10% OFF Phone Price : $19.47
In Stock
Electrolux Refrigerator Temperature Sensor (replaces 242290506) 5303918645
#21A

System diagram

Electrolux refrigerator temperature sensor (replaces 242290506)

Part #5303918645

BEST SELLER
$67.51
8% OFF Phone Price : $73.51
In Stock
