KitchenAid
Electric Wall Oven

Model # KOED527PSS00 Official KitchenAid electric wall oven

Here are the diagrams and repair parts for Official KitchenAid KOED527PSS00 electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

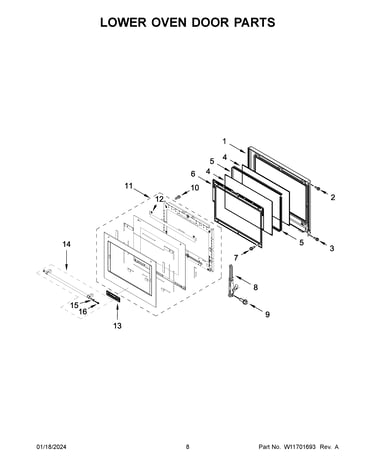

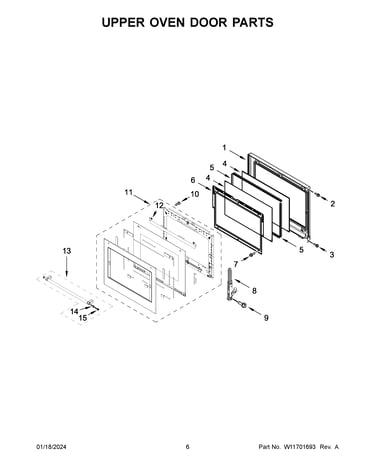

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Range High-limit Thermostat 4449751
#18

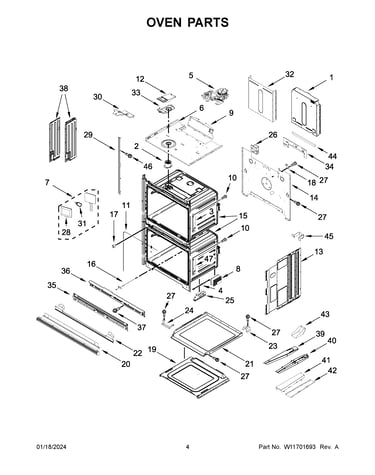

Oven parts diagram

Range high-limit thermostat

Part #4449751

Replaced by #WP4449751

?
Manufacturer substitution
This part replaces 4449751. Substitute parts can look different from the original.
BEST SELLER
$101.25 |
11% OFF Phone Price : $113.25
In Stock
Range Bake Element W11292248
#7

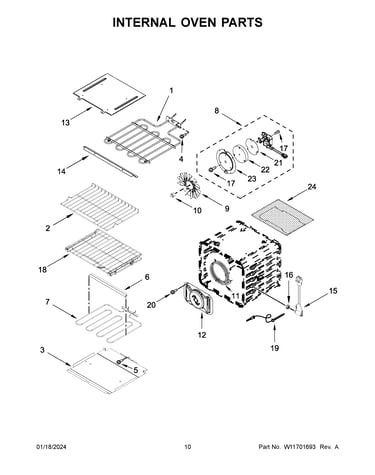

Internal oven parts diagram

Range bake element

Part #W11292248

Replaced by #W11545804

?
Manufacturer substitution
This part replaces W11292248. Substitute parts can look different from the original.
BEST SELLER
$58.25 |
9% OFF Phone Price : $64.25
In Stock
Blower W11397930
#5

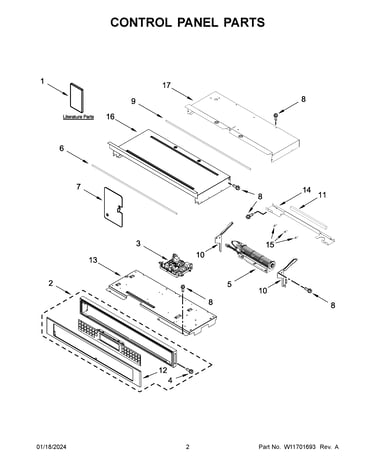

Control panel parts diagram

Blower

Part #W11397930

Replaced by #W11598119

?
Manufacturer substitution
This part replaces W11397930. Substitute parts can look different from the original.
$123.79 |
9% OFF Phone Price : $135.79
In Stock
8-18 X .375 W11249635
#37

Oven parts diagram

8-18 x .375

Part #W11249635

Replaced by #WPY706189

?
Manufacturer substitution
This part replaces W11249635. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Oven Light Bulb W10472384
#31

Oven parts diagram

Oven light bulb

Part #W10472384

Replaced by #WPW10472384

?
Manufacturer substitution
This part replaces W10472384. Substitute parts can look different from the original.
$60.93 |
9% OFF Phone Price : $66.93
In Stock
Appliance Manager, Copernicus (without Power Supply) (lower) W11249217
#3A

Control panel parts diagram

Appliance manager, copernicus (without power supply) (lower)

Part #W11249217

Replaced by #W11598200

?
Manufacturer substitution
This part replaces W11249217. Substitute parts can look different from the original.
$194.90
In Stock
Btm Vent Ass W11369891
#NI

Optional parts (not included) diagram

Btm vent ass

Part #W11369891

$58.84
In Stock
Wall Oven Convection Element W10546519
#11

Internal oven parts diagram

Wall oven convection element

Part #W10546519

$113.18 |
10% OFF Phone Price : $125.18
In Stock
Vent Tube W11085298
#2

Oven parts diagram

Vent tube

Part #W11085298

Replaced by #W11240525

?
Manufacturer substitution
This part replaces W11085298. Substitute parts can look different from the original.
$18.89 |
10% OFF Phone Price : $20.89
In Stock
Glass Liner W10618123
Glass liner

Part #W10618123

Replaced by #WPW10284902

?
Manufacturer substitution
This part replaces W10618123. Substitute parts can look different from the original.
$96.02 |
11% OFF Phone Price : $108.02
In Stock
