Model # AJCH10ACCM2 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCH10ACCM2 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Room Air Conditioner Air Filter WJ85X10041
#1097

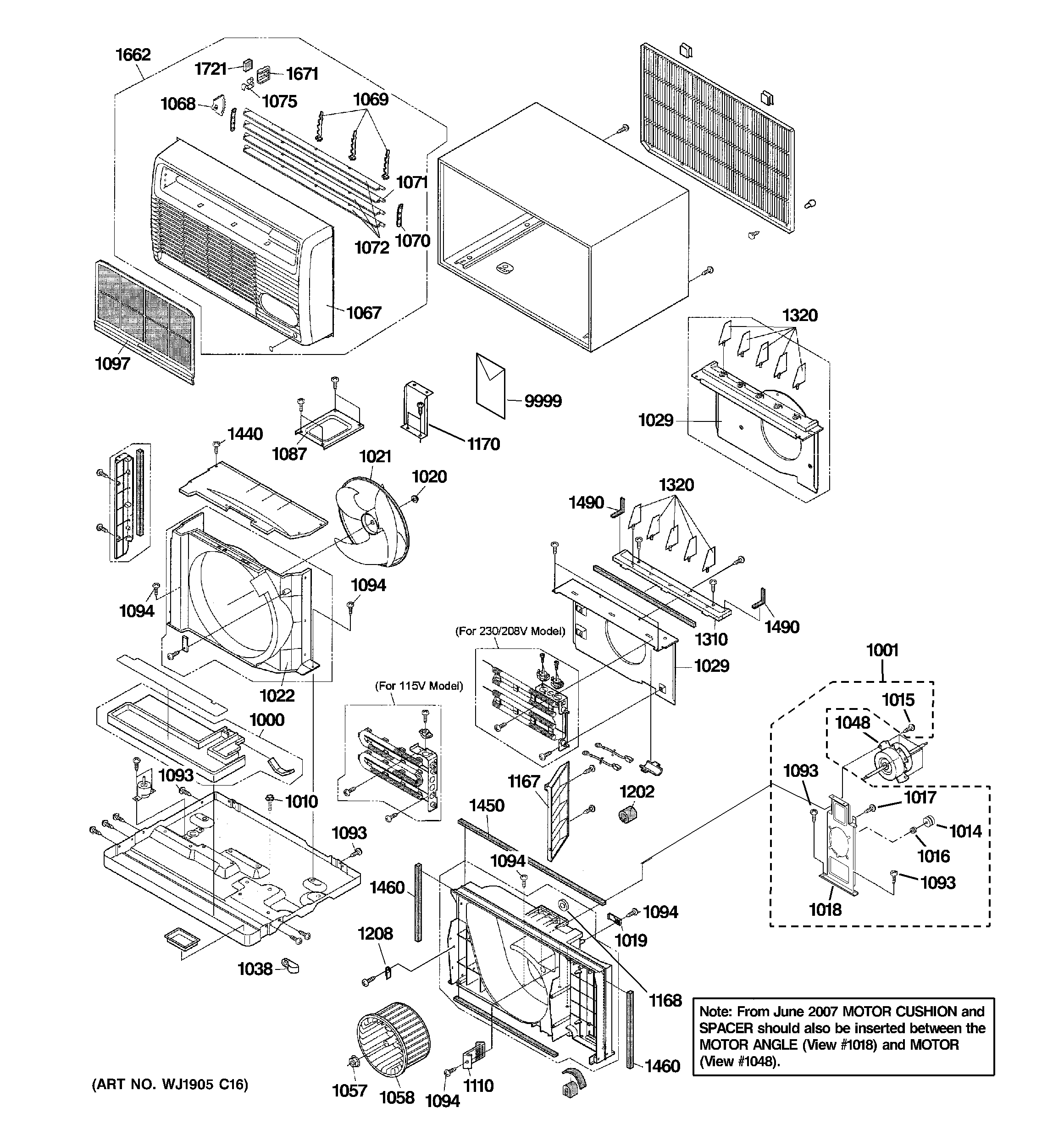

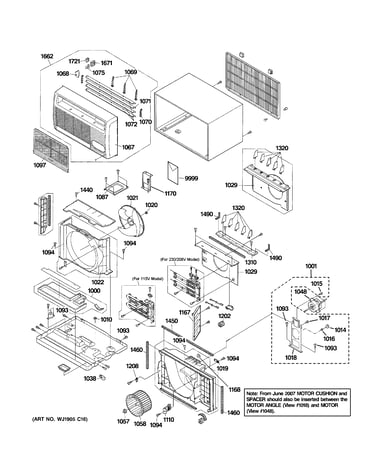

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Room Air Conditioner Control Knob WJ12X10072
#1086

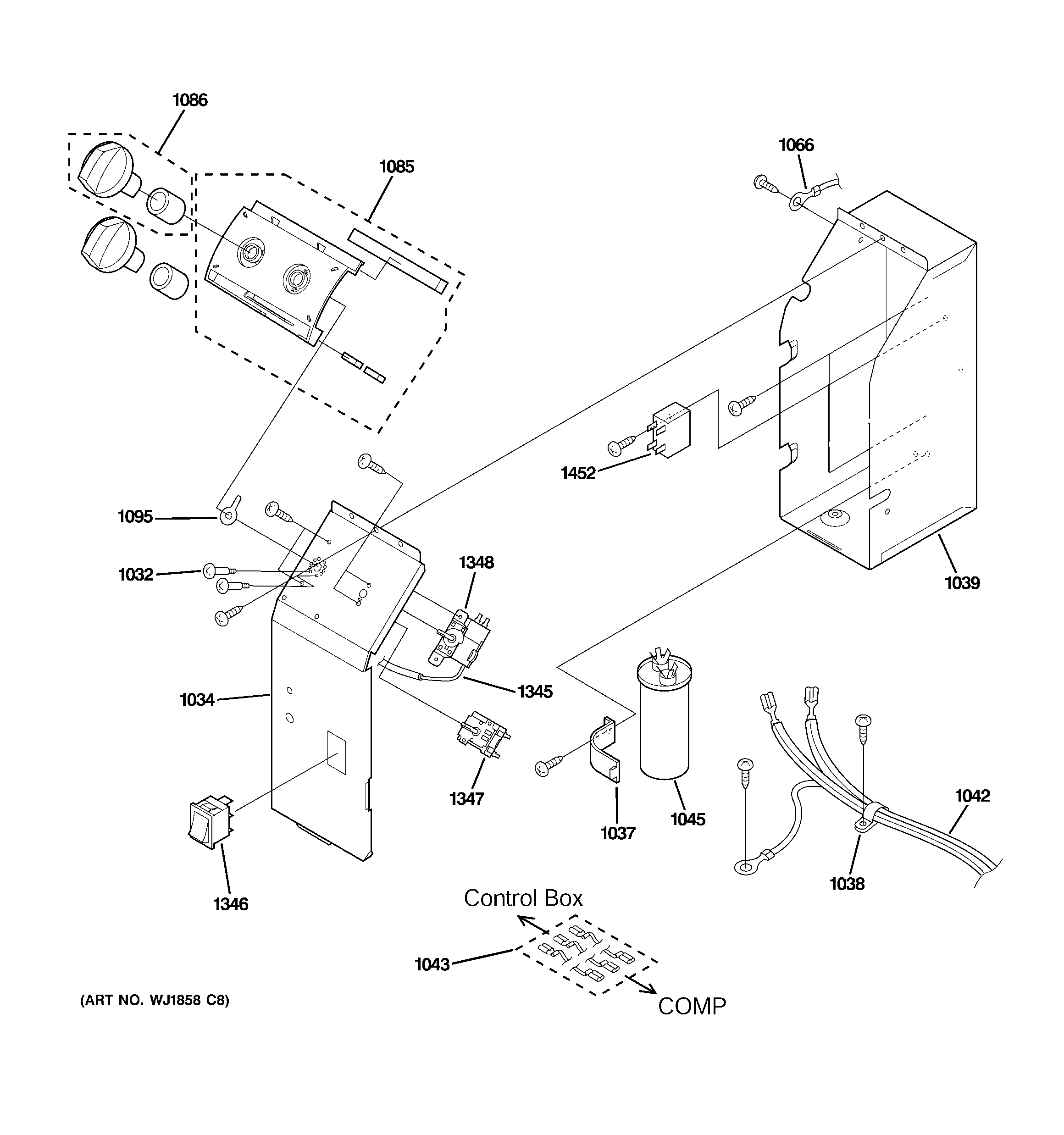

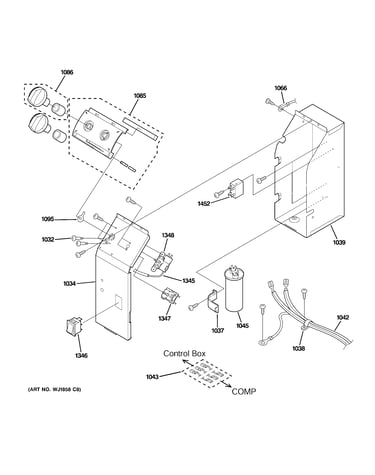

Control parts diagram

Room air conditioner control knob

Part #WJ12X10072

This item is not returnable
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Special Nut WP01X10015
#1079

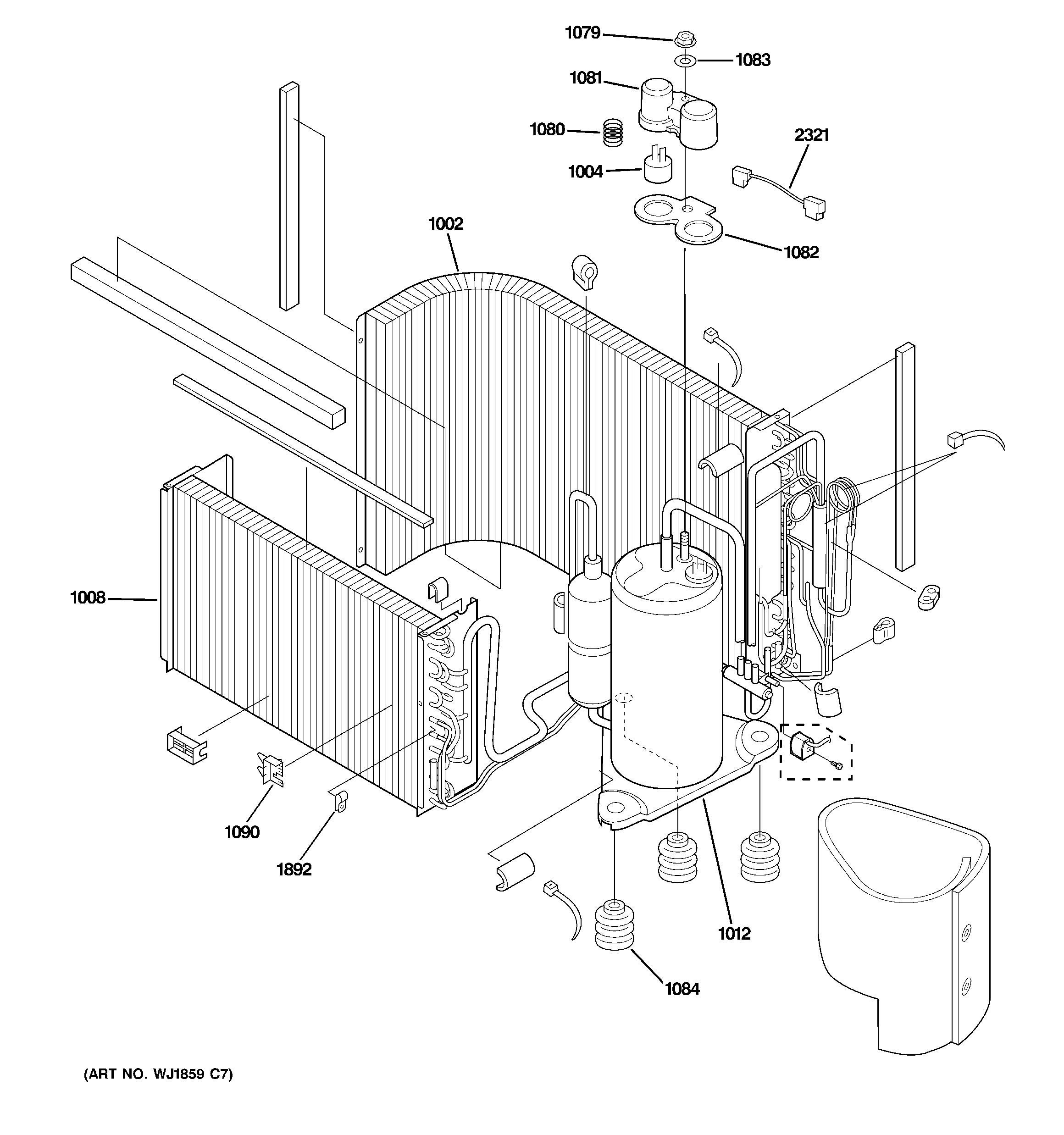

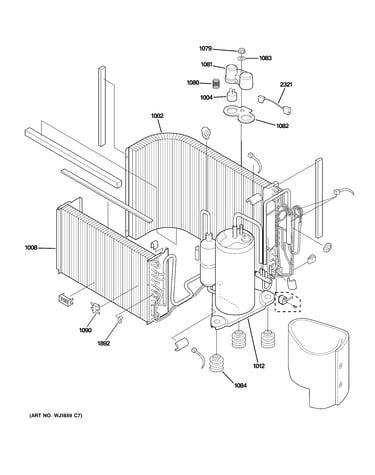

Sealed system & components diagram

Special nut

Part #WP01X10015

This item is not returnable
$4.35
In Stock
Spacer WB02X11329
#1014

Cabinet & components diagram

Spacer

Part #WB02X11329

This item is not returnable
$2.20
In Stock
Special Screw WP01X10021
#1440

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Om/ii J-mode 49-7542
#9999

Cabinet & components diagram

Om/ii j-mode

Part #49-7542

$17.99
In Stock
Capacitor Clamp WJ03X10037
#1037

Control parts diagram

Capacitor clamp

Part #WJ03X10037

The manufacturer no longer makes this part, and there's no substitute part

Louver Link WJ71X10048
#1070

Cabinet & components diagram

Louver link

Part #WJ71X10048

The manufacturer no longer makes this part, and there's no substitute part

Louver WJ71X10523
#1310

Cabinet & components diagram

Louver

Part #WJ71X10523

The manufacturer no longer makes this part, and there's no substitute part

Control Box WJ76X10232
#1039

Control parts diagram

Control box

Part #WJ76X10232

The manufacturer no longer makes this part, and there's no substitute part
